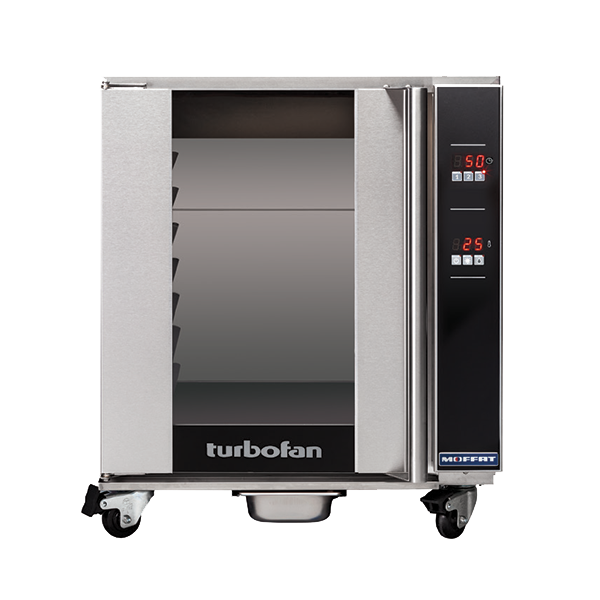

The Moffat H8D-FS-UC Mobile Heated Cabinet
The Moffat H8D-FS-UC Turbofan Full-Size Undercounter Holding Cabinet offers precise temperature control and timed holding for up to eight full-size sheet pans. Designed to sit neatly beneath E32D series ovens or work as a standalone unit, it supports high-efficiency kitchen operations.
Digital Controls with 3 Hold Timers: The cabinet features an easy-to-use interface with a large LED display and three independent hold timers, giving you the flexibility to manage multiple batches or menu items with ease.
Constructed with a stainless steel interior and exterior, this unit includes a low-velocity fan system for even heat distribution, dual halogen lamps, and 2½″ locking casters for mobility. The H8D-FS-UC is a plug-and-play unit equipped with a NEMA 6-15P cordset for 208–240V operation.
About Moffat
Moffat is recognized for its engineering expertise in high-performance convection ovens and proofing systems tailored for demanding foodservice environments. Widely used in bakeries, QSRs, and institutional kitchens, Moffat equipment is known for its compact footprints, fast recovery times, and even bake results. The brand’s Turbofan series is especially popular for its ease of use and consistent output in high-volume operations. Moffat supports its products with a strong North American service network and readily available parts.
Product Features
-
Holds up to (8) full-size 18" x 26" sheet pans
-
Digital display with temperature and timer controls
-
Temperature range: 68–194°F (20–90°C)
-
Three independent hold timers
-
Low-velocity internal fan system for gentle air circulation
-
Large ¾" LED readout for easy viewing
-
Stainless steel front, sides, top, and interior
-
Side-hinged door with 0.2″ thick glass pane
-
Dual halogen cabinet lamps
-
Cabinet drain with internal condensate pan
-
Mounted on 2½″ casters (2 swivel with locks, 2 rear rigid)
-
Compact undercounter 32″ height design
Free Shipping
Ships in 2 Business Days
Product Resources
See all from Moffat
Specifications
| Pan Capacity | 8 full-size sheet pans (18" x 26") |
| Tray Spacing | 2⅞″ / 74 mm |
| Temperature Range | 68–194°F / 20–90°C |
| Control Display | Digital temperature and timer control |
| Hold Timers | 3 independent timers |
| Fan System | Low-velocity circulation fan |
| Heating Power | 2.05 kW |
| Electrical | 208–240V / 60Hz / 1-Phase / 8.5A / NEMA 6-15P |
| Exterior Dimensions | 28⅞″(W) × 31⅞″(H) × 31⅞″(D) |
| Net Weight | 179 lbs / 81 kg |
| Packing Weight | 218 lbs / 99 kg |
| Packing Volume | 28.3 ft³ / 0.80 m³ |
| Casters | 2 front swivel with locks, 2 rear rigid, 2½″ diameter |
| Construction | Stainless steel front, sides, top, and interior |
| Door Type | Side-hinged with 0.2″ thick glass window |
| Lighting | Dual halogen lamps inside cabinet |
| Cleaning | Removable plug-in door seal; stainless steel panels |
Warranty
Labor
Parts
-
ETL US & Canada
-
NSF Approved
