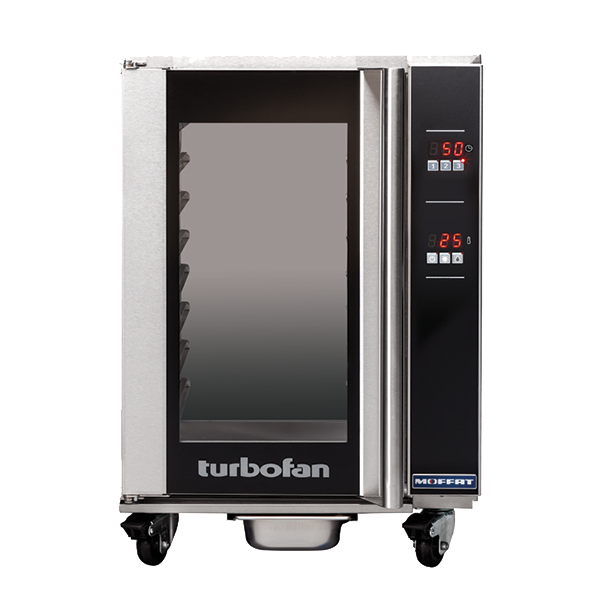

The Moffat H8D-UC Mobile Heated Cabinet
The Moffat H8D-UC Turbofan Half-Size Undercounter Holding Cabinet provides efficient, consistent heat retention for up to eight half-size pans. With a compact design just under 32″ in height, it's perfect for undercounter installation or standalone use.
Digital Timer and Temperature Controls: Equipped with an easy-to-read digital display, this cabinet offers precise temperature control and up to three independent hold timers. A low-velocity fan circulates heat gently, maintaining food quality without drying out.
Built from stainless steel with a side-hinged glass door, the H8D-UC includes dual halogen lights, a condensate pan, and 2½″ locking casters for easy mobility. Plug-and-play installation with a standard 120V NEMA 5-15P cordset makes this cabinet a reliable choice for any kitchen workflow.
About Moffat
Moffat is recognized for its engineering expertise in high-performance convection ovens and proofing systems tailored for demanding foodservice environments. Widely used in bakeries, QSRs, and institutional kitchens, Moffat equipment is known for its compact footprints, fast recovery times, and even bake results. The brand’s Turbofan series is especially popular for its ease of use and consistent output in high-volume operations. Moffat supports its products with a strong North American service network and readily available parts.
Product Features
-
Holds 8 half-size sheet pans or 8 12" x 20" steam pans
-
Digital display with 3 hold timers
-
Temperature range: 68–194°F (20–90°C)
-
Low-velocity fan system for gentle air circulation
-
Compact 32" height for undercounter installation
-
Stainless steel interior and exterior
-
Side-hinged door with 0.2″ thick glass window
-
Dual halogen cabinet lights
-
Continuous door seal for heat retention
-
Cabinet drain to internal condensate pan
-
Mounted on 2½″ casters (2 swivel with locks, 2 rear rigid)
-
Removable plug-in oven door seal for easy cleaning
Free Shipping
Ships in 2 Business Days
Product Resources
See all from Moffat
Specifications
| Pan Capacity | 8 half-size sheet pans |
| Tray Spacing | 2⅞″ / 74 mm |
| Temperature Range | 68–194°F / 20–90°C |
| Control Display | Digital temperature and timer with ¾″ high LED readout |
| Hold Timers | 3 independent timers |
| Fan System | Low-velocity internal fan |
| Heating Power | 1.3 kW |
| Electrical | 110–120V / 50/60Hz / 1-Phase / 10.4A / NEMA 5-15P |
| Exterior Dimensions | 24″(W) × 31⅞″(H) × 26¾″(D) |
| Net Weight | 143 lbs / 65 kg |
| Packing Weight | 183 lbs / 82.8 kg |
| Packing Volume | 18.7 ft³ / 0.53 m³ |
| Casters | 2 front swivel with locks, 2 rear rigid, 2½″ diameter |
| Construction | Stainless steel interior and exterior, aluminized steel rear |
| Door Type | Side-hinged with 0.2″ thick glass |
| Lighting | Dual halogen cabinet lamps |
| Cleaning | Removable plug-in door seal, stainless steel surfaces |
Warranty
Labor
Parts
-
ETL US & Canada
-
NSF Approved
