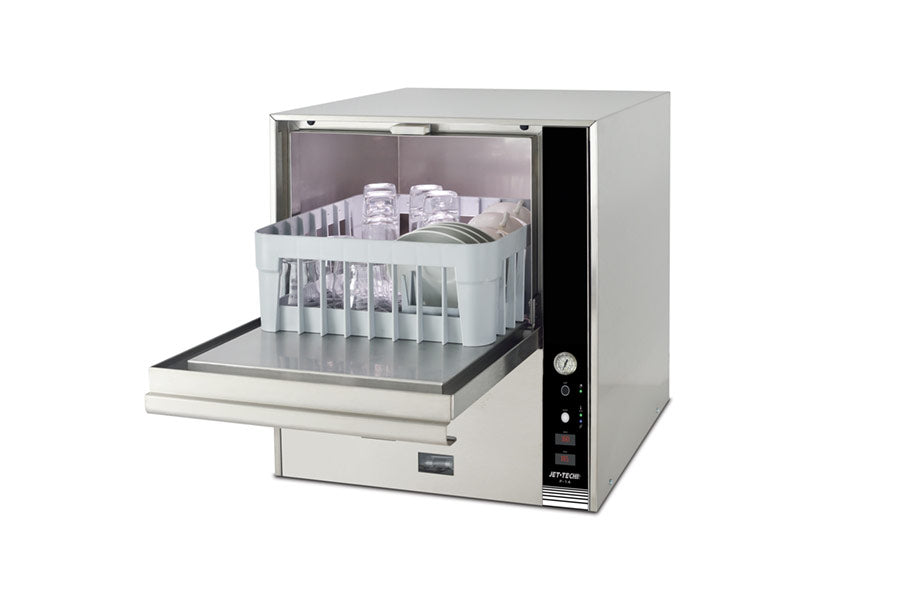

The Jet-Tech F-14 Countertop Warewasher
Ideally suited for smoothie and ice-cream shops, small spaces, counter-top bars, mobile carts, food courts, lounges, boats, caterers, dental offices, day-care operators, guest houses, room service, espresso bars, kiosks, laboratories and much more!!
Included:
- (1) open rack - 13.75" x 13.75" (350 mm. X 350 mm.)
- (1) 4-place insert #30131 for blender containers
- (1) 9-place insert #300132 for glassware
- (1) 6-place insert #30037 for plates up to 10.5" diameter
- (1) 15-place insert #30035 for saucers and/or small plates
- (1) cutlery holder #30026
Optional:
- 16-place insert #30133 for glassware
- Drain water tempering kit
- Pressure reducing valve (PRV)kit
Hourly production
20 racks of various items OR depending on rack insert used, the following quantities can be washed and rinsed:
- 4-place insert for Blender Containers - 80 / hr.
- 9-place insert for Glassware - 180 / hr.
- 16-place insert for Glassware - 320 / hr.
- 6-place insert for Dishes - 120 / hr.
Connecting your new F-14
This dishwasher must be installed on a level, rigid, nonflammable surface. Ensure that the machine is level by installing the feet (shipped in the wash tank of the machine) and adjusting the leveling. Be sure to provide adequate space for water, drain and electrical connections. The rear panel must be removed for the hook ups and must be replaced after the connections are made.
Electrical Supply
A 115 Volt - 20 Amp circuit breaker is required for this washer. A power-cord with NEMA 5-20 plug is provided for your convenience.
Water Supply
A 3/4" NPT coupling is required with 30 psi. dynamic pressure. A water pressure regulator* may be required. The water pressure cannot be less than 30 psi or exceed 30 psi. If the water pressure exceeds prescribed amount, you will get inconsistent washing temperature, premature failure and thus may void the warranty.
Incoming water temperature must be 140°F (60°C). An easily accessible shut-off valve is recommended, making installation, service and maintenance easier. A flexible fill hose is provided to make installation, servicing and maintenance easier.
Make sure that the water is free from calcium and hard water deposits. For these situations, an inline water cartridge system is highly recommended.
Drain Connection
This washer has a gravity type drain. Since this unit is a Counter-Type
installation, the flexible drain hose provided should be connected to the drain outlet elbow at the rear of the unit behind the rear access panel; and extended through the side opening directly into a floor drain or sink (see Figure)
Note: All panels must be replaced on the unit when the installation is completed.
DO NOT manually fill wash tank with water. The dishwasher will fill automatically when the power is turned ON.
Product Features
-
Completely automatic wash and rinse cycles including one was program at 150°F. (65°C.) and one rinse program at 185°F. (85°C.)
-
Built-in automatic detergent pump for consistent results each time
-
Built-in automatic rinse-additive pump for sparkling final results
-
Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
-
Constructed of insulated double-walled panels for low heat and noise emissions
-
Unique and compact size for easy placement on a counter top, stand or mobile cart
-
Door opening is designed to accept items up to a maximum height of 11"
-
Integrated stainless steel booster with insulated lining
-
Full width interior scrap screens of durable stainless steel
-
Internal screen for protection of motor-pump
-
Safety micro-switch on the door to interupt wash pump action
-
Lower revolving wash and rinse arm with lateral upper fixed rinse arms built of fiberglass designed for maximum results and ease of maintenance
-
Independently-operated heating elements serve to reduce overall energy costs by lowering amperage consumption
-
Thermostatic regulated control of both wash and rinse water
-
Automatic fill and water level regulation of the wash tank
-
Individual digital gauges for both wash and rinse temperatures
-
Vertical integrated control panel for simple access and technical maintenance
Free Shipping
Usually ships in 2 Business Days
Completely automatic wash and rinse cycles including one was program at 150°F. (65°C.) and one rinse program at 185°F. (85°C.)
Built-in automatic detergent pump for consistent results each time
Built-in automatic rinse-additive pump for sparkling final results
Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
Constructed of insulated double-walled panels for low heat and noise emissions
Product Resources
Specifications
| Equipment type | Glass Washers |
| Brand | Jet-Tech |
| Rack capacity | 13.75" x 13.75" (350mm x 350 mm) |
| Complete operating cycle | 165 seconds wash and 15 seconds rinse |
| Wash tank capacity | 2.1 U.S. gallons (8 litres) |
| Wash tank element | 1400 watts (1.4 Kw) |
| Wash tank temperature | 150°F (65°C) |
| Booster capacity | 0.53 U.S. gallons (2.0 litres) |
| Booster element | 1400 watts (1.4 Kw) |
| Rinse (water) temperature | 185°F (85°C) |
| Maximum power absorption | 1500 watts (1.5 Kw) |
| Wash motor-pump | 100 watts |
| Power supply | 110 Volt / 60 Hz (power cord with NEMA 5-20 plug included) |
| Optional | 220 Volt / 50 Hz - Special Order (power cord and plug included) |
| Amperage | Single phase - 13.5A |
| Recommended pressure | 30 p.s.i (dynamic) |
| Water consumption | 0.5 U.S. gallons per cycle (2.9 litres) |
| Water inlet connection | 3/4" male garden hose fitting (hose included) |
| Drain connection | 1" ID hose connection (hose included) |
| Width | 19.75" |
| Height | 23.75" |
| Depth | 19.75" |
| Shipping Weight | 87 lbs. |
Warranty
Labor
Parts
-
ETL Sanitation Listed
-
ETL US & Canada
-
Energy Star Certified
