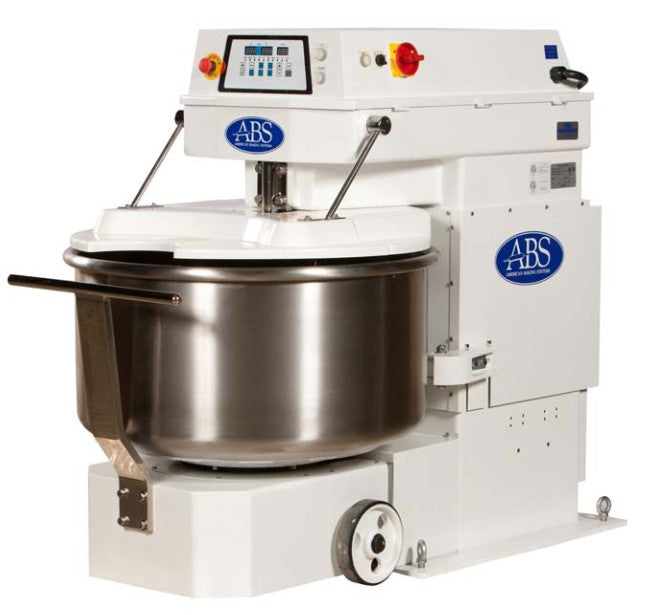

The American Baking Systems ABSRBM-200A Spiral Mixer
The American Baking Systems ABSRBM-200A Spiral Dough Mixer is a heavy-duty, high-yield mixer ideal for commercial dough production. Featuring a removable stainless steel bowl with a 440 lb dough capacity and 250 lb flour capacity, this machine is built for efficiency and durability. It includes two-speed digital controls with a manual backup, a reversible bowl, and a solid, dust-free bowl cover. Operating at low and high speeds of 105 and 210 RPM respectively, this powerful 18 HP mixer provides superior performance. Its robust construction ensures reliable operation in high-volume bakeries and production facilities.
About American Baking Systems
American Baking Systems supplies commercial bakeries with well-engineered, reliable equipment backed by more than six decades of industry experience. ABS partners with manufacturers across Europe, Asia, and North America to bring customers efficient production technology and globally sourced value. All equipment is supported by a nationwide network of over 300 authorized service agencies, with readily available replacement parts through U.S. electrical supply channels. ABS’s design choices emphasize long-term maintainability and access to support, making it a trusted option for bakeries and institutional kitchens alike. Their commitment to service ensures customers can keep operations running with minimal disruption.
Product Features
-
440 lb dough capacity and 250 lb flour capacity
-
Removable stainless steel bowl
-
Two-speed digital controls with manual backup
-
Reversible bowl with solid, dust-free cover
-
Powerful 18 HP motor
-
RPM: 105 (low) / 210 (high)
-
6-foot cord with 5745-AN Plug, 3 wire + ground
-
Recommended anchoring to the floor
-
Heavy-duty design for high-yield dough mixing
-
Made for bakeries and industrial production
Free Shipping
Ships in 2 Business Days
See all from American Baking Systems
Specifications
Dough Capacity | 440 lbs (200 kg) |
Flour Capacity | 250 lbs |
Motor Power | 18 HP |
Spiral RPM | 105 (low), 210 (high) |
Voltage | 208/220V |
Phase | 3 Phase |
Frequency | 60 Hz |
Amps | 50 |
Plug / Cord | 6-ft cord with 5745-AN Plug, 3 wire + ground |

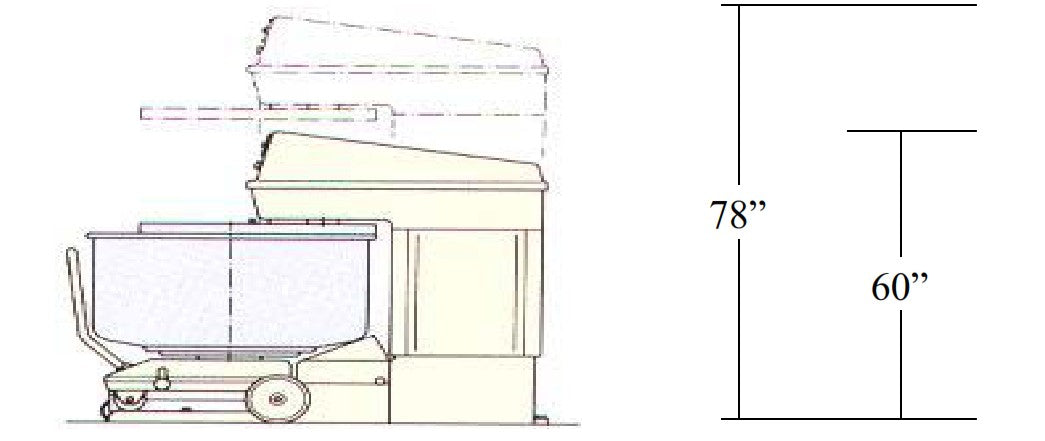

External Dimensions (WxLxH) | 48" x 72" x 60" (mixing position) |
Max Height | 78" (with head up) |
Shipping Weight | 3,300 lbs |
Shipping Dimensions | 78" D x 50" W x 68" H |
Recommended Spacing | 18" rear, 30" top clearance |
Warranty
Labor
Parts
