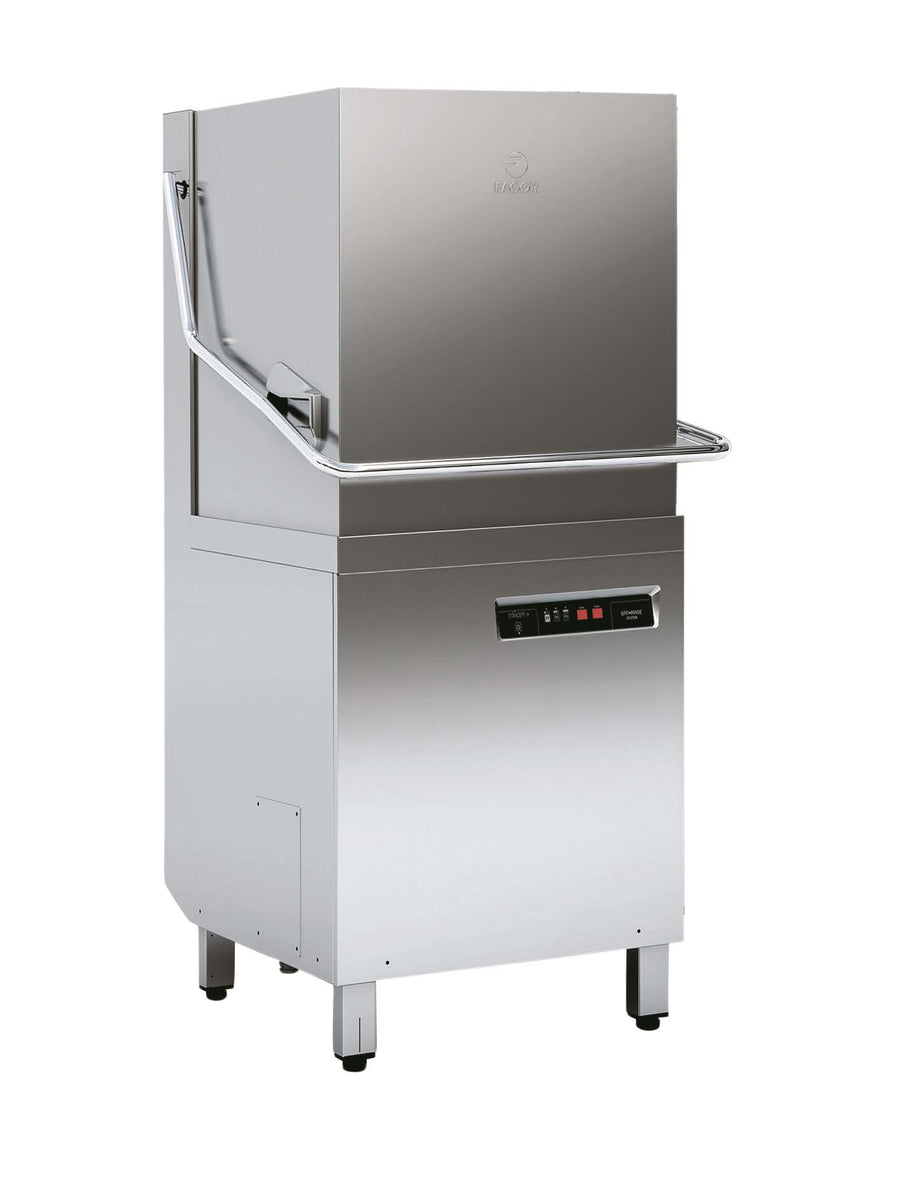

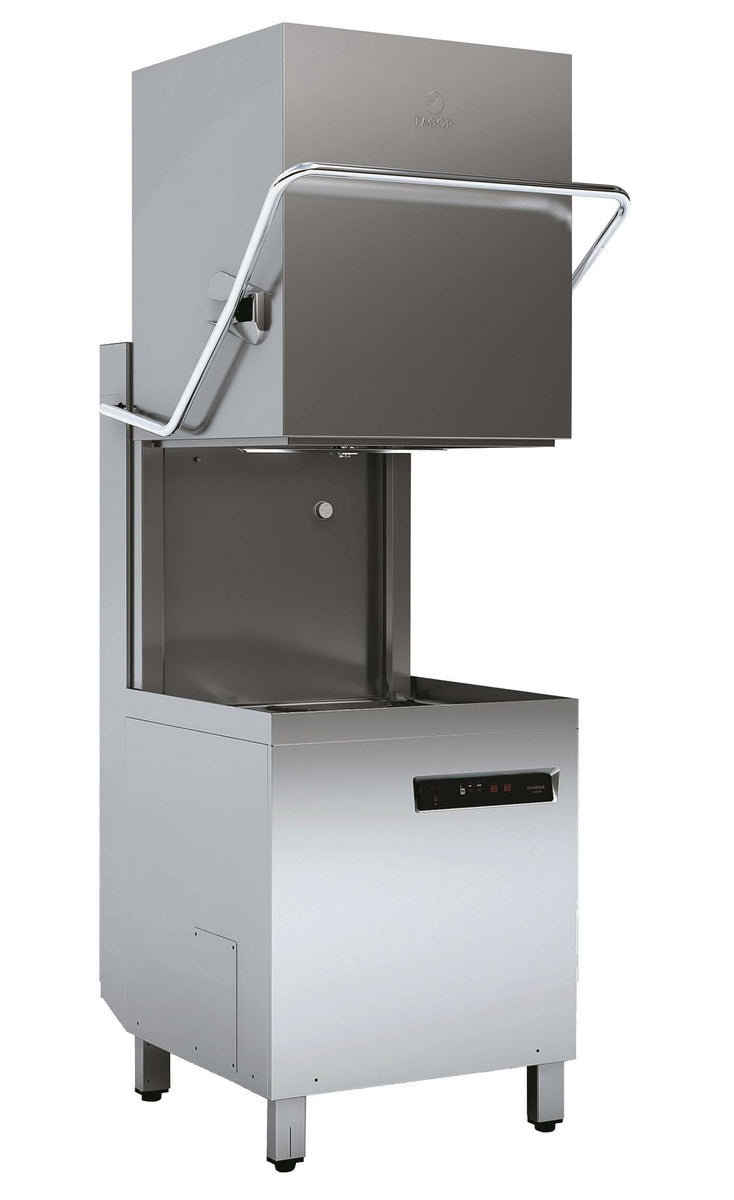

The Fagor COP-174W Hood Type Dishwasher
The Fagor EVO Concept Plus dishwasher model COP-174W is a high-temperature unit that sanitizes dishes with hot water instead of chemicals. The Concept Plus dishwashers have the following features: Effi Wash, Effi Rinse, Soft Start, Multi-tension, and Soft Lift counterbalanced hood systems. The unit is constructed with ANSI 304 stainless-steel, stamped design including wash tank, guides and control panel. IPX4 - Protection against water jets - control panel. Built-in detergent pump and rinse-aid dispenser. 17” clearance for ware. Corner or straight-through operations.
Fagor’s Concept + range of dishwashers offer a highly efficient and effective washing and rinsing system, becoming the perfect solution for those locations with a low-pressure water network and high production requirements. They are made in durable stainless steel, with electromechanical components and simple digital controls for a user-friendly operation.
Effi Wash:
Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
Effi Rinse:
Built-in water pressure pump and air break system assuring the best sanitation result, with a linear 180°F full rinsing cycle. It also works with low input water pressure, fitting in installations that do not reach the minumum recommended 15 -25 psi.
Soft Start:
Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level in your facility.
Digital Controls:
Simple digital control panel for intuitive and user-friendly operation.
Included Accessories:
Each unit comes standard with one (1) flat rack, one (1) peg rack and one (1) cutlery container.
Optional Accessories:
- Racks for dishes, glasses and trays
- Cutlery containers
- Drain tempering valve
Product Features
-
Electronic controls, IPX4-proof. Efficient 3 wash cycles.
-
All heavy-duty S/S, advanced soft lift hood system.
-
Field adjustable straight thru or corner operations.
-
Built-in detergent and rinse aid dispenser.
-
Water pressure pump. Soft Start.
-
Linear 180°F full rinsing cycle for perfect sanitation.
-
60 Rack per hour capacity
Free Shipping
Ships in 2 Business Days
Product Resources
Specifications
Wash Cycles (seconds) | 55-75-120 |
Continuous cycle | Yes |
Electronic control panel and digital display | Yes |
Racks per hour | 60 |
Dishes per hour | 1500 |
Glasses per hour | 2160 |
Standard Rack size (inches) | 19 3/4 x 19 3/4 |
Weight (Net/Crated ) lbs | 347 / 363 |

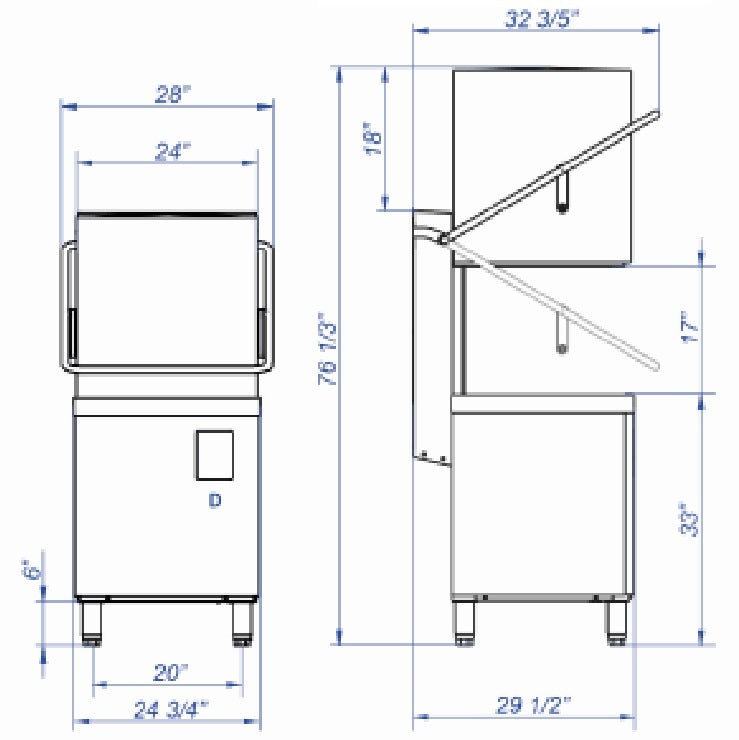

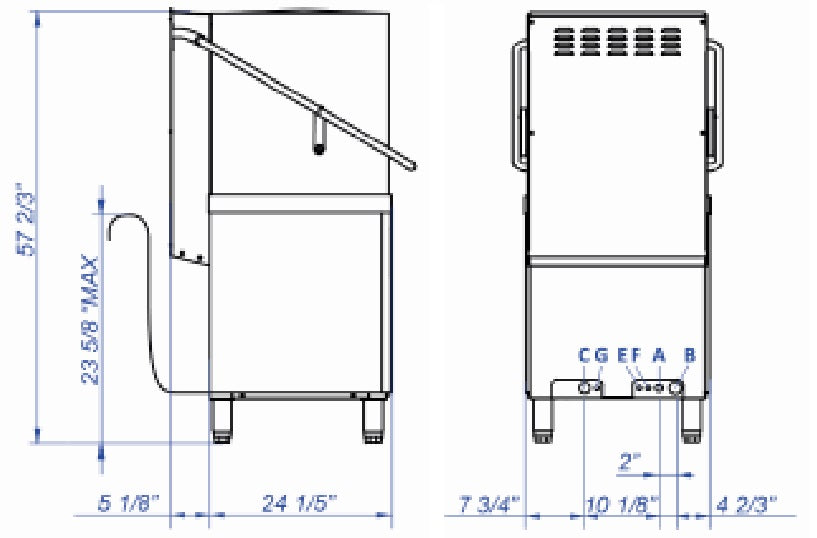

Width | 24 3/4 |
Depth | 29 1/2 |
Height | 57 2/3 |
Useful Loading Height (clearance) | 17 3/8 |
Open Hood Height | 81 1/3 |
Wash Tank | 8.70 Gallons |
Boiler | 2.37 Gallons |
Water consumption per cycle | 0.53 Gallons |
Wash pump motor (HP) | 1 |
Tank heating element | 3.27 - 4.29 kW |
Boiler/Booster heating element | 8.71 / 13.07 kW |
Wash pump(s) | 3.31 kW |
Rinse pressure pump | 0.26 kW |
Total power | 12.77 - 18.76 kW |
Washing | 150 °F |
Rinsing | 180 °F |
Water Protection Rating | IPX4 |
Noise level (dBA) | <65 |
Detergent & water pump | Yes |
