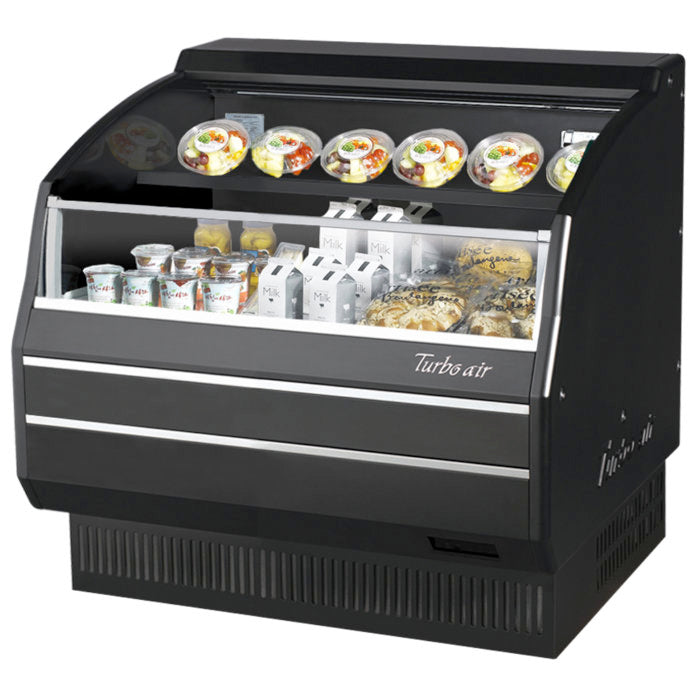

The Turbo Air TOM-40LB-SP-N Horizontal Open Display Merchandiser
Self-cleaning condenser device
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield optimizes the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages. Its elegant contemporary euro design will enhance any store application. Ideal for eye-catching displays and convenient access with fast service in high traffic areas.
Interior materials available in two standards
SP: Stainless steel interior for sanitary purposes
SP-A: Black coated interior with mirrored sides for maximized display effects
Solid side panels used to ensure durability
Standard back-guard improves airflow
Perforated interior back wall and top for improved air flow
Foamed with polyurethane, high-density cell insulation (CFC free)
Front air intake and rear air discharge
STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• LED interior lighting
• Standard color comes in black only
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 80°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
Product Features
- Low-profile
- 7.4 cu. ft. capacity
- 39″ W x 34-5/8″ D x 46-1/8″ H
- Self-cleaning condenser
- Open front
- Tempered glass front shield
- Self-contained
- Plug-in installation
- Front air intake & rear air discharge
- (1) adjustable stainless steel shelf
- LED lighting
- Black exterior
- Stainless steel interior (-SP) or Black coated interior with mirrored sides option (-SP-A)
- 115v/60/1
- 6.9 Amps
- 3/4 HP
- NEMA 5-15P
- CSA-Sanitation
- cCSAus
Free Shipping
Usually ships in 2 Business Days
Product Resources
See all from Turbo Air
Specifications
Voltage | 115/60/1 |
Plug Type | NEMA 5-15P |
Full Load Amperes | 6.9 |
Compressor HP | 3/4 |
Refrigerant | R-290 |
Cubic Feet | 7.4 |
Exterior Dimension (L x D x H) (in.) | 39 x 34 5/8 x 46 1/8 |
Interior Dimension (L x D x H) (in.) | 36 5/8 x 24 x 17 1/2 |
Number of Shelves | 1 |
Shelf Size (in.) | 36 1/2 x 10 3/4 |
Power Cord Length (in.) | 59 1/8 |
Net Weight (lbs.) | 317 |
Gross Weight (lbs.) | 450 |
Warranty
Labor
Parts
Compressor
