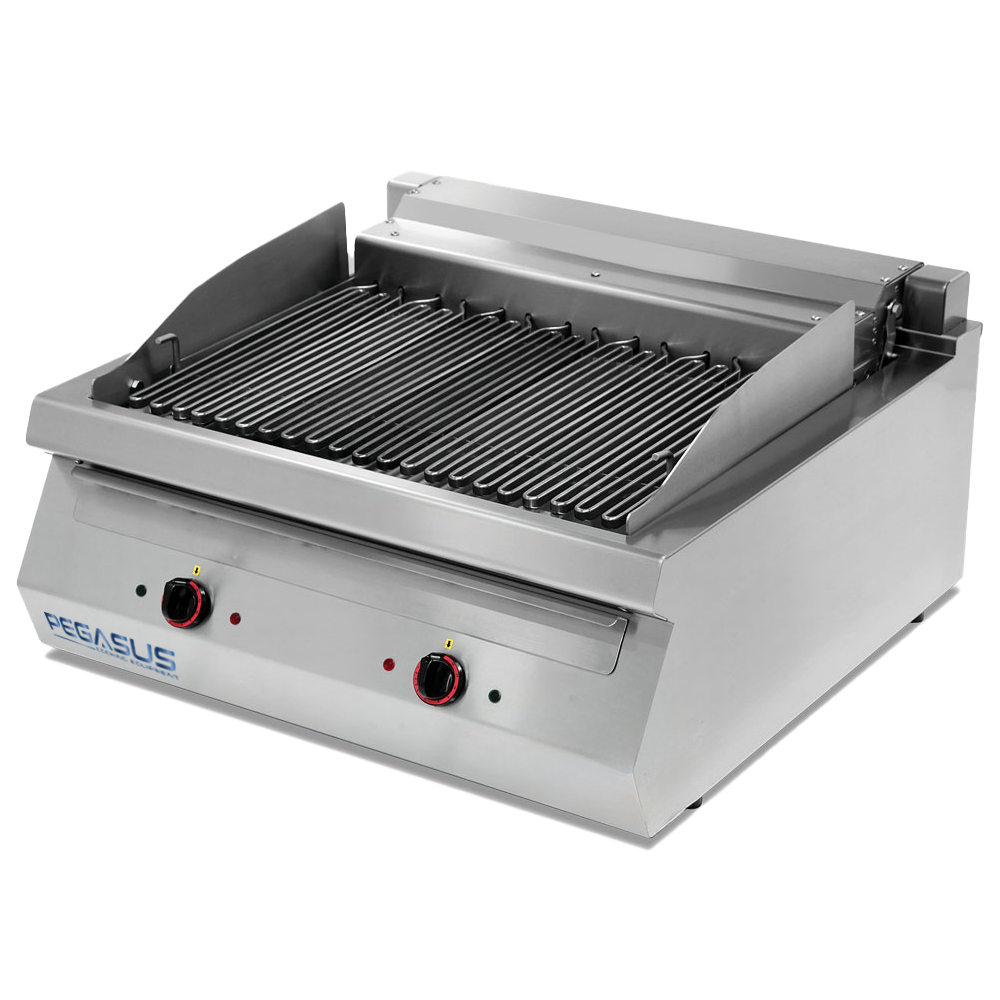

The Pegasus CB-48E Electric Charbroiler
The Pegasus CB-48E Electric Charbroiler is the largest model in the Pegasus charbroiler line, offering maximum cooking capacity in a countertop design. With a 48-inch width, lift-up broiling elements, and infinite temperature controls, this unit ensures fast, even cooking with precision control for high-volume foodservice operations.
Built with a full stainless steel body, concealed grease drawer, removable cook-top grate, and heavy-duty 4" legs, the CB-48E is designed for durability and easy cleaning. Its field convertible electrical setup (208V, 3-phase or 1-phase) provides installation flexibility, making it a reliable choice for busy professional kitchens.
Product Features
-
48" wide countertop electric charbroiler
-
Lift-up broiler/heating elements for fast, efficient cooking
-
Infinite temperature control with chrome knobs
-
Stainless steel body with stainless steel grease drawer
-
Flame-free raised cast iron ribs with recessed heating elements
-
Removable cook-top grate, grease tray, and splatter guards
-
9-qt stainless steel water pan drawer
-
2.75" stainless steel tapered splash guard
-
Heavy-duty 4" cast nickel-plated legs
-
Field convertible from 3-phase to 1-phase
Free Shipping
Ships in 2 Business Days
Product Resources
Specifications
Cooking Width | 48" |
Power | 13.75 kW |
BTU Equivalent | 46,911 |
Voltage | 208V |
Phase | 3-Phase (field convertible to 1-Phase) |
Nominal Amps (208V 3P) | 38 |
Nominal Amps (208V 1P) | 72 |
Dimensions | 48.0" (W) x 16.9" (H) x 34.9" (D) |
Shipping Dimensions | 62.4" (W) x 19.7" (H) x 37.8" (D) |
Shipping Weight | 176 lb |
Construction | Stainless steel body |
Heating Elements | 6 incoloy sheath-type |
Controls | Infinite temperature controls with chrome knobs |
Grease Drawer | Concealed stainless steel drawer |
Water Pan | 9 qt stainless steel drawer |
Splash Guard | 2.75" stainless steel tapered |
Legs | 4" adjustable cast nickel-plated |
Warranty
Labor
Parts
