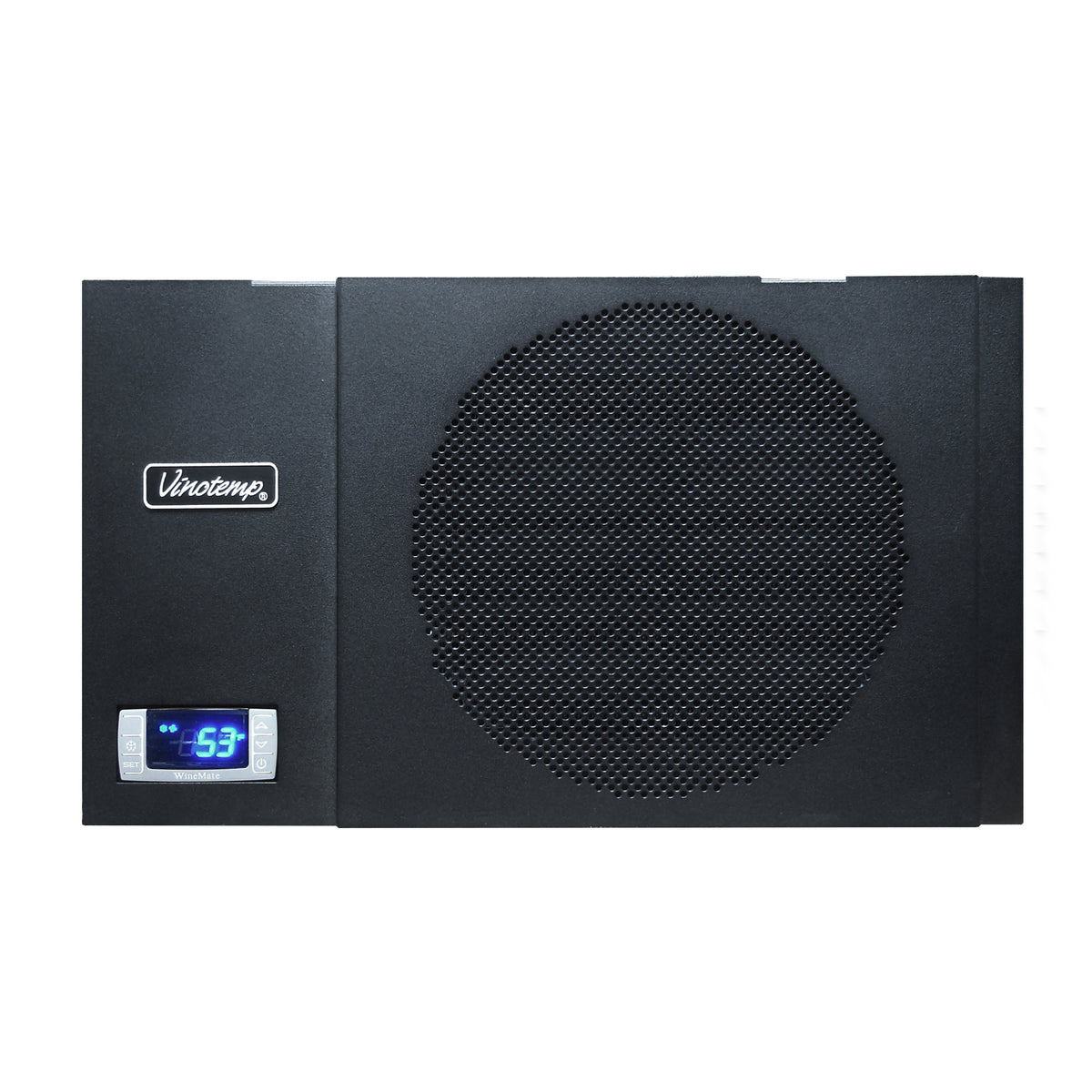

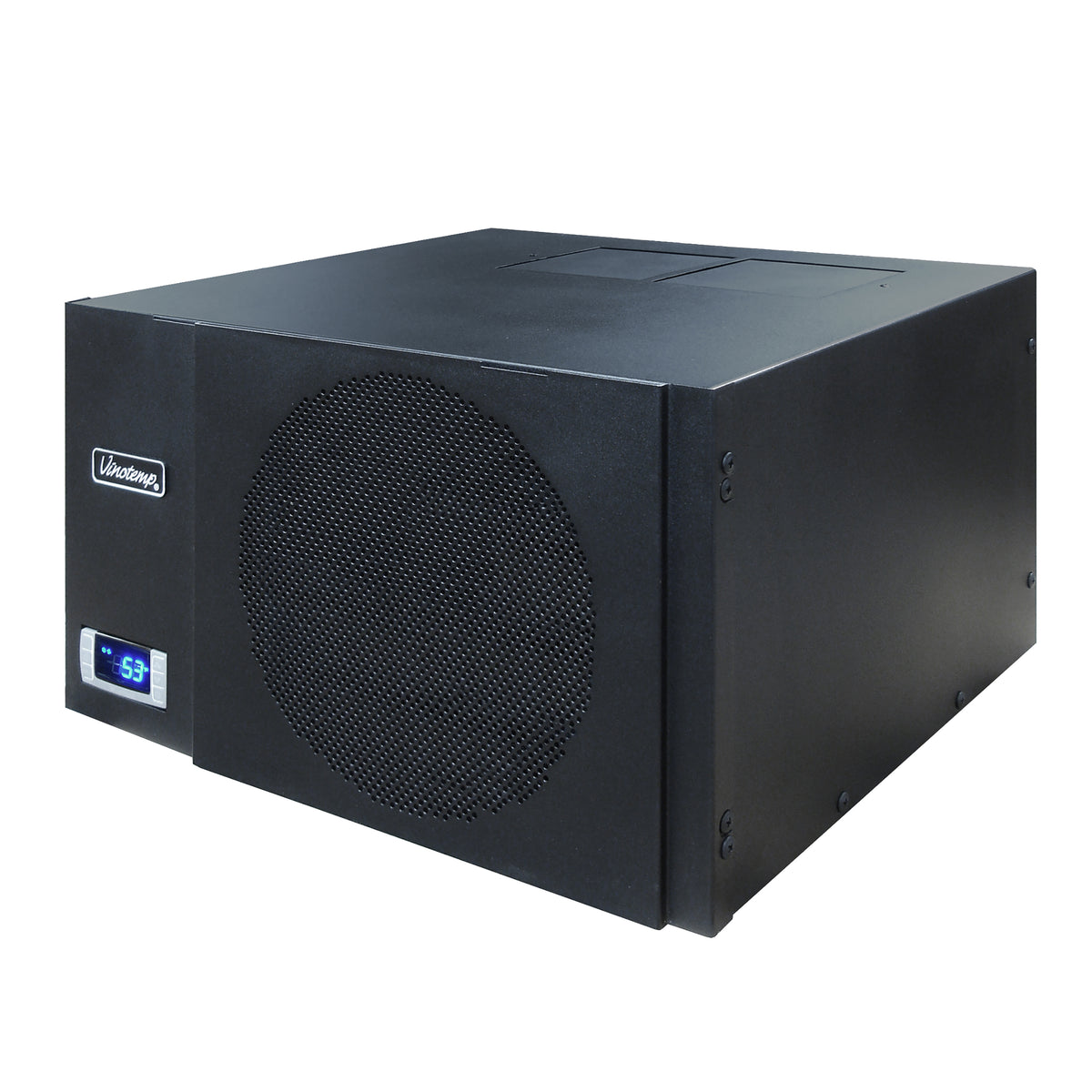

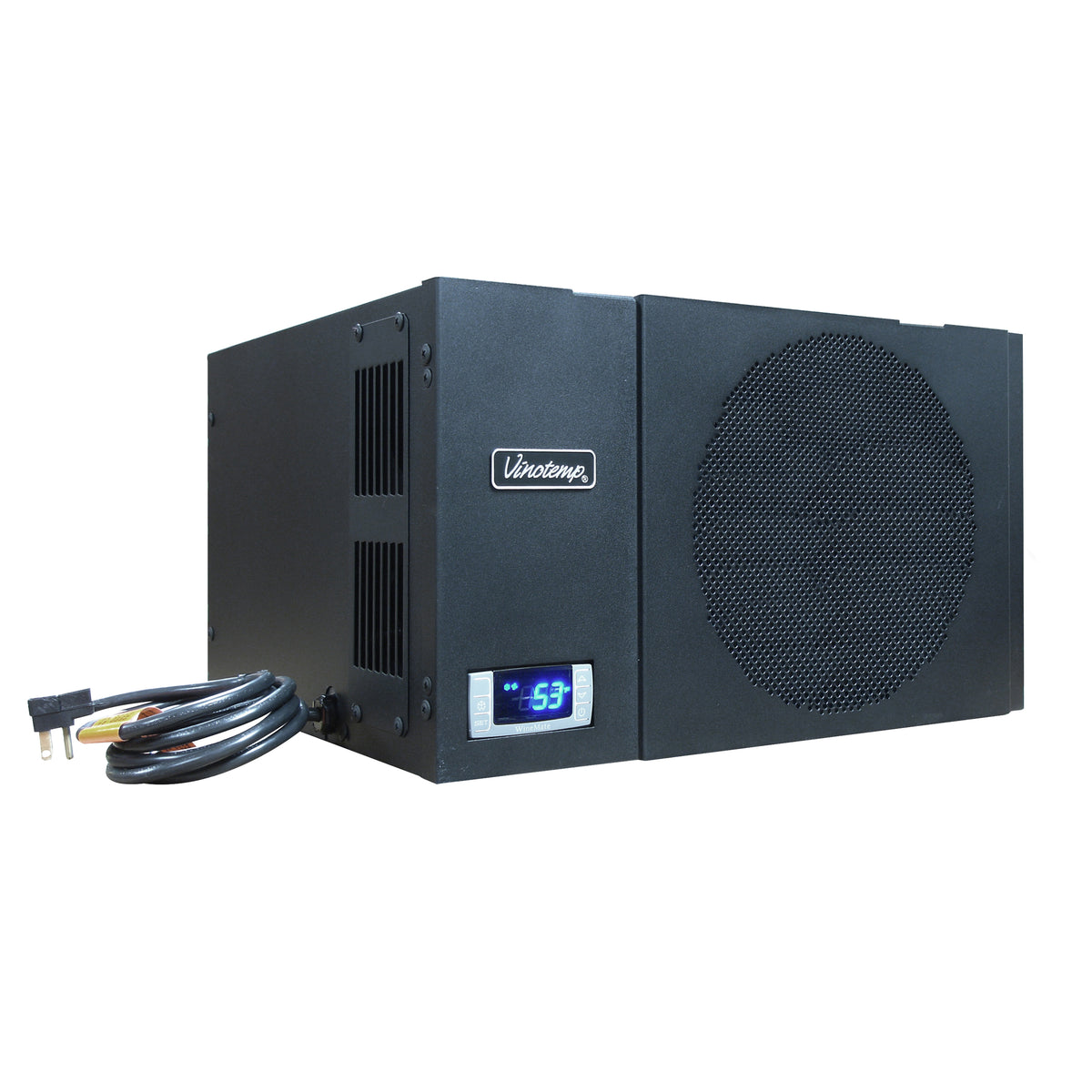

Wine-Mate WM-1500-HTD Self-Contained Humidity & Temperature Wine Cooling System, 90 cu. ft. Capacity, in Black

SKUWM-1500-HTD BrandWine-Mate
Wine - Mate WM - 1500 - HTD Self - Contained Humidity & Temperature Wine Cooling System, 90 cu. ft. Capacity, in Black - TheChefStore.Com

The Wine-Mate WM-1500-HTD Wine Cooling System

The WM-1500HTD Wine Cooling unit represents our latest innovation in climate control and has a capacity of up to 90 cubic feet. This self-contained unit not only controls the temperature in your cabinet, but also moderates the humidity to a much greater degree than previous models. The new design has also been optimized for better distribution of cool air. Wine-Mate cooling systems are some of the finest-made, longest lasting, and most reliable systems on the market. They are manufactured to the highest quality standards in our Southern California facility. This unit features humidity and temperature digital control using patent-pending technology. An oversized evaporator provides subtle cooling, with tube-axial fans for both the condenser and evaporator. Extra insulation is provided for both thermal and noise isolation. HTD evaporator units have a special coil coating and provide a two-way air supply for better operation. The 1500-HTD has a robust housing, and the grill size has been optimized for safety and easier cleaning. The Wine-Mate 1500-HTD is a self-contained, ready-for-use cooling system with easy installation. Multiple exhaust options for top or rear hot air exhaust. Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs–please call for more information! Covered by the Vinotemp One-Year Limited Warranty.

Product Features

  1. This unit is self-contained, all-in-one and ready for use; no copper tubing or drain line are required
  2. Rear exhaust (standard) or top
  3. When installed into a wine cabinet, this unit must vent outside the wine cabinet
  4. The WM-1500-HTD cooling unit is designed and used to provide a stable temperature between 50°-65°F for a properly insulated and sized space
  5. The ambient temperature range for WM-1500-HTD should not be higher than 78°F or lower than 50°F in order to operate properly
  6. The refrigerated space will maintain humidity within the range of 50-75% RH; we use an innovative method to provide additional humidity
  7. Uses R134a refrigerant which is considered environmentally friendly
  8. Digital display with easy push-button controls
  9. Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required
  10. Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button and SET button
  11. HTD evaporators have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth
  12. Exchangeable supply grill can be used for front, back and down cold air distribution
  13. Extra insulations are used for both thermal and noise isolation
  14. Condensate tray is used for humidity adjustment

Free Shipping

Usually ships in 3-5 Days

$1,699.00  /  each
  • This unit is self-contained, all-in-one and ready for use; no copper tubing or drain line are required
  • Rear exhaust (standard) or top
  • When installed into a wine cabinet, this unit must vent outside the wine cabinet
  • The WM-1500-HTD cooling unit is designed and used to provide a stable temperature between 50°-65°F for a properly insulated and sized space
  • The ambient temperature range for WM-1500-HTD should not be higher than 78°F or lower than 50°F in order to operate properly
    • See full feature list

    Product Resources

    Specifications

    Assembled Dimensions (in) (L/D x W x H)16.50" x 18" x 10.50"
    Item Depth (in)16.5"
    Item Width (in)18"
    Item Height (in)10.5"
    Assembled Weight (lb)55
    Assembled Weight (kg)24.9
    Adjustable Temperature ControlYes
    Amperage4A
    Assembly RequiredNo
    Automatic Shut OffNo
    BTU Output1500
    Capacity90 cu. ft.
    ColorBlack
    Control TypePush-button
    Cooling SystemCompressor
    Cutout Depth - Front to Back22.5"
    Cutout Height - Top to Bottom22.5"
    Cutout Width - Side to Side30"
    Decibels (dB)Cooling Unit: 49 dBA
    ElectricYes
    Installation TypeBuilt-In
    Integrated LockNo
    MaterialMetal
    Number of Items1
    Outdoor UseNo
    Refrigerant TypeR134a
    Temperature Zones1
    Voltage115V
    Warranty2 Year Limited Warranty
