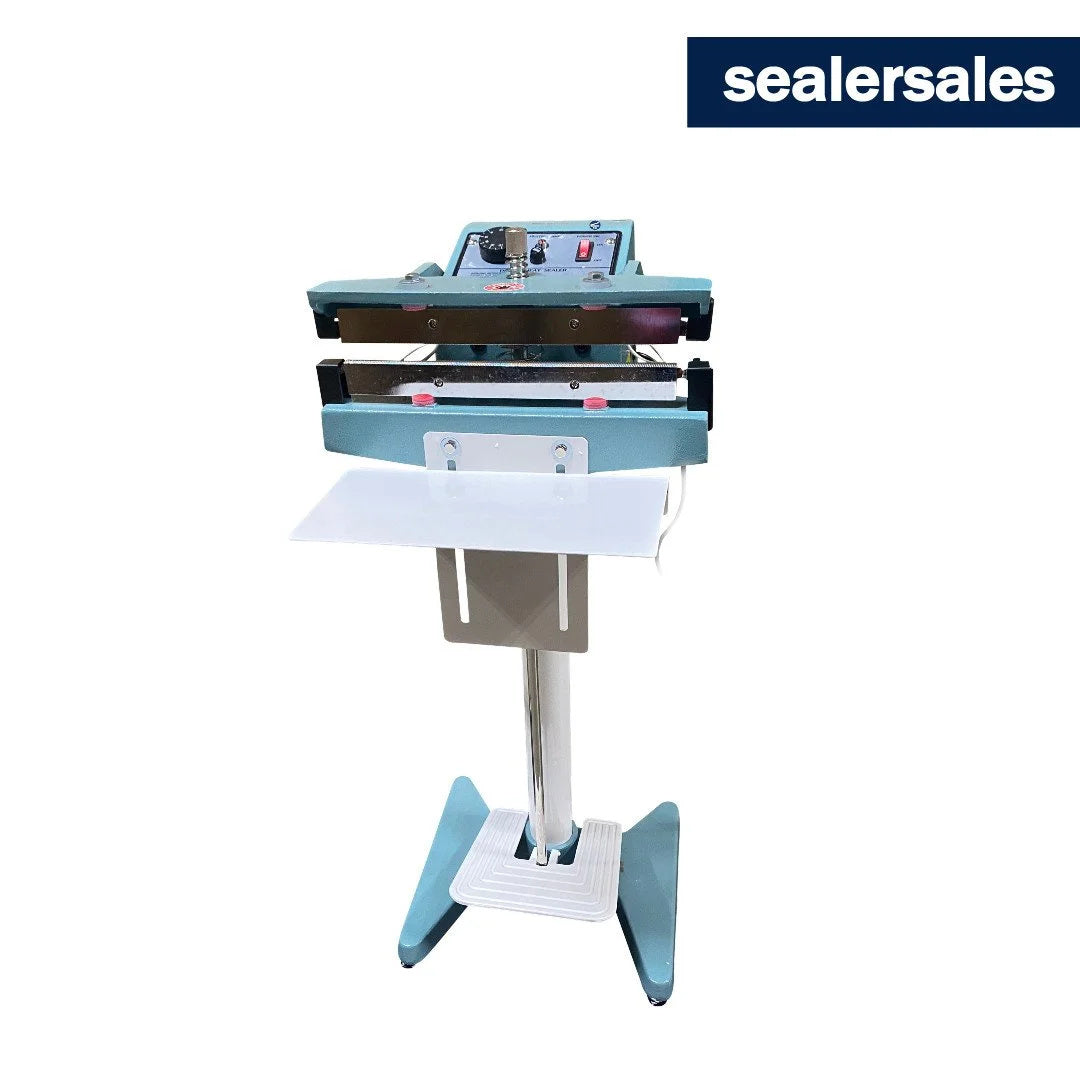

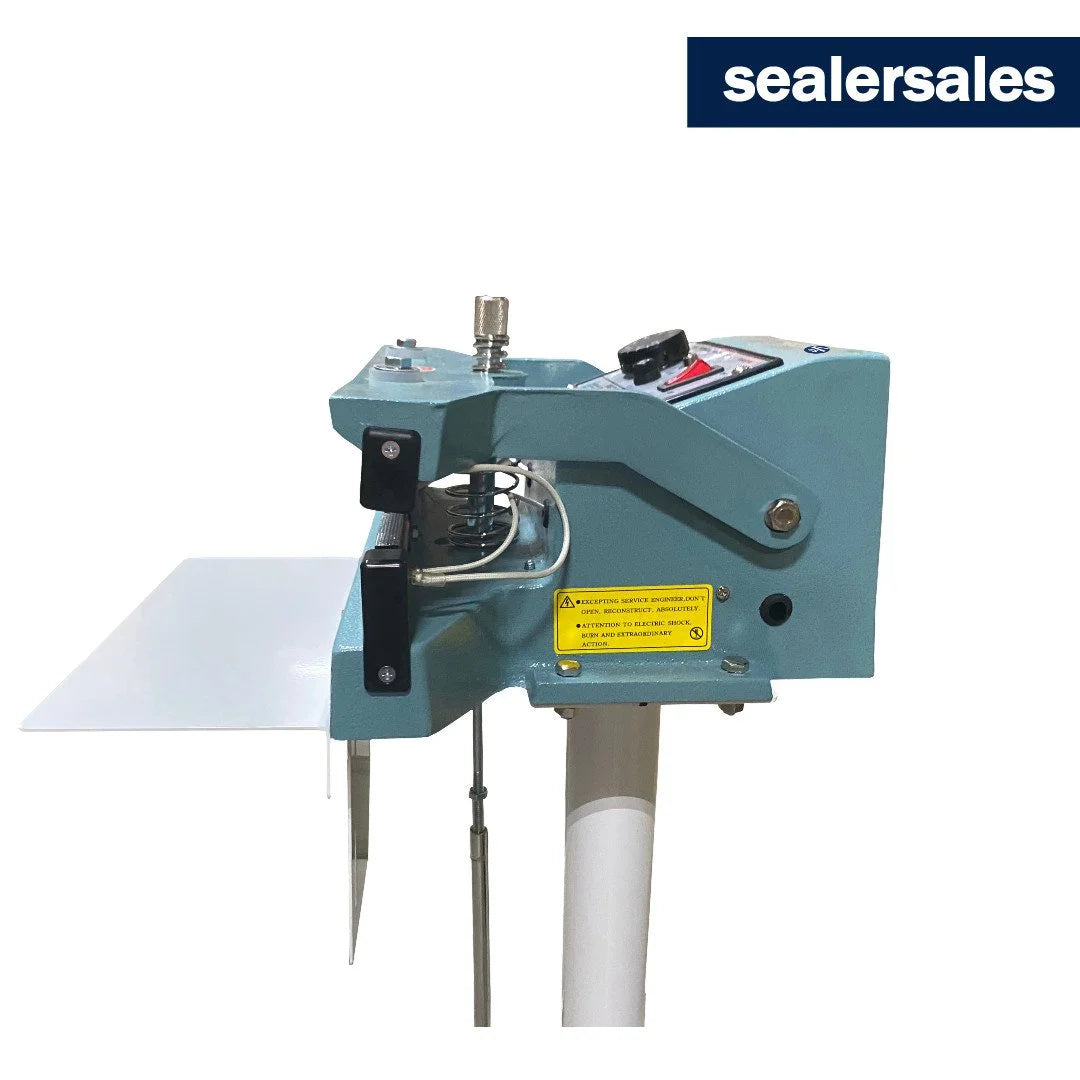

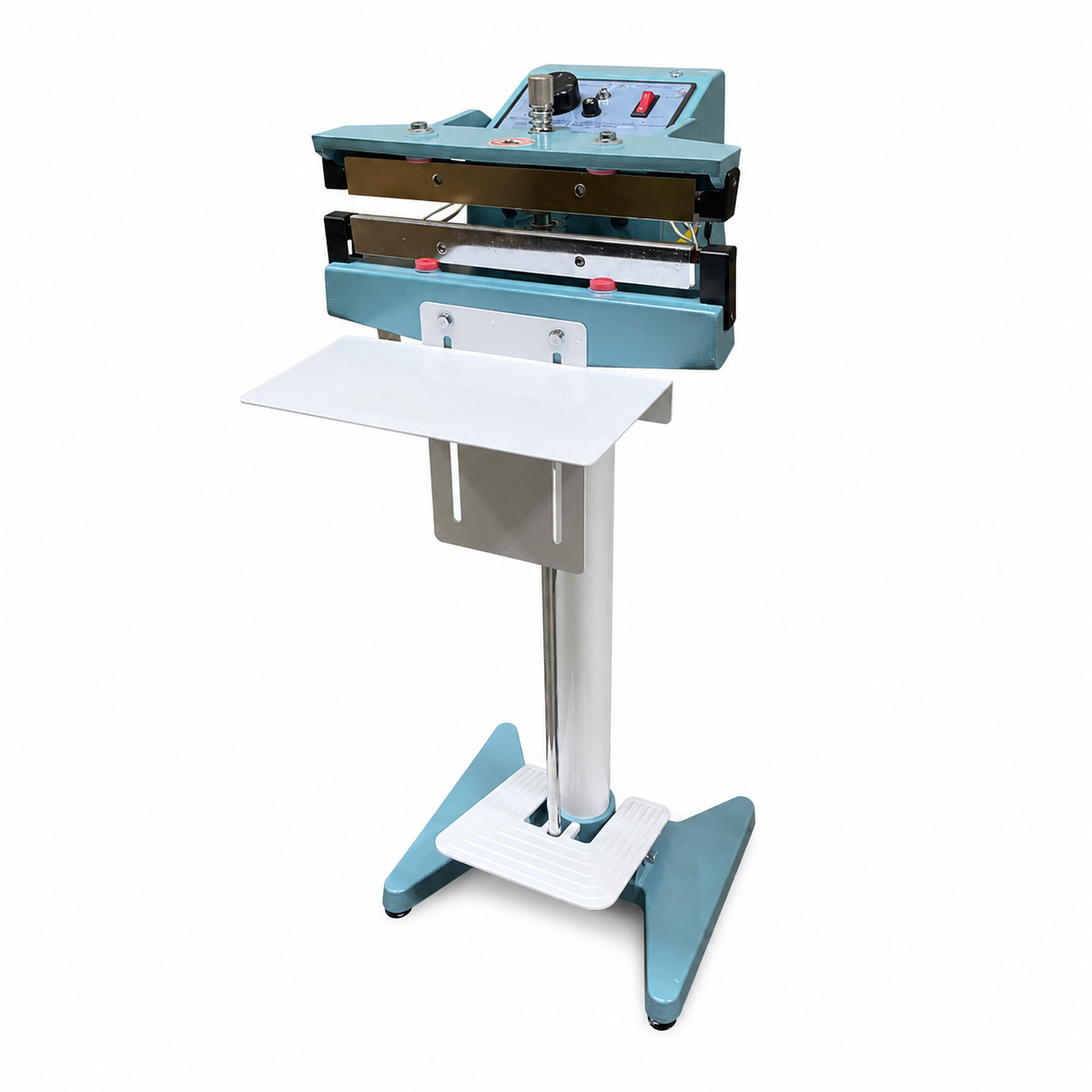

The Sealer Sales KF-200DF Bag Sealer
The Sealer Sales KF-200DF is a 8" KF-Series foot operated direct heat sealer with a 10 mm meshed seal. Direct heat sealers use both jaws heated simultaneously so the heat penetrates from both sides at once. This is the right configuration for thicker materials and barrier films that an impulse sealer cannot fully bond, including coated aluminum foil, Kraft paper, cellophane, mylar, and coated polypropylene.
Direct Heat for Thicker Films and Barrier Materials
Both jaws are heated, both stay at the controller setpoint, so the KF-200DF pushes heat into the seal from both sides during the dwell. This is what allows direct heat sealers to bond materials that impulse sealers struggle with: coated aluminum foil, Kraft paper, cellophane, mylar, coated PP, and thicker laminates. Direct heat sealers cannot seal polyethylene; for poly bags use an impulse sealer instead.
Digital Temperature Controller, 125 to 600°F
A digital temperature controller holds the jaws at the setpoint from 125°F to 600°F (50 to 320°C). Once the correct setting is reached, consistent seals are maintained automatically without operator adjustment between cycles.
Meshed Seal Pattern
The 10 mm meshed seal applies pressure across a textured pattern instead of a flat line. The mesh gives the seal additional surface area for grip on stiffer materials and creates a recognizable seal pattern on the finished package.

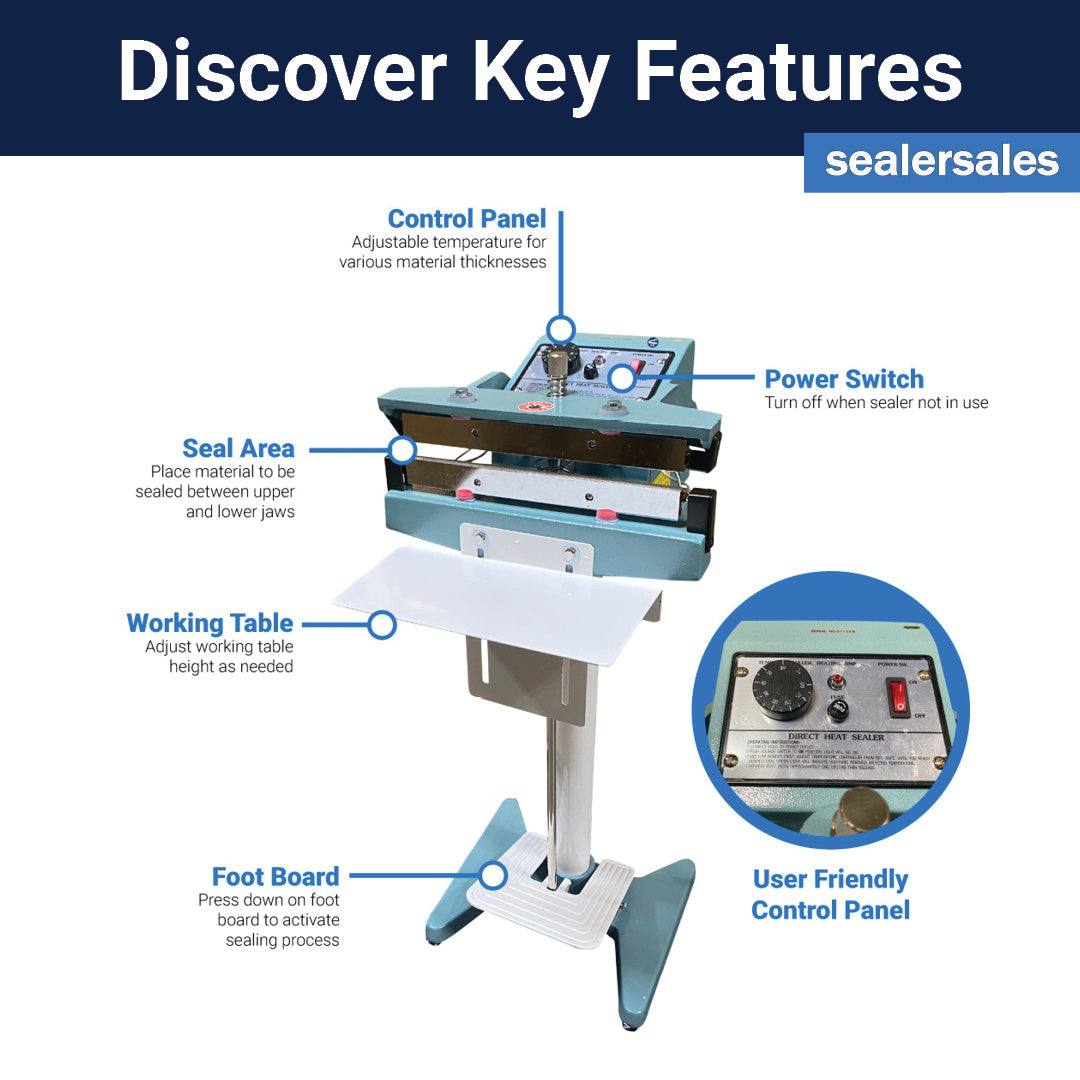

Hands-Free Foot Pedal Operation
The foot pedal triggers the seal cycle so both operator hands stay on the bag. Insert the material between the two jaws, press the pedal, and release. An adjustable worktable is included to position the bag at the right depth below the seal bar.
Sized to the Bag
The 8" jaw fits 8" of seal length in one stroke. The KF DF series is available in 8 inch, 12 inch, and 16 inch lengths with either 10 mm or 15 mm meshed seal width. Depending on the model, material up to 16 inches wide and 20 mil thick can be sealed.
Features & Benefits
-
Direct heat sealing for thicker films and barrier materials (aluminum foil, mylar, cellophane, coated PP, Kraft paper)
-
10 mm meshed seal pattern for grip on stiffer materials
-
Digital temperature controller, 125 to 600°F adjustable range
-
Both jaws heated for bond from both sides during dwell
-
Hands-free foot pedal operation
-
Includes adjustable worktable
-
Cannot seal polyethylene; use impulse sealer for poly bags
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Direct heat sealing for thicker films and barrier materials (aluminum foil, mylar, cellophane, coated PP, Kraft paper)
10 mm meshed seal pattern for grip on stiffer materials
Digital temperature controller, 125 to 600°F adjustable range
Both jaws heated for bond from both sides during dwell
Hands-free foot pedal operation
The Sealer Sales KF-200DF Bag Sealer
The Sealer Sales KF-200DF is a 8" KF-Series foot operated direct heat sealer with a 10 mm meshed seal. Direct heat sealers use both jaws heated simultaneously so the heat penetrates from both sides at once. This is the right configuration for thicker materials and barrier films that an impulse sealer cannot fully bond, including coated aluminum foil, Kraft paper, cellophane, mylar, and coated polypropylene.
Direct Heat for Thicker Films and Barrier Materials
Both jaws are heated, both stay at the controller setpoint, so the KF-200DF pushes heat into the seal from both sides during the dwell. This is what allows direct heat sealers to bond materials that impulse sealers struggle with: coated aluminum foil, Kraft paper, cellophane, mylar, coated PP, and thicker laminates. Direct heat sealers cannot seal polyethylene; for poly bags use an impulse sealer instead.
Digital Temperature Controller, 125 to 600°F
A digital temperature controller holds the jaws at the setpoint from 125°F to 600°F (50 to 320°C). Once the correct setting is reached, consistent seals are maintained automatically without operator adjustment between cycles.
Meshed Seal Pattern
The 10 mm meshed seal applies pressure across a textured pattern instead of a flat line. The mesh gives the seal additional surface area for grip on stiffer materials and creates a recognizable seal pattern on the finished package.
Hands-Free Foot Pedal Operation
The foot pedal triggers the seal cycle so both operator hands stay on the bag. Insert the material between the two jaws, press the pedal, and release. An adjustable worktable is included to position the bag at the right depth below the seal bar.
Sized to the Bag
The 8" jaw fits 8" of seal length in one stroke. The KF DF series is available in 8 inch, 12 inch, and 16 inch lengths with either 10 mm or 15 mm meshed seal width. Depending on the model, material up to 16 inches wide and 20 mil thick can be sealed.
Features & Benefits
-
Direct heat sealing for thicker films and barrier materials (aluminum foil, mylar, cellophane, coated PP, Kraft paper)
-
10 mm meshed seal pattern for grip on stiffer materials
-
Digital temperature controller, 125 to 600°F adjustable range
-
Both jaws heated for bond from both sides during dwell
-
Hands-free foot pedal operation
-
Includes adjustable worktable
-
Cannot seal polyethylene; use impulse sealer for poly bags
Resources & Downloads
See all from Sealer Sales
Specifications
| Seal Length | 8" |
| Seal Width | 10 mm |
| Seal Style | Meshed |
| Power | 250W |
| Heating Method | Direct heat (both jaws heated) |
| Temperature Range | 125 to 600°F (50 to 320°C) |
| Controller | Digital temperature controller |
| Actuation | Foot pedal |
| Worktable | Adjustable, included |
| Compatible Materials | Coated aluminum foil, Kraft paper, cellophane, mylar, coated PP, thicker laminates |
| Not Compatible | Polyethylene |
| Weight | 42 lbs |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
