The Sealer Sales KF-772DH Bag Sealer

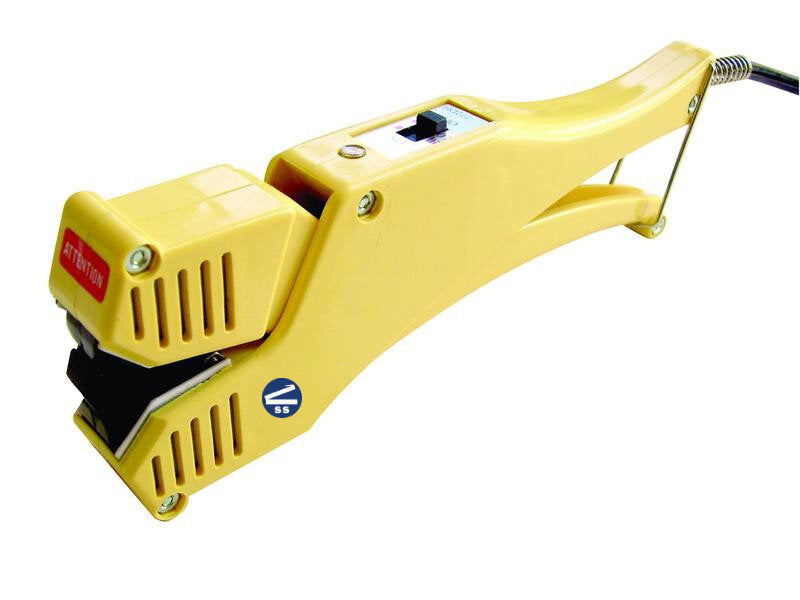

The Sealer Sales KF-772DH is a portable clam shell direct heat sealer with a 4 mm by 10 mm welding area, ideal for small package sealing where a bench sealer would be overkill. The clam shell form factor closes the heating element down onto the seal area in a single squeeze, the two-temperature switch picks between 356°F and 410°F for thin and thicker materials, and the universal 100 to 240V supply means the same unit works on North American or international power without a transformer.
Compact Clam Shell Form Factor
The clam shell design is a single hinged unit the operator squeezes shut over the seal area. There is no separate sealing bar, no foot pedal, and no bench mount required. This is the right format for in-field repacks, courier kit sealing, retail counter sealing, and small-batch fulfillment where a hand sealer would be too much.
Two Temperature Settings for Material Range

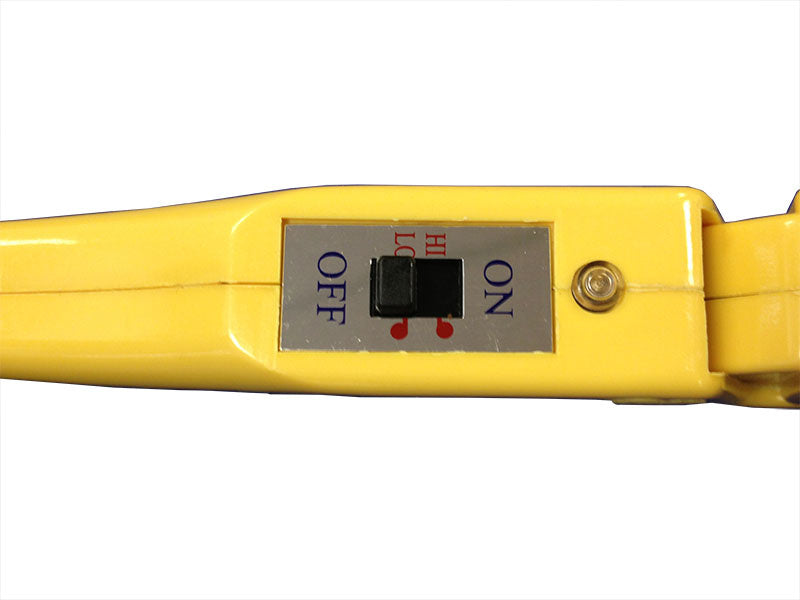

A high/low toggle picks between 410°F (high) for thicker barrier films and 356°F (low) for thinner films. There is no warm-up calibration needed; once the unit is on, the seal bar holds the set temperature until toggled.
Cool Handles During Operation
The handles stay cool while the welding area is at temperature. This matters when an operator runs the sealer for back-to-back cycles for an hour or longer; insulated handles prevent the unit from becoming uncomfortable to hold or requiring breaks.
Universal 100 to 240V Supply
The KF-772DH accepts 100 to 240V at 50 or 60 Hz, which covers North American, European, Asian, and most other international supply. The same unit works wherever the operator travels without needing a step-down transformer.
Direct Heat for Thicker Films
Direct heat applies bond temperature throughout the dwell, so the KF-772DH bonds materials like cellophane, coated foil, Kraft paper, and coated PP. Direct heat sealers are not the right choice for polyethylene; impulse sealers are the correct technology for poly bag applications.
Features & Benefits
-
Portable clam shell form factor for in-field, counter, or small-batch sealing
-
Two temperature settings: 410°F (high) and 356°F (low)
-
Universal power supply matches North American and international outlets
-
Cool-touch handles during operation
-
Compact 4 mm by 10 mm welding area
-
Direct heat for cellophane, coated foil, Kraft paper, coated PP
-
Cannot seal polyethylene; for poly bags use KF-150PS impulse model
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Portable clam shell form factor for in-field, counter, or small-batch sealing
Two temperature settings: 410°F (high) and 356°F (low)
Universal power supply matches North American and international outlets
Cool-touch handles during operation
Compact 4 mm by 10 mm welding area
The Sealer Sales KF-772DH Bag Sealer
The Sealer Sales KF-772DH is a portable clam shell direct heat sealer with a 4 mm by 10 mm welding area, ideal for small package sealing where a bench sealer would be overkill. The clam shell form factor closes the heating element down onto the seal area in a single squeeze, the two-temperature switch picks between 356°F and 410°F for thin and thicker materials, and the universal 100 to 240V supply means the same unit works on North American or international power without a transformer.
Compact Clam Shell Form Factor
The clam shell design is a single hinged unit the operator squeezes shut over the seal area. There is no separate sealing bar, no foot pedal, and no bench mount required. This is the right format for in-field repacks, courier kit sealing, retail counter sealing, and small-batch fulfillment where a hand sealer would be too much.
Two Temperature Settings for Material Range
A high/low toggle picks between 410°F (high) for thicker barrier films and 356°F (low) for thinner films. There is no warm-up calibration needed; once the unit is on, the seal bar holds the set temperature until toggled.
Cool Handles During Operation
The handles stay cool while the welding area is at temperature. This matters when an operator runs the sealer for back-to-back cycles for an hour or longer; insulated handles prevent the unit from becoming uncomfortable to hold or requiring breaks.
Universal 100 to 240V Supply
The KF-772DH accepts 100 to 240V at 50 or 60 Hz, which covers North American, European, Asian, and most other international supply. The same unit works wherever the operator travels without needing a step-down transformer.
Direct Heat for Thicker Films
Direct heat applies bond temperature throughout the dwell, so the KF-772DH bonds materials like cellophane, coated foil, Kraft paper, and coated PP. Direct heat sealers are not the right choice for polyethylene; impulse sealers are the correct technology for poly bag applications.
Features & Benefits
-
Portable clam shell form factor for in-field, counter, or small-batch sealing
-
Two temperature settings: 410°F (high) and 356°F (low)
-
Universal power supply matches North American and international outlets
-
Cool-touch handles during operation
-
Compact 4 mm by 10 mm welding area
-
Direct heat for cellophane, coated foil, Kraft paper, coated PP
-
Cannot seal polyethylene; for poly bags use KF-150PS impulse model
Resources & Downloads
See all from Sealer Sales
Specifications
| Specification | Detail |
|---|---|
| Type | Direct Heat / Constant Heat |
| Power Supply | AC100V-240V 50/60Hz |
| Watts | 20W |
| Temperature Settings | High: 410°F (210°C) | Low: 356°F (180°C) |
| Effective Welding Area | 4mm x 10mm |
| Dimensions | 1" x 8" x 3" |
| Weight | 10oz |
Manufacturer's Warranty
-
3 Month
