IKON IUC72F 72 In. Undercounter Freezer, Three-Section, 18 cu. ft., R-290, Anti-Frost Doors, Self-Contained

SKUIUC72F BrandIKON
IKON IUC72F 72 In. Undercounter Freezer, Three-Section, 18 cu. ft., R-290, Anti-Frost Doors, Self-Contained

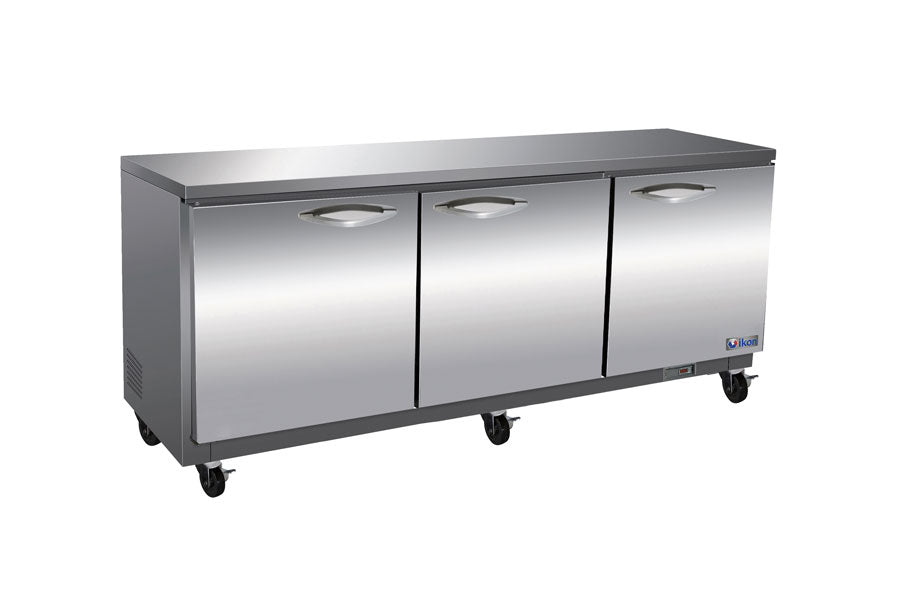

The IKON IUC72F Undercounter Freezer

The IKON IUC72F is a 72-inch undercounter freezer with three anti-frost doors and 18 cubic feet of capacity, the largest freezer in the IUC series. Three separate sections let you organize frozen inventory by category, and each section includes an adjustable epoxy coated wire shelf. The 5/8 HP rear-mounted R-290 compressor handles the thermal load of the full-width cabinet, holding the interior between 0 and -10 degrees Fahrenheit. The 2.5-inch casters with front brakes let you position and secure this larger unit beneath your countertop.

Anti-Frost Doors with Heated Frames and Tool-Free Gaskets

The freezer doors include factory-installed heating elements in the door frames that prevent condensation and frost from forming around the seal. In a busy kitchen where freezer doors open and close constantly, frost buildup around the gasket can compromise the seal and force the compressor to work harder. The heated frames eliminate that problem. Every door is self-closing and holds open at 90 degrees for hands-free loading. The magnetic gaskets snap into place without tools, so when a gasket wears out you can replace it in under a minute without calling a technician. The stainless steel framework construction behind the panels keeps the door assembly rigid through daily use.

R-290 Rear-Mounted Refrigeration with Auto Condensate Evaporation

The self-contained R-290 refrigeration system mounts at the rear and holds the interior between 0 and -10 degrees Fahrenheit. R-290 is a natural refrigerant with a global warming potential of 3, compared to over 1,000 for older synthetic refrigerants. The electronic thermostat with digital LED display lets you monitor the cabinet temperature without opening a door. Auto defrost handles frost buildup inside the cabinet, and the condensate evaporation system routes melt water to an evaporator pan so there is no drain line to connect. The interior uses 304 stainless steel for the floor, aluminum for the back wall, and ABS for the side walls and door backs. The exterior is 430 stainless steel. Foam insulation throughout the cabinet walls maintains stable freezing temperatures even in kitchens running up to 90 degrees Fahrenheit ambient.

The IUC72F measures 71.7 inches wide by 29.9 inches deep by 35.5 inches high. Interior dimensions are 67.0 by 24.9 by 24.2 inches. The 5/8 HP compressor draws 6.0 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Four 2.5-inch swivel casters with two front brakes keep the unit mobile and stable. Shipping weight is 380 lbs.

About IKON

IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

Features & Benefits

  1. Undercounter freezer, three-section, 18 cu. ft. capacity, fits beneath standard 36-inch countertops
  2. (3) solid hinged anti-frost doors, self-closing, holds open at 90 degrees
  3. Heated door frames to eliminate condensation and frost buildup
  4. (3) adjustable epoxy coated wire shelves
  5. Temperature Range: 0 to -10°F (-17 to -23°C)
  6. Electronic thermostat with digital LED temperature display
  7. R-290 natural refrigerant with foam insulation
  8. Rear-mounted self-contained refrigeration, 5/8 HP, 6.0A
  9. Auto defrost with auto condensate evaporation
  10. Magnetic gaskets replaceable without tools
  11. Interior: 304 stainless steel floor, aluminum back wall, ABS side walls and door backs
  12. Exterior: 430 stainless steel front and sides
  13. Stainless steel framework construction
  14. (4) 2.5" swivel casters with (2) front locking
  15. Exterior Dimensions (W x D x H): 71.7" x 29.9" x 35.5"
  16. Interior Dimensions (W x D x H): 67.0" x 24.9" x 24.2"
  17. Shipping Weight: 380 lbs
  18. 115V/60/1, NEMA 5-15P, 10 ft cord

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$3,080.54
  • Undercounter freezer, three-section, 18 cu. ft. capacity, fits beneath standard 36-inch countertops
  • (3) solid hinged anti-frost doors, self-closing, holds open at 90 degrees
  • Heated door frames to eliminate condensation and frost buildup
  • (3) adjustable epoxy coated wire shelves
  • Temperature Range: 0 to -10°F (-17 to -23°C)
    • See full feature list

    The IKON IUC72F Undercounter Freezer

    The IKON IUC72F is a 72-inch undercounter freezer with three anti-frost doors and 18 cubic feet of capacity, the largest freezer in the IUC series. Three separate sections let you organize frozen inventory by category, and each section includes an adjustable epoxy coated wire shelf. The 5/8 HP rear-mounted R-290 compressor handles the thermal load of the full-width cabinet, holding the interior between 0 and -10 degrees Fahrenheit. The 2.5-inch casters with front brakes let you position and secure this larger unit beneath your countertop.

    Anti-Frost Doors with Heated Frames and Tool-Free Gaskets

    The freezer doors include factory-installed heating elements in the door frames that prevent condensation and frost from forming around the seal. In a busy kitchen where freezer doors open and close constantly, frost buildup around the gasket can compromise the seal and force the compressor to work harder. The heated frames eliminate that problem. Every door is self-closing and holds open at 90 degrees for hands-free loading. The magnetic gaskets snap into place without tools, so when a gasket wears out you can replace it in under a minute without calling a technician. The stainless steel framework construction behind the panels keeps the door assembly rigid through daily use.

    R-290 Rear-Mounted Refrigeration with Auto Condensate Evaporation

    The self-contained R-290 refrigeration system mounts at the rear and holds the interior between 0 and -10 degrees Fahrenheit. R-290 is a natural refrigerant with a global warming potential of 3, compared to over 1,000 for older synthetic refrigerants. The electronic thermostat with digital LED display lets you monitor the cabinet temperature without opening a door. Auto defrost handles frost buildup inside the cabinet, and the condensate evaporation system routes melt water to an evaporator pan so there is no drain line to connect. The interior uses 304 stainless steel for the floor, aluminum for the back wall, and ABS for the side walls and door backs. The exterior is 430 stainless steel. Foam insulation throughout the cabinet walls maintains stable freezing temperatures even in kitchens running up to 90 degrees Fahrenheit ambient.

    The IUC72F measures 71.7 inches wide by 29.9 inches deep by 35.5 inches high. Interior dimensions are 67.0 by 24.9 by 24.2 inches. The 5/8 HP compressor draws 6.0 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Four 2.5-inch swivel casters with two front brakes keep the unit mobile and stable. Shipping weight is 380 lbs.

    About IKON

    IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

    Features & Benefits

    1. Undercounter freezer, three-section, 18 cu. ft. capacity, fits beneath standard 36-inch countertops
    2. (3) solid hinged anti-frost doors, self-closing, holds open at 90 degrees
    3. Heated door frames to eliminate condensation and frost buildup
    4. (3) adjustable epoxy coated wire shelves
    5. Temperature Range: 0 to -10°F (-17 to -23°C)
    6. Electronic thermostat with digital LED temperature display
    7. R-290 natural refrigerant with foam insulation
    8. Rear-mounted self-contained refrigeration, 5/8 HP, 6.0A
    9. Auto defrost with auto condensate evaporation
    10. Magnetic gaskets replaceable without tools
    11. Interior: 304 stainless steel floor, aluminum back wall, ABS side walls and door backs
    12. Exterior: 430 stainless steel front and sides
    13. Stainless steel framework construction
    14. (4) 2.5" swivel casters with (2) front locking
    15. Exterior Dimensions (W x D x H): 71.7" x 29.9" x 35.5"
    16. Interior Dimensions (W x D x H): 67.0" x 24.9" x 24.2"
    17. Shipping Weight: 380 lbs
    18. 115V/60/1, NEMA 5-15P, 10 ft cord

    Resources & Downloads

    See all from IKON

    Specifications

    TypeUndercounter Freezer, Three-Section
    Capacity18 cu. ft.
    Temperature Range0 to -10°F (-17 to -23°C)
    Doors(3) solid hinged anti-frost doors, self-closing, hold open at 90°
    Door FramesIntegral factory-installed heating element (anti-frost)
    Shelves(3) adjustable epoxy coated wire shelves
    ThermostatElectronic with digital LED display
    DefrostAuto defrost
    Condensate ManagementAuto evaporation
    RefrigerantR-290
    Compressor5/8 HP, rear-mounted, self-contained
    Rated Current6.0A
    InsulationFoam
    Interior Material304 SS floor, aluminum back wall, ABS side walls and door backs
    Exterior Material430 Stainless Steel
    ConstructionStainless steel framework
    GasketsMagnetic, tool-free replacement
    Casters(4) 2.5" swivel, (2) front locking
    Exterior Dimensions (W x D x H)71.7" x 29.9" x 35.5"
    Interior Dimensions (W x D x H)67.0" x 24.9" x 24.2"
    Shipping Weight380 lbs
    Voltage115V/60/1
    NEMA Plug5-15P
    Cord Length10 ft
    Ambient Operating Range40-90°F

    Manufacturer's Warranty

    • 2 Year

      Labor

    • 2 Year

      Parts

    • 3 Year

      Compressor (Parts Only)

    Certifications & Approvals

    • ETLSAN
      ETL Sanitation

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're exited to serve you next!

    The IKON IUC72F Undercounter Freezer

    About IKON

    IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

    About Undercounter Freezers

    Undercounter freezers give you frozen storage where you need it. They fit under counters and prep tables. Restaurants, bars, delis, and food trucks use them to keep frozen product close without losing floor space. They hold temp, even in busy, hot kitchens.

    Most undercounter freezers have solid doors. Drawer models are common on cook lines where staff need quick access without bending down. Drawers speed up service and keep staff at their station. Both types fit under standard counters and come in different widths.

    Pick your freezer based on size, capacity, and how it fits your line. Small units work for tight spots or as backup storage. Larger ones hold more if you need volume at the station. Measure your space and match the unit to what you actually use each day.

    Common Types and Configurations

    • Standard Door Undercounter Freezer: Solid door. Fits under standard counters. Single or double door. Reliable frozen storage in a small footprint.
    • Commercial Undercounter Freezer with Drawers: Pull-out drawers instead of doors. Faster access on the line. Good for stations where staff need to grab product fast.
    • Small Commercial Undercounter Freezer: Compact. Fits tight spaces or works as extra storage. Same performance as bigger models.
    • Worktop Undercounter Freezer: Has a stainless prep top. Gives you frozen storage and a work surface in one unit.
    • Commercial Grade Freezer: Built for daily use. Heavy-duty compressor, tough gaskets, and interiors made for busy kitchens.

    What to Look at Before You Buy

    • Unit Dimensions: Measure your space before you buy. Most fit under 36 inch counters, but check height, width, and depth against your setup.
    • Door vs. Drawer: Doors cost less and give full access. Drawers cost more but speed up workflow on busy lines.
    • Temperature Range: Make sure the unit holds 0°F or below, even when loaded. If your kitchen is hot, check the ambient temp rating on the spec sheet.
    • Capacity: Size the unit for what you actually need to store at the station. If one undercounter freezer is not enough, look at a reach-in or add a second unit.
    • Compressor Location: Most units have the compressor on the left or right. Make sure there is enough space for airflow and no conflict with other equipment.
    • Defrost System: Most use automatic defrost. Make sure the cycle fits your usage and does not cause temp spikes that hurt product quality.

    Frequently Asked Questions

    What is a commercial undercounter freezer?

    An undercounter freezer is a compact freezer that fits under your counter or prep table. It keeps frozen product at the station for fast access. You see them in restaurants, bars, delis, and food trucks where space is tight and you need frozen storage close by.

    What is the difference between a commercial undercounter freezer and a worktop freezer?

    The difference is the top. A worktop freezer has a stainless prep surface. An undercounter freezer slides under your existing counter. Both give you frozen storage, but a worktop is freestanding and has its own top. An undercounter unit fits into your counter run.

    What sizes do commercial undercounter freezers come in?

    Undercounter freezers come in widths from 27 to 60 inches. Most fit under 36 inch counters and are about 30 inches deep. Width is the main thing to check. Measure your counter run and make sure the unit fits before you order.
