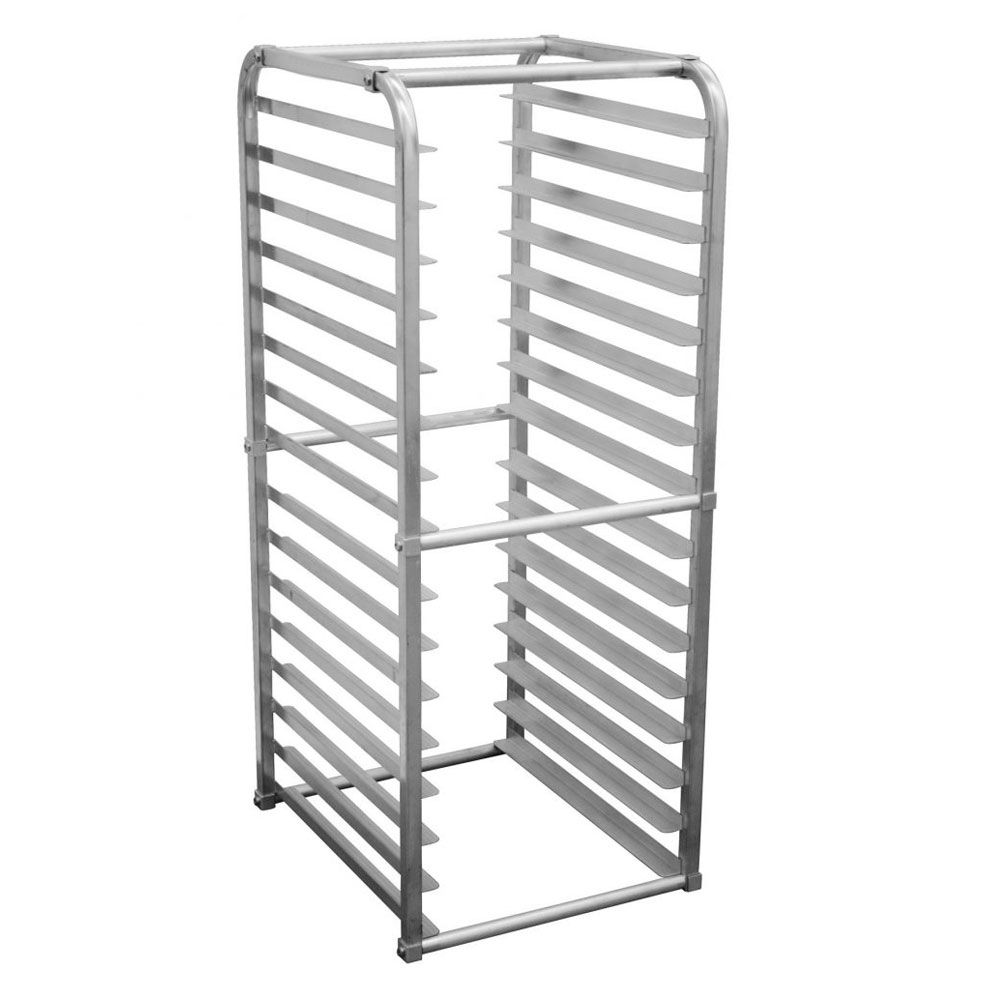

The Prepline SPR-16-INS Bun pan rack
The Prepline SPR-16-INS is a full size insert sheet pan rack that slides into a commercial reach-in refrigerator or freezer and turns open cabinet space into 16 organized pan slots. Instead of stacking wrapped trays on wire shelves where the bottom pan gets crushed and the middle one is unreachable, you load 16 full sheet pans on their own runners and pull any one of them without touching the rest. At 20.25 inches wide by 24 inches deep by 51 inches tall, it is sized for the interior of standard reach-in cabinets.
Sized for Reach-In Refrigerators and Freezers
This is an insert rack, not a floor rack, so there are no casters and no wasted base. The footprint matches the pan area of a typical reach-in section, and the open sides let cabinet air circulate across every pan level instead of trapping warm spots between stacked trays. Proofing dough, chilling sheet cakes, staging garde manger trays, and blast-hardening desserts all get easier when each pan has its own slot at eye level.
Corrosion Free Aluminum Construction
The frame is heavy duty aluminum, which will not rust in the damp, cold environment inside a refrigerator or freezer where plated steel racks eventually bloom with corrosion. The pan slides are 16 gauge aluminum angle, and every edge is finished so no one slices a knuckle reaching into a dark cabinet. Aluminum also keeps the rack light enough for one person to lift in and out for deep cleaning.
3 Inch Runner Spacing with End Loading
Runners sit on 3 inch centers, which clears risen dough, piped desserts, and domed plastic wrap without dragging. The end loading design means pans go in narrow side first, the natural motion when you are standing in front of an open cabinet door with a cold pan in both hands. Each slot accepts a full 18 by 26 inch sheet pan or an 18 by 12 inch half pan.
Knock-Down Shipping and Included Installation Kit
The rack arrives knocked down in a flat carton with the installation kit in the box, so assembly takes a few minutes with basic tools and there is no oversized crate to wrestle through the back door. The curved top and cylindrical connection bars give the assembled frame its rigidity, and once it is together the rack drops straight into the cabinet and goes to work.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Insert rack converts open reach-in cabinet space into 16 organized pan slots
-
Accepts full size 18 inch by 26 inch sheet pans or 18 inch by 12 inch half pans
-
Heavy duty corrosion free aluminum frame built for cold, damp cabinet interiors
-
16 gauge aluminum angle slides support each pan on its own runners
-
Open sides let cabinet air circulate across every pan level
-
Runners on 3 inch centers clear risen dough and domed plastic wrap
-
End loading design matches the way you face an open cabinet door
-
All edges finished to protect hands reaching into a dark cabinet
-
Ships knocked down with the installation kit included in the carton
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Insert rack converts open reach-in cabinet space into 16 organized pan slots
Accepts full size 18 inch by 26 inch sheet pans or 18 inch by 12 inch half pans
Heavy duty corrosion free aluminum frame built for cold, damp cabinet interiors
16 gauge aluminum angle slides support each pan on its own runners
Open sides let cabinet air circulate across every pan level
The Prepline SPR-16-INS Bun pan rack
The Prepline SPR-16-INS is a full size insert sheet pan rack that slides into a commercial reach-in refrigerator or freezer and turns open cabinet space into 16 organized pan slots. Instead of stacking wrapped trays on wire shelves where the bottom pan gets crushed and the middle one is unreachable, you load 16 full sheet pans on their own runners and pull any one of them without touching the rest. At 20.25 inches wide by 24 inches deep by 51 inches tall, it is sized for the interior of standard reach-in cabinets.
Sized for Reach-In Refrigerators and Freezers
This is an insert rack, not a floor rack, so there are no casters and no wasted base. The footprint matches the pan area of a typical reach-in section, and the open sides let cabinet air circulate across every pan level instead of trapping warm spots between stacked trays. Proofing dough, chilling sheet cakes, staging garde manger trays, and blast-hardening desserts all get easier when each pan has its own slot at eye level.
Corrosion Free Aluminum Construction
The frame is heavy duty aluminum, which will not rust in the damp, cold environment inside a refrigerator or freezer where plated steel racks eventually bloom with corrosion. The pan slides are 16 gauge aluminum angle, and every edge is finished so no one slices a knuckle reaching into a dark cabinet. Aluminum also keeps the rack light enough for one person to lift in and out for deep cleaning.
3 Inch Runner Spacing with End Loading
Runners sit on 3 inch centers, which clears risen dough, piped desserts, and domed plastic wrap without dragging. The end loading design means pans go in narrow side first, the natural motion when you are standing in front of an open cabinet door with a cold pan in both hands. Each slot accepts a full 18 by 26 inch sheet pan or an 18 by 12 inch half pan.
Knock-Down Shipping and Included Installation Kit
The rack arrives knocked down in a flat carton with the installation kit in the box, so assembly takes a few minutes with basic tools and there is no oversized crate to wrestle through the back door. The curved top and cylindrical connection bars give the assembled frame its rigidity, and once it is together the rack drops straight into the cabinet and goes to work.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Insert rack converts open reach-in cabinet space into 16 organized pan slots
-
Accepts full size 18 inch by 26 inch sheet pans or 18 inch by 12 inch half pans
-
Heavy duty corrosion free aluminum frame built for cold, damp cabinet interiors
-
16 gauge aluminum angle slides support each pan on its own runners
-
Open sides let cabinet air circulate across every pan level
-
Runners on 3 inch centers clear risen dough and domed plastic wrap
-
End loading design matches the way you face an open cabinet door
-
All edges finished to protect hands reaching into a dark cabinet
-
Ships knocked down with the installation kit included in the carton
Resources & Downloads
See all from Prepline
Specifications
| Width | 20.25" |
| Depth | 24" |
| Height | 51" |
| Total Capacity | 480 lb. |
| Individual Shelf Capacity | 30 lb. |
| Pan Capacity | (16) 18" x 26" or 18" x 12" |
| Runner Spacing | 3" |
| Loading Style | End |
| Frame Material | Aluminum |
| Pan Slides | 16 gauge aluminum angle |
| Top | Curved, cylindrical connection bars |
| Assembly | Knock-down, installation kit included |
| Shipping Weight | 24 lb. |
| Shipping Dimensions | 24.5" x 51.6" x 3.6" |
Certifications & Approvals
-
NSF Approved
