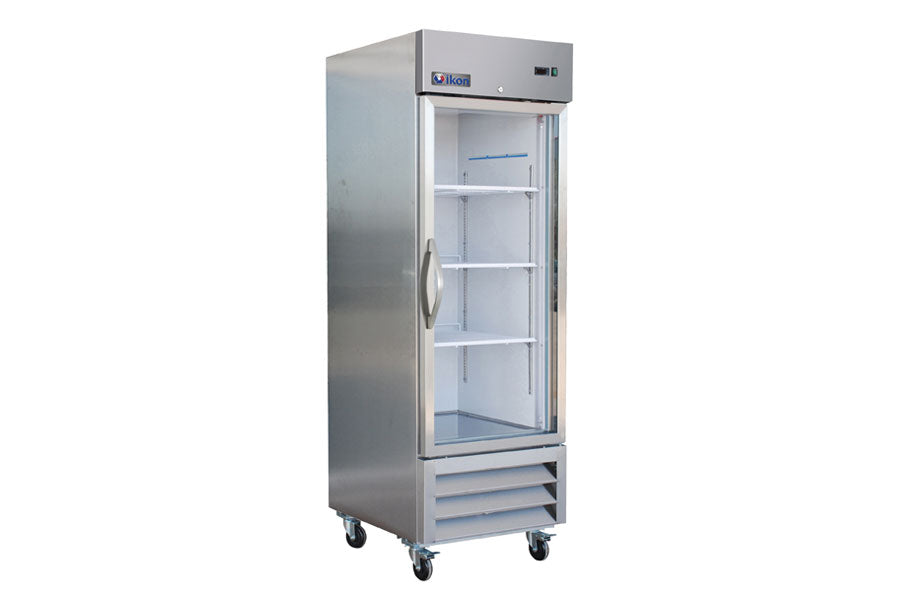

The IKON IB27FG Glass Door Reach-In Freezer
The IKON IB27FG is a single glass door reach-in freezer with 19 cubic feet of capacity and a bottom-mount compressor holding 0 to -10 degrees Fahrenheit. The glass door lets you check frozen inventory levels at a glance without opening the cabinet and letting cold air escape, which matters more in a freezer where every door opening costs more energy to recover than a refrigerator. Four adjustable heavy-duty epoxy-coated wire shelves give you one extra shelf compared to the solid-door model, and clip-on shelf tag holders let you label each level for quick identification during rushes. Factory-installed heating elements in the door frame keep condensation from forming on the glass or around the gasket.
Bottom-Mount R290 Compressor with Condensate Evaporation System
The compressor sits at the bottom of the cabinet where it pulls in cooler air at floor level, so it runs more efficiently than a top-mount system that constantly fights rising kitchen heat. R290 natural refrigerant paired with CFC-free foam insulation keeps the interior at the target temperature range while using less energy than older refrigerant types. The condensate heating element is built directly into the condensate pan, so excess water evaporates on its own without the drip trays and manual emptying that older units require. An electronic thermostat with a digital LED display lets you check the cabinet temperature at a glance from across the kitchen, and you can adjust the set point without opening the door.
Commercial-Grade Stainless Steel Interior and Exterior
The exterior panels are 430 stainless steel, which holds up well in busy kitchens where carts, pans, and elbows make regular contact. The interior is 304 stainless steel, the higher-grade alloy that resists corrosion from acidic foods, cleaning chemicals, and the moisture cycling that happens every time you open and close the door. Self-closing doors stay shut on their own but remain open when swung to 90 degrees, so you can load or unload a full shelf of sheet pans without holding the door. Magnetic gaskets snap in and out without tools, which means you can replace a worn gasket in minutes instead of calling a technician. Every unit rides on four 4-inch swivel casters with two front locking wheels, so you can roll it into position for cleaning and lock it down for daily service.
The IB27FG measures 26.8 inches wide by 31.9 inches deep by 82.3 inches high. The 1/2 HP bottom-mount compressor draws 8 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Shipping weight is 329 pounds.
About IKON
IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.
Features & Benefits
-
Reach-in freezer with bottom-mount self-contained R290 refrigeration, (1) glass door
-
Capacity: 19 cu. ft.
-
Temperature Range: 0 to -10°F (-17 to -23°C)
-
Electronic thermostat with digital LED temperature display
-
(4) Adjustable heavy-duty epoxy coated wire shelves, 4 per door
-
Locking glass door(s)
-
Clip-on shelf tag holders
-
Accommodates full-size sheet pans
-
Self-closing doors, remain open at 90 degrees
-
Magnetic gasket replaceable without tools
-
Factory-installed heated door frame to eliminate condensation
-
R290 natural refrigerant with CFC-free foam insulation
-
Compressor: 1/2 HP, bottom-mounted
-
Condensate heating element built into condensate pan
-
Exterior: 430 stainless steel
-
Interior: 304 stainless steel
-
(4) 4" swivel casters, (2) front locking
-
Exterior Dimensions (W x D x H): 26.8" x 31.9" x 82.3"
-
Interior Dimensions (W x D x H): 22.2" x 27.6" x 50.2"
-
115/60/1, NEMA 5-15P, 10 ft. cord
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Reach-in freezer with bottom-mount self-contained R290 refrigeration, (1) glass door
Capacity: 19 cu. ft.
Temperature Range: 0 to -10°F (-17 to -23°C)
Electronic thermostat with digital LED temperature display
(4) Adjustable heavy-duty epoxy coated wire shelves, 4 per door
The IKON IB27FG Glass Door Reach-In Freezer
The IKON IB27FG is a single glass door reach-in freezer with 19 cubic feet of capacity and a bottom-mount compressor holding 0 to -10 degrees Fahrenheit. The glass door lets you check frozen inventory levels at a glance without opening the cabinet and letting cold air escape, which matters more in a freezer where every door opening costs more energy to recover than a refrigerator. Four adjustable heavy-duty epoxy-coated wire shelves give you one extra shelf compared to the solid-door model, and clip-on shelf tag holders let you label each level for quick identification during rushes. Factory-installed heating elements in the door frame keep condensation from forming on the glass or around the gasket.
Bottom-Mount R290 Compressor with Condensate Evaporation System
The compressor sits at the bottom of the cabinet where it pulls in cooler air at floor level, so it runs more efficiently than a top-mount system that constantly fights rising kitchen heat. R290 natural refrigerant paired with CFC-free foam insulation keeps the interior at the target temperature range while using less energy than older refrigerant types. The condensate heating element is built directly into the condensate pan, so excess water evaporates on its own without the drip trays and manual emptying that older units require. An electronic thermostat with a digital LED display lets you check the cabinet temperature at a glance from across the kitchen, and you can adjust the set point without opening the door.
Commercial-Grade Stainless Steel Interior and Exterior
The exterior panels are 430 stainless steel, which holds up well in busy kitchens where carts, pans, and elbows make regular contact. The interior is 304 stainless steel, the higher-grade alloy that resists corrosion from acidic foods, cleaning chemicals, and the moisture cycling that happens every time you open and close the door. Self-closing doors stay shut on their own but remain open when swung to 90 degrees, so you can load or unload a full shelf of sheet pans without holding the door. Magnetic gaskets snap in and out without tools, which means you can replace a worn gasket in minutes instead of calling a technician. Every unit rides on four 4-inch swivel casters with two front locking wheels, so you can roll it into position for cleaning and lock it down for daily service.
The IB27FG measures 26.8 inches wide by 31.9 inches deep by 82.3 inches high. The 1/2 HP bottom-mount compressor draws 8 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Shipping weight is 329 pounds.
About IKON
IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.
Features & Benefits
-
Reach-in freezer with bottom-mount self-contained R290 refrigeration, (1) glass door
-
Capacity: 19 cu. ft.
-
Temperature Range: 0 to -10°F (-17 to -23°C)
-
Electronic thermostat with digital LED temperature display
-
(4) Adjustable heavy-duty epoxy coated wire shelves, 4 per door
-
Locking glass door(s)
-
Clip-on shelf tag holders
-
Accommodates full-size sheet pans
-
Self-closing doors, remain open at 90 degrees
-
Magnetic gasket replaceable without tools
-
Factory-installed heated door frame to eliminate condensation
-
R290 natural refrigerant with CFC-free foam insulation
-
Compressor: 1/2 HP, bottom-mounted
-
Condensate heating element built into condensate pan
-
Exterior: 430 stainless steel
-
Interior: 304 stainless steel
-
(4) 4" swivel casters, (2) front locking
-
Exterior Dimensions (W x D x H): 26.8" x 31.9" x 82.3"
-
Interior Dimensions (W x D x H): 22.2" x 27.6" x 50.2"
-
115/60/1, NEMA 5-15P, 10 ft. cord
Resources & Downloads
See all from IKON
Specifications
| Overall Dimensions (W x D x H) | 26.8" x 31.9" x 82.3" |
| Interior Dimensions (W x D x H) | 22.2" x 27.6" x 50.2" |
| Capacity | 19 cu. ft. |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Temperature Control | Electronic Thermostat with Digital LED Display |
| Doors | (1) Glass Door |
| Door Type | Glass |
| Shelves | (4) Adjustable Heavy-Duty Epoxy Coated Wire, 4 Per Door |
| Shelf Accessories | Clip-On Shelf Tag Holders |
| Refrigerant | R290 Natural |
| Insulation | CFC-Free Foam |
| Compressor | 1/2 HP, Bottom-Mounted |
| Condensate System | Heating Element Built Into Condensate Pan |
| Door Frame | Factory-Installed Heating Element |
| Exterior Material | 430 Stainless Steel |
| Interior Material | 304 Stainless Steel |
| Door Closure | Self-Closing, Remain Open at 90° |
| Gasket | Magnetic, Replaceable Without Tools |
| Door Lock | Yes |
| Casters | (4) 4" Swivel, (2) Front Locking |
| Rated Current | 8A |
| Voltage | 115/60/1 |
| NEMA Plug | 5-15P |
| Cord Length | 10 ft. |
| Shipping Weight | 329 lbs |
| Ambient Operating Range | 40-90°F |
Manufacturer's Warranty
-
2 Year
Labor
-
2 Year
Parts
-
3 Year
Compressor (Parts Only)
Certifications & Approvals
-
ETL Sanitation
Reach-in freezer with bottom-mount self-contained R290 refrigeration, (1) glass door
