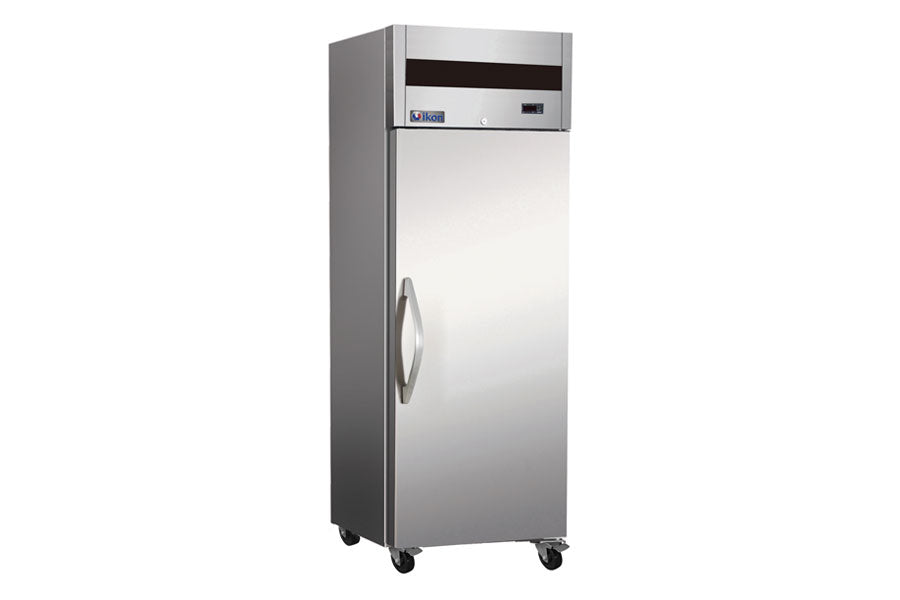

IKON IT28F 27 In. Single Door Reach-In Freezer, 23 Cu. Ft., Top-Mount, R290, Self-Contained

SKUIT28F BrandIKON
IKON IT28F 27 In. Single Door Reach-In Freezer, 23 Cu. Ft., Top-Mount, R290, Self-Contained

The IKON IT28F Reach-In Freezer

The IKON IT28F is a single-door reach-in freezer with 23 cubic feet of capacity and a top-mount compressor holding the interior between 0 and -10 degrees Fahrenheit. The top-mount design keeps the compressor away from the floor where mop water and grease can reduce condenser efficiency, which matters more on a freezer where the compressor runs harder to maintain sub-zero temperatures. LED interior lighting lets you identify frozen inventory without reaching in and feeling around, and factory-installed heating elements in the door frame prevent the condensation buildup that causes ice around gaskets. A field-reversible locking door and three adjustable shelves accommodate full-size sheet pans in a 26.8-inch-wide footprint.

Top-Mount R290 Compressor with Automatic Defrost

The compressor sits on top of the cabinet, which keeps the mechanical components away from floor-level grease, debris, and mop water that can clog condensers on bottom-mount units. This placement also makes the compressor easier to access for cleaning and maintenance since your technician does not have to kneel or pull the unit away from the wall. R290 natural refrigerant paired with CFC-free foam insulation delivers efficient cooling while meeting current environmental standards. The condensate heating element is built directly into the condensate pan, so excess water evaporates on its own without drip trays or manual emptying. An electronic thermostat with a digital LED display lets you check and adjust the cabinet temperature at a glance without opening the door.

Commercial-Grade Stainless Steel Interior and Exterior

The exterior panels are 430 stainless steel, which holds up to the daily contact of carts, sheet pans, and kitchen traffic. The interior is 304 stainless steel, the higher-grade alloy that resists corrosion from acidic foods, cleaning chemicals, and the constant moisture cycling inside a commercial cooler or freezer. Self-closing doors stay shut on their own but remain open when swung to 90 degrees, giving you both hands free to load or unload full sheet pans. Magnetic gaskets snap in and out without tools, so replacing a worn gasket takes minutes instead of a service call. Every unit rides on four 4-inch swivel casters with two front locking wheels for easy repositioning and stable daily operation.

The IT28F measures 26.8 inches wide by 32.7 inches deep by 82.3 inches high, with interior dimensions of 22.2 by 27.6 by 50.2 inches. The 5/8 HP top-mount compressor draws 11 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Shipping weight is 329 pounds.

About IKON

IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

Features & Benefits

  1. Reach-in freezer with top-mount self-contained R290 refrigeration, (1) solid stainless steel door
  2. Capacity: 23 cu. ft.
  3. Temperature Range: 0 to -10°F (-17 to -23°C)
  4. Electronic thermostat with digital LED temperature display
  5. Automatic defrost
  6. (3) Adjustable heavy-duty epoxy coated wire shelves, 3 per door
  7. Accommodates full-size sheet pans
  8. LED interior lighting
  9. Field reversible locking door with stainless steel handle
  10. Self-closing doors, remain open at 90 degrees
  11. Magnetic gasket replaceable without tools
  12. Factory-installed heated door frame to eliminate condensation
  13. R290 natural refrigerant with CFC-free foam insulation
  14. Compressor: 5/8 HP, top-mounted
  15. Condensate heating element built into condensate pan
  16. Exterior: 430 stainless steel
  17. Interior: 304 stainless steel
  18. (4) 4" swivel casters, (2) front locking
  19. Exterior Dimensions (W x D x H): 26.8" x 32.7" x 82.3"
  20. Interior Dimensions (W x D x H): 22.2" x 27.6" x 50.2"
  21. 115/60/1, NEMA 5-15P, 10 ft. cord

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$2,814.45
  • Reach-in freezer with top-mount self-contained R290 refrigeration, (1) solid stainless steel door
  • Capacity: 23 cu. ft.
  • Temperature Range: 0 to -10°F (-17 to -23°C)
  • Electronic thermostat with digital LED temperature display
  • Automatic defrost
    • See full feature list

    The IKON IT28F Reach-In Freezer

    The IKON IT28F is a single-door reach-in freezer with 23 cubic feet of capacity and a top-mount compressor holding the interior between 0 and -10 degrees Fahrenheit. The top-mount design keeps the compressor away from the floor where mop water and grease can reduce condenser efficiency, which matters more on a freezer where the compressor runs harder to maintain sub-zero temperatures. LED interior lighting lets you identify frozen inventory without reaching in and feeling around, and factory-installed heating elements in the door frame prevent the condensation buildup that causes ice around gaskets. A field-reversible locking door and three adjustable shelves accommodate full-size sheet pans in a 26.8-inch-wide footprint.

    Top-Mount R290 Compressor with Automatic Defrost

    The compressor sits on top of the cabinet, which keeps the mechanical components away from floor-level grease, debris, and mop water that can clog condensers on bottom-mount units. This placement also makes the compressor easier to access for cleaning and maintenance since your technician does not have to kneel or pull the unit away from the wall. R290 natural refrigerant paired with CFC-free foam insulation delivers efficient cooling while meeting current environmental standards. The condensate heating element is built directly into the condensate pan, so excess water evaporates on its own without drip trays or manual emptying. An electronic thermostat with a digital LED display lets you check and adjust the cabinet temperature at a glance without opening the door.

    Commercial-Grade Stainless Steel Interior and Exterior

    The exterior panels are 430 stainless steel, which holds up to the daily contact of carts, sheet pans, and kitchen traffic. The interior is 304 stainless steel, the higher-grade alloy that resists corrosion from acidic foods, cleaning chemicals, and the constant moisture cycling inside a commercial cooler or freezer. Self-closing doors stay shut on their own but remain open when swung to 90 degrees, giving you both hands free to load or unload full sheet pans. Magnetic gaskets snap in and out without tools, so replacing a worn gasket takes minutes instead of a service call. Every unit rides on four 4-inch swivel casters with two front locking wheels for easy repositioning and stable daily operation.

    The IT28F measures 26.8 inches wide by 32.7 inches deep by 82.3 inches high, with interior dimensions of 22.2 by 27.6 by 50.2 inches. The 5/8 HP top-mount compressor draws 11 amps on 115V/60/1 power with a NEMA 5-15P plug and 10-foot cord. Shipping weight is 329 pounds.

    About IKON

    IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

    Features & Benefits

    1. Reach-in freezer with top-mount self-contained R290 refrigeration, (1) solid stainless steel door
    2. Capacity: 23 cu. ft.
    3. Temperature Range: 0 to -10°F (-17 to -23°C)
    4. Electronic thermostat with digital LED temperature display
    5. Automatic defrost
    6. (3) Adjustable heavy-duty epoxy coated wire shelves, 3 per door
    7. Accommodates full-size sheet pans
    8. LED interior lighting
    9. Field reversible locking door with stainless steel handle
    10. Self-closing doors, remain open at 90 degrees
    11. Magnetic gasket replaceable without tools
    12. Factory-installed heated door frame to eliminate condensation
    13. R290 natural refrigerant with CFC-free foam insulation
    14. Compressor: 5/8 HP, top-mounted
    15. Condensate heating element built into condensate pan
    16. Exterior: 430 stainless steel
    17. Interior: 304 stainless steel
    18. (4) 4" swivel casters, (2) front locking
    19. Exterior Dimensions (W x D x H): 26.8" x 32.7" x 82.3"
    20. Interior Dimensions (W x D x H): 22.2" x 27.6" x 50.2"
    21. 115/60/1, NEMA 5-15P, 10 ft. cord

    Resources & Downloads

    See all from IKON

    Specifications

    Overall Dimensions (W x D x H)26.8" x 32.7" x 82.3"
    Interior Dimensions (W x D x H)22.2" x 27.6" x 50.2"
    Capacity23 cu. ft.
    Temperature Range0 to -10°F (-17 to -23°C)
    Temperature ControlElectronic Thermostat with Digital LED Display
    DefrostAutomatic
    Doors(1) Solid Stainless Steel Door
    Door SwingField Reversible
    Shelves(3) Adjustable Heavy-Duty Epoxy Coated Wire, 3 Per Door
    Interior LightingLED
    RefrigerantR290 Natural
    InsulationCFC-Free Foam
    Compressor5/8 HP, Top-Mounted
    Condensate SystemHeating Element Built Into Condensate Pan
    Door FrameFactory-Installed Heating Element
    Exterior Material430 Stainless Steel
    Interior Material304 Stainless Steel
    Door ClosureSelf-Closing, Remain Open at 90°
    GasketMagnetic, Replaceable Without Tools
    Door LockYes
    Casters(4) 4" Swivel, (2) Front Locking
    Rated Current11A
    Voltage115/60/1
    NEMA Plug5-15P
    Cord Length10 ft.
    Shipping Weight329 lbs
    Ambient Operating Range40-90°F

    Manufacturer's Warranty

    • 2 Year

      Labor

    • 2 Year

      Parts

    • 3 Year

      Compressor (Parts Only)

    Certifications & Approvals

    • ETLSAN
      ETL Sanitation

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're exited to serve you next!

    The IKON IT28F Reach-In Freezer

    About IKON

    IKON is a commercial refrigeration line built for foodservice operations that balance back-of-house prep with front-of-house visibility. The range covers reach-ins, glass door merchandisers, prep tables, undercounters, and bar units, giving operators flexibility across kitchen and service areas. Units are constructed with stainless steel and use R290 refrigerant, with digital temperature controls that are easy to read and adjust during service. Bottom-mounted refrigeration is common across the line, which helps in hotter kitchen environments and simplifies routine cleaning. IKON is often used in restaurants, convenience stores, and bars that need consistent performance across mixed refrigeration formats.

    About Reach-In Freezers

    Commercial reach-in freezers are a must for any professional kitchen that needs reliable frozen storage. Restaurants, hotels, caterers, and food trucks all rely on them to keep ingredients and prepared items at safe temperatures and close at hand. These units are built for daily use and hold steady below zero, even in a busy, hot kitchen.

    Reach-in freezers come in 1, 2, or 3 door models. A 1 door unit fits small kitchens or works as a station freezer. Most restaurants use a 2 door model. High-volume kitchens that need the most storage go with 3 doors to keep product accessible during service.

    Glass door reach-in freezers let staff see what's inside without opening the door, which helps keep temperatures steady. Pass-through and roll-in models are available if your workflow needs them. The key is to match the freezer size and type to your actual storage needs.

    Common Types and Configurations

    • 1 Door Commercial Reach-In Freezer: Compact upright for small kitchens or station use. Holds 20 to 27 cubic feet and fits tight spaces.
    • 2 Door Commercial Reach-In Freezer: Most common in restaurants. Balances storage and footprint. Usually 46 to 54 cubic feet.
    • 3 Door Commercial Reach-In Freezer: For high-volume kitchens that need maximum frozen storage. Used in large restaurants, hotels, and catering.
    • Glass Door Reach-In Freezer: Lets staff see product without opening the door. Helps keep temperatures steady during service.
    • Pass-Through Freezer: Opens from both sides. Good for moving product between stations or from prep to service.
    • Roll-In Freezer: Takes sheet pan racks. Used in bakeries, catering, and institutions for freezing large batches fast.

    What to Look at Before You Buy

    • Interior Capacity: Match cubic feet to what you actually need. Most restaurants use a 2 door unit in the 46 to 54 cubic foot range. High-volume kitchens may need 3 doors or more than one unit.
    • Temperature Range: The freezer must hold 0°F or below. If your kitchen is hot, check the ambient rating to make sure it can keep up.
    • Compressor Location: Top-mount runs cooler and is better for hot kitchens. Bottom-mount is easier to service but may not keep up in high heat.
    • Door Configuration: Solid doors insulate better. Glass doors help with visibility and speed. Pick what fits your workflow.
    • Interior Shelving: Go for adjustable shelves that fit your pans and containers. Epoxy-coated wire is standard and easy to clean.
    • Defrost System: Most units use automatic defrost. Make sure the system fits your usage and doesn't cause temperature spikes.

    Frequently Asked Questions

    What temperature should a commercial reach-in freezer be set to?

    A commercial reach-in freezer needs to hold 0°F or below at all times. Health codes require frozen food to stay at 0°F or colder. If your kitchen runs hot, make sure the freezer can keep temperature under a full load.

    What is the difference between a walk-in freezer and a reach-in freezer?

    A reach-in freezer is an upright cabinet you open to grab items. A walk-in is a room you enter for bulk storage. Reach-ins go on or near the line for quick access. Walk-ins are for holding large amounts of product longer term.

    What is the difference between a 1, 2, and 3 door commercial reach-in freezer?

    Door count sets the storage and footprint. 1 door is compact for small kitchens or stations. 2 doors fit most restaurants. 3 doors are for high-volume kitchens that need lots of frozen storage and fast access during service.
