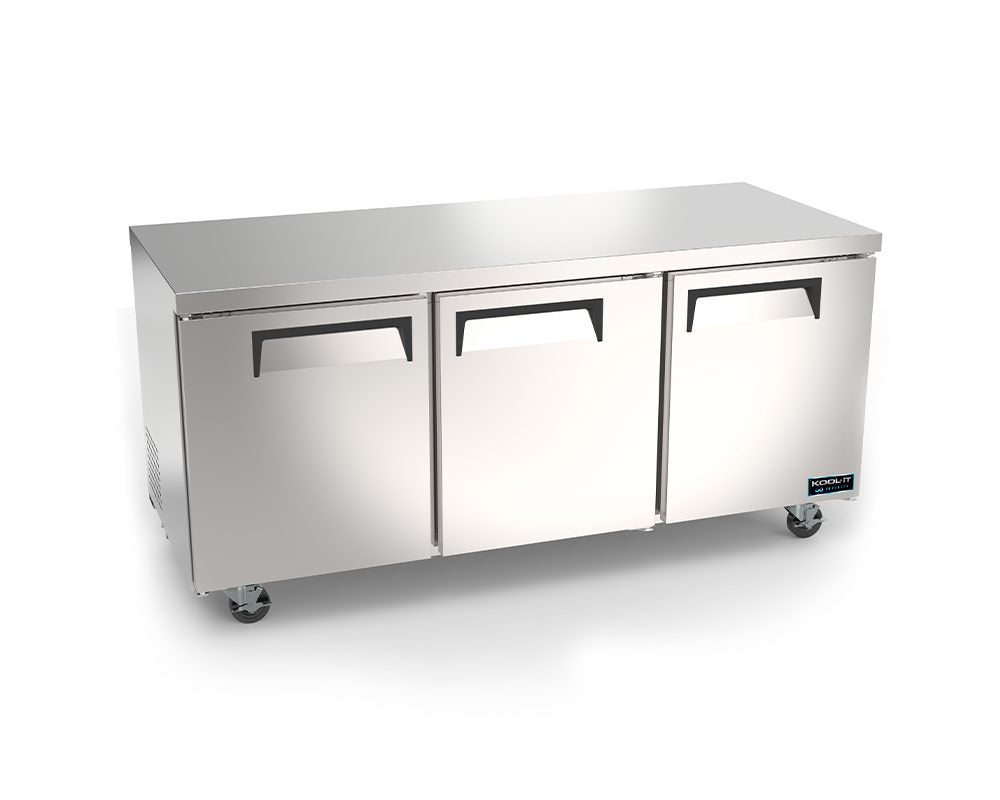

The Kool-It Infinity KIN72UCF-HC Undercounter Freezer
The Kool-It Infinity KIN72UCF-HC is a 72-inch undercounter freezer with three door sections that maximizes frozen storage beneath your counter line. At 71.5 inches wide and 35.2 inches tall, it holds contents between -8 and 0 degrees Fahrenheit across three independently accessible sections. Three self-closing doors with one adjustable epoxy coated wire shelf per section let you dedicate each section to a different frozen category, so multiple cooks can pull what they need without waiting.
R290 Rear-Mount Compressor with Multi-Grade Stainless Steel Construction
The exterior is built from 430 stainless steel, the interior walls are 201 stainless steel, and the interior floor is 304 stainless steel. That floor grade matters in an undercounter unit because spills from pans and containers settle at the bottom, and 304 holds up to repeated cleaning without pitting or corroding the way lesser grades would. Foam insulation between the walls keeps the cabinet efficient without adding unnecessary bulk to the footprint. The rear-mount R290 compressor pulls out on a removable installation board, so your service tech can access the condenser coil, fan motor, and refrigerant lines without pulling the entire unit out from under the counter. Auto defrost and auto evaporation handle condensate management, which means no drain lines to plumb and no drip pans to empty.
Self-Closing Doors, Tool-Free Gaskets, and Adjustable Shelving
Each door is self-closing and stays open at 90 degrees, so you can load or unload with both hands without the door swinging shut on you. The magnetic gaskets pull free without tools. When a gasket starts losing its seal, you swap it in a couple of minutes instead of scheduling a service call. Inside, each door section comes with one adjustable heavy-duty epoxy coated wire shelf. The epoxy coating resists corrosion from moisture and cleaning chemicals, and the shelf height adjusts to fit whatever you need to store, from full-size sheet pans to tall containers. Four-inch casters with front locking wheels make it easy to roll the unit into position during installation and lock it in place for daily use.
The KIN72UCF-HC measures 71.5 inches wide by 29.5 inches deep by 35.2 inches high. The interior provides 66.9 by 19.8 by 23.5 inches of usable space. The 1 HP compressor draws 4.5 amps on 115V/60/1 power with a NEMA 5-15P plug. Shipping weight is 389 lbs on 4-inch casters with front locks.
About Kool-It Infinity
Kool-It Infinity is a line of commercial refrigeration equipment designed for foodservice environments that require dependable cold storage and prep integration. The lineup includes reach-in refrigerators and freezers, sandwich and salad prep tables, undercounter units, and chef bases. Units are constructed with 430 stainless steel exteriors and use R290 hydrocarbon refrigerant. Electronic thermostats and digital LED displays provide clear temperature control, while self-contained refrigeration systems are typically bottom or rear mounted. Consistent platform design across models supports common layouts in kitchens managing prep, storage, and line service within the same equipment family.
Features & Benefits
-
Undercounter -8 to 0°F unit designed to fit beneath standard counter heights for point-of-use cold storage
-
(3) Self-Closing Doors, self-closing, stay open at 90 degrees
-
(1) adjustable heavy-duty epoxy coated wire shelf per door section
-
Tool-free magnetic gasket replacement
-
Temperature Range: -8 to 0°F
-
Electronic thermostat with digital LED temperature display
-
R290 refrigerant with foam insulation
-
Rear-mount compressor, 1 HP, 4.5A
-
Removable installation board for easy condenser coil access and service
-
Auto defrost and auto evaporation of condensation water
-
Exterior: 430 stainless steel
-
Interior walls: 201 stainless steel
-
Interior floor: 304 stainless steel
-
Stainless steel framework construction
-
(4) 4-inch casters, front locking
-
Exterior Dimensions (W x D x H): 71.5" x 29.5" x 35.2"
-
Interior Dimensions (W x D x H): 66.9" x 19.8" x 23.5"
-
115V/60/1, NEMA 5-15P
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Undercounter -8 to 0°F unit designed to fit beneath standard counter heights for point-of-use cold storage
(3) Self-Closing Doors, self-closing, stay open at 90 degrees
(1) adjustable heavy-duty epoxy coated wire shelf per door section
Tool-free magnetic gasket replacement
Temperature Range: -8 to 0°F
The Kool-It Infinity KIN72UCF-HC Undercounter Freezer
The Kool-It Infinity KIN72UCF-HC is a 72-inch undercounter freezer with three door sections that maximizes frozen storage beneath your counter line. At 71.5 inches wide and 35.2 inches tall, it holds contents between -8 and 0 degrees Fahrenheit across three independently accessible sections. Three self-closing doors with one adjustable epoxy coated wire shelf per section let you dedicate each section to a different frozen category, so multiple cooks can pull what they need without waiting.
R290 Rear-Mount Compressor with Multi-Grade Stainless Steel Construction
The exterior is built from 430 stainless steel, the interior walls are 201 stainless steel, and the interior floor is 304 stainless steel. That floor grade matters in an undercounter unit because spills from pans and containers settle at the bottom, and 304 holds up to repeated cleaning without pitting or corroding the way lesser grades would. Foam insulation between the walls keeps the cabinet efficient without adding unnecessary bulk to the footprint. The rear-mount R290 compressor pulls out on a removable installation board, so your service tech can access the condenser coil, fan motor, and refrigerant lines without pulling the entire unit out from under the counter. Auto defrost and auto evaporation handle condensate management, which means no drain lines to plumb and no drip pans to empty.
Self-Closing Doors, Tool-Free Gaskets, and Adjustable Shelving
Each door is self-closing and stays open at 90 degrees, so you can load or unload with both hands without the door swinging shut on you. The magnetic gaskets pull free without tools. When a gasket starts losing its seal, you swap it in a couple of minutes instead of scheduling a service call. Inside, each door section comes with one adjustable heavy-duty epoxy coated wire shelf. The epoxy coating resists corrosion from moisture and cleaning chemicals, and the shelf height adjusts to fit whatever you need to store, from full-size sheet pans to tall containers. Four-inch casters with front locking wheels make it easy to roll the unit into position during installation and lock it in place for daily use.
The KIN72UCF-HC measures 71.5 inches wide by 29.5 inches deep by 35.2 inches high. The interior provides 66.9 by 19.8 by 23.5 inches of usable space. The 1 HP compressor draws 4.5 amps on 115V/60/1 power with a NEMA 5-15P plug. Shipping weight is 389 lbs on 4-inch casters with front locks.
About Kool-It Infinity
Kool-It Infinity is a line of commercial refrigeration equipment designed for foodservice environments that require dependable cold storage and prep integration. The lineup includes reach-in refrigerators and freezers, sandwich and salad prep tables, undercounter units, and chef bases. Units are constructed with 430 stainless steel exteriors and use R290 hydrocarbon refrigerant. Electronic thermostats and digital LED displays provide clear temperature control, while self-contained refrigeration systems are typically bottom or rear mounted. Consistent platform design across models supports common layouts in kitchens managing prep, storage, and line service within the same equipment family.
Features & Benefits
-
Undercounter -8 to 0°F unit designed to fit beneath standard counter heights for point-of-use cold storage
-
(3) Self-Closing Doors, self-closing, stay open at 90 degrees
-
(1) adjustable heavy-duty epoxy coated wire shelf per door section
-
Tool-free magnetic gasket replacement
-
Temperature Range: -8 to 0°F
-
Electronic thermostat with digital LED temperature display
-
R290 refrigerant with foam insulation
-
Rear-mount compressor, 1 HP, 4.5A
-
Removable installation board for easy condenser coil access and service
-
Auto defrost and auto evaporation of condensation water
-
Exterior: 430 stainless steel
-
Interior walls: 201 stainless steel
-
Interior floor: 304 stainless steel
-
Stainless steel framework construction
-
(4) 4-inch casters, front locking
-
Exterior Dimensions (W x D x H): 71.5" x 29.5" x 35.2"
-
Interior Dimensions (W x D x H): 66.9" x 19.8" x 23.5"
-
115V/60/1, NEMA 5-15P
Resources & Downloads
See all from Kool-It Infinity
Specifications
| Overall Dimensions (W x D x H) | 71.5" x 29.5" x 35.2" |
| Interior Dimensions (W x D x H) | 66.9" x 19.8" x 23.5" |
| Temperature Range | -8 to 0°F (-22 to -18°C) |
| Doors | (3) Self-Closing Doors |
| Shelves | (1) per door section, adjustable epoxy coated wire |
| Door Type | Self-Closing, Stay Open at 90° |
| Gaskets | Magnetic, tool-free replacement |
| Refrigerant | R290 |
| Compressor Size | 1 HP |
| Rated Current | 4.5A |
| Insulation | Foam |
| Defrost | Auto defrost |
| Condensate Management | Auto evaporation |
| Exterior Material | 430 Stainless Steel |
| Interior Walls | 201 Stainless Steel |
| Interior Floor | 304 Stainless Steel |
| Construction | Stainless Steel Framework |
| Casters | (4) 4" casters, front locking |
| Voltage | 115V/60/1 |
| NEMA Plug | 5-15P |
| Shipping Weight | 389 lbs |
Manufacturer's Warranty
-
2 Year
Labor
-
2 Year
Parts
-
3 Year
Compressor (Parts Only)
Certifications & Approvals
-
ETL Sanitation
