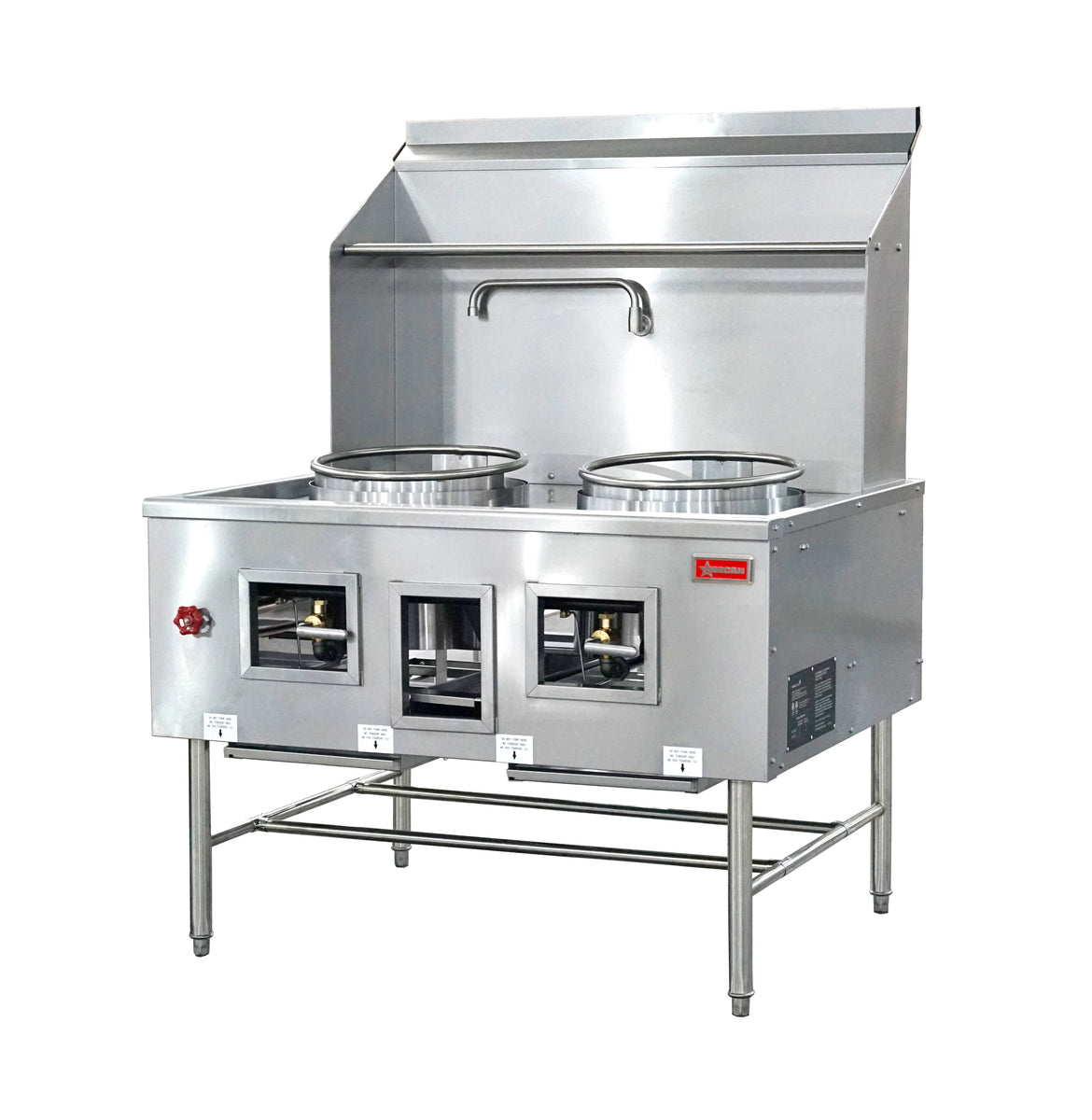

The Omcan 48671 Wok Range
The Omcan CE-CN-W2L2-NG is a 2-chamber natural gas wok range rated at 250,000 BTU, built for the high-heat stir-frying, deep-frying, and stock-boiling demands of Chinese, Thai, and other Asian cuisine kitchens. Each chamber concentrates intense heat from jet burners directly under the wok, delivering the rapid temperature response that wok cooking requires. The unit comes with a stainless steel backsplash, faucet, and pipe rack as standard equipment.
High-Output Jet Burners with Water-Cooled Top
The 13-inch ring chambers use 18-tip jet burners rated at 95,000 BTU each, while 16-inch ring chambers use 28-tip jet burners rated at 125,000 BTU each. The multi-tip design spreads flame evenly around the base of the wok rather than concentrating it in a single point, which means your wok heats uniformly and you get consistent searing across the entire cooking surface. The water-cooled top keeps the work surface at a manageable temperature for the cook, even with burners running at full output for hours during service. Each burner has an adjustable gas valve with pilot ignition for quick, reliable lighting.
Stainless Steel Backsplash with Integrated Faucet
The built-in backsplash protects the wall behind the range from grease splatter and steam damage. The stainless steel faucet with water inlet and drain (both 1/2-inch NPT female) provides running water right at the cooking station for rinsing woks between dishes, adding water to stocks, and quick cleanup during service. The pipe rack above the backsplash gives you a place to hang ladles, strainers, and other wok tools within arm's reach.
Gas connects through a 3/4-inch NPT rear connection, and a pressure regulator is supplied with the unit. Operating pressure is 5.0 inches water column with a recommended supply pressure of 7 to 9 inches water column. The range requires 6 inches of clearance from combustible construction on all sides. At 192 pounds with overall dimensions of 47.5" x 42.8" x 62", this unit fits into the wok station of a professional kitchen line.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
2-chamber natural gas wok range with twin 16" rings, delivering the maximum heat output for high-volume Asian cuisine kitchens
-
250,000 BTU total (125,000 per chamber) provides the most intense heat in the wok range lineup for large woks and stock pots
-
Each 16" ring fires a 28-tip jet burner, concentrating massive flame directly under the wok for explosive searing and wok hei
-
Water-cooled top prevents surface warping under hours of extreme, sustained heat
-
Adjustable gas valve with pilot ignition gives each cook independent flame control
-
Stainless steel faucet, backsplash, and pipe rack included for water and utensil access at the line
-
3/4" NPT rear gas connection and included regulator simplify installation
-
Water inlet and drain (1/2" NPT female) support the cooling system and speed up end-of-shift cleanup
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
2-chamber natural gas wok range with twin 16" rings, delivering the maximum heat output for high-volume Asian cuisine kitchens
250,000 BTU total (125,000 per chamber) provides the most intense heat in the wok range lineup for large woks and stock pots
Each 16" ring fires a 28-tip jet burner, concentrating massive flame directly under the wok for explosive searing and wok hei
Water-cooled top prevents surface warping under hours of extreme, sustained heat
Adjustable gas valve with pilot ignition gives each cook independent flame control
The Omcan 48671 Wok Range
The Omcan CE-CN-W2L2-NG is a 2-chamber natural gas wok range rated at 250,000 BTU, built for the high-heat stir-frying, deep-frying, and stock-boiling demands of Chinese, Thai, and other Asian cuisine kitchens. Each chamber concentrates intense heat from jet burners directly under the wok, delivering the rapid temperature response that wok cooking requires. The unit comes with a stainless steel backsplash, faucet, and pipe rack as standard equipment.
High-Output Jet Burners with Water-Cooled Top
The 13-inch ring chambers use 18-tip jet burners rated at 95,000 BTU each, while 16-inch ring chambers use 28-tip jet burners rated at 125,000 BTU each. The multi-tip design spreads flame evenly around the base of the wok rather than concentrating it in a single point, which means your wok heats uniformly and you get consistent searing across the entire cooking surface. The water-cooled top keeps the work surface at a manageable temperature for the cook, even with burners running at full output for hours during service. Each burner has an adjustable gas valve with pilot ignition for quick, reliable lighting.
Stainless Steel Backsplash with Integrated Faucet
The built-in backsplash protects the wall behind the range from grease splatter and steam damage. The stainless steel faucet with water inlet and drain (both 1/2-inch NPT female) provides running water right at the cooking station for rinsing woks between dishes, adding water to stocks, and quick cleanup during service. The pipe rack above the backsplash gives you a place to hang ladles, strainers, and other wok tools within arm's reach.
Gas connects through a 3/4-inch NPT rear connection, and a pressure regulator is supplied with the unit. Operating pressure is 5.0 inches water column with a recommended supply pressure of 7 to 9 inches water column. The range requires 6 inches of clearance from combustible construction on all sides. At 192 pounds with overall dimensions of 47.5" x 42.8" x 62", this unit fits into the wok station of a professional kitchen line.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
2-chamber natural gas wok range with twin 16" rings, delivering the maximum heat output for high-volume Asian cuisine kitchens
-
250,000 BTU total (125,000 per chamber) provides the most intense heat in the wok range lineup for large woks and stock pots
-
Each 16" ring fires a 28-tip jet burner, concentrating massive flame directly under the wok for explosive searing and wok hei
-
Water-cooled top prevents surface warping under hours of extreme, sustained heat
-
Adjustable gas valve with pilot ignition gives each cook independent flame control
-
Stainless steel faucet, backsplash, and pipe rack included for water and utensil access at the line
-
3/4" NPT rear gas connection and included regulator simplify installation
-
Water inlet and drain (1/2" NPT female) support the cooling system and speed up end-of-shift cleanup
Resources & Downloads
See all from Omcan
Specifications
| Fuel Type | Natural Gas |
| Chamber Configuration | 2 chambers (2x16") |
| Total BTU Output | 250,000 |
| Number of Burners | 2 |
| Burner Type | Jet burners (13" ring: 18-tip / 16" ring: 28-tip) |
| Ignition | Pilot |
| Top Cooling | Water-cooled |
| Gas Valve | Adjustable |
| Gas Connection | 3/4" NPT rear |
| Operating Pressure | 5.0" W.C. |
| Recommended Supply Pressure | 7 to 9" W.C. |
| Water Inlet | 1/2" NPT female |
| Water Drain | 1/2" NPT female |
| Backsplash | Stainless steel (included) |
| Faucet | Stainless steel (included) |
| Pipe Rack | Stainless steel (included) |
| Regulator | Supplied |
| Clearance from Combustibles | 6" |
| Net Weight | 192 lbs |
| Overall Dimensions (WxDxH) | 47.5" x 42.8" x 62" |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
