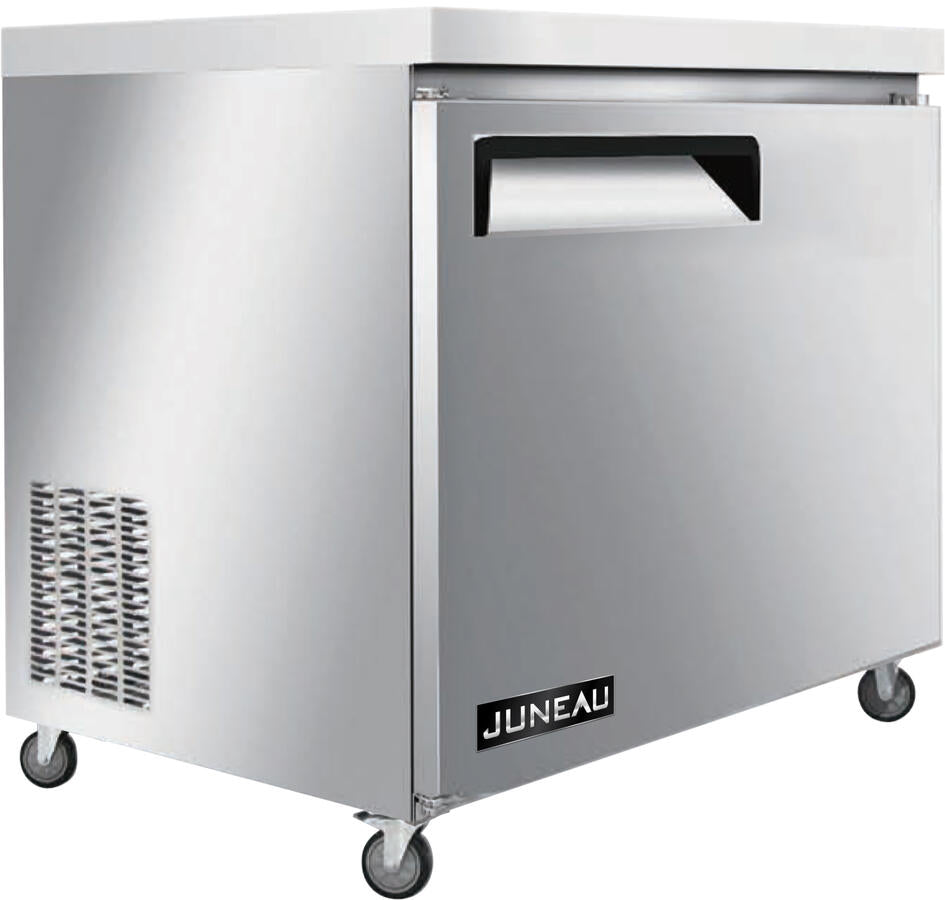

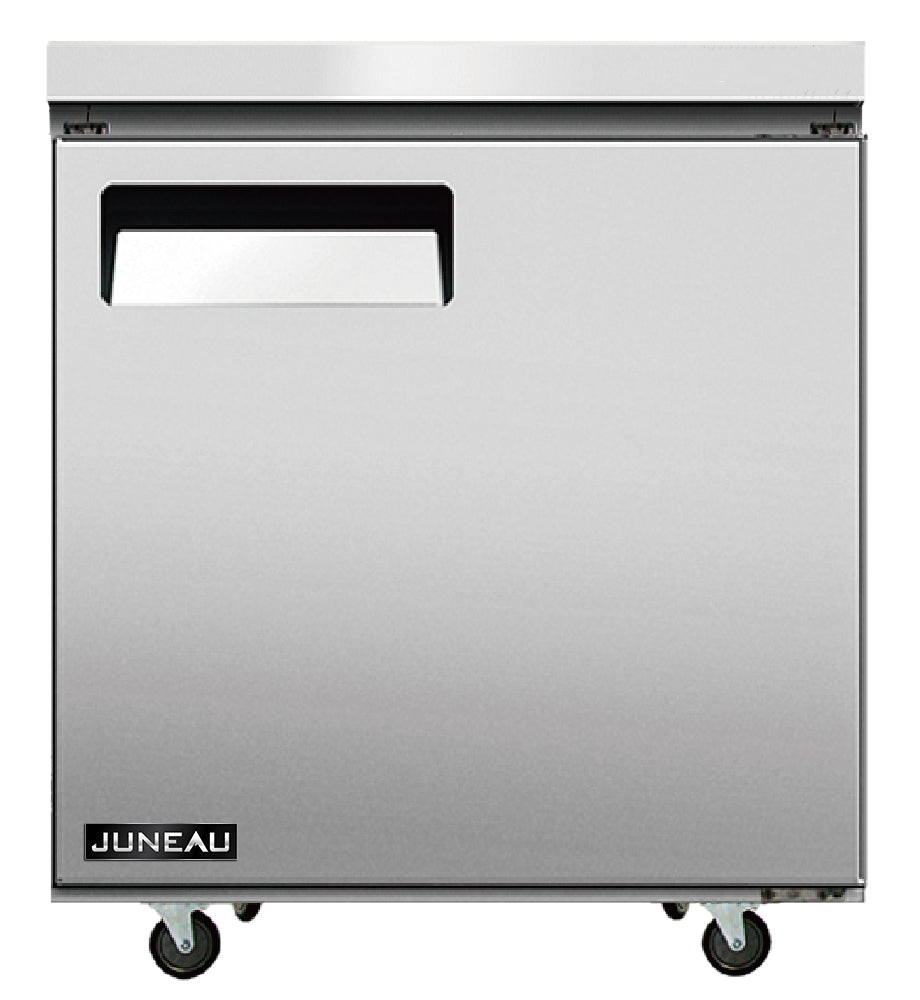

The Omcan 58011 Undercounter Freezer
The Omcan FR-TH-0686-HC is a 28-inch single door undercounter freezer from the Juneau series, built for tight spaces where every inch of floor plan counts. It tucks under a standard 36-inch counter and still delivers. Think a small pizza shop that needs frozen dough within arm's reach of the make line, or a bar holding backup ice cream service.
Food-Grade 304 Stainless Steel Interior with Round-Corner Design
The entire interior cavity is lined with food-grade 304 stainless steel, the same grade used in commercial food processing equipment. Unlike 201-grade steel that can pit and corrode when exposed to acidic spills or salt, 304 holds up to repeated cleaning with commercial sanitizers without degrading. The interior corners are rounded rather than squared off, so there are no sharp seams where food particles and moisture collect. When you wipe down the cavity at the end of a shift, the cloth moves in one continuous sweep instead of catching on welded joints. That means faster cleaning and fewer spots where bacteria can establish a foothold.
Back-Mounted Ventilated Cooling System with R290 Refrigerant
The refrigeration system mounts on the back of the cabinet rather than underneath, which keeps the condenser and compressor away from floor-level grease and dust that clog bottom-mounted systems in busy kitchens. The fan-cooled (ventilated) design pulls air across the condenser coils actively, so the unit maintains its -8 to 0°F (-22 to 0°C) operating range consistently even when ambient kitchen temperatures climb during peak service. R290 refrigerant is a hydrocarbon with zero ozone depletion potential and a global warming potential of just 3, compared to 1,430 for the R-134a still found in many older commercial units. It also runs more efficiently, so the compressor cycles less often to hold temperature, which translates to lower energy bills and less wear on the system over time.
Elitech Digital Controller and Adjustable PVC-Coated Shelving
Temperature is managed by an Elitech digital controller that displays the actual cavity temperature and lets you set your target with push-button precision. You are not guessing with a dial and hoping you are in range. The heavy-duty PVC-coated wire shelves adjust to multiple heights, so you can reconfigure the interior around your actual inventory rather than forcing everything to fit a fixed layout. Tall containers, stacked hotel pans, and sheet trays all fit when you can move shelves up or down in minutes. Pre-installed lockable casters (four total, two with brakes) let you roll the unit out for cleaning behind the line and lock it firmly in place during service.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Tucks under a standard counter to keep frozen dough, proteins, or prepped items within arm’s reach of the line
-
3.4 cu. ft. behind a single solid stainless steel door fits tight pizza shops, bars, and small kitchens
-
Holds -8 to 0°F (-22 to 0°C) with Elitech digital push-button controller for accurate freeze
-
Food-grade 304 stainless steel interior with rounded corners wipes clean for health inspections
-
Heavy-duty adjustable PVC-coated wire shelves hold frozen containers and prep pans
-
Back-mounted fan-cooled system circulates cold air evenly throughout the cabinet
-
R290 refrigerant provides efficient freezing with zero ozone depletion
-
Pre-installed lockable casters (2 with brakes) roll for cleaning and lock during service
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Tucks under a standard counter to keep frozen dough, proteins, or prepped items within arm’s reach of the line
3.4 cu. ft. behind a single solid stainless steel door fits tight pizza shops, bars, and small kitchens
Holds -8 to 0°F (-22 to 0°C) with Elitech digital push-button controller for accurate freeze
Food-grade 304 stainless steel interior with rounded corners wipes clean for health inspections
Heavy-duty adjustable PVC-coated wire shelves hold frozen containers and prep pans
The Omcan 58011 Undercounter Freezer
The Omcan FR-TH-0686-HC is a 28-inch single door undercounter freezer from the Juneau series, built for tight spaces where every inch of floor plan counts. It tucks under a standard 36-inch counter and still delivers. Think a small pizza shop that needs frozen dough within arm's reach of the make line, or a bar holding backup ice cream service.
Food-Grade 304 Stainless Steel Interior with Round-Corner Design
The entire interior cavity is lined with food-grade 304 stainless steel, the same grade used in commercial food processing equipment. Unlike 201-grade steel that can pit and corrode when exposed to acidic spills or salt, 304 holds up to repeated cleaning with commercial sanitizers without degrading. The interior corners are rounded rather than squared off, so there are no sharp seams where food particles and moisture collect. When you wipe down the cavity at the end of a shift, the cloth moves in one continuous sweep instead of catching on welded joints. That means faster cleaning and fewer spots where bacteria can establish a foothold.
Back-Mounted Ventilated Cooling System with R290 Refrigerant
The refrigeration system mounts on the back of the cabinet rather than underneath, which keeps the condenser and compressor away from floor-level grease and dust that clog bottom-mounted systems in busy kitchens. The fan-cooled (ventilated) design pulls air across the condenser coils actively, so the unit maintains its -8 to 0°F (-22 to 0°C) operating range consistently even when ambient kitchen temperatures climb during peak service. R290 refrigerant is a hydrocarbon with zero ozone depletion potential and a global warming potential of just 3, compared to 1,430 for the R-134a still found in many older commercial units. It also runs more efficiently, so the compressor cycles less often to hold temperature, which translates to lower energy bills and less wear on the system over time.
Elitech Digital Controller and Adjustable PVC-Coated Shelving
Temperature is managed by an Elitech digital controller that displays the actual cavity temperature and lets you set your target with push-button precision. You are not guessing with a dial and hoping you are in range. The heavy-duty PVC-coated wire shelves adjust to multiple heights, so you can reconfigure the interior around your actual inventory rather than forcing everything to fit a fixed layout. Tall containers, stacked hotel pans, and sheet trays all fit when you can move shelves up or down in minutes. Pre-installed lockable casters (four total, two with brakes) let you roll the unit out for cleaning behind the line and lock it firmly in place during service.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Tucks under a standard counter to keep frozen dough, proteins, or prepped items within arm’s reach of the line
-
3.4 cu. ft. behind a single solid stainless steel door fits tight pizza shops, bars, and small kitchens
-
Holds -8 to 0°F (-22 to 0°C) with Elitech digital push-button controller for accurate freeze
-
Food-grade 304 stainless steel interior with rounded corners wipes clean for health inspections
-
Heavy-duty adjustable PVC-coated wire shelves hold frozen containers and prep pans
-
Back-mounted fan-cooled system circulates cold air evenly throughout the cabinet
-
R290 refrigerant provides efficient freezing with zero ozone depletion
-
Pre-installed lockable casters (2 with brakes) roll for cleaning and lock during service
Resources & Downloads
See all from Omcan
Specifications
| Net Volume | 3.4 cu. ft. |
| Number of Doors | 1 |
| Temperature Range | -8 to 0°F (-22 to 0°C) |
| Temperature Controller | Elitech |
| Cooling System | Fan cooling (ventilated) |
| Refrigerant | R290 |
| Climate Type | ST |
| Interior Material | Food-Grade 304 Stainless Steel |
| Interior Design | Round-corner, seamless |
| Exterior Material | Stainless Steel |
| Shelving | Heavy-duty adjustable PVC-coated wire shelves |
| Rated Power | 780W |
| Electrical | 115V / 60Hz / 1Ph |
| Compressor Location | Back-mounted |
| Casters | 4 wheels (2 with brakes) |
| Lock | No |
| Overall Dimensions (W x D x H) | 27.6 x 30.1 x 35.9 in. |
| Plug Type | NEMA 5-15P |
Manufacturer's Warranty
-
2 Year
Labor
-
2 Year
Parts
-
5 Year
Compressor
