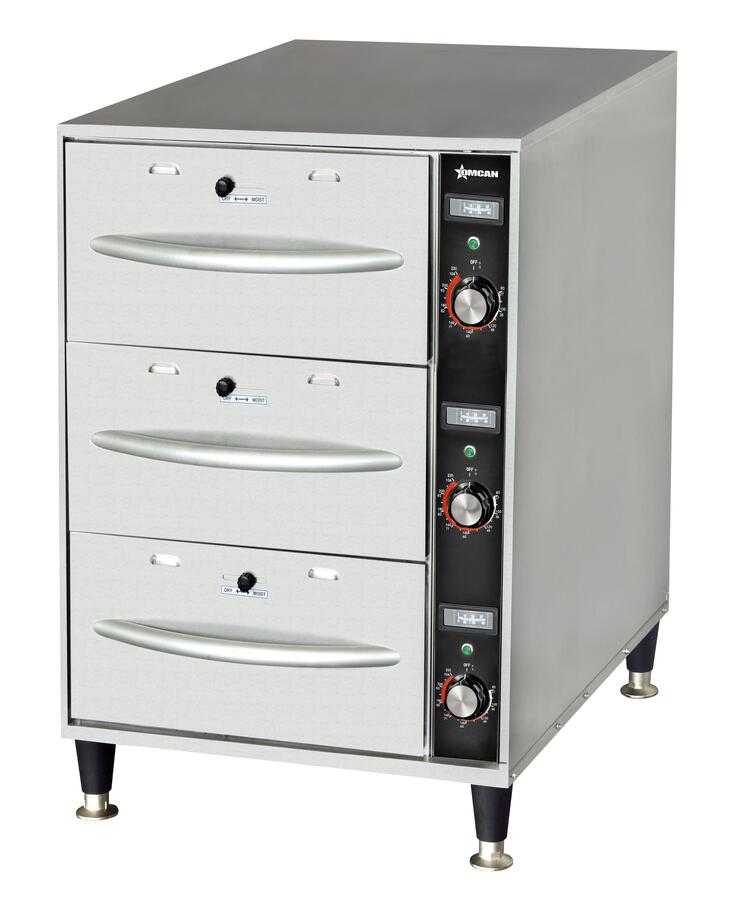

The Omcan 47547 Drawer Warmer
The Omcan FW-CN-0003 is the largest warming drawer unit in this series with 3 insulated drawers, each holding a full-size pan (12" x 20" x 6"). Three drawers give you enough capacity to hold a complete multi-course meal or three separate menu items at serving temperature simultaneously. Banquet kitchens, high-volume restaurants, and catering operations that stage large numbers of plated items benefit from having three independent holding zones in a single narrow freestanding unit. At just 20.3 inches wide, it takes up less floor space than you would expect for this much holding capacity.

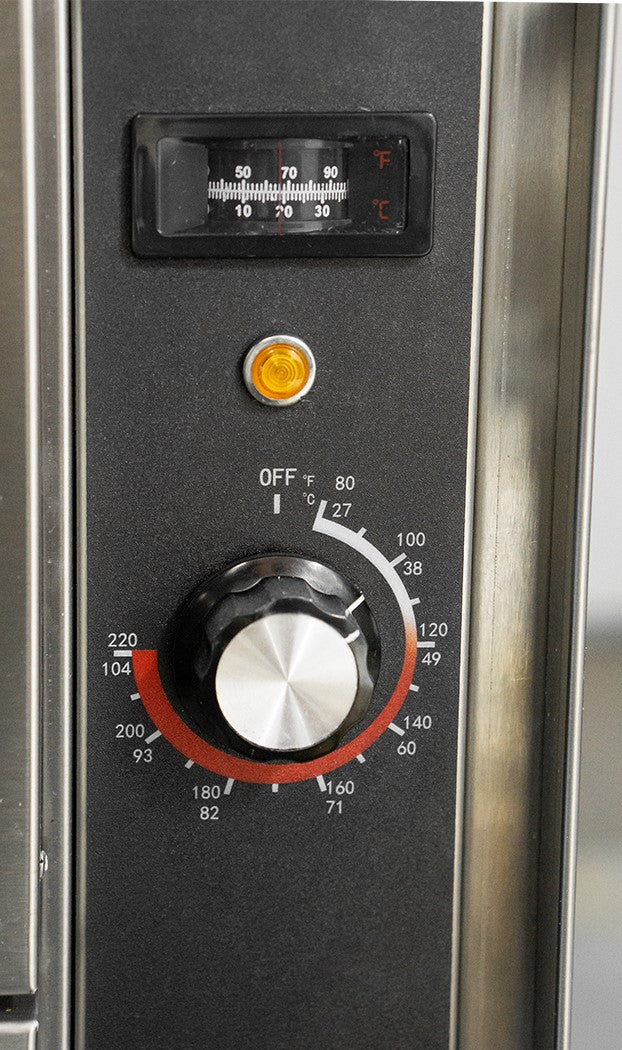

Thermostatic Control from 80 to 220°F with Humidity Vent Slides

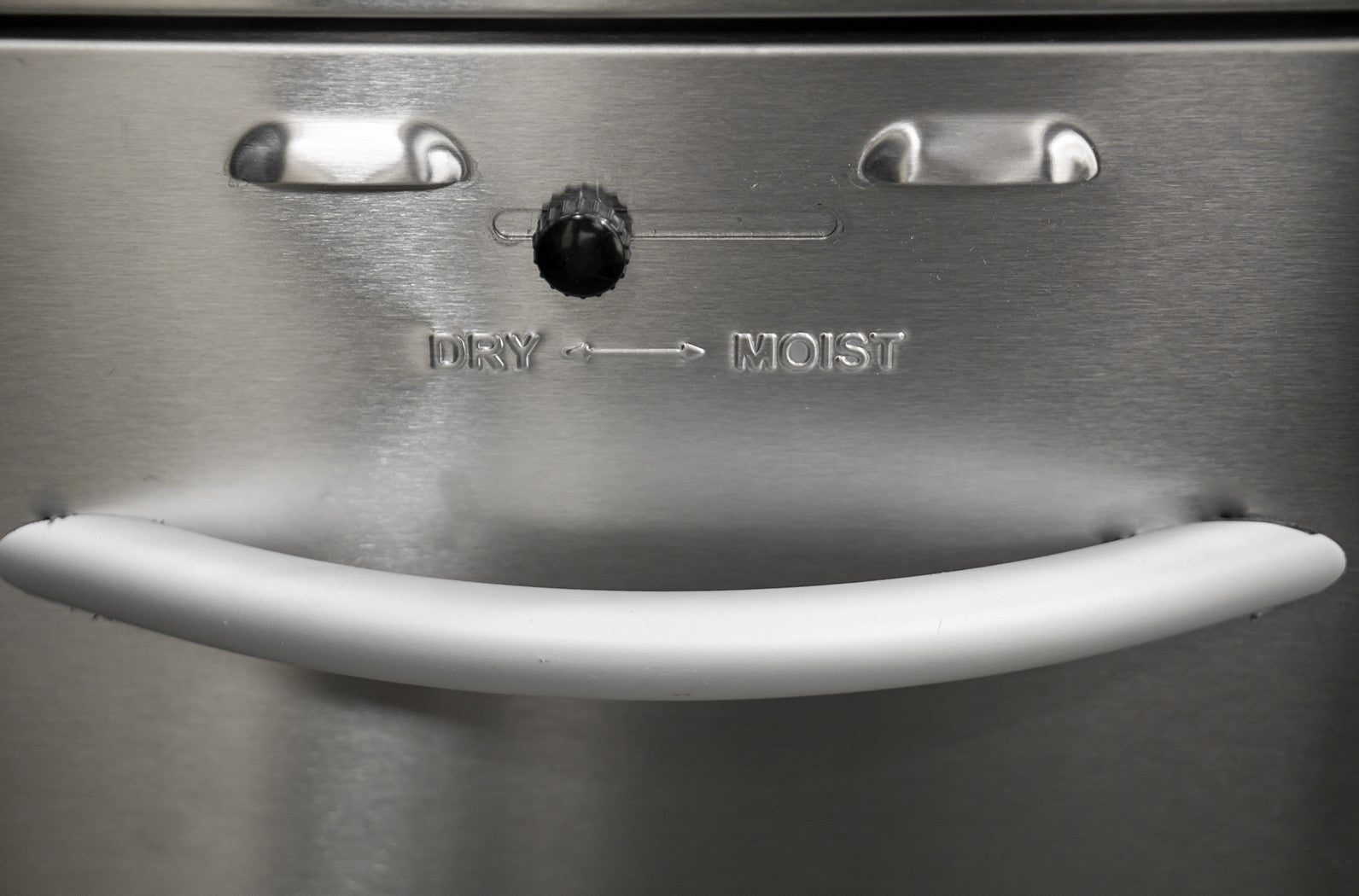

The thermostatic control adjusts from 80 to 220°F (27 to 220°F), covering everything from gentle warming for bread and pastries at the low end to full hot holding for proteins and casseroles at the high end. Each drawer has its own humidity control vent slide that lets you adjust the airflow inside that specific drawer. Open the vent to let moisture escape when holding crispy items like fried foods or toast, or close it to trap steam when holding items that dry out quickly like rice, pasta, or sliced meats. This per-drawer humidity control is what separates a proper warming drawer from a simple heated cabinet. Pre-heat time is approximately 30 minutes.
Full Stainless Steel Construction with Fiberglass Insulation
The entire unit is stainless steel inside and out, built for the daily wear of a commercial kitchen where equipment gets bumped, splashed, and cleaned aggressively. Fiberglass insulation between the drawer walls and the outer shell retains heat inside the drawers and keeps the exterior surface cooler, which improves energy efficiency and reduces ambient heat in the kitchen. Built-in drawer gaskets seal each drawer when closed to prevent heat loss. Each insulated drawer measures 14" x 27" x 7.6" and includes a full-size food pan. Durable legs provide stability on different floor surfaces and elevate the unit enough for easy cleaning underneath. At 1,350W on a 110-120V / 60Hz / 1Ph circuit drawing 11.25A, the unit reaches and maintains temperature without requiring a dedicated high-amperage circuit.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Fits restaurants, catering kitchens, cafeterias, bars, and concession stands that need hot holding in a narrow footprint
-
Three insulated drawers each hold a full-size pan (12" x 20" x 6"), so you can stage a complete multi-course meal at serving temperature
-
Each drawer measures 14" x 27" x 7.6", accommodating deep hotel pans for soups, proteins, and sides
-
Wide 80-220°F range with thermostatic control holds everything from delicate sauces to crispy fried items
-
Individual humidity vent slide on each drawer lets you keep fried food crisp in one and steamed vegetables moist in another
-
Built-in gaskets on every drawer seal in heat and reduce energy waste between service windows
-
Reaches operating temperature in about 30 minutes, ready well before the start of service
-
Full stainless steel construction with fiberglass insulation stands up to daily commercial use
-
Sturdy legs keep the unit stable on uneven kitchen floors during busy shifts
-
Runs on a standard 110-120V outlet at 1,350W, no special wiring needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Fits restaurants, catering kitchens, cafeterias, bars, and concession stands that need hot holding in a narrow footprint
Three insulated drawers each hold a full-size pan (12" x 20" x 6"), so you can stage a complete multi-course meal at serving temperature
Each drawer measures 14" x 27" x 7.6", accommodating deep hotel pans for soups, proteins, and sides
Wide 80-220°F range with thermostatic control holds everything from delicate sauces to crispy fried items
Individual humidity vent slide on each drawer lets you keep fried food crisp in one and steamed vegetables moist in another
The Omcan 47547 Drawer Warmer
The Omcan FW-CN-0003 is the largest warming drawer unit in this series with 3 insulated drawers, each holding a full-size pan (12" x 20" x 6"). Three drawers give you enough capacity to hold a complete multi-course meal or three separate menu items at serving temperature simultaneously. Banquet kitchens, high-volume restaurants, and catering operations that stage large numbers of plated items benefit from having three independent holding zones in a single narrow freestanding unit. At just 20.3 inches wide, it takes up less floor space than you would expect for this much holding capacity.
Thermostatic Control from 80 to 220°F with Humidity Vent Slides
The thermostatic control adjusts from 80 to 220°F (27 to 220°F), covering everything from gentle warming for bread and pastries at the low end to full hot holding for proteins and casseroles at the high end. Each drawer has its own humidity control vent slide that lets you adjust the airflow inside that specific drawer. Open the vent to let moisture escape when holding crispy items like fried foods or toast, or close it to trap steam when holding items that dry out quickly like rice, pasta, or sliced meats. This per-drawer humidity control is what separates a proper warming drawer from a simple heated cabinet. Pre-heat time is approximately 30 minutes.
Full Stainless Steel Construction with Fiberglass Insulation
The entire unit is stainless steel inside and out, built for the daily wear of a commercial kitchen where equipment gets bumped, splashed, and cleaned aggressively. Fiberglass insulation between the drawer walls and the outer shell retains heat inside the drawers and keeps the exterior surface cooler, which improves energy efficiency and reduces ambient heat in the kitchen. Built-in drawer gaskets seal each drawer when closed to prevent heat loss. Each insulated drawer measures 14" x 27" x 7.6" and includes a full-size food pan. Durable legs provide stability on different floor surfaces and elevate the unit enough for easy cleaning underneath. At 1,350W on a 110-120V / 60Hz / 1Ph circuit drawing 11.25A, the unit reaches and maintains temperature without requiring a dedicated high-amperage circuit.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Fits restaurants, catering kitchens, cafeterias, bars, and concession stands that need hot holding in a narrow footprint
-
Three insulated drawers each hold a full-size pan (12" x 20" x 6"), so you can stage a complete multi-course meal at serving temperature
-
Each drawer measures 14" x 27" x 7.6", accommodating deep hotel pans for soups, proteins, and sides
-
Wide 80-220°F range with thermostatic control holds everything from delicate sauces to crispy fried items
-
Individual humidity vent slide on each drawer lets you keep fried food crisp in one and steamed vegetables moist in another
-
Built-in gaskets on every drawer seal in heat and reduce energy waste between service windows
-
Reaches operating temperature in about 30 minutes, ready well before the start of service
-
Full stainless steel construction with fiberglass insulation stands up to daily commercial use
-
Sturdy legs keep the unit stable on uneven kitchen floors during busy shifts
-
Runs on a standard 110-120V outlet at 1,350W, no special wiring needed
Resources & Downloads
See all from Omcan
Specifications
| Number of Drawers | 3 |
| Drawer Dimensions (each) | 14" x 27" x 7.6" |
| Included Pan Size | 12" x 20" x 6" |
| Temperature Range | 80 to 220°F (27 to 220°F) |
| Temperature Control | Thermostatic |
| Humidity Control | Individual vent slide per drawer |
| Drawer Gaskets | Yes |
| Pre-Heat Time | 30 minutes |
| Construction | Full stainless steel |
| Insulation | Fiberglass |
| Legs | Durable, freestanding |
| Rated Power | 1,350W |
| Rated Current | 11.25A |
| Electrical | 110-120V / 60Hz / 1Ph |
| Overall Dimensions (W x D x H) | 20.3" x 29" x 33.6" |
| Shipping Dimensions (W x D x H) | 21.3" x 32.5" x 34.8" |
| Net Weight | 195 lb |
| Gross Weight | 224 lb |
| Plug Type | NEMA 5-15P |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
