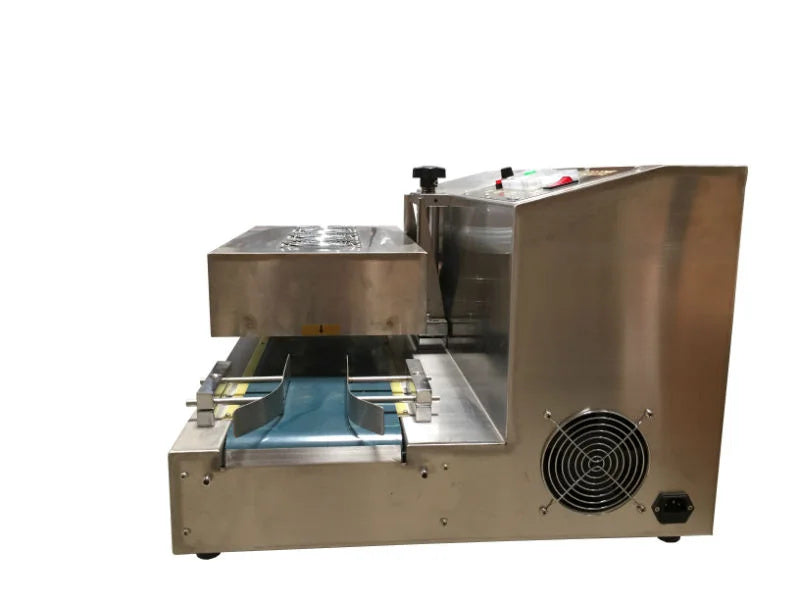

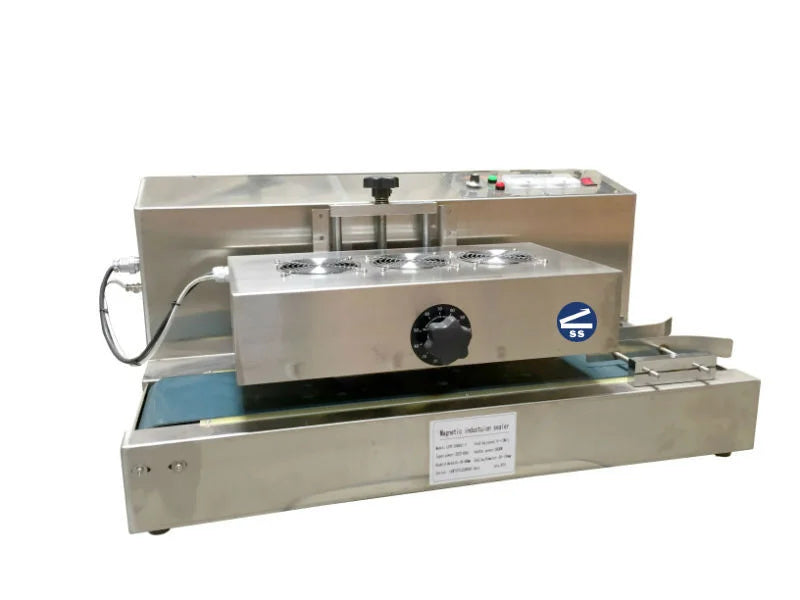

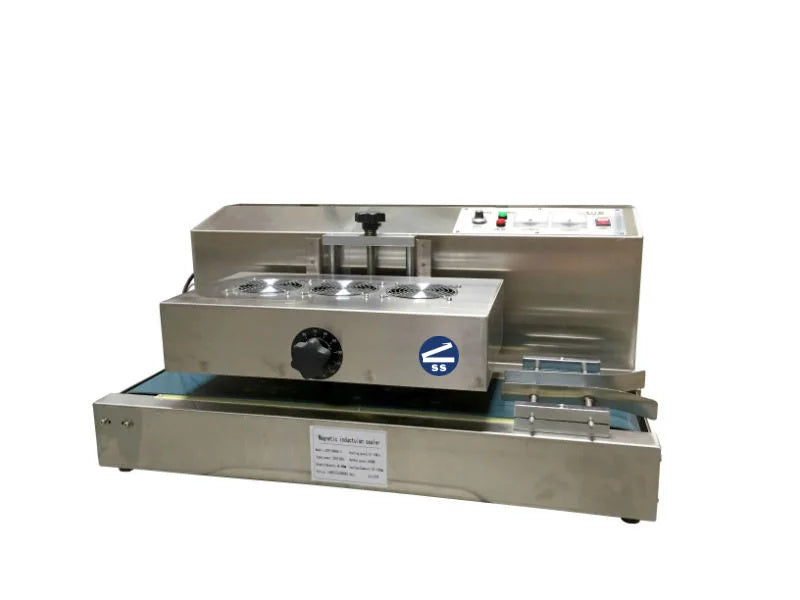

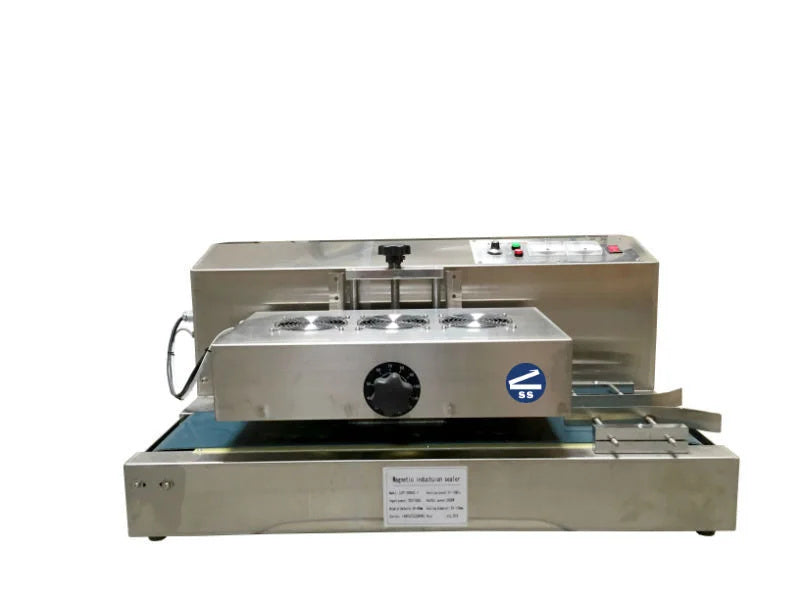

The Sealer Sales LGYF-2000AX-II Induction Sealer
The Sealer Sales LGYF-2000AX-II is a table-style continuous induction cap sealer that bonds aluminum-laminated foil liners to the tops of plastic containers to create a tamper-evident, hermetic seal. Induction sealing is a non-contact process: the induction coil heats the foil liner, the heat transfers to the heat-seal film, the film melts and adheres to the cap and bottle rim. The result is an air-tight bond that preserves freshness, deters pilferage, and prevents leakage. The AX-II is sized for the table footprint and pairs with an existing production conveyor for capsulated bottles, jars, and rigid containers up to 200 mm diameter.
Non-Contact Heating for Tamper-Proof Hermetic Seal
Induction sealing pulses energy into the foil liner without touching the cap, the bottle, or the operator. The heat-seal film between the foil and the cap melts and bonds the foil to the bottle rim, leaving a tamper-evident closure that cannot be reapplied if removed. The process is consistent and repeatable across thousands of containers.
Compatible Bottle Materials
The induction sealer works with rigid containers: ABS, polyethylene (HDPE and LDPE), polyethylene terephthalate (PET), polypropylene, polystyrene, and PVC. The bottle wall material does not interfere with the induction process because the energy is targeted at the foil liner inside the cap.
Adjustable Conveyor Speed up to 393 in/min
Conveyor speed adjusts from 3 to 10 meters per minute (118 to 393 inches per minute), tuning the dwell time of each bottle under the induction coil to match the foil thickness, cap diameter, and bottle throughput required by the production line.
Stainless Steel with Forced Air Cooling
The frame is stainless steel for washdown environments and food, beverage, or pharmaceutical production lines. A forced-air cooling system keeps the induction coil at operating temperature through extended runs without thermal drift.
Fast Warm-Up, Minimal Operator Training
The induction coil reaches operating temperature quickly so the line can ramp up at shift start without an extended preheat. Operator training is minimal: load the conveyor, set the speed, and run.
220V Operation
The LGYF-2000AX-II operates on 220V single-phase power. Facilities with only 110V supply will need an external step-up transformer.
Features & Benefits
-
Non-contact induction sealing for tamper-evident hermetic seals on capsulated bottles
-
Compatible with ABS, HDPE, LDPE, PET, polypropylene, polystyrene, and PVC containers
-
Adjustable conveyor speed up to 393 in/min for variable throughput
-
Stainless steel frame for food, beverage, and pharmaceutical production lines
-
Forced air cooling system for extended production runs
-
Fast warm-up time, minimal operator training required
-
Table-style footprint for benchtop pairing with existing conveyor lines
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Non-contact induction sealing for tamper-evident hermetic seals on capsulated bottles
Compatible with ABS, HDPE, LDPE, PET, polypropylene, polystyrene, and PVC containers
Adjustable conveyor speed up to 393 in/min for variable throughput
Stainless steel frame for food, beverage, and pharmaceutical production lines
Forced air cooling system for extended production runs
The Sealer Sales LGYF-2000AX-II Induction Sealer
The Sealer Sales LGYF-2000AX-II is a table-style continuous induction cap sealer that bonds aluminum-laminated foil liners to the tops of plastic containers to create a tamper-evident, hermetic seal. Induction sealing is a non-contact process: the induction coil heats the foil liner, the heat transfers to the heat-seal film, the film melts and adheres to the cap and bottle rim. The result is an air-tight bond that preserves freshness, deters pilferage, and prevents leakage. The AX-II is sized for the table footprint and pairs with an existing production conveyor for capsulated bottles, jars, and rigid containers up to 200 mm diameter.
Non-Contact Heating for Tamper-Proof Hermetic Seal
Induction sealing pulses energy into the foil liner without touching the cap, the bottle, or the operator. The heat-seal film between the foil and the cap melts and bonds the foil to the bottle rim, leaving a tamper-evident closure that cannot be reapplied if removed. The process is consistent and repeatable across thousands of containers.
Compatible Bottle Materials
The induction sealer works with rigid containers: ABS, polyethylene (HDPE and LDPE), polyethylene terephthalate (PET), polypropylene, polystyrene, and PVC. The bottle wall material does not interfere with the induction process because the energy is targeted at the foil liner inside the cap.
Adjustable Conveyor Speed up to 393 in/min
Conveyor speed adjusts from 3 to 10 meters per minute (118 to 393 inches per minute), tuning the dwell time of each bottle under the induction coil to match the foil thickness, cap diameter, and bottle throughput required by the production line.
Stainless Steel with Forced Air Cooling
The frame is stainless steel for washdown environments and food, beverage, or pharmaceutical production lines. A forced-air cooling system keeps the induction coil at operating temperature through extended runs without thermal drift.
Fast Warm-Up, Minimal Operator Training
The induction coil reaches operating temperature quickly so the line can ramp up at shift start without an extended preheat. Operator training is minimal: load the conveyor, set the speed, and run.
220V Operation
The LGYF-2000AX-II operates on 220V single-phase power. Facilities with only 110V supply will need an external step-up transformer.
Features & Benefits
-
Non-contact induction sealing for tamper-evident hermetic seals on capsulated bottles
-
Compatible with ABS, HDPE, LDPE, PET, polypropylene, polystyrene, and PVC containers
-
Adjustable conveyor speed up to 393 in/min for variable throughput
-
Stainless steel frame for food, beverage, and pharmaceutical production lines
-
Forced air cooling system for extended production runs
-
Fast warm-up time, minimal operator training required
-
Table-style footprint for benchtop pairing with existing conveyor lines
Resources & Downloads
See all from Sealer Sales
Specifications
| Voltage | 220V / 60Hz |
| Power | ≤1500W |
| Operating Frequency | 75 to 85 kHz |
| Conveyor Capacity | 3 to 10 m/min (118 to 393 in/min) |
| Sealing Diameter Range | 30 to 120 mm (1.18" to 4.72") |
| Suitable Bottle Height | 40 to 300 mm (1.57" to 11.8") |
| Max Bottle Diameter | 200 mm (7.8") |
| Conveyor Bearing Load | 110 lbs |
| Dimensions | 44" x 24" x 16" |
| Form Factor | Table-style |
| Frame | Stainless steel |
| Cooling | Forced air |
| Compatible Containers | ABS, HDPE, LDPE, PET, PP, PS, PVC |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
