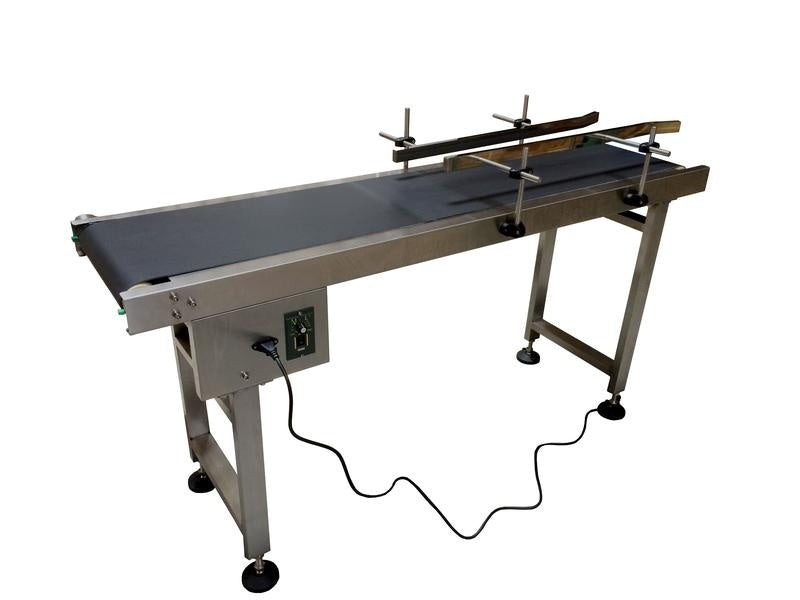

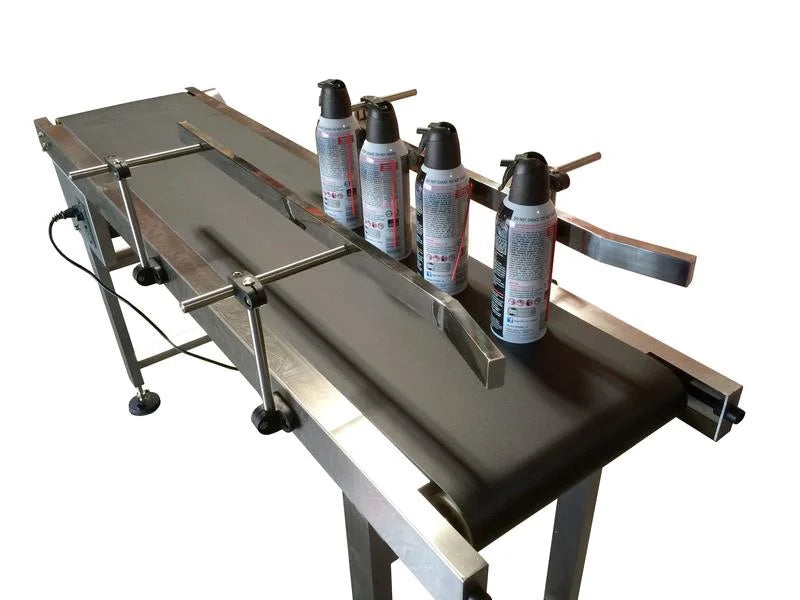

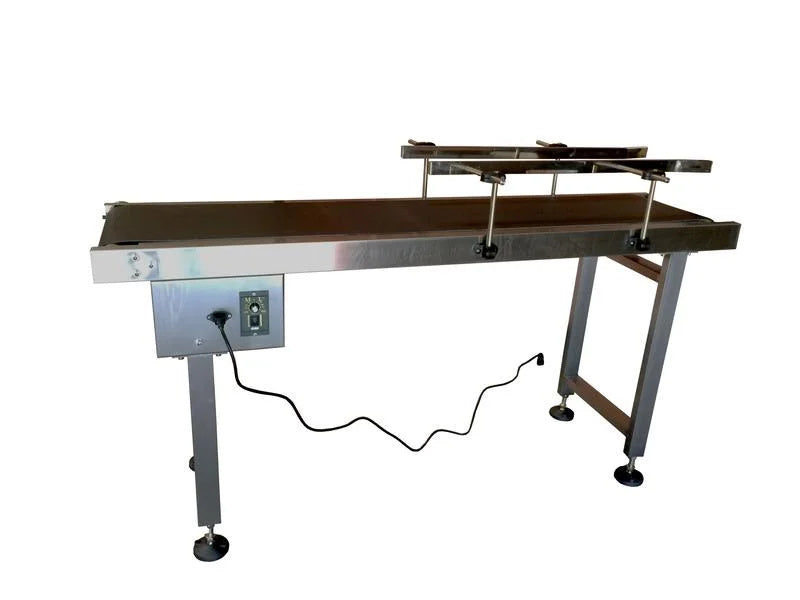

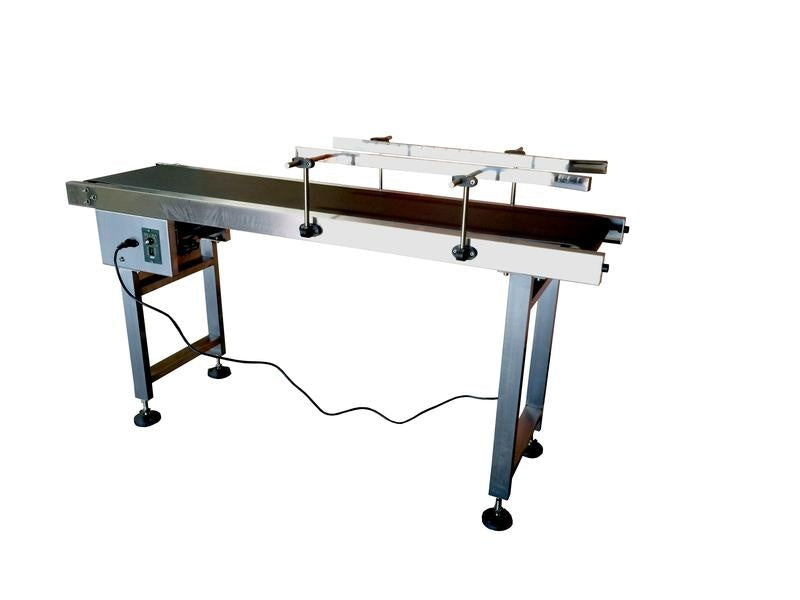

The Sealer Sales MC-300 Motorized Conveyor
The Sealer Sales MC-300 is a motorized conveyor with an 11.8 inch wide belt, 51.2 inch long bed, adjustable speed control, and adjustable guides. The unit accommodates a wide variety of equipment as the downstream stage of a packaging line: it works as a discharge accumulator for band sealers and shrink tunnels, as a conveyor under an ink-jet coding head, or as a transport belt between two production stations.
0 to 75 Feet Per Minute Adjustable Speed
The variable speed control runs from 0 to 75 feet per minute, which covers everything from slow accumulation (sealed packages drifting away from a band sealer at hand-pack pace) to fast transport (carrying sealed bags from a high-speed band sealer to a downstream tunnel). The operator dials in the speed for the upstream equipment's discharge rate.
11.8 inch Wide x 51.2 inch Long Belt
The 11.8 inch (300 mm) belt width accommodates standard production poly bags and packaged products. The 51.2 inch (1300 mm) length is enough to absorb a few seconds of mismatched timing between an upstream sealer and a downstream operator, which prevents the bottleneck-jam problem that single-station handoffs create.
Adjustable Height: 27.8 inch to 31.5 inch

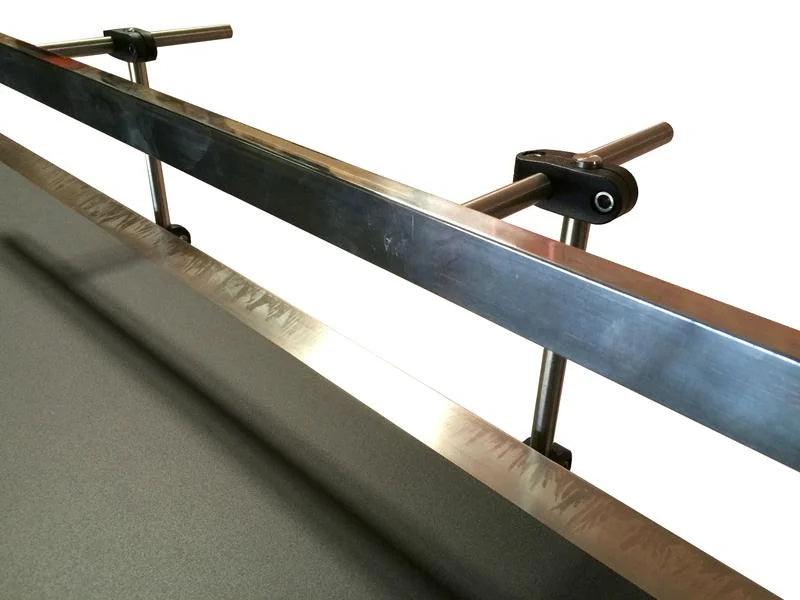

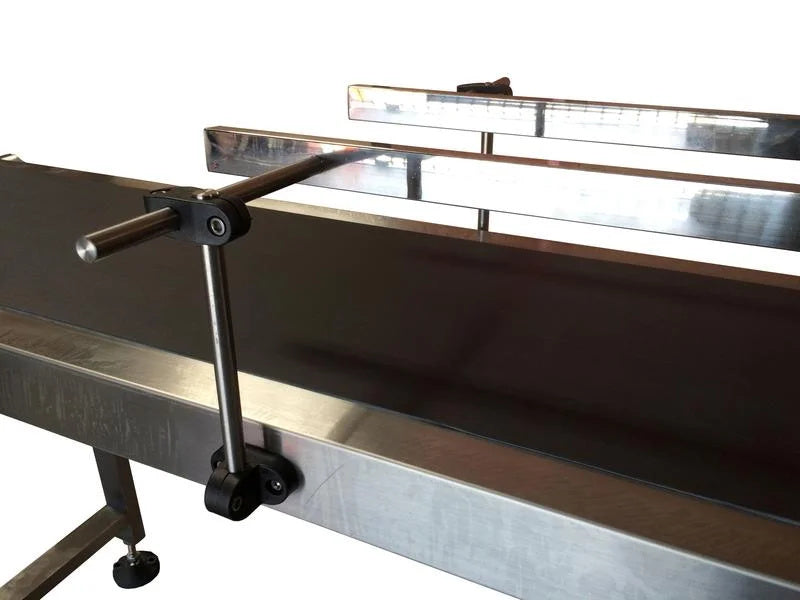

The conveyor height adjusts from 27.8 inch to 31.5 inch, which lets the operator match it to the discharge height of bench-top sealers and tunnels in standard production layouts. Adjustable guides on the belt help center and direct packages as they travel.
55 lb Maximum Load
The motorized drive carries up to 55 lbs of cumulative load on the belt at any given moment. That handles typical packaged-bag throughput; for heavier loads or larger units, a heavier-duty conveyor is the right pick.
Easy Install and Service
The unit is easy to operate and install. Plug in, dial in the speed, position adjustable guides for the package width, and run. The conveyor is durable and built for production use.
Features & Benefits
-
Variable speed control from 0 to 75 feet per minute
-
Adjustable guides direct packages along the belt
-
Adjustable conveyor height (27.8 inch to 31.5 inch)
-
Carries cumulative loads of typical packaged-bag throughput
-
Works with band sealers, shrink tunnels, and ink-jet coding stations
-
Easy to operate and install
-
Durable build for daily production use
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Variable speed control from 0 to 75 feet per minute
Adjustable guides direct packages along the belt
Adjustable conveyor height (27.8 inch to 31.5 inch)
Carries cumulative loads of typical packaged-bag throughput
Works with band sealers, shrink tunnels, and ink-jet coding stations
The Sealer Sales MC-300 Motorized Conveyor
The Sealer Sales MC-300 is a motorized conveyor with an 11.8 inch wide belt, 51.2 inch long bed, adjustable speed control, and adjustable guides. The unit accommodates a wide variety of equipment as the downstream stage of a packaging line: it works as a discharge accumulator for band sealers and shrink tunnels, as a conveyor under an ink-jet coding head, or as a transport belt between two production stations.
0 to 75 Feet Per Minute Adjustable Speed
The variable speed control runs from 0 to 75 feet per minute, which covers everything from slow accumulation (sealed packages drifting away from a band sealer at hand-pack pace) to fast transport (carrying sealed bags from a high-speed band sealer to a downstream tunnel). The operator dials in the speed for the upstream equipment's discharge rate.
11.8 inch Wide x 51.2 inch Long Belt
The 11.8 inch (300 mm) belt width accommodates standard production poly bags and packaged products. The 51.2 inch (1300 mm) length is enough to absorb a few seconds of mismatched timing between an upstream sealer and a downstream operator, which prevents the bottleneck-jam problem that single-station handoffs create.
Adjustable Height: 27.8 inch to 31.5 inch
The conveyor height adjusts from 27.8 inch to 31.5 inch, which lets the operator match it to the discharge height of bench-top sealers and tunnels in standard production layouts. Adjustable guides on the belt help center and direct packages as they travel.
55 lb Maximum Load
The motorized drive carries up to 55 lbs of cumulative load on the belt at any given moment. That handles typical packaged-bag throughput; for heavier loads or larger units, a heavier-duty conveyor is the right pick.
Easy Install and Service
The unit is easy to operate and install. Plug in, dial in the speed, position adjustable guides for the package width, and run. The conveyor is durable and built for production use.
Features & Benefits
-
Variable speed control from 0 to 75 feet per minute
-
Adjustable guides direct packages along the belt
-
Adjustable conveyor height (27.8 inch to 31.5 inch)
-
Carries cumulative loads of typical packaged-bag throughput
-
Works with band sealers, shrink tunnels, and ink-jet coding stations
-
Easy to operate and install
-
Durable build for daily production use
Resources & Downloads
See all from Sealer Sales
Specifications
| Specification | Detail |
|---|---|
| Voltage | 110V/60Hz |
| Conveyor Width | 11.8" (300mm) |
| Conveyor Length | 51.2" (1300mm) |
| Conveyor Height | 27.8" - 31.5" |
| Speed | 0-75ft/min (0-23m/min) |
| Max Loading Weight (lbs) | 55 |
| Shipping Dimensions | 60" x 20" x 12" |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
