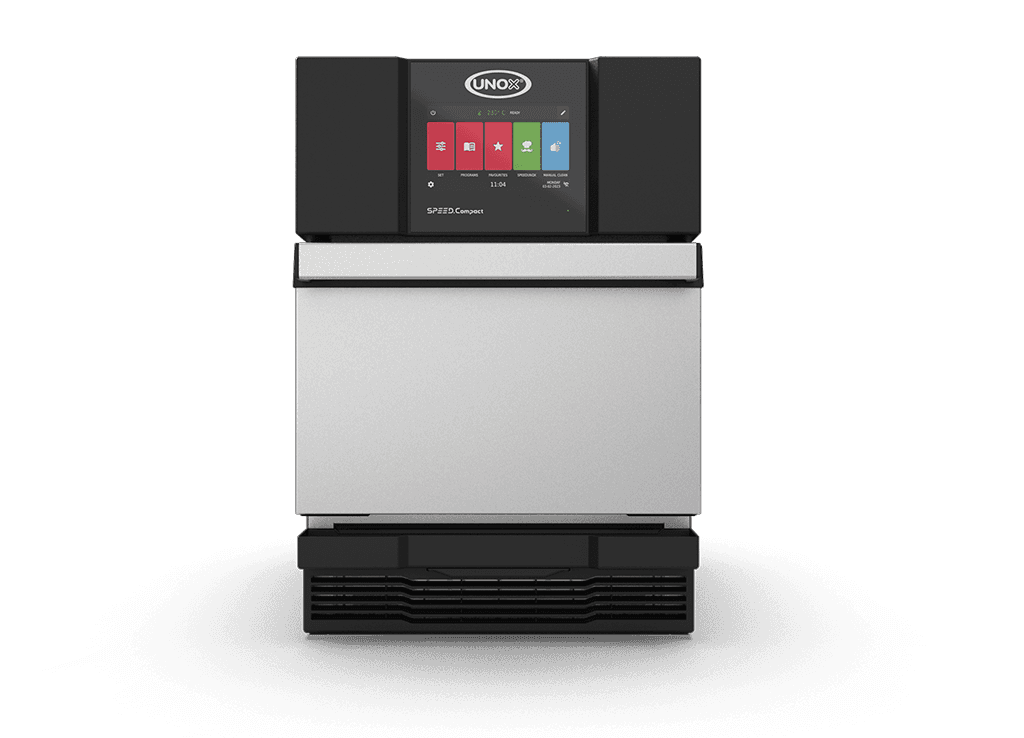

UNOX XAMA-01NS-MCDS 16 In. Electric SPEED.Compact ECO Speed Oven, Single Tray Capacity, Compact Footprint, 9.5-Inch Touch Controls

SKUXAMA-01NS-MCDS BrandUNOX
UNOX XAMA-01NS-MCDS 16 In. Electric SPEED.Compact ECO Speed Oven, Single Tray Capacity, Compact Footprint, 9.5-Inch Touch Controls

The UNOX XAMA-01NS-MCDS Electric Oven

The UNOX XAMA-01NS-MCDS is the SPEED.Compact ECO speed oven for cafes, sandwich shops, coffee bars, and any compact concept that needs fast finish-cooking of single portions without a full-size speed oven footprint. UNOX positions SPEED.Compact ECO for compact-counter operations that need speed-oven finish cooking, with a 16-inch-wide footprint that fits into countertop space too tight for a full-size speed oven.

Single-Tray Capacity in a 16-Inch Cabinet

The cabinet stages a single 11.8 by 11.8 inch tray in a footprint that is 16" wide, 28" deep, and 24" tall. Net weight is 132 lbs. The compact 16-inch width means the unit drops onto a counter that cannot accommodate a full SPEED.Pro or SPEED-X cabinet, opening up speed-oven capability for sandwich shops and coffee bar buildouts that previously could not fit a speed oven on the line.

Odor-Free and Silent Operation

SPEED.Compact ECO is designed for placement in customer-facing settings where standard speed ovens are too loud or vent too much cooking odor into the dining area. The cabinet runs quietly enough for open-kitchen and coffee-bar placement, and the venting is designed to contain cooking odors rather than blasting them into the customer space.

9.5-Inch Touch Controls

The 9.5-inch capacitive touch panel runs the standard UNOX speed-oven program library, with one-button access to common items like toasted sandwiches, paninis, melt items, and finishing cycles. The interface is the same Digital.ID-family panel used across UNOX's premium lines, so cross-training across multiple UNOX units in the same kitchen is simplified.

Plug-In 240V or 208V Single-Phase Electric

The cabinet plugs into a standard NEMA 6-15P outlet on a 20-amp branch circuit. Power consumption is 3.6 kW at 240V or 208V single-phase, which is well under the threshold that would force a dedicated three-phase service install. The H07RN-F flexible cord rating means the cord handles the heat and movement of a working countertop placement.

Right-Sized For, And Not For

This is the right speed oven for sandwich shops, coffee bars, c-store hot programs running single-portion menus, ghost kitchens with finish-cooking workflows, and any operation that needs speed cooking on a tight counter. If you are running a higher-volume operation finishing multiple items per service, the SPEED.Pro (XASR) or SPEED.X (XAPA) lines deliver larger pan capacity and full combi capability.

Features & Benefits

  1. SPEED.Compact ECO speed oven for cafes, sandwich shops, coffee bars, and ghost kitchens
  2. Holds a single 11.8 by 11.8 inch tray for compact-counter single-portion speed cooking
  3. Plugs into 240V or 208V single-phase NEMA 6-15P on a 20-amp branch circuit
  4. Cabinet draws 3.6 kW at full power, no dedicated three-phase service required
  5. 9.5-inch capacitive touch panel runs the UNOX speed-oven program library out of the box
  6. Compact 16-inch wide footprint fits on counters too tight for full-size speed ovens
  7. Odor-free venting designed for customer-facing placement in open-kitchen and bar lines
  8. Silent operation lets the unit run on a counter in a dining-adjacent service zone
  9. H07RN-F flex cord rating handles heat and movement of working countertop placement
  10. Same Digital.ID-family interface as premium UNOX lines for kitchen cross-training
  11. Designed for single-portion finish cooking of sandwiches, paninis, melts, and toasting
  12. Net weight 132 lbs in a 16-by-28-by-24-inch cabinet for tight counter installations
  13. Stainless steel cabinet inside and out built for daily working-kitchen wear and washdown
  14. Pairs with UNOX Data Driven Cooking for HACCP logging and program sharing across stores
  15. UNOX-positioned as the speed oven that minimizes service time on a compact footprint

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$9,635.00
  • SPEED.Compact ECO speed oven for cafes, sandwich shops, coffee bars, and ghost kitchens
  • Holds a single 11.8 by 11.8 inch tray for compact-counter single-portion speed cooking
  • Plugs into 240V or 208V single-phase NEMA 6-15P on a 20-amp branch circuit
  • Cabinet draws 3.6 kW at full power, no dedicated three-phase service required
  • 9.5-inch capacitive touch panel runs the UNOX speed-oven program library out of the box
    • See full feature list

    The UNOX XAMA-01NS-MCDS Electric Oven

    The UNOX XAMA-01NS-MCDS is the SPEED.Compact ECO speed oven for cafes, sandwich shops, coffee bars, and any compact concept that needs fast finish-cooking of single portions without a full-size speed oven footprint. UNOX positions SPEED.Compact ECO for compact-counter operations that need speed-oven finish cooking, with a 16-inch-wide footprint that fits into countertop space too tight for a full-size speed oven.

    Single-Tray Capacity in a 16-Inch Cabinet

    The cabinet stages a single 11.8 by 11.8 inch tray in a footprint that is 16" wide, 28" deep, and 24" tall. Net weight is 132 lbs. The compact 16-inch width means the unit drops onto a counter that cannot accommodate a full SPEED.Pro or SPEED-X cabinet, opening up speed-oven capability for sandwich shops and coffee bar buildouts that previously could not fit a speed oven on the line.

    Odor-Free and Silent Operation

    SPEED.Compact ECO is designed for placement in customer-facing settings where standard speed ovens are too loud or vent too much cooking odor into the dining area. The cabinet runs quietly enough for open-kitchen and coffee-bar placement, and the venting is designed to contain cooking odors rather than blasting them into the customer space.

    9.5-Inch Touch Controls

    The 9.5-inch capacitive touch panel runs the standard UNOX speed-oven program library, with one-button access to common items like toasted sandwiches, paninis, melt items, and finishing cycles. The interface is the same Digital.ID-family panel used across UNOX's premium lines, so cross-training across multiple UNOX units in the same kitchen is simplified.

    Plug-In 240V or 208V Single-Phase Electric

    The cabinet plugs into a standard NEMA 6-15P outlet on a 20-amp branch circuit. Power consumption is 3.6 kW at 240V or 208V single-phase, which is well under the threshold that would force a dedicated three-phase service install. The H07RN-F flexible cord rating means the cord handles the heat and movement of a working countertop placement.

    Right-Sized For, And Not For

    This is the right speed oven for sandwich shops, coffee bars, c-store hot programs running single-portion menus, ghost kitchens with finish-cooking workflows, and any operation that needs speed cooking on a tight counter. If you are running a higher-volume operation finishing multiple items per service, the SPEED.Pro (XASR) or SPEED.X (XAPA) lines deliver larger pan capacity and full combi capability.

    Features & Benefits

    1. SPEED.Compact ECO speed oven for cafes, sandwich shops, coffee bars, and ghost kitchens
    2. Holds a single 11.8 by 11.8 inch tray for compact-counter single-portion speed cooking
    3. Plugs into 240V or 208V single-phase NEMA 6-15P on a 20-amp branch circuit
    4. Cabinet draws 3.6 kW at full power, no dedicated three-phase service required
    5. 9.5-inch capacitive touch panel runs the UNOX speed-oven program library out of the box
    6. Compact 16-inch wide footprint fits on counters too tight for full-size speed ovens
    7. Odor-free venting designed for customer-facing placement in open-kitchen and bar lines
    8. Silent operation lets the unit run on a counter in a dining-adjacent service zone
    9. H07RN-F flex cord rating handles heat and movement of working countertop placement
    10. Same Digital.ID-family interface as premium UNOX lines for kitchen cross-training
    11. Designed for single-portion finish cooking of sandwiches, paninis, melts, and toasting
    12. Net weight 132 lbs in a 16-by-28-by-24-inch cabinet for tight counter installations
    13. Stainless steel cabinet inside and out built for daily working-kitchen wear and washdown
    14. Pairs with UNOX Data Driven Cooking for HACCP logging and program sharing across stores
    15. UNOX-positioned as the speed oven that minimizes service time on a compact footprint

    Specifications

    MFR Item #XAMA-01NS-MCDS
    Product FamilySPEED.Compact ECO
    ConfigurationSpeed oven, electric, countertop
    Capacity(1) 11.8" x 11.8" tray
    Width16"
    Depth28"
    Height24"
    Net Weight132 lbs
    Cabinet MaterialStainless steel
    Cooking ModeSpeed (convection plus microwave)
    Control Panel9.5" capacitive touch
    Use CaseSingle-portion finish cooking for sandwich shops and coffee bars
    Voltage240V or 208V 1-phase
    Electric Power3.6 kW
    Frequency60 Hz
    PlugNEMA 6-15P
    Cable TypeH07RN-F flexible cord
    Branch Circuit20 A
    Sound ProfileSilent operation per UNOX positioning
    VentingOdor-free design for customer-facing placement
    Designed ForCompact-counter single-portion speed cooking

    Manufacturer's Warranty

    • 1 Year

      Labor

    • 1 Year

      Parts

    Certifications & Approvals

    • NFS
      NSF Approved
    • CETLUS
      ETL US & Canada
