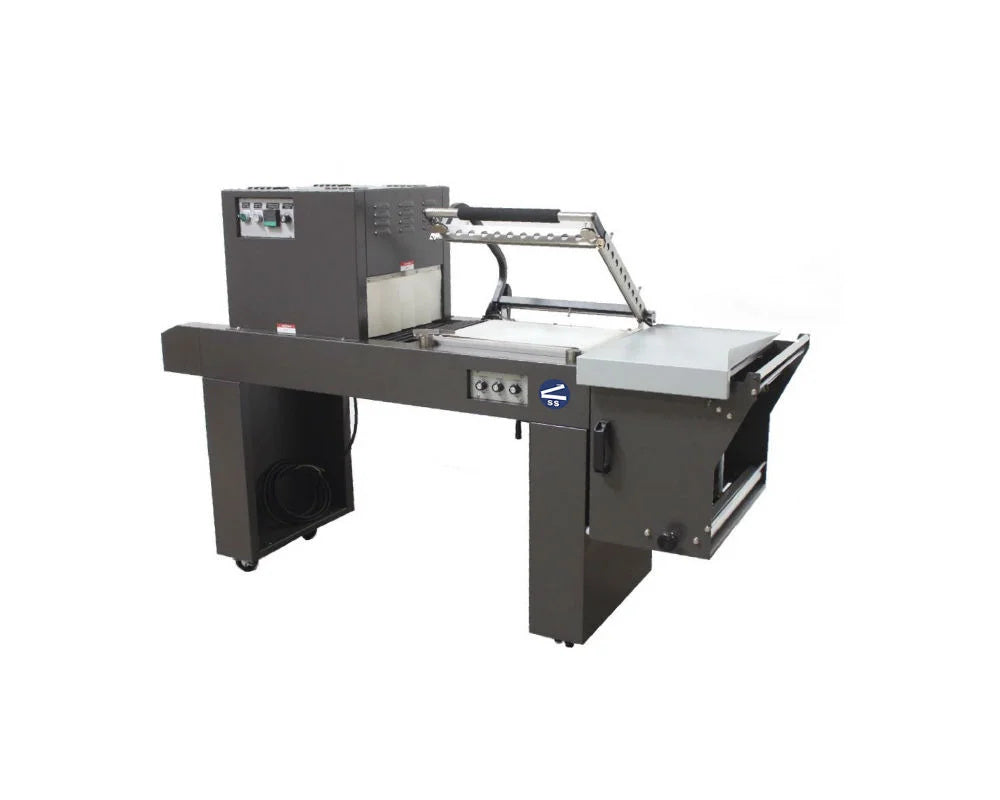

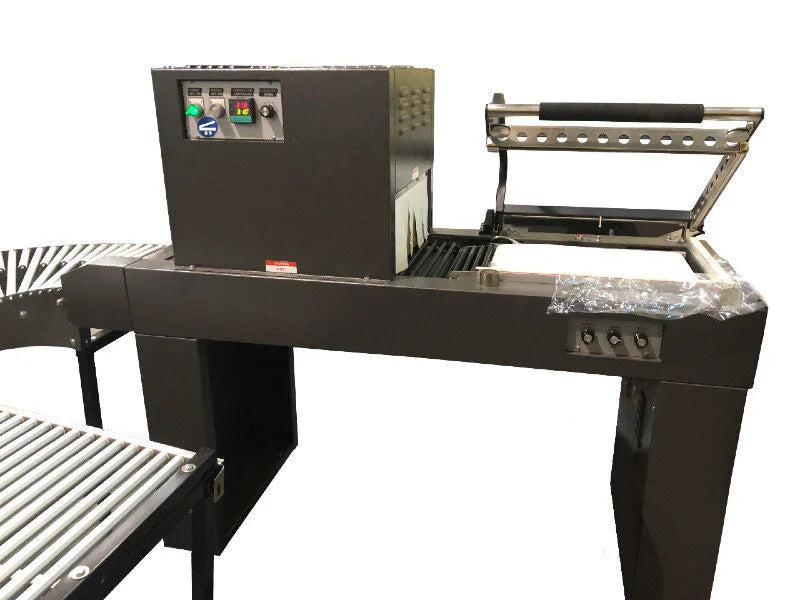

The Sealer Sales SS-1519ECMC-220V L-Bar Sealer & Shrink Tunnel Combo
The Sealer Sales SS-1519ECMC-220V is a combined L-Bar sealer and shrink tunnel sized for low to medium production at 8 to 10 packages per minute. The L-Bar uses Micro Knife seal technology so the seal head holds up for years of cycles without seal wire replacement. The attached 20"L x 16"W x 6"H shrink tunnel uses a live roller rod conveyor with a fully re-circulating air chamber, AC variable speed drive (0 to 60 feet per minute), digital temperature control, and automatic cool-down + shut-off.
Power Discharge Conveyor
Includes a power discharge conveyor that automatically carries sealed packages from the L-Bar seal area into the shrink tunnel without operator handling.

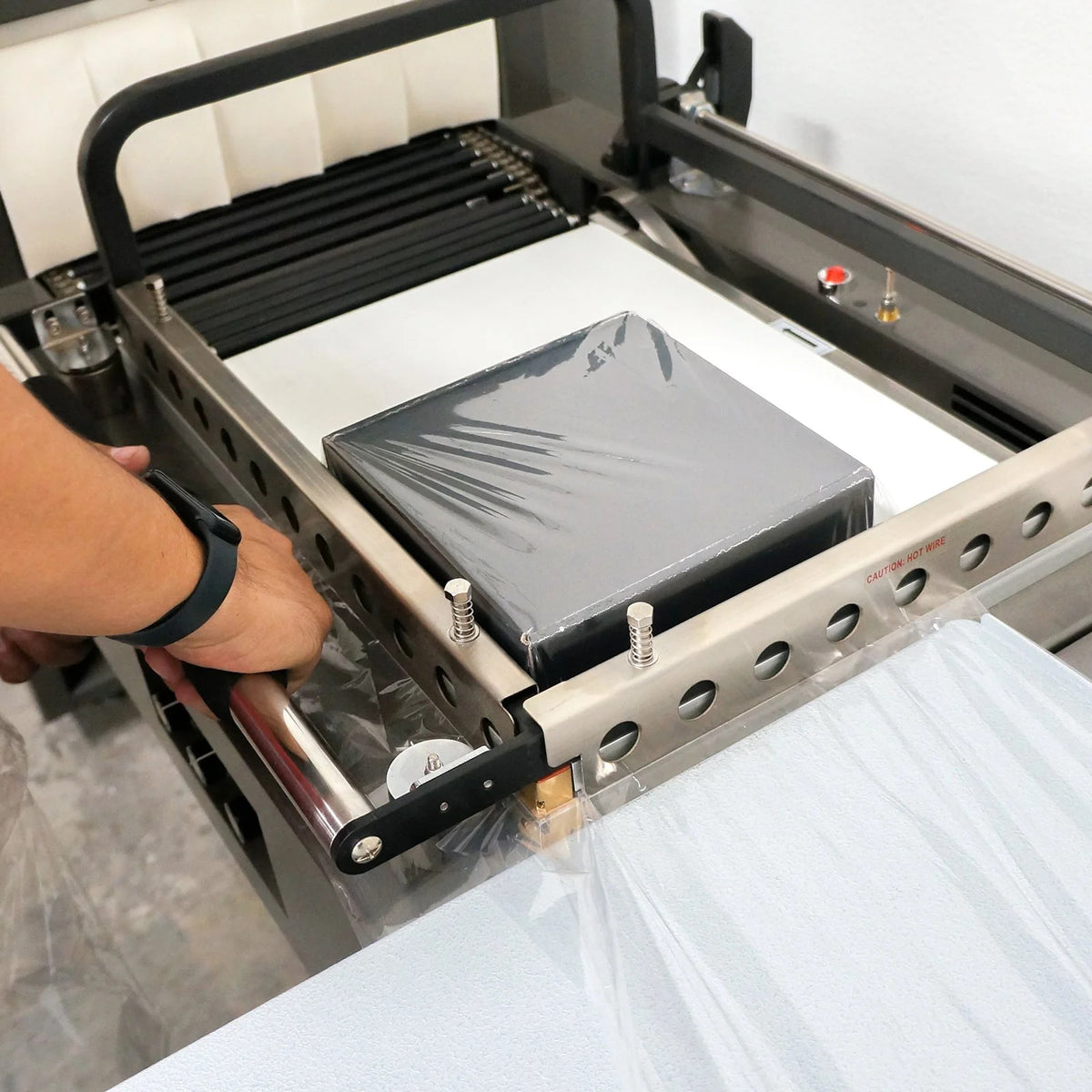

Micro Knife Band Ribbon Seal
Micro Knife seal technology cuts and seals POF shrink film without the seal wire replacement cycle older L-Bar sealers require. Cast aluminum seal head, heavy-duty frame.
6" Tunnel Opening

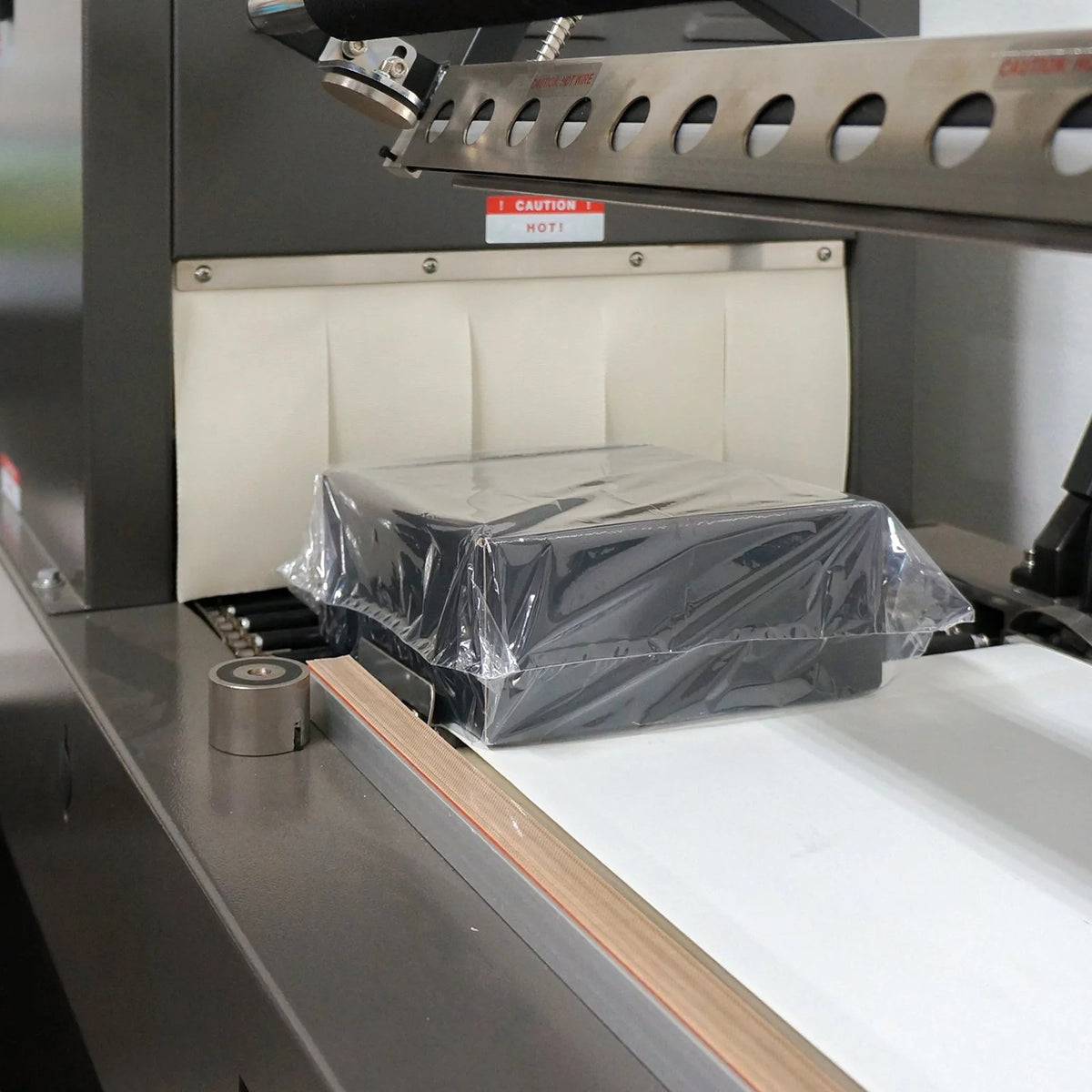

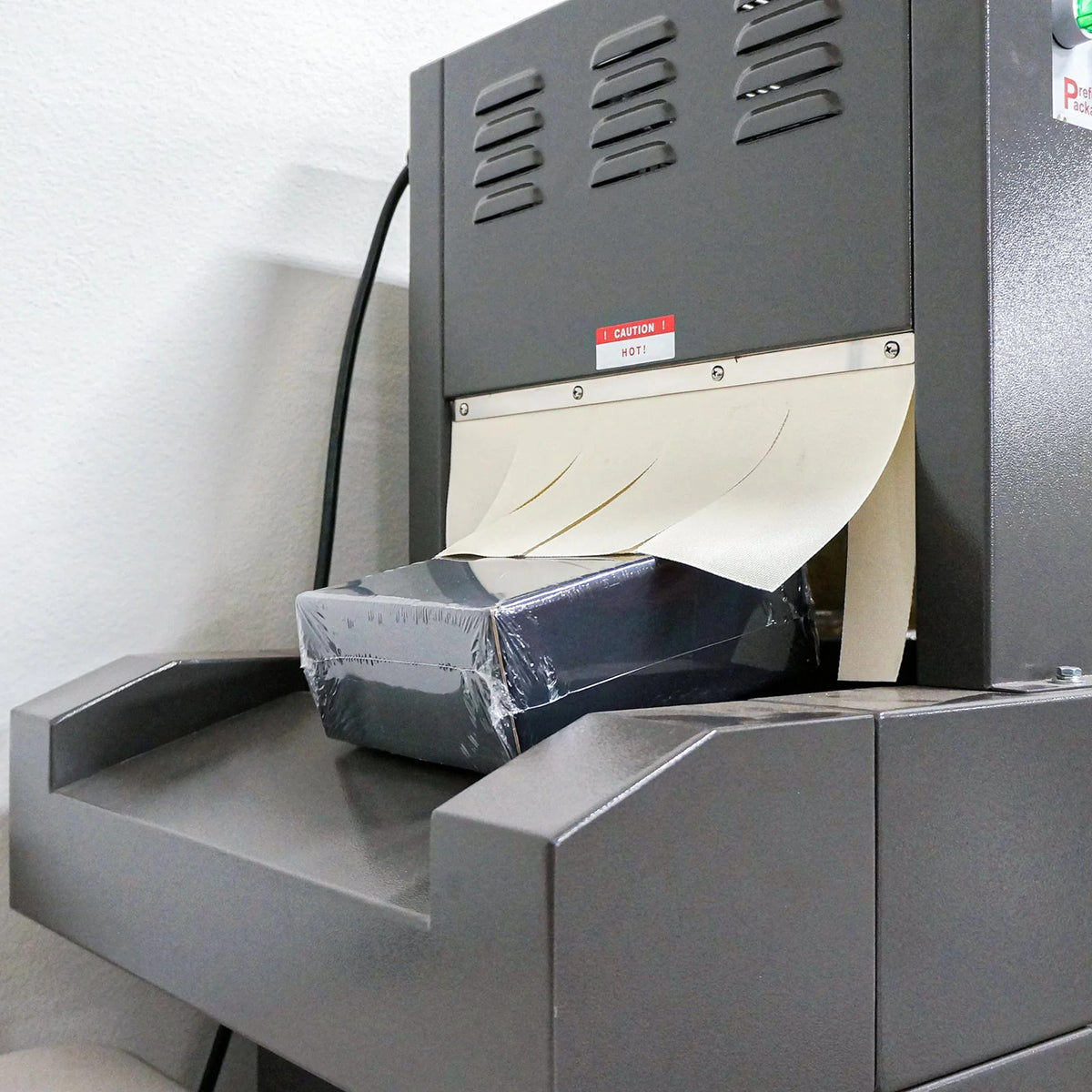

The shrink tunnel opening is 20"L x 16"W x 6"H. Live roller rod conveyor moves packages through the chamber while the re-circulating hot air shrinks the film. AC variable speed drive lets the operator set the dwell time for the film gauge and package profile being run.

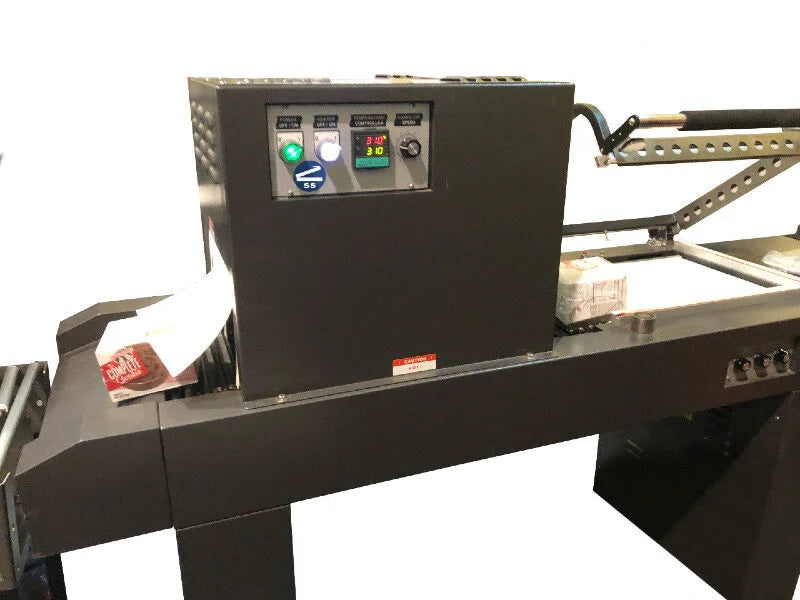

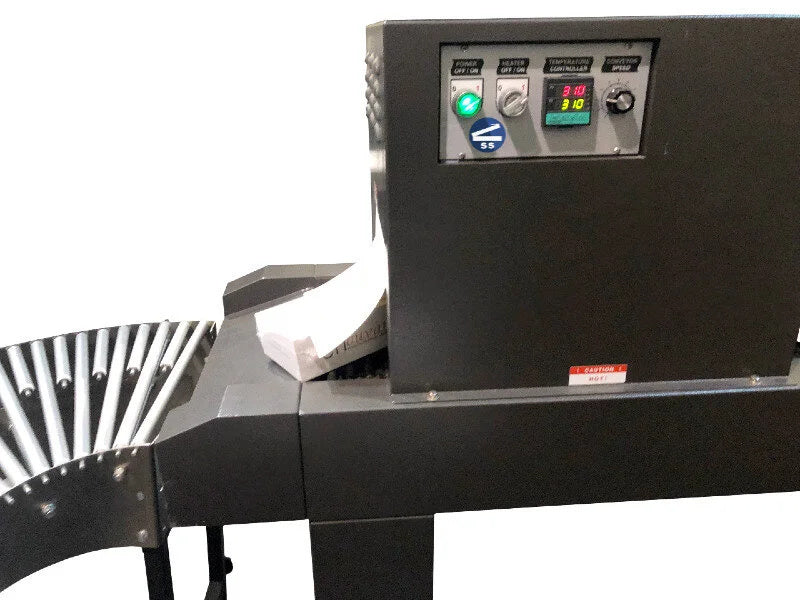

Digital Temperature Control with Automatic Cool-Down
Set the chamber temperature once for the film gauge, the controller holds it through the run, and when the operator powers off, the cool-down cycle runs automatically before shut-off to protect the heating elements and conveyor.
Recommended Film: POF, 60 to 80 Gauge
The combo unit is rated for POF (polyolefin) shrink film at 60 to 80 gauge thickness. PVC is not recommended; PVC byproducts can corrode the seal wire over time and may not shrink consistently in this tunnel profile.
220V Configuration
This SKU is the 220V configuration. The 220V option delivers a more efficient shrink tunnel and is the recommended choice for production environments.
Features & Benefits
-
L-Bar sealer + shrink tunnel combo in a single unit
-
Micro Knife Band Ribbon Seal technology, low-maintenance over years of use
-
Includes a motorized discharge conveyor that transfers packages from L-Bar into the tunnel
-
20"L x 16"W x 6"H tunnel opening with live roller rod conveyor
-
Fully re-circulating air chamber
-
AC variable speed drive, 0 to 60 feet per minute
-
Digital temperature control with automatic cool-down and shut-off
-
Dual magnet hold-down on L-Bar seal head
-
Designed for POF shrink film, 60 to 80 gauge (PVC not recommended)
-
8 to 10 packages per minute throughput
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
The Sealer Sales SS-1519ECMC-220V L-Bar Sealer & Shrink Tunnel Combo
The Sealer Sales SS-1519ECMC-220V is a combined L-Bar sealer and shrink tunnel sized for low to medium production at 8 to 10 packages per minute. The L-Bar uses Micro Knife seal technology so the seal head holds up for years of cycles without seal wire replacement. The attached 20"L x 16"W x 6"H shrink tunnel uses a live roller rod conveyor with a fully re-circulating air chamber, AC variable speed drive (0 to 60 feet per minute), digital temperature control, and automatic cool-down + shut-off.
Power Discharge Conveyor
Includes a power discharge conveyor that automatically carries sealed packages from the L-Bar seal area into the shrink tunnel without operator handling.
Micro Knife Band Ribbon Seal
Micro Knife seal technology cuts and seals POF shrink film without the seal wire replacement cycle older L-Bar sealers require. Cast aluminum seal head, heavy-duty frame.
6" Tunnel Opening
The shrink tunnel opening is 20"L x 16"W x 6"H. Live roller rod conveyor moves packages through the chamber while the re-circulating hot air shrinks the film. AC variable speed drive lets the operator set the dwell time for the film gauge and package profile being run.
Digital Temperature Control with Automatic Cool-Down
Set the chamber temperature once for the film gauge, the controller holds it through the run, and when the operator powers off, the cool-down cycle runs automatically before shut-off to protect the heating elements and conveyor.
Recommended Film: POF, 60 to 80 Gauge
The combo unit is rated for POF (polyolefin) shrink film at 60 to 80 gauge thickness. PVC is not recommended; PVC byproducts can corrode the seal wire over time and may not shrink consistently in this tunnel profile.
220V Configuration
This SKU is the 220V configuration. The 220V option delivers a more efficient shrink tunnel and is the recommended choice for production environments.
Features & Benefits
-
L-Bar sealer + shrink tunnel combo in a single unit
-
Micro Knife Band Ribbon Seal technology, low-maintenance over years of use
-
Includes a motorized discharge conveyor that transfers packages from L-Bar into the tunnel
-
20"L x 16"W x 6"H tunnel opening with live roller rod conveyor
-
Fully re-circulating air chamber
-
AC variable speed drive, 0 to 60 feet per minute
-
Digital temperature control with automatic cool-down and shut-off
-
Dual magnet hold-down on L-Bar seal head
-
Designed for POF shrink film, 60 to 80 gauge (PVC not recommended)
-
8 to 10 packages per minute throughput
Resources & Downloads
See all from Sealer Sales
Specifications
| Seal Size | 15"W x 19"L |
| Max Film Width | 22" |
| Tunnel Opening | 20"L x 16"W x 6"H |
| Throughput | 8 to 10 packages per minute |
| Power | 220V / 1 Phase / 45 Amps |
| Tunnel Speed | 0 to 60 feet per minute, AC variable |
| Temperature Control | Digital with automatic cool-down and shut-off |
| Seal Technology | Micro Knife Band Ribbon, cast aluminum seal head |
| Hold-Down | Dual magnet |
| Discharge Conveyor | Power motorized |
| Recommended Film | POF, 60 to 80 gauge (PVC not recommended) |
| Combined Unit Dimensions | 76"L x 26"W x 50"H |
| Weight | 460 lbs |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
