The Westlake WKR-23B Reach-In Refrigerator
The Westlake WKR-23B is a one-section, bottom mounted reach-in refrigerator with one solid door, a 26.9 in. wide cabinet in stainless steel inside and out. Its ventilated refrigeration system holds the cabinet at 33 °F to 41 °F, so dairy, prepped produce, and thawing proteins sit in the safe zone from the morning delivery through the dinner rush. The system is rated for kitchens up to 100 °F ambient, which covers a hot line in August. With 3 shelves in a single 22.9 in. wide section, it is sized for one station or a small kitchen's daily stock; it is not sized to absorb a full weekly delivery on its own. It arrives on preinstalled casters with brakes, plugs into a 115 V outlet through an 80 in. cord with a NEMA 5-15P plug, draws 2 A, and needs about 56.3 in. front to back with a door swung open.
Precision Ventilated Refrigeration with Electronic Control
A 1/4 HP compressor drives a precision ventilated system that moves cold air through the whole cabinet instead of letting it pool at the bottom. A still-air cabinet runs warm on the top shelf and cold on the floor; a ventilated one keeps the cream on top and the case of romaine below at the same reading. The cabinet holds 33 °F to 41 °F.
The electronic control lets you change the temperature set point and the defrost frequency from the controller. Out of the box the unit defrosts automatically every 4 hours, so the coil stays clear and your staff never has to shut the unit down to melt ice off it.

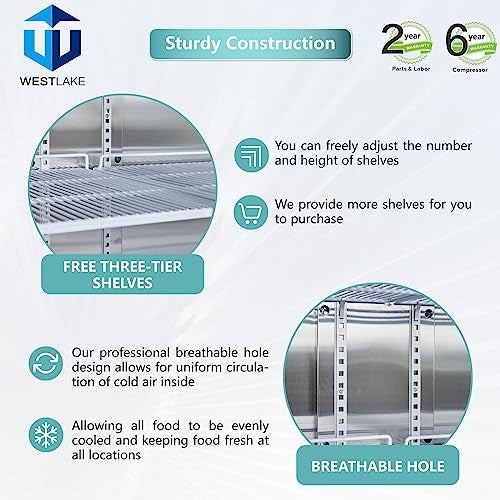

Epoxy Coated Wire Shelves Rated at 155 lb Each
You get 3 epoxy coated steel wire shelves, 3 per section, and each one carries 155 lb. That is enough for full cases of product, stacked hotel pans, or a row of filled food storage containers without the shelf bowing. The epoxy coating is the difference between a shelf that wipes clean and bare steel wire that rusts after a few months of condensation and spilled brine.
Interior space measures 22.9 in. wide, 24.2 in. deep, and 59.65 in. high. Open wire also lets the moving air pass between levels, so a loaded shelf does not block the product under it.

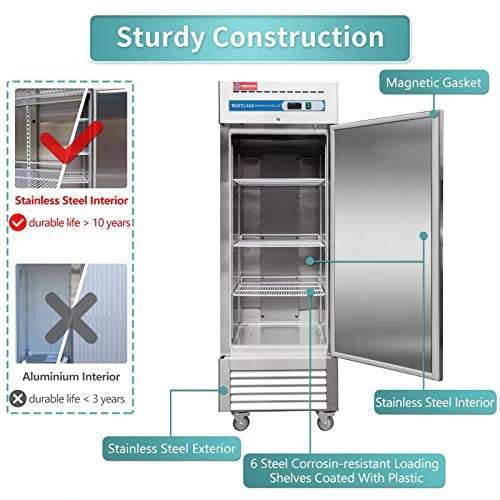

Stainless Steel Interior and Exterior
The cabinet is stainless steel on the outside and on the inside. On the outside that means a surface that shrugs off cart bumps and degreaser. On the inside it means a liner you can wipe down after a leaking case of chicken without worrying about stains or cracked plastic. At 262 lb net, the cabinet has real mass and stays put once the caster brakes are set.
Self-Closing Solid Doors with Locks and LED Lighting
The solid door closes itself behind you, so a cook carrying two pans does not have to kick it shut and it never hangs open through a rush. Push it to 90 degrees and it stays open, which is what you want when you are loading a delivery or pulling shelves to clean.
Full vertical LED lighting switches on when a door opens and off when it closes, lighting each shelf from the side so labels read clearly at the back. Locks and keys are included, so high-value product stays secured after close.
Bottom Mounted R290 System with Coated Copper Evaporator
The refrigeration system sits at the bottom of the cabinet, which keeps the compressor at floor level where a technician can reach it without a ladder. A removable installation board gives access to the condenser coil for cleaning and service; a coil that gets brushed off on schedule runs cooler and pulls less power than one packed with grease and flour dust.
The evaporator is an anti-corrosion coated copper coil and the condenser is a 100% copper coil. The coating shields the evaporator from the acids that tomatoes, citrus, and vinegar-based product give off, which corrode bare copper over time. The refrigerant is R290, a hydrocarbon with an ozone depletion potential of 0 and a global warming potential of 3.
Casters, Cord, and Placement
Heavy duty casters with brakes come preinstalled, so two people can roll the unit into position, lock it, and roll it back out when it is time to mop behind it. The cabinet measures 26.9 in. wide, 30.7 in. deep, and 81.9 in. high, with 56.3 in. of depth needed when a door is open. It runs on 115 V, single phase, at 2 A, and the 80 in. cord ends in a NEMA 5-15P plug.
About Westlake
Westlake Kitchen manufactures commercial refrigeration and cooking equipment for restaurants, bars, cafés, and other foodservice operations. Its product line includes reach-in refrigerators and freezers, refrigerated prep tables, ice machines, merchandisers, ranges, griddles, and fryers. Westlake refrigeration equipment features stainless steel construction, with select models using Embraco compressors and R290 refrigerant. Many models carry ETL, NSF, or DOE certifications, addressing commercial safety, sanitation, and energy requirements. The company offers equipment configurations suited to compact workstations, high-volume kitchens, and different food preparation needs. Its designs emphasize practical storage capacity, temperature control, accessible controls, and efficient use of kitchen space.\

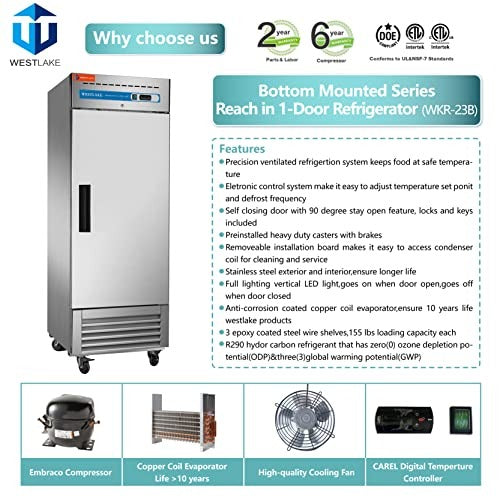

Features & Benefits
-
Cold storage for dairy, produce, and prepped ingredients on a working kitchen line
-
Precision ventilated refrigeration system that keeps food at a safe temperature on every shelf
-
Electronic control system for adjusting the temperature set point and defrost frequency
-
Automatic defrost that keeps the coil clear without a manual shutdown
-
Self-closing solid door with a 90 degree stay-open position for loading
-
Locks and keys included for securing product after hours
-
Full vertical LED lighting that switches on when a door opens and off when it closes
-
Epoxy coated steel wire shelves that resist rust and carry full cases of product
-
Stainless steel exterior and interior that wipe clean
-
Anti-corrosion coated copper coil evaporator and all-copper coil condenser
-
Removable installation board for reaching the condenser coil during cleaning and service
-
Hydrocarbon refrigerant with zero ozone depletion potential
-
Preinstalled heavy duty casters with brakes for rolling the cabinet out to clean behind it
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Cold storage for dairy, produce, and prepped ingredients on a working kitchen line
Precision ventilated refrigeration system that keeps food at a safe temperature on every shelf
Electronic control system for adjusting the temperature set point and defrost frequency
Automatic defrost that keeps the coil clear without a manual shutdown
Self-closing solid door with a 90 degree stay-open position for loading
The Westlake WKR-23B Reach-In Refrigerator
The Westlake WKR-23B is a one-section, bottom mounted reach-in refrigerator with one solid door, a 26.9 in. wide cabinet in stainless steel inside and out. Its ventilated refrigeration system holds the cabinet at 33 °F to 41 °F, so dairy, prepped produce, and thawing proteins sit in the safe zone from the morning delivery through the dinner rush. The system is rated for kitchens up to 100 °F ambient, which covers a hot line in August. With 3 shelves in a single 22.9 in. wide section, it is sized for one station or a small kitchen's daily stock; it is not sized to absorb a full weekly delivery on its own. It arrives on preinstalled casters with brakes, plugs into a 115 V outlet through an 80 in. cord with a NEMA 5-15P plug, draws 2 A, and needs about 56.3 in. front to back with a door swung open.
Precision Ventilated Refrigeration with Electronic Control
A 1/4 HP compressor drives a precision ventilated system that moves cold air through the whole cabinet instead of letting it pool at the bottom. A still-air cabinet runs warm on the top shelf and cold on the floor; a ventilated one keeps the cream on top and the case of romaine below at the same reading. The cabinet holds 33 °F to 41 °F.
The electronic control lets you change the temperature set point and the defrost frequency from the controller. Out of the box the unit defrosts automatically every 4 hours, so the coil stays clear and your staff never has to shut the unit down to melt ice off it.
Epoxy Coated Wire Shelves Rated at 155 lb Each
You get 3 epoxy coated steel wire shelves, 3 per section, and each one carries 155 lb. That is enough for full cases of product, stacked hotel pans, or a row of filled food storage containers without the shelf bowing. The epoxy coating is the difference between a shelf that wipes clean and bare steel wire that rusts after a few months of condensation and spilled brine.
Interior space measures 22.9 in. wide, 24.2 in. deep, and 59.65 in. high. Open wire also lets the moving air pass between levels, so a loaded shelf does not block the product under it.
Stainless Steel Interior and Exterior
The cabinet is stainless steel on the outside and on the inside. On the outside that means a surface that shrugs off cart bumps and degreaser. On the inside it means a liner you can wipe down after a leaking case of chicken without worrying about stains or cracked plastic. At 262 lb net, the cabinet has real mass and stays put once the caster brakes are set.
Self-Closing Solid Doors with Locks and LED Lighting
The solid door closes itself behind you, so a cook carrying two pans does not have to kick it shut and it never hangs open through a rush. Push it to 90 degrees and it stays open, which is what you want when you are loading a delivery or pulling shelves to clean.
Full vertical LED lighting switches on when a door opens and off when it closes, lighting each shelf from the side so labels read clearly at the back. Locks and keys are included, so high-value product stays secured after close.
Bottom Mounted R290 System with Coated Copper Evaporator
The refrigeration system sits at the bottom of the cabinet, which keeps the compressor at floor level where a technician can reach it without a ladder. A removable installation board gives access to the condenser coil for cleaning and service; a coil that gets brushed off on schedule runs cooler and pulls less power than one packed with grease and flour dust.
The evaporator is an anti-corrosion coated copper coil and the condenser is a 100% copper coil. The coating shields the evaporator from the acids that tomatoes, citrus, and vinegar-based product give off, which corrode bare copper over time. The refrigerant is R290, a hydrocarbon with an ozone depletion potential of 0 and a global warming potential of 3.
Casters, Cord, and Placement
Heavy duty casters with brakes come preinstalled, so two people can roll the unit into position, lock it, and roll it back out when it is time to mop behind it. The cabinet measures 26.9 in. wide, 30.7 in. deep, and 81.9 in. high, with 56.3 in. of depth needed when a door is open. It runs on 115 V, single phase, at 2 A, and the 80 in. cord ends in a NEMA 5-15P plug.
About Westlake
Westlake Kitchen manufactures commercial refrigeration and cooking equipment for restaurants, bars, cafés, and other foodservice operations. Its product line includes reach-in refrigerators and freezers, refrigerated prep tables, ice machines, merchandisers, ranges, griddles, and fryers. Westlake refrigeration equipment features stainless steel construction, with select models using Embraco compressors and R290 refrigerant. Many models carry ETL, NSF, or DOE certifications, addressing commercial safety, sanitation, and energy requirements. The company offers equipment configurations suited to compact workstations, high-volume kitchens, and different food preparation needs. Its designs emphasize practical storage capacity, temperature control, accessible controls, and efficient use of kitchen space.\
Features & Benefits
-
Cold storage for dairy, produce, and prepped ingredients on a working kitchen line
-
Precision ventilated refrigeration system that keeps food at a safe temperature on every shelf
-
Electronic control system for adjusting the temperature set point and defrost frequency
-
Automatic defrost that keeps the coil clear without a manual shutdown
-
Self-closing solid door with a 90 degree stay-open position for loading
-
Locks and keys included for securing product after hours
-
Full vertical LED lighting that switches on when a door opens and off when it closes
-
Epoxy coated steel wire shelves that resist rust and carry full cases of product
-
Stainless steel exterior and interior that wipe clean
-
Anti-corrosion coated copper coil evaporator and all-copper coil condenser
-
Removable installation board for reaching the condenser coil during cleaning and service
-
Hydrocarbon refrigerant with zero ozone depletion potential
-
Preinstalled heavy duty casters with brakes for rolling the cabinet out to clean behind it
Resources & Downloads
See all from Westlake
Specifications
| Capacity | 23 cu. ft. |
| Temperature Range | 33 °F to 41 °F |
| Sections | 1 |
| Number of Doors | 1 |
| Door Type | Solid, hinged |
| Door Features | Self-closing, 90 degree stay-open, locking |
| Number of Shelves | 3 |
| Shelf Material | Epoxy coated steel wire |
| Shelf Load Rating | 155 lb per shelf |

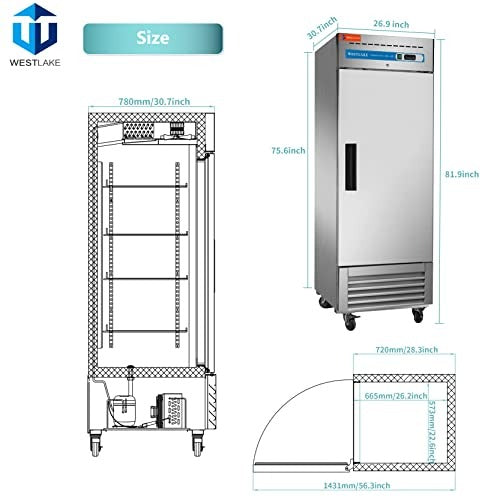

| Exterior Width | 26.9 in. |
| Exterior Depth | 30.7 in. |
| Exterior Height | 81.9 in. |
| Cabinet Height without Casters | 75.6 in. |
| Depth with Door Open | 56.3 in. |
| Interior Width | 22.9 in. |
| Interior Depth | 24.2 in. |
| Interior Height | 59.65 in. |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Compressor Location | Bottom mounted |
| Compressor | 1/4 HP |
| Refrigerant | R290 |
| Cooling System | Precision ventilated |
| Evaporator | Anti-corrosion coated copper coil |
| Condenser | 100% copper coil |
| Defrost | Automatic, every 4 hours |
| Controls | Electronic |
| Lighting | Full vertical LED |
| Maximum Ambient Temperature | 100 °F |
| Voltage | 115 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Amps | 2 A |
| Plug | NEMA 5-15P |
| Cord Length | 80 in. |
| Casters | Heavy duty with brakes, preinstalled |
| Net Weight | 262 lb |
| Gross Weight | 284 lb |
| Packed Dimensions (W x D x H) | 29 x 33 x 84.65 in. |
Manufacturer's Warranty
-
6 Year
Compressor
-
2 Year
Labor
-
2 Year
Parts
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
