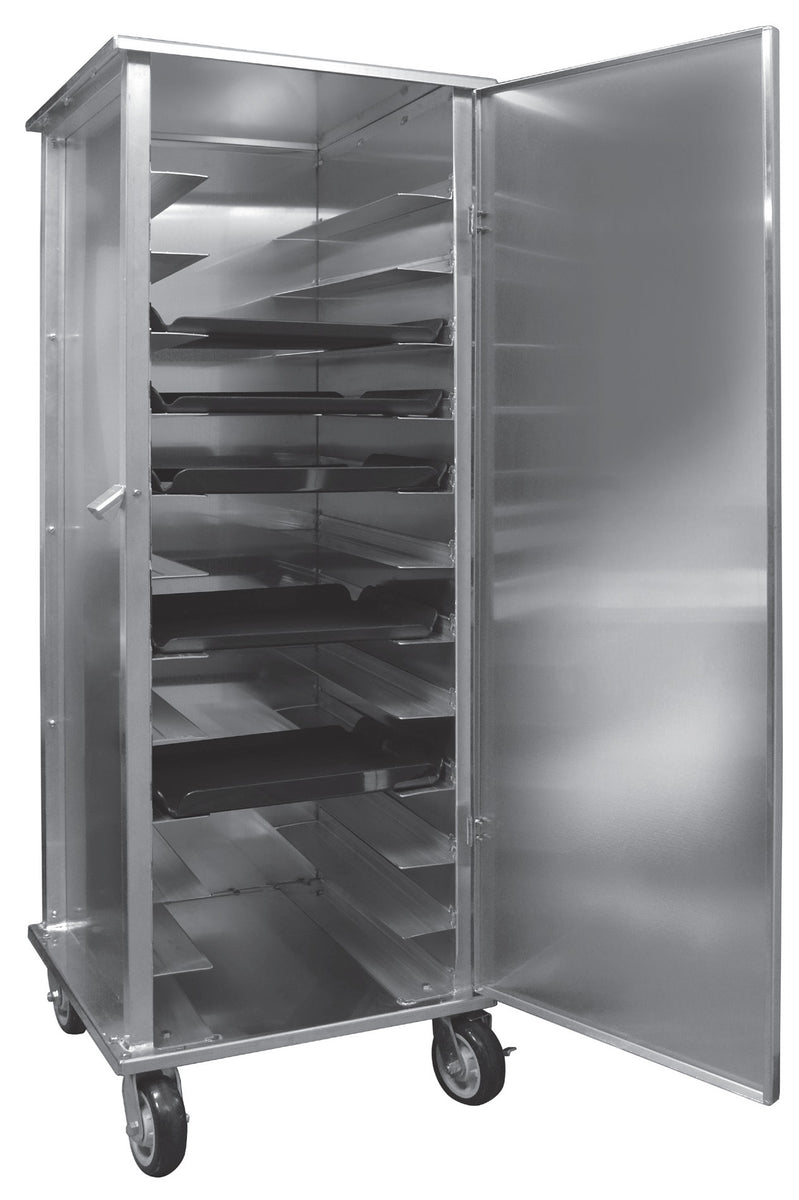

The Alexander Industries A-TR600 Transport Cabinet
The Alexander Industries A-TR600 is a enclosed aluminum transport cabinet that carries 24 15 x 20 in. room service trays, two per slide, behind a solid hinged door. It is built for hotels, hospitals and long term care kitchens that plate meals on trays and roll them to the floor covered. The cabinet rolls on 6 in. heavy duty casters and arrives fully assembled and ready to use.
3003-H14 Heli-Arc Welded Aluminum Cabinet
Body, door and tray supports are 3003-H14 aluminum joined by heli-arc welding, so there are no rivets to loosen and nothing to rust after a hose-down. The closed sides and door keep dust and drips off plated meals, which is what lets you deliver a larger load in fewer trips and keep it sanitary on the way.
3 In. Angle Supports on 5 In. Centers
Each tray rides on a 3 in. aluminum angle, and the angles are spaced 5 in. apart to clear a covered plate, a beverage and a soup cup on the same tray. Two trays share each slide, which keeps the cabinet narrow enough for a patient room door.
6 In. Casters and Bolted and Welded Hinges
Four 6 in. heavy duty plate casters, two with brakes, roll a loaded cabinet over elevator sills and hold it still in a corridor. The extra heavy duty hinges are bolted and welded, so the door stays aligned on its latch through years of daily use.
Features & Benefits
-
Holds 24 15 x 20 in. room service trays, two per slide, for covered meal delivery
-
Enclosed body with a solid hinged door for sanitary transportation of food
-
Delivers greater loads in fewer trips between kitchen and patient or guest floors
-
Constructed of 3003-H14 aluminum, heli-arc welded throughout
-
Trays supported by 3 in. aluminum angles
-
Tray supports spaced on 5 in. centers to clear covered plates
-
Extra heavy duty hinges that are bolted and welded to the cabinet
-
Rolls on four 6 in. heavy duty plate casters, two with brakes
-
Arrives fully assembled and ready to use
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 24 15 x 20 in. room service trays, two per slide, for covered meal delivery
Enclosed body with a solid hinged door for sanitary transportation of food
Delivers greater loads in fewer trips between kitchen and patient or guest floors
Constructed of 3003-H14 aluminum, heli-arc welded throughout
Trays supported by 3 in. aluminum angles
The Alexander Industries A-TR600 Transport Cabinet
The Alexander Industries A-TR600 is a enclosed aluminum transport cabinet that carries 24 15 x 20 in. room service trays, two per slide, behind a solid hinged door. It is built for hotels, hospitals and long term care kitchens that plate meals on trays and roll them to the floor covered. The cabinet rolls on 6 in. heavy duty casters and arrives fully assembled and ready to use.
3003-H14 Heli-Arc Welded Aluminum Cabinet
Body, door and tray supports are 3003-H14 aluminum joined by heli-arc welding, so there are no rivets to loosen and nothing to rust after a hose-down. The closed sides and door keep dust and drips off plated meals, which is what lets you deliver a larger load in fewer trips and keep it sanitary on the way.
3 In. Angle Supports on 5 In. Centers
Each tray rides on a 3 in. aluminum angle, and the angles are spaced 5 in. apart to clear a covered plate, a beverage and a soup cup on the same tray. Two trays share each slide, which keeps the cabinet narrow enough for a patient room door.
6 In. Casters and Bolted and Welded Hinges
Four 6 in. heavy duty plate casters, two with brakes, roll a loaded cabinet over elevator sills and hold it still in a corridor. The extra heavy duty hinges are bolted and welded, so the door stays aligned on its latch through years of daily use.
Features & Benefits
-
Holds 24 15 x 20 in. room service trays, two per slide, for covered meal delivery
-
Enclosed body with a solid hinged door for sanitary transportation of food
-
Delivers greater loads in fewer trips between kitchen and patient or guest floors
-
Constructed of 3003-H14 aluminum, heli-arc welded throughout
-
Trays supported by 3 in. aluminum angles
-
Tray supports spaced on 5 in. centers to clear covered plates
-
Extra heavy duty hinges that are bolted and welded to the cabinet
-
Rolls on four 6 in. heavy duty plate casters, two with brakes
-
Arrives fully assembled and ready to use
Resources & Downloads
Specifications
| Tray Size Accommodated | 15 x 20 in. room service trays |
| Tray Capacity | 24 trays, two per slide |
| Tray Support Spacing | 5 in. |
| Tray Support | 3 in. angles |
| Cabinet Style | Enclosed, single hinged door |
| Overall Width | 26 in. |
| Overall Depth | 32 in. |
| Overall Height | 70 in. |
| Material | 3003-H14 aluminum |
| Construction | Heli-arc welded |
| Hinges | Extra heavy duty, bolted and welded |
| Casters | 6 in. heavy duty plate, two with brakes |
| Mobility | Mobile |
| Assembly | Fully assembled |
| Shipping Weight | 150 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
