Alexander Industries E-401 20 In. 18-Pan End Loading Bun Pan Rack, 3 in. Slide Spacing, Mobile, Aluminum

SKUE-401 BrandAlexander Industries

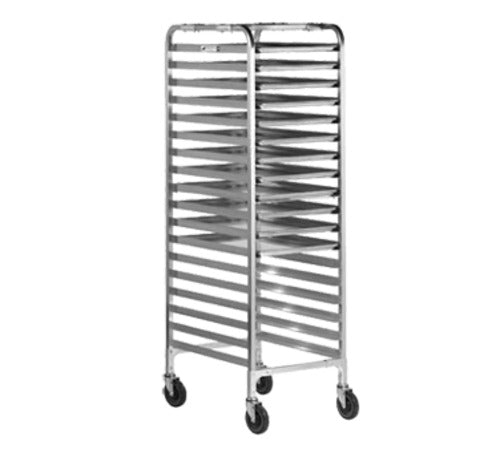

The Alexander Industries E-401 Bun pan rack

The Alexander Industries E-401 is an end loading aluminum bun pan rack that holds 18 full-size 18 x 26 in. bun pans on 3 in. centers. It is the standard open rack for bakeries, pizzerias, school kitchens and commissaries that need to stage sheet pans between the prep table, the oven and the cooling area. The 3 in. slide spacing balances capacity with airflow, the spacing most bakeries and pizzerias run for proofing dough and cooling rolls. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the extruded runner has enough section to carry a fully loaded pan without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of being pushed through doorways.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when the rack parks next to an oven or in a proof box.

Optional Accessories

Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding out the open back, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.

Features & Benefits

Holds 18 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging
End loading open frame so pans slide in from the front without lifting over a side rail
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives knocked down for on-site assembly, factory assembly available as an option
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$413.90

Holds 18 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging

End loading open frame so pans slide in from the front without lifting over a side rail

1 in. square uprights and cross members extruded from 6061-T6 aluminum

Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum

Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum

See full feature list

The Alexander Industries E-401 Bun pan rack

The Alexander Industries E-401 is an end loading aluminum bun pan rack that holds 18 full-size 18 x 26 in. bun pans on 3 in. centers. It is the standard open rack for bakeries, pizzerias, school kitchens and commissaries that need to stage sheet pans between the prep table, the oven and the cooling area. The 3 in. slide spacing balances capacity with airflow, the spacing most bakeries and pizzerias run for proofing dough and cooling rolls. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the extruded runner has enough section to carry a fully loaded pan without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of being pushed through doorways.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when the rack parks next to an oven or in a proof box.

Optional Accessories

Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding out the open back, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.

Features & Benefits

Holds 18 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging
End loading open frame so pans slide in from the front without lifting over a side rail
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives knocked down for on-site assembly, factory assembly available as an option
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Resources & Downloads

Alexander Industries E-401 Specsheet

Specifications

Pan Size Accommodated	18 x 26 in. bun pans
Pan Capacity	18 pans
Slide Spacing	3 in.
Loading Style	End loading
Overall Width	20 in.
Overall Depth	26 in.
Overall Height	68 in.
Upright and Cross Member	1 in. square 6061-T6 aluminum extrusion
Tray Runner	1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion
Connecting Brackets	.100 in. 3003-H14 aluminum stamping
Fasteners	Aircraft quality aluminum rivets
Casters	5 in. swivel, ball bearing
Caster Tires	Non-marking hard rubber
Mobility	Mobile
Assembly	Knocked down, factory assembly optional
Shipping Weight	35 lb

Manufacturer's Warranty

5 Year

Casters
Lifetime Year

Parts

Certifications & Approvals

NSF Approved
