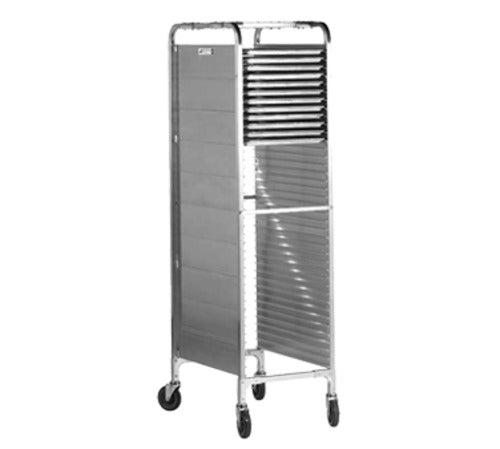

Alexander Industries EL-40 21 In. 40-Pan Solid Sides Bun Pan Rack, 1-1/2 In. Slide Spacing, Mobile, Welded Aluminum

SKUEL-40 BrandAlexander Industries
Alexander Industries EL-40 21 In. 40-Pan Solid Sides Bun Pan Rack, 1-1/2 In. Slide Spacing, Mobile, Welded Aluminum

The Alexander Industries EL-40 Bun pan rack

The Alexander Industries EL-40 is a solid sides aluminum bun pan rack that holds 40 full-size 18 x 26 in. bun pans on 1-1/2 in. centers. Alexander calls it the Stor-more, and it is the taller of the two sizes for bakeries, commissaries and central kitchens that want the most pans per square foot of floor with the sides closed so nothing slips off the slide in transit. It stands 75 in. tall, so check your door and walk-in clearances. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

Solid Side Panels With 1-1/2 In. Slide Spacing

Each side is a solid panel extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed into it on 1-1/2 in. centers, so there are no separate runners to work loose. The closed sides keep product from being bumped and give you 40 pans of flat, uncovered product such as cookies, sheeted dough or portioned items in one footprint that is only 21-1/4 in. wide.

6061-T6 Aluminum Frame, Riveted and Welded

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, tied together with .100 in. thick 3003-H14 aluminum brackets, aircraft quality aluminum rivets and welded joints. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the welded joints keep a tall, fully loaded rack rigid when it is pushed through doorways.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a loaded rack across tile or sealed concrete without scuffing. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect walls, a tray stopper and a sanitary rack cover.

Features & Benefits

  1. Holds 40 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for high density storage, proofing and cooling
  2. Solid side panels extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed in on 1-1/2 in. centers
  3. Closed sides keep pans on the slide and protect product in transit
  4. 1 in. square uprights and cross members extruded from 6061-T6 aluminum
  5. Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
  6. Assembled with high tensile aircraft quality aluminum rivets and welded joints
  7. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
  8. Narrow 21-1/4 in. wide footprint that stands 75 in. tall
  9. Arrives knocked down for on-site assembly, factory assembly available as an option
  10. Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$596.68
  • Holds 40 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for high density storage, proofing and cooling
  • Solid side panels extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed in on 1-1/2 in. centers
  • Closed sides keep pans on the slide and protect product in transit
  • 1 in. square uprights and cross members extruded from 6061-T6 aluminum
  • Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
    • See full feature list

    The Alexander Industries EL-40 Bun pan rack

    The Alexander Industries EL-40 is a solid sides aluminum bun pan rack that holds 40 full-size 18 x 26 in. bun pans on 1-1/2 in. centers. Alexander calls it the Stor-more, and it is the taller of the two sizes for bakeries, commissaries and central kitchens that want the most pans per square foot of floor with the sides closed so nothing slips off the slide in transit. It stands 75 in. tall, so check your door and walk-in clearances. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

    Solid Side Panels With 1-1/2 In. Slide Spacing

    Each side is a solid panel extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed into it on 1-1/2 in. centers, so there are no separate runners to work loose. The closed sides keep product from being bumped and give you 40 pans of flat, uncovered product such as cookies, sheeted dough or portioned items in one footprint that is only 21-1/4 in. wide.

    6061-T6 Aluminum Frame, Riveted and Welded

    Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, tied together with .100 in. thick 3003-H14 aluminum brackets, aircraft quality aluminum rivets and welded joints. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the welded joints keep a tall, fully loaded rack rigid when it is pushed through doorways.

    5 In. Ball Bearing Swivel Casters

    Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a loaded rack across tile or sealed concrete without scuffing. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect walls, a tray stopper and a sanitary rack cover.

    Features & Benefits

    1. Holds 40 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for high density storage, proofing and cooling
    2. Solid side panels extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed in on 1-1/2 in. centers
    3. Closed sides keep pans on the slide and protect product in transit
    4. 1 in. square uprights and cross members extruded from 6061-T6 aluminum
    5. Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
    6. Assembled with high tensile aircraft quality aluminum rivets and welded joints
    7. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
    8. Narrow 21-1/4 in. wide footprint that stands 75 in. tall
    9. Arrives knocked down for on-site assembly, factory assembly available as an option
    10. Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

    Resources & Downloads

    Specifications

    Pan Size Accommodated18 x 26 in. bun pans
    Pan Capacity40 pans
    Slide Spacing1-1/2 in.
    Side PanelsSolid, .078 in. wall 6063-T6 aluminum extrusion
    Overall Width21-1/4 in.
    Overall Depth26 in.
    Overall Height75 in.
    Upright and Cross Member1 in. square 6061-T6 aluminum extrusion
    Connecting Brackets.100 in. 3003-H14 aluminum stamping
    FastenersAircraft quality aluminum rivets, welded
    ConstructionRiveted and welded
    Casters5 in. swivel, ball bearing
    Caster TiresNon-marking hard rubber
    MobilityMobile
    AssemblyKnocked down, factory assembly optional
    Shipping Weight60 lb

    Manufacturer's Warranty

    • 5 Year

      Casters

    • Lifetime Year

      Parts

    Certifications & Approvals

    • NFS
      NSF Approved
