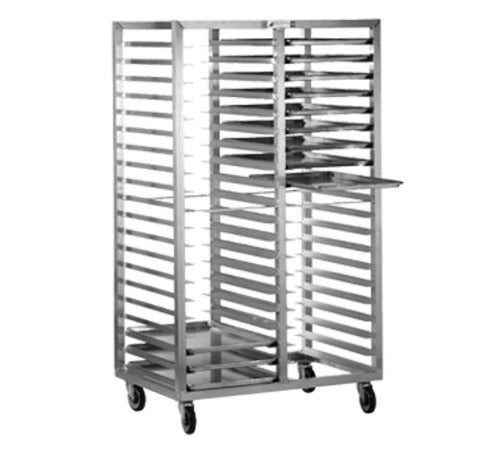

The Alexander Industries HDE-402-DD Bun pan rack
The Alexander Industries HDE-402-DD is the double capacity version of the HDE-402 heavy duty end loading aluminum bun pan rack. Two bays of 3 in. slides share one welded frame, so you get twice the pan count of the single rack on one set of casters and roll it as one unit. It suits high volume bakeries, commissaries and central kitchens that move full loads of 18 x 26 in. bun pans between the proof box, the oven and the cooler. The rack arrives fully welded and ready to use.
Double Capacity on One Frame
Alexander builds every heavy duty cart in a double capacity version: order the standard HD part number and add -DD. The two bays load from the end like the single rack, and pans in each bay sit on their own runners so a full bay on one side does not affect the other. One person moves the whole load at once instead of pushing two racks.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion and each tray runner is a 1 x 2 in. extrusion of the same alloy. Every joint is welded, which is why the frame is rated for a 2000 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
Platform 5 In. Casters
The double rack rides on platform mounted 5 in. casters sized for the heavier load. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect walls and door frames, a tray stopper and a sanitary rack cover for holding uncovered product.
Features & Benefits
-
Holds double the bun pan load of the HDE-402 in two end loading bays on one welded frame
-
End loading open bays so pans slide in from the end without lifting over a side rail
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded two-bay frame carries a 2000-pound load rating
-
Platform mounted 5 in. casters carry the double load
-
Arrives fully welded and assembled, ready to use
-
Ordered as the standard HD part number with -DD added
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
The Alexander Industries HDE-402-DD Bun pan rack
The Alexander Industries HDE-402-DD is the double capacity version of the HDE-402 heavy duty end loading aluminum bun pan rack. Two bays of 3 in. slides share one welded frame, so you get twice the pan count of the single rack on one set of casters and roll it as one unit. It suits high volume bakeries, commissaries and central kitchens that move full loads of 18 x 26 in. bun pans between the proof box, the oven and the cooler. The rack arrives fully welded and ready to use.
Double Capacity on One Frame
Alexander builds every heavy duty cart in a double capacity version: order the standard HD part number and add -DD. The two bays load from the end like the single rack, and pans in each bay sit on their own runners so a full bay on one side does not affect the other. One person moves the whole load at once instead of pushing two racks.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion and each tray runner is a 1 x 2 in. extrusion of the same alloy. Every joint is welded, which is why the frame is rated for a 2000 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
Platform 5 In. Casters
The double rack rides on platform mounted 5 in. casters sized for the heavier load. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect walls and door frames, a tray stopper and a sanitary rack cover for holding uncovered product.
Features & Benefits
-
Holds double the bun pan load of the HDE-402 in two end loading bays on one welded frame
-
End loading open bays so pans slide in from the end without lifting over a side rail
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded two-bay frame carries a 2000-pound load rating
-
Platform mounted 5 in. casters carry the double load
-
Arrives fully welded and assembled, ready to use
-
Ordered as the standard HD part number with -DD added
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Pan Size Accommodated | 18 x 26 in. bun pans |
| Configuration | Double capacity, two bays |
| Base Model | HDE-402 |
| Slide Spacing | 3 in. |
| Loading Style | End loading |
| Load Capacity | 2000 lb |
| Upright and Cross Member | 1-1/2 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1 x 2 in. 6061-T6 aluminum extrusion |
| Construction | All welded |
| Casters | 5 in. platform |
| Mobility | Mobile |
| Assembly | Fully assembled |
| Shipping Weight | 80 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
