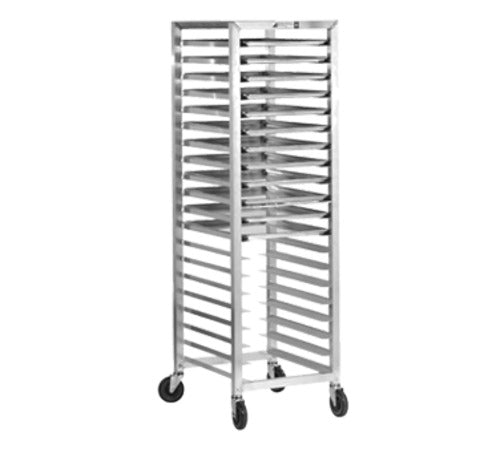

The Alexander Industries HDE-403 Bun pan rack
The Alexander Industries HDE-403 is a heavy duty end loading aluminum bun pan rack that holds 30 full-size 18 x 26 in. bun pans on 2 in. centers. The 2 in. slide spacing is the tight spacing that packs the most flat product such as cookies, sheeted dough and portioned items into one footprint. It is meant for high volume bakeries, commissaries, school kitchens and institutional operations that push loaded racks all day. The rack rolls on four swivel casters and arrives fully welded and ready to use.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, half again the section of a standard 1 in. rack, and each tray runner is a 1 x 2 in. extrusion of the same alloy. Every joint is welded rather than riveted, so the frame is rated for a 1200 lb load and stays square after years of being pushed through doorways and bumped by dollies. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when the rack parks next to an oven or in a proof box, along with donut bumpers to protect your walls and door frames, a tray stopper to keep pans from sliding out the open back, and a sanitary rack cover for holding uncovered product.
Features & Benefits
-
Holds 30 full-size 18 x 26 in. bun pans on 2 in. slide spacing for proofing, cooling and transport
-
End loading open frame so pans slide in from the narrow end without lifting over a side rail
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded frame carries a 1200-pound load rating
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives fully welded and assembled, ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 30 full-size 18 x 26 in. bun pans on 2 in. slide spacing for proofing, cooling and transport
End loading open frame so pans slide in from the narrow end without lifting over a side rail
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
All welded construction with no rivets or brackets to work loose
The Alexander Industries HDE-403 Bun pan rack
The Alexander Industries HDE-403 is a heavy duty end loading aluminum bun pan rack that holds 30 full-size 18 x 26 in. bun pans on 2 in. centers. The 2 in. slide spacing is the tight spacing that packs the most flat product such as cookies, sheeted dough and portioned items into one footprint. It is meant for high volume bakeries, commissaries, school kitchens and institutional operations that push loaded racks all day. The rack rolls on four swivel casters and arrives fully welded and ready to use.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, half again the section of a standard 1 in. rack, and each tray runner is a 1 x 2 in. extrusion of the same alloy. Every joint is welded rather than riveted, so the frame is rated for a 1200 lb load and stays square after years of being pushed through doorways and bumped by dollies. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when the rack parks next to an oven or in a proof box, along with donut bumpers to protect your walls and door frames, a tray stopper to keep pans from sliding out the open back, and a sanitary rack cover for holding uncovered product.
Features & Benefits
-
Holds 30 full-size 18 x 26 in. bun pans on 2 in. slide spacing for proofing, cooling and transport
-
End loading open frame so pans slide in from the narrow end without lifting over a side rail
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded frame carries a 1200-pound load rating
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives fully welded and assembled, ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Pan Size Accommodated | 18 x 26 in. bun pans |
| Pan Capacity | 30 pans |
| Slide Spacing | 2 in. |
| Loading Style | End loading |
| Load Capacity | 1200 lb |
| Overall Width | 21 in. |
| Overall Depth | 26 in. |
| Overall Height | 72 in. |
| Upright and Cross Member | 1-1/2 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1 x 2 in. 6061-T6 aluminum extrusion |
| Construction | All welded |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Assembly | Fully assembled |
| Shipping Weight | 52 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
