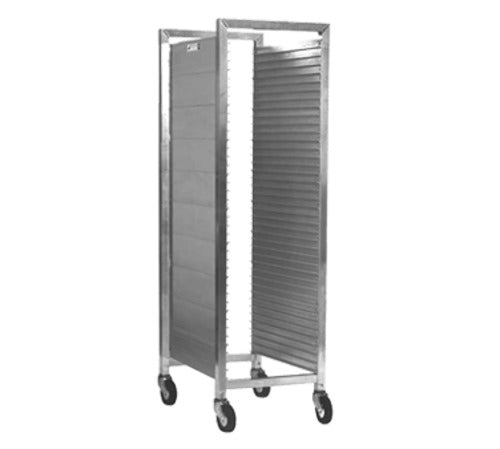

The Alexander Industries HDEL-40 Bun pan rack
The Alexander Industries HDEL-40 is a heavy duty solid sides aluminum bun pan utility rack that holds 40 bun pans on 1-1/2 in. centers. It is the all welded, 1-1/2 in. upright version of the solid sides rack for bakeries, commissaries and central kitchens that want the most pans per square foot of floor with the sides closed so nothing slips off the slide in transit. The rack rolls on four swivel casters and arrives fully welded and ready to use.
Solid Side Panels With 1-1/2 In. Slide Spacing
Each side is a solid panel extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed into it on 1-1/2 in. centers, so there are no separate runners to work loose. The closed sides keep product from being bumped and give you 40 pans of flat product such as cookies, sheeted dough or portioned items in a footprint only 21-1/4 in. wide.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, and every joint is welded rather than riveted, which is why the rack is rated for a 1200 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the welded frame keeps a tall, fully loaded rack rigid when it is pushed through doorways.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a loaded rack across tile or sealed concrete without scuffing. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect your walls, a tray stopper and a sanitary rack cover.
Features & Benefits
-
Holds 40 bun pans on 1-1/2 in. slide spacing for high density storage, proofing and cooling
-
Solid side panels extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed in on 1-1/2 in. centers
-
Closed sides keep pans on the slide and protect product in transit
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded frame carries a 1200-pound load rating
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Narrow 21-1/4 in. wide footprint that stands 72 in. tall
-
Arrives fully welded and assembled, ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
The Alexander Industries HDEL-40 Bun pan rack
The Alexander Industries HDEL-40 is a heavy duty solid sides aluminum bun pan utility rack that holds 40 bun pans on 1-1/2 in. centers. It is the all welded, 1-1/2 in. upright version of the solid sides rack for bakeries, commissaries and central kitchens that want the most pans per square foot of floor with the sides closed so nothing slips off the slide in transit. The rack rolls on four swivel casters and arrives fully welded and ready to use.
Solid Side Panels With 1-1/2 In. Slide Spacing
Each side is a solid panel extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed into it on 1-1/2 in. centers, so there are no separate runners to work loose. The closed sides keep product from being bumped and give you 40 pans of flat product such as cookies, sheeted dough or portioned items in a footprint only 21-1/4 in. wide.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, and every joint is welded rather than riveted, which is why the rack is rated for a 1200 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the welded frame keeps a tall, fully loaded rack rigid when it is pushed through doorways.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a loaded rack across tile or sealed concrete without scuffing. Two locking casters can be added when the rack parks in a proof box, along with donut bumpers to protect your walls, a tray stopper and a sanitary rack cover.
Features & Benefits
-
Holds 40 bun pans on 1-1/2 in. slide spacing for high density storage, proofing and cooling
-
Solid side panels extruded from .078 in. wall 6063-T6 aluminum with the pan slides formed in on 1-1/2 in. centers
-
Closed sides keep pans on the slide and protect product in transit
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
All welded construction with no rivets or brackets to work loose
-
All welded frame carries a 1200-pound load rating
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Narrow 21-1/4 in. wide footprint that stands 72 in. tall
-
Arrives fully welded and assembled, ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Tray Capacity | 40 bun pans |
| Slide Spacing | 1-1/2 in. |
| Side Panels | Solid, .078 in. wall 6063-T6 aluminum extrusion |
| Load Capacity | 1200 lb |
| Overall Width | 21-1/4 in. |
| Overall Depth | 26 in. |
| Overall Height | 72 in. |
| Upright and Cross Member | 1-1/2 in. square 6061-T6 aluminum extrusion |
| Construction | All welded |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Assembly | Fully assembled |
| Shipping Weight | 60 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
