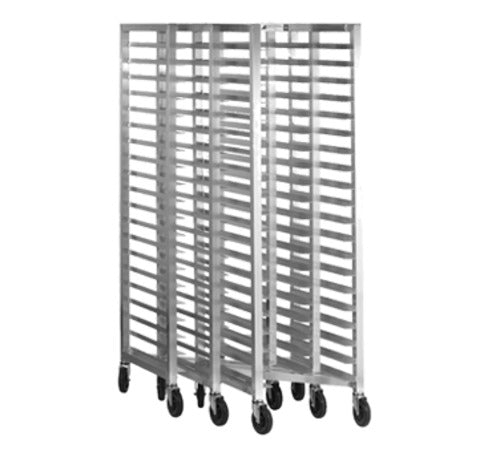

The Alexander Industries HDPA-500-NESTING Food Pan Rack
The Alexander Industries HDPA-500-NESTING is a heavy duty nesting aluminum food pan rack that holds 40 12 x 20 in. pans, two per slide, on 3 in. centers. It is built for hospitals, school kitchens and commissaries that stage hotel pans of prepped product all day and want a frame with no rivets to loosen. The rack is welded throughout, rolls on four swivel casters and arrives fully assembled and ready to use. Its nesting construction lets empty racks slide into one another so a fleet takes up a fraction of the floor space between meal periods.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1 x 2 in. extrusion of the same alloy. All welded construction keeps the frame square through years of being pushed through doorways, and it is rated for a 1200 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a loaded rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a steam table.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 40 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets to work loose
-
Frame rated for a 1200 pound load of full pans and trays
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Nesting construction so empty racks slide into one another to save floor space
-
Arrives fully assembled and ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 40 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
All welded construction with no rivets to work loose
Frame rated for a 1200 pound load of full pans and trays
The Alexander Industries HDPA-500-NESTING Food Pan Rack
The Alexander Industries HDPA-500-NESTING is a heavy duty nesting aluminum food pan rack that holds 40 12 x 20 in. pans, two per slide, on 3 in. centers. It is built for hospitals, school kitchens and commissaries that stage hotel pans of prepped product all day and want a frame with no rivets to loosen. The rack is welded throughout, rolls on four swivel casters and arrives fully assembled and ready to use. Its nesting construction lets empty racks slide into one another so a fleet takes up a fraction of the floor space between meal periods.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1 x 2 in. extrusion of the same alloy. All welded construction keeps the frame square through years of being pushed through doorways, and it is rated for a 1200 lb load. Aluminum will not rust in a walk-in cooler or under a daily hose-down.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a loaded rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a steam table.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 40 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
-
1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 2 in. 6061-T6 aluminum
-
All welded construction with no rivets to work loose
-
Frame rated for a 1200 pound load of full pans and trays
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Nesting construction so empty racks slide into one another to save floor space
-
Arrives fully assembled and ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Pan Size Accommodated | 12 x 20 in. food pans |
| Pan Capacity | 40 pans |
| Pans Per Slide | 2 |
| Slide Spacing | 3 in. |
| Overall Width | 26 in. |
| Overall Depth | 26 in. |
| Overall Height | 72 in. |
| Upright and Cross Member | 1-1/2 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1 x 2 in. 6061-T6 aluminum extrusion |
| Construction | All welded |
| Load Capacity | 1200 lb |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Nesting | Yes, nests when empty |
| Assembly | Fully assembled |
| Shipping Weight | 40 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
