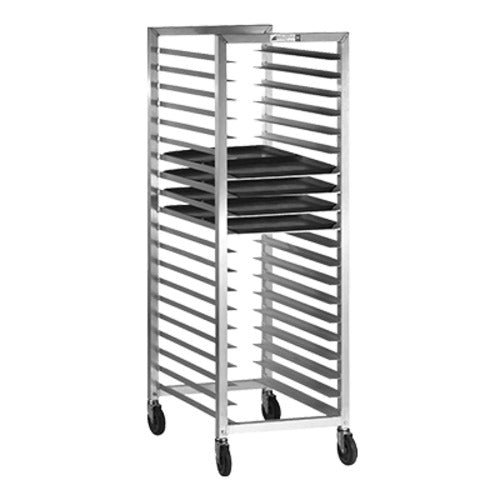

Alexander Industries HDTR-600 24 In. 24-Tray Heavy Duty Tray Rack, 5 In. Slide Spacing, Mobile, 1,200 lb Load Capacity, Welded Aluminum

SKUHDTR-600 BrandAlexander Industries
Alexander Industries HDTR-600 24 In. 24-Tray Heavy Duty Tray Rack, 5 In. Slide Spacing, Mobile, 1,200 lb Load Capacity, Welded Aluminum

The Alexander Industries HDTR-600 Tray Rack

The Alexander Industries HDTR-600 is a heavy duty aluminum tray rack that holds 24 15 x 20 in. trays, two per slide on 5 in. centers. It is built for hospital, school and institutional kitchens that plate meals on 15 x 20 in. trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use.

1-1/2 In. Square 6061-T6 Aluminum Frame

Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.

5 In. Slide Spacing, Two Trays Per Slide

Each tray runner is a 1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion and carries two 15 x 20 in. trays side by side, which is how 24 trays fit in a 23-1/2 in. wide frame. The 5 in. spacing leaves room for domed lids and covered plates on every level.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.

Features & Benefits

  1. Holds 24 15 x 20 in. trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals
  2. Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
  3. Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
  4. Slides riveted and welded to the frame
  5. Frame and welded slides rated to carry a 1200 pound load
  6. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
  7. Arrives fully assembled and ready to use
  8. Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$884.66
  • Holds 24 15 x 20 in. trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals
  • Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
  • Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
  • Slides riveted and welded to the frame
  • Frame and welded slides rated to carry a 1200 pound load
    • See full feature list

    The Alexander Industries HDTR-600 Tray Rack

    The Alexander Industries HDTR-600 is a heavy duty aluminum tray rack that holds 24 15 x 20 in. trays, two per slide on 5 in. centers. It is built for hospital, school and institutional kitchens that plate meals on 15 x 20 in. trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use.

    1-1/2 In. Square 6061-T6 Aluminum Frame

    Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.

    5 In. Slide Spacing, Two Trays Per Slide

    Each tray runner is a 1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion and carries two 15 x 20 in. trays side by side, which is how 24 trays fit in a 23-1/2 in. wide frame. The 5 in. spacing leaves room for domed lids and covered plates on every level.

    5 In. Ball Bearing Swivel Casters

    Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.

    Features & Benefits

    1. Holds 24 15 x 20 in. trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals
    2. Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
    3. Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
    4. Slides riveted and welded to the frame
    5. Frame and welded slides rated to carry a 1200 pound load
    6. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
    7. Arrives fully assembled and ready to use
    8. Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

    Resources & Downloads

    Specifications

    Tray Size Accommodated15 x 20 in. trays
    Tray Capacity24 trays
    Trays Per Slide2
    Slide Spacing5 in.
    Overall Width23-1/2 in.
    Overall Depth30 in.
    Overall Height72 in.
    Upright and Cross Member1-1/2 in. square 6061-T6 aluminum extrusion
    Tray Runner1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion
    Slide AttachmentRiveted and welded
    Load Capacity1200 lb
    Casters5 in. swivel, ball bearing
    Caster TiresNon-marking hard rubber
    MobilityMobile
    ConstructionFully assembled
    Shipping Weight42 lb

    Manufacturer's Warranty

    • 5 Year

      Casters

    • Lifetime Year

      Parts

    Certifications & Approvals

    • NFS
      NSF Approved
