Alexander Industries HDTR-600-R-NESTING 24 In. 24-Tray Heavy Duty Nesting Room Service Tray Rack, 5 In. Slide Spacing, Mobile, 1,200 lb Load Capacity, Welded Aluminum

SKUHDTR-600-R-NESTING BrandAlexander Industries

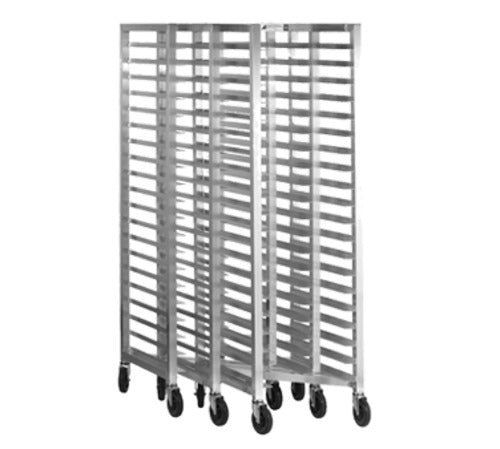

The Alexander Industries HDTR-600-R-NESTING Tray Rack

The Alexander Industries HDTR-600-R-NESTING is a heavy duty aluminum nesting room service tray rack that holds 24 15 x 20 in. round edge room service trays, two per slide on 5 in. centers. It is built for hotels, hospitals and senior living kitchens that run room service on round edge trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use, and the nesting frame lets empty racks slide into one another to save floor space between meal periods.

1-1/2 In. Square 6061-T6 Aluminum Frame

Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.

1 x 3 In. Runners for Round Edge Trays

Each tray runner is a 1 x 3 in. 6061-T6 aluminum extrusion, deep enough to support a round edge room service tray that has no flat lip to ride on. Two trays sit side by side per slide, so 24 trays fit on 5 in. spacing in a 23-1/2 in. wide frame, with headroom for covered plates and domed lids.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.

Features & Benefits

Holds 24 15 x 20 in. round edge room service trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals
Nesting construction so empty racks slide into one another for compact storage
Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays
Slides riveted and welded to the frame
Frame and welded slides rated to carry a 1200 pound load
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives fully assembled and ready to use
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$925.05

Holds 24 15 x 20 in. round edge room service trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals

Nesting construction so empty racks slide into one another for compact storage

Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum

Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays

Slides riveted and welded to the frame

See full feature list

The Alexander Industries HDTR-600-R-NESTING Tray Rack

The Alexander Industries HDTR-600-R-NESTING is a heavy duty aluminum nesting room service tray rack that holds 24 15 x 20 in. round edge room service trays, two per slide on 5 in. centers. It is built for hotels, hospitals and senior living kitchens that run room service on round edge trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use, and the nesting frame lets empty racks slide into one another to save floor space between meal periods.

1-1/2 In. Square 6061-T6 Aluminum Frame

Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.

1 x 3 In. Runners for Round Edge Trays

Each tray runner is a 1 x 3 in. 6061-T6 aluminum extrusion, deep enough to support a round edge room service tray that has no flat lip to ride on. Two trays sit side by side per slide, so 24 trays fit on 5 in. spacing in a 23-1/2 in. wide frame, with headroom for covered plates and domed lids.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.

Features & Benefits

Holds 24 15 x 20 in. round edge room service trays, two per slide, on 5 in. slide spacing for staging and transporting plated meals
Nesting construction so empty racks slide into one another for compact storage
Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays
Slides riveted and welded to the frame
Frame and welded slides rated to carry a 1200 pound load
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives fully assembled and ready to use
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Resources & Downloads

Alexander Industries HDTR-600-R-NESTING Specsheet

Specifications

Tray Size Accommodated	15 x 20 in. round edge room service trays
Tray Capacity	24 trays
Trays Per Slide	2
Slide Spacing	5 in.
Overall Width	23-1/2 in.
Overall Depth	30 in.
Overall Height	72 in.
Upright and Cross Member	1-1/2 in. square 6061-T6 aluminum extrusion
Tray Runner	1 x 3 in. 6061-T6 aluminum extrusion
Slide Attachment	Riveted and welded
Load Capacity	1200 lb
Casters	5 in. swivel, ball bearing
Caster Tires	Non-marking hard rubber
Mobility	Mobile
Construction	Nesting, fully assembled
Shipping Weight	42 lb

Manufacturer's Warranty

5 Year

Casters
Lifetime Year

Parts

Certifications & Approvals

NSF Approved
