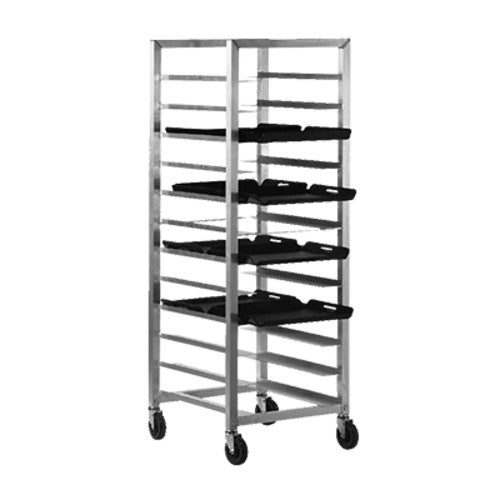

The Alexander Industries HDTR-601-R Tray Rack
The Alexander Industries HDTR-601-R is a heavy duty aluminum room service tray rack that holds 40 15 x 20 in. round edge room service trays, two per slide on 3 in. centers. It is built for hotels, hospitals and senior living kitchens that run room service on round edge trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.
1 x 3 In. Runners for Round Edge Trays
Each tray runner is a 1 x 3 in. 6061-T6 aluminum extrusion, deep enough to support a round edge room service tray that has no flat lip to ride on. Two trays sit side by side per slide, so 40 trays fit on 3 in. spacing in a 23-1/2 in. wide frame, a tight pitch for flat trays with covered plates.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.
Features & Benefits
-
Holds 40 15 x 20 in. round edge room service trays, two per slide, on 3 in. slide spacing for staging and transporting plated meals
-
Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays
-
Slides riveted and welded to the frame
-
Frame and welded slides rated to carry a 1200 pound load
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives fully assembled and ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 40 15 x 20 in. round edge room service trays, two per slide, on 3 in. slide spacing for staging and transporting plated meals
Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays
Slides riveted and welded to the frame
Frame and welded slides rated to carry a 1200 pound load
The Alexander Industries HDTR-601-R Tray Rack
The Alexander Industries HDTR-601-R is a heavy duty aluminum room service tray rack that holds 40 15 x 20 in. round edge room service trays, two per slide on 3 in. centers. It is built for hotels, hospitals and senior living kitchens that run room service on round edge trays. The rack rolls on four swivel casters, carries a 1200 lb load and arrives fully assembled and ready to use.
1-1/2 In. Square 6061-T6 Aluminum Frame
Uprights and cross members are 1-1/2 in. square 6061-T6 aluminum extrusion, a heavier section than the 1 in. uprights on the standard TR racks, and the slides are both riveted and welded to the frame. That is where the 1200 lb load rating comes from. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the welded slides do not loosen when the rack is bumped through doorways.
1 x 3 In. Runners for Round Edge Trays
Each tray runner is a 1 x 3 in. 6061-T6 aluminum extrusion, deep enough to support a round edge room service tray that has no flat lip to ride on. Two trays sit side by side per slide, so 40 trays fit on 3 in. spacing in a 23-1/2 in. wide frame, a tight pitch for flat trays with covered plates.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack down a corridor without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.
Features & Benefits
-
Holds 40 15 x 20 in. round edge room service trays, two per slide, on 3 in. slide spacing for staging and transporting plated meals
-
Heavy duty frame with 1-1/2 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1 x 3 in. 6061-T6 aluminum to support round edge trays
-
Slides riveted and welded to the frame
-
Frame and welded slides rated to carry a 1200 pound load
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives fully assembled and ready to use
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Tray Size Accommodated | 15 x 20 in. round edge room service trays |
| Tray Capacity | 40 trays |
| Trays Per Slide | 2 |
| Slide Spacing | 3 in. |
| Overall Width | 23-1/2 in. |
| Overall Depth | 30 in. |
| Overall Height | 72 in. |
| Upright and Cross Member | 1-1/2 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1 x 3 in. 6061-T6 aluminum extrusion |
| Slide Attachment | Riveted and welded |
| Load Capacity | 1200 lb |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Construction | Fully assembled |
| Shipping Weight | 50 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
Holds 40 15 x 20 in. round edge room service trays, two per slide, on 3 in. slide spacing for staging and transporting plated meals
