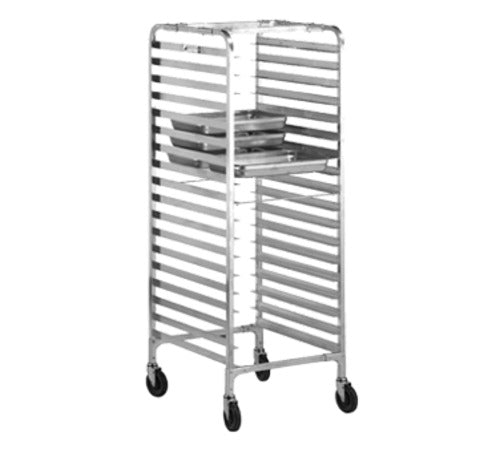

The Alexander Industries PA-500 Food Pan Rack
The Alexander Industries PA-500 is an aluminum food pan rack that holds 36 12 x 20 in. pans, two per slide, on 3 in. centers. Any depth of 12 x 20 in. pan fits, so one rack can stage shallow hotel pans of prepped vegetables next to deep pans of sauce for a cafeteria line, a catering kitchen or a commissary. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the extruded runner carries two full pans without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of being pushed through doorways.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a steam table.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 36 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
-
Accepts any depth of 12 x 20 in. pan on the same runners
-
1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
-
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
-
Assembled with high tensile aircraft quality aluminum rivets
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 36 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
Accepts any depth of 12 x 20 in. pan on the same runners
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
The Alexander Industries PA-500 Food Pan Rack
The Alexander Industries PA-500 is an aluminum food pan rack that holds 36 12 x 20 in. pans, two per slide, on 3 in. centers. Any depth of 12 x 20 in. pan fits, so one rack can stage shallow hotel pans of prepped vegetables next to deep pans of sauce for a cafeteria line, a catering kitchen or a commissary. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the extruded runner carries two full pans without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of being pushed through doorways.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person move a full rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a steam table.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 36 12 x 20 in. food pans, two per slide, on 3 in. slide spacing for staging, cooling and transport
-
Accepts any depth of 12 x 20 in. pan on the same runners
-
1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
-
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
-
Assembled with high tensile aircraft quality aluminum rivets
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Pan Size Accommodated | 12 x 20 in. food pans, any depth |
| Pan Capacity | 36 pans |
| Pans Per Slide | 2 |
| Slide Spacing | 3 in. |
| Overall Width | 22 in. |
| Overall Depth | 26 in. |
| Overall Height | 68 in. |
| Upright and Cross Member | 1 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion |
| Connecting Brackets | .100 in. 3003-H14 aluminum stamping |
| Fasteners | Aircraft quality aluminum rivets |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Assembly | Knocked down, factory assembly optional |
| Shipping Weight | 35 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
