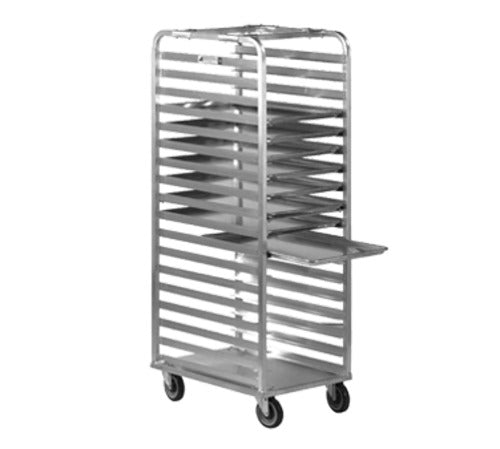

Alexander Industries R-300 21 In. 11-Pan Roll-In Refrigerator Rack, 5 in. Slide Spacing, Solid Bottom, Mobile, Aluminum

SKUR-300 BrandAlexander Industries

The Alexander Industries R-300 Refrigerator Rack

The Alexander Industries R-300 is a roll-in refrigerator rack that holds 11 full-size 18 x 26 in. bun pans on 5 in. centers. It is built for the walk-in cooler and freezer, where a bakery, commissary or hotel kitchen needs to wheel a full load of pans in to chill and back out again without unloading a single tray. The 5 in. slide spacing is the widest spacing in the series, sized for tall product like layered cakes, whole pies or covered proofing pans. The rack rolls on four swivel casters and arrives fully assembled, so it goes to work the day it lands on your dock.

Solid 1/8 In. Aluminum Bottom

Unlike an open bun pan rack, this rack has a solid 1/8 in. thick aluminum bottom that catches drips and crumbs before they reach the cooler floor. It also stiffens the frame, which is why the rack is riveted together at the factory rather than knocked down. Your staff can hose the bottom sheet off with the rest of the rack, and aluminum will not rust in the constant humidity of a walk-in.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy with enough section to carry a loaded pan without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square through years of trips over the cooler threshold.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a full rack over tile and sealed concrete without scuffing. A tray stopper, a sanitary rack cover and a pair of locking casters are available as options.

Features & Benefits

Holds 11 full-size 18 x 26 in. bun pans on 5 in. slide spacing for chilling, holding and transport in a walk-in cooler or freezer
Solid 1/8 in. thick aluminum bottom catches drips and crumbs and stiffens the frame
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives fully assembled and ready to roll
Optional accessories: tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$757.88

Holds 11 full-size 18 x 26 in. bun pans on 5 in. slide spacing for chilling, holding and transport in a walk-in cooler or freezer

Solid 1/8 in. thick aluminum bottom catches drips and crumbs and stiffens the frame

1 in. square uprights and cross members extruded from 6061-T6 aluminum

Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum

Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum

See full feature list

The Alexander Industries R-300 Refrigerator Rack

The Alexander Industries R-300 is a roll-in refrigerator rack that holds 11 full-size 18 x 26 in. bun pans on 5 in. centers. It is built for the walk-in cooler and freezer, where a bakery, commissary or hotel kitchen needs to wheel a full load of pans in to chill and back out again without unloading a single tray. The 5 in. slide spacing is the widest spacing in the series, sized for tall product like layered cakes, whole pies or covered proofing pans. The rack rolls on four swivel casters and arrives fully assembled, so it goes to work the day it lands on your dock.

Solid 1/8 In. Aluminum Bottom

Unlike an open bun pan rack, this rack has a solid 1/8 in. thick aluminum bottom that catches drips and crumbs before they reach the cooler floor. It also stiffens the frame, which is why the rack is riveted together at the factory rather than knocked down. Your staff can hose the bottom sheet off with the rest of the rack, and aluminum will not rust in the constant humidity of a walk-in.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy with enough section to carry a loaded pan without sagging. Corners are tied together with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square through years of trips over the cooler threshold.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a full rack over tile and sealed concrete without scuffing. A tray stopper, a sanitary rack cover and a pair of locking casters are available as options.

Features & Benefits

Holds 11 full-size 18 x 26 in. bun pans on 5 in. slide spacing for chilling, holding and transport in a walk-in cooler or freezer
Solid 1/8 in. thick aluminum bottom catches drips and crumbs and stiffens the frame
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives fully assembled and ready to roll
Optional accessories: tray stopper, sanitary rack cover, two locking casters

Resources & Downloads

Alexander Industries R-300 Specsheet

Specifications

Pan Size Accommodated	18 x 26 in. bun pans
Pan Capacity	11 pans
Slide Spacing	5 in.
Overall Width	20-1/2 in.
Overall Depth	26 in.
Overall Height	63 in.
Upright and Cross Member	1 in. square 6061-T6 aluminum extrusion
Tray Runner	1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion
Connecting Brackets	.100 in. 3003-H14 aluminum stamping
Fasteners	Aircraft quality aluminum rivets
Bottom	Solid 1/8 in. aluminum
Casters	5 in. swivel, ball bearing
Caster Tires	Non-marking hard rubber
Mobility	Mobile
Assembly	Fully assembled
Shipping Weight	45 lb

Manufacturer's Warranty

5 Year

Casters
Lifetime Year

Parts

Certifications & Approvals

NSF Approved
