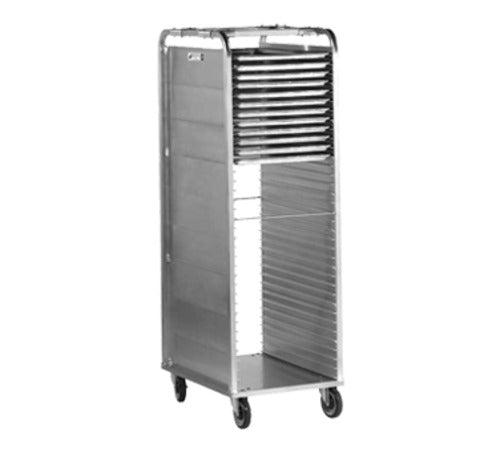

Alexander Industries RL-36 20 In. 32-Pan Solid Sides Refrigerator Rack, 1-1/2 in. Slide Spacing, Solid Bottom, Mobile, Welded Aluminum

SKURL-36 BrandAlexander Industries
Alexander Industries RL-36 20 In. 32-Pan Solid Sides Refrigerator Rack, 1-1/2 in. Slide Spacing, Solid Bottom, Mobile, Welded Aluminum

The Alexander Industries RL-36 Refrigerator Rack

The Alexander Industries RL-36 is a solid sides refrigerator rack that holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. centers. It is built for bakeries, commissaries and hotel kitchens that roll uncovered product into a walk-in cooler or freezer and want the sides closed off from drips, dust and passing traffic. The tight 1-1/2 in. spacing packs flat product such as cookie sheets and single-layer trays into one footprint. The rack rolls on four swivel casters and arrives fully assembled.

Solid Aluminum Sides and Platform Bottom

Both sides are closed with solid aluminum panels, and the base is a platform type bottom of solid 1/8 in. thick aluminum. Together they shield the pans from cross-contamination and catch anything that drips, so your cooler floor stays cleaner. Aluminum will not rust in the constant humidity of a walk-in, and the whole rack can be hosed down.

Riveted and Heli-Arc Welded 6061-T6 Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, joined with .100 in. thick 3003-H14 aluminum brackets, aircraft quality aluminum rivets and heli-arc welds. The welded joints keep the frame square while a loaded rack is pushed over the cooler threshold day after day.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a full rack over tile and sealed concrete without scuffing. Corner bumpers, a tray stopper, a sanitary rack cover and a pair of locking casters are available as options.

Features & Benefits

  1. Holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for chilling and holding in a walk-in cooler or freezer
  2. Solid aluminum side panels close off the pans from drips, dust and passing traffic
  3. Platform type bottom of solid 1/8 in. thick aluminum
  4. 1 in. square uprights and cross members extruded from 6061-T6 aluminum
  5. Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
  6. Assembled with high tensile aircraft quality aluminum rivets and heli-arc welded joints
  7. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
  8. Arrives fully welded and ready to use
  9. Optional accessories: corner bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$798.54
  • Holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for chilling and holding in a walk-in cooler or freezer
  • Solid aluminum side panels close off the pans from drips, dust and passing traffic
  • Platform type bottom of solid 1/8 in. thick aluminum
  • 1 in. square uprights and cross members extruded from 6061-T6 aluminum
  • Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
    • See full feature list

    The Alexander Industries RL-36 Refrigerator Rack

    The Alexander Industries RL-36 is a solid sides refrigerator rack that holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. centers. It is built for bakeries, commissaries and hotel kitchens that roll uncovered product into a walk-in cooler or freezer and want the sides closed off from drips, dust and passing traffic. The tight 1-1/2 in. spacing packs flat product such as cookie sheets and single-layer trays into one footprint. The rack rolls on four swivel casters and arrives fully assembled.

    Solid Aluminum Sides and Platform Bottom

    Both sides are closed with solid aluminum panels, and the base is a platform type bottom of solid 1/8 in. thick aluminum. Together they shield the pans from cross-contamination and catch anything that drips, so your cooler floor stays cleaner. Aluminum will not rust in the constant humidity of a walk-in, and the whole rack can be hosed down.

    Riveted and Heli-Arc Welded 6061-T6 Frame

    Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, joined with .100 in. thick 3003-H14 aluminum brackets, aircraft quality aluminum rivets and heli-arc welds. The welded joints keep the frame square while a loaded rack is pushed over the cooler threshold day after day.

    5 In. Ball Bearing Swivel Casters

    Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires roll a full rack over tile and sealed concrete without scuffing. Corner bumpers, a tray stopper, a sanitary rack cover and a pair of locking casters are available as options.

    Features & Benefits

    1. Holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for chilling and holding in a walk-in cooler or freezer
    2. Solid aluminum side panels close off the pans from drips, dust and passing traffic
    3. Platform type bottom of solid 1/8 in. thick aluminum
    4. 1 in. square uprights and cross members extruded from 6061-T6 aluminum
    5. Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
    6. Assembled with high tensile aircraft quality aluminum rivets and heli-arc welded joints
    7. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
    8. Arrives fully welded and ready to use
    9. Optional accessories: corner bumpers, tray stopper, sanitary rack cover, two locking casters

    Resources & Downloads

    Specifications

    Pan Size Accommodated18 x 26 in. bun pans
    Tray Capacity32 pans
    Slide Spacing1-1/2 in.
    Overall Width20-1/4 in.
    Overall Depth26 in.
    Overall Height61 in.
    Upright and Cross Member1 in. square 6061-T6 aluminum extrusion
    Connecting Brackets.100 in. 3003-H14 aluminum stamping
    FastenersAircraft quality aluminum rivets, heli-arc welded
    SidesSolid aluminum panels
    BottomPlatform type, solid 1/8 in. aluminum
    Casters5 in. swivel, ball bearing
    Caster TiresNon-marking hard rubber
    MobilityMobile
    AssemblyFully assembled
    Shipping Weight65 lb

    Manufacturer's Warranty

    • 5 Year

      Casters

    • Lifetime Year

      Parts

    Certifications & Approvals

    • NFS
      NSF Approved

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're excited to serve you next!

    The Alexander Industries RL-36 Refrigerator Rack

    Product Features

    1. Holds 32 full-size 18 x 26 in. bun pans on 1-1/2 in. slide spacing for chilling and holding in a walk-in cooler or freezer
    2. Solid aluminum side panels close off the pans from drips, dust and passing traffic
    3. Platform type bottom of solid 1/8 in. thick aluminum
    4. 1 in. square uprights and cross members extruded from 6061-T6 aluminum
    5. Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
    6. Assembled with high tensile aircraft quality aluminum rivets and heli-arc welded joints
    7. Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
    8. Arrives fully welded and ready to use
    9. Optional accessories: corner bumpers, tray stopper, sanitary rack cover, two locking casters

    Specifications

    Pan Size Accommodated18 x 26 in. bun pans
    Tray Capacity32 pans
    Slide Spacing1-1/2 in.
    Overall Width20-1/4 in.
    Overall Depth26 in.
    Overall Height61 in.
    Upright and Cross Member1 in. square 6061-T6 aluminum extrusion
    Connecting Brackets.100 in. 3003-H14 aluminum stamping
    FastenersAircraft quality aluminum rivets, heli-arc welded
    SidesSolid aluminum panels
    BottomPlatform type, solid 1/8 in. aluminum
    Casters5 in. swivel, ball bearing
    Caster TiresNon-marking hard rubber
    MobilityMobile
    AssemblyFully assembled
    Shipping Weight65 lb

    Manufacturer's Warranty

      5 year

      Casters

      Lifetime year

      Parts
