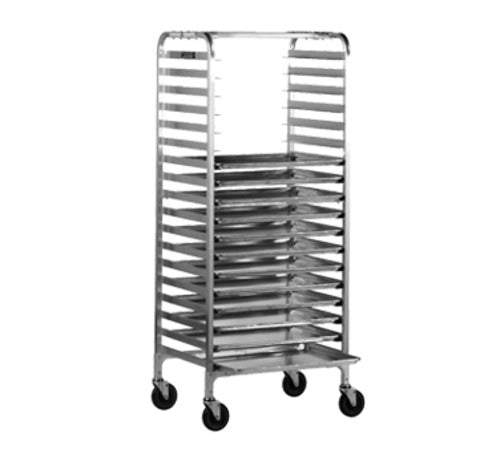

Alexander Industries S-412 28 In. 20-Pan Side Loading Bun Pan Rack, 3 in. Slide Spacing, Mobile, Aluminum

SKUS-412 BrandAlexander Industries

The Alexander Industries S-412 Bun pan rack

The Alexander Industries S-412 is a side loading aluminum bun pan rack that holds 20 full-size 18 x 26 in. bun pans on 3 in. centers. Pans slide in across the 26 in. dimension through the open 28 in. wide side, which suits bakeries, pizzerias and commissaries that load wide pans from a work table or park the rack against a wall with the long face out. The 3 in. slide spacing matches the 18-pan side loader, and the 72 in. tall frame adds two more slides for kitchens that want a few extra pans without a second rack. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

Side Loading for the Wide Pan User

Loading from the 26 in. side means the pan travels only 18 in. into the frame, so a loaded sheet pan seats with less reach than on an end loader. The 28 in. wide by 18 in. deep footprint sits flat against a wall and still leaves the whole pan face open for unloading.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the extruded runner carries a full pan without sagging. Corners are joined with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of doorway traffic.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a full rack across tile or sealed concrete without scuffs. Two locking casters can be added when the rack parks beside an oven or inside a proof box.

Optional Accessories

Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding out the open back, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.

Features & Benefits

Holds 20 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging
Side loading open frame so wide pans slide in across the 26 in. dimension through the 28 in. wide face
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives knocked down for on-site assembly, factory assembly available as an option
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$452.98

Holds 20 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging

Side loading open frame so wide pans slide in across the 26 in. dimension through the 28 in. wide face

1 in. square uprights and cross members extruded from 6061-T6 aluminum

Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum

Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum

See full feature list

The Alexander Industries S-412 Bun pan rack

The Alexander Industries S-412 is a side loading aluminum bun pan rack that holds 20 full-size 18 x 26 in. bun pans on 3 in. centers. Pans slide in across the 26 in. dimension through the open 28 in. wide side, which suits bakeries, pizzerias and commissaries that load wide pans from a work table or park the rack against a wall with the long face out. The 3 in. slide spacing matches the 18-pan side loader, and the 72 in. tall frame adds two more slides for kitchens that want a few extra pans without a second rack. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.

Side Loading for the Wide Pan User

Loading from the 26 in. side means the pan travels only 18 in. into the frame, so a loaded sheet pan seats with less reach than on an end loader. The 28 in. wide by 18 in. deep footprint sits flat against a wall and still leaves the whole pan face open for unloading.

6061-T6 Aluminum Extrusion Frame

Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum does not rust in a walk-in cooler or under a daily hose-down, and the extruded runner carries a full pan without sagging. Corners are joined with .100 in. thick 3003-H14 aluminum brackets and aircraft quality aluminum rivets, so the frame stays square after years of doorway traffic.

5 In. Ball Bearing Swivel Casters

Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a full rack across tile or sealed concrete without scuffs. Two locking casters can be added when the rack parks beside an oven or inside a proof box.

Optional Accessories

Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding out the open back, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.

Features & Benefits

Holds 20 full-size 18 x 26 in. bun pans on 3 in. slide spacing for proofing, cooling and staging
Side loading open frame so wide pans slide in across the 26 in. dimension through the 28 in. wide face
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
Arrives knocked down for on-site assembly, factory assembly available as an option
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters

Resources & Downloads

Alexander Industries S-412 Specsheet

Specifications

Pan Size Accommodated	18 x 26 in. bun pans
Pan Capacity	20 pans
Slide Spacing	3 in.
Loading Style	Side Loading
Overall Width	28 in.
Overall Depth	18 in.
Overall Height	72 in.
Upright and Cross Member	1 in. square 6061-T6 aluminum extrusion
Tray Runner	1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion
Connecting Brackets	.100 in. 3003-H14 aluminum stamping
Fasteners	Aircraft quality aluminum rivets
Casters	5 in. swivel, ball bearing
Caster Tires	Non-marking hard rubber
Mobility	Mobile
Assembly	Knocked down, factory assembly optional
Shipping Weight	50 lb

Manufacturer's Warranty

5 Year

Casters
Lifetime Year

Parts

Certifications & Approvals

NSF Approved
