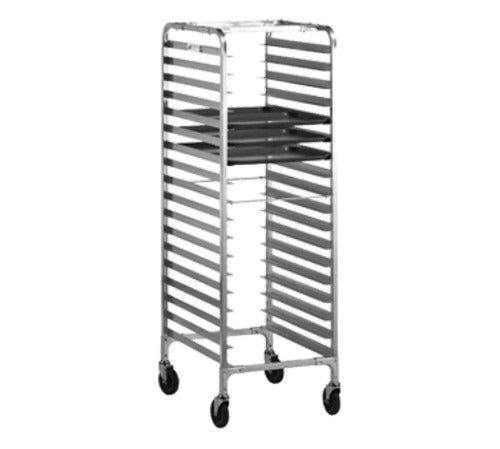

The Alexander Industries TR-601-R Tray Rack
The Alexander Industries TR-601-R is an aluminum tray rack for prepared meals that holds 36 trays sized 15 x 20 in., loaded two per slide on 3 in. centers. It suits hospital and school kitchens, caterers and commissaries that plate meals ahead of service and need somewhere to stage the trays. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum does not rust in a walk-in cooler or under a daily hose-down. Corners are joined with .100 in. thick 3003-H14 high tensile aluminum brackets and aircraft quality aluminum rivets, so the frame stays square through years of trips between the kitchen and the dining room.
3 In. Slide Spacing, Two Trays Per Slide
Each slide carries two 15 x 20 in. trays side by side, which is how the 36-tray count fits in a 22-1/4 in. wide frame. The 3 in. spacing packs more flat trays into the same 68 in. height when you are staging uncovered plates.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack over tile without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.
Features & Benefits
-
Holds 36 prepared meal trays sized 15 x 20 in., two per slide, on 3 in. slide spacing for staging plated meals
-
Open aluminum frame with 1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
-
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
-
Assembled with high tensile aircraft quality aluminum rivets
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 36 prepared meal trays sized 15 x 20 in., two per slide, on 3 in. slide spacing for staging plated meals
Open aluminum frame with 1 in. square uprights and cross members extruded from 6061-T6 aluminum
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
Assembled with high tensile aircraft quality aluminum rivets
The Alexander Industries TR-601-R Tray Rack
The Alexander Industries TR-601-R is an aluminum tray rack for prepared meals that holds 36 trays sized 15 x 20 in., loaded two per slide on 3 in. centers. It suits hospital and school kitchens, caterers and commissaries that plate meals ahead of service and need somewhere to stage the trays. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion, and each tray runner is a 1-7/16 x 1-7/8 in. extrusion of the same alloy. Aluminum does not rust in a walk-in cooler or under a daily hose-down. Corners are joined with .100 in. thick 3003-H14 high tensile aluminum brackets and aircraft quality aluminum rivets, so the frame stays square through years of trips between the kitchen and the dining room.
3 In. Slide Spacing, Two Trays Per Slide
Each slide carries two 15 x 20 in. trays side by side, which is how the 36-tray count fits in a 22-1/4 in. wide frame. The 3 in. spacing packs more flat trays into the same 68 in. height when you are staging uncovered plates.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person push a loaded rack over tile without scuffing the floor. Two locking casters, donut bumpers, a tray stopper and a sanitary rack cover are available as options and fit this frame.
Features & Benefits
-
Holds 36 prepared meal trays sized 15 x 20 in., two per slide, on 3 in. slide spacing for staging plated meals
-
Open aluminum frame with 1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Tray runners extruded from 1-7/16 x 1-7/8 in. 6061-T6 aluminum
-
Connecting brackets stamped from .100 in. thick 3003-H14 high tensile aluminum
-
Assembled with high tensile aircraft quality aluminum rivets
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Tray Size Accommodated | 15 x 20 in. trays |
| Tray Capacity | 36 trays |
| Trays Per Slide | 2 |
| Slide Spacing | 3 in. |
| Overall Width | 22-1/4 in. |
| Overall Depth | 30 in. |
| Overall Height | 68 in. |
| Upright and Cross Member | 1 in. square 6061-T6 aluminum extrusion |
| Tray Runner | 1-7/16 x 1-7/8 in. 6061-T6 aluminum extrusion |
| Connecting Brackets | .100 in. 3003-H14 aluminum stamping |
| Fasteners | Aircraft quality aluminum rivets |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Assembly | Knocked down, factory assembly optional |
| Shipping Weight | 35 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
