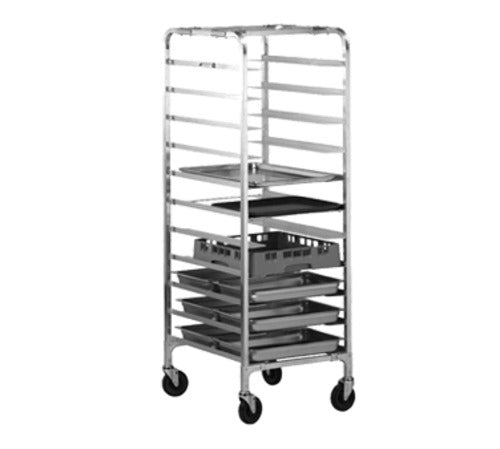

The Alexander Industries U-400 Pan Rack, Universal
The Alexander Industries U-400 is a universal open rack that holds 11 trays or pans on 5 in. centers and takes 18 x 26 in. bun pans, 20 x 24 in. trays and 12 x 20 in. pans up to 4 in. deep on the same slides. It suits school kitchens, cafeterias and catering operations that move a mix of sheet pans, cafeteria trays and hotel pans on one cart. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion. Each tray slide is a 1 x 4 in. aluminum angle with a 0.093 in. wall that is riveted and welded to the frame, so a full 12 x 20 in. pan sits flat without the slide flexing. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the frame is rated for a 1200 lb load.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a loaded rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a serving line.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 11 trays or pans on 5 in. slide spacing for staging, cooling and transport
-
Accommodates 18 x 26 in. bun pans, 20 x 24 in. trays and 12 x 20 in. pans in 2-1/2 or 4 in. depths
-
1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Each slide is a 1 x 4 in. aluminum angle with a 0.093 in. wall
-
Tray slides riveted and welded to the frame
-
Frame rated for a 1200 pound load of full pans and trays
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Holds 11 trays or pans on 5 in. slide spacing for staging, cooling and transport
Accommodates 18 x 26 in. bun pans, 20 x 24 in. trays and 12 x 20 in. pans in 2-1/2 or 4 in. depths
1 in. square uprights and cross members extruded from 6061-T6 aluminum
Each slide is a 1 x 4 in. aluminum angle with a 0.093 in. wall
Tray slides riveted and welded to the frame
The Alexander Industries U-400 Pan Rack, Universal
The Alexander Industries U-400 is a universal open rack that holds 11 trays or pans on 5 in. centers and takes 18 x 26 in. bun pans, 20 x 24 in. trays and 12 x 20 in. pans up to 4 in. deep on the same slides. It suits school kitchens, cafeterias and catering operations that move a mix of sheet pans, cafeteria trays and hotel pans on one cart. The rack rolls on four swivel casters and arrives knocked down for assembly, with factory assembly available as an option.
6061-T6 Aluminum Extrusion Frame
Uprights and cross members are 1 in. square 6061-T6 aluminum extrusion. Each tray slide is a 1 x 4 in. aluminum angle with a 0.093 in. wall that is riveted and welded to the frame, so a full 12 x 20 in. pan sits flat without the slide flexing. Aluminum will not rust in a walk-in cooler or under a daily hose-down, and the frame is rated for a 1200 lb load.
5 In. Ball Bearing Swivel Casters
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires let one person roll a loaded rack across tile or sealed concrete without leaving scuffs. Two locking casters can be added when your rack parks beside a serving line.
Optional Accessories
Alexander offers donut bumpers to protect walls and door frames, a tray stopper to keep pans from sliding off the open end, a sanitary rack cover for holding uncovered product, and a pair of locking casters. All fit this frame without modification.
Features & Benefits
-
Holds 11 trays or pans on 5 in. slide spacing for staging, cooling and transport
-
Accommodates 18 x 26 in. bun pans, 20 x 24 in. trays and 12 x 20 in. pans in 2-1/2 or 4 in. depths
-
1 in. square uprights and cross members extruded from 6061-T6 aluminum
-
Each slide is a 1 x 4 in. aluminum angle with a 0.093 in. wall
-
Tray slides riveted and welded to the frame
-
Frame rated for a 1200 pound load of full pans and trays
-
Four 5 in. swivel casters with ball bearings and non-marking hard rubber tires
-
Arrives knocked down for on-site assembly, factory assembly available as an option
-
Optional accessories: donut bumpers, tray stopper, sanitary rack cover, two locking casters
Resources & Downloads
Specifications
| Pan Size Accommodated | 18 x 26 in. bun pans, 20 x 24 in. trays, 12 x 20 in. pans |
| Pan Depth Accommodated | 2-1/2 or 4 in. |
| Tray Capacity | 11 trays |
| Slide Spacing | 5 in. |
| Overall Width | 23 in. |
| Overall Depth | 26 in. |
| Overall Height | 68 in. |
| Upright and Cross Member | 1 in. square 6061-T6 aluminum extrusion |
| Tray Slide | 1 x 4 in. aluminum, 0.093 in. thick |
| Tray Slide Attachment | Riveted and welded |
| Load Capacity | 1200 lb |
| Casters | 5 in. swivel, ball bearing |
| Caster Tires | Non-marking hard rubber |
| Mobility | Mobile |
| Assembly | Knocked down, factory assembly optional |
| Shipping Weight | 45 lb |
Manufacturer's Warranty
-
5 Year
Casters
-
Lifetime Year
Parts
Certifications & Approvals
-
NSF Approved
