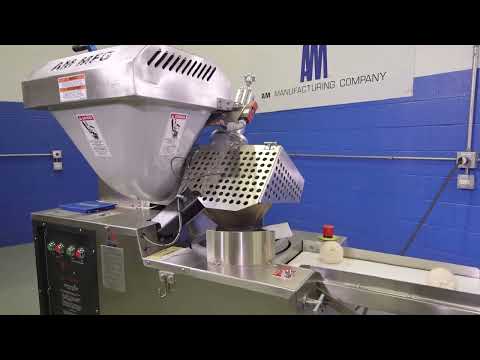

The AM Manufacturing S302 Single Pocket Divider Rounder
The Atwood Scale O Matic is a single pocket combination dough divider/rounder that will accurately scale and divide dough over a broad range of sizes, and then produce a round of unequaled quality.
About AM Manufacturing
For over six decades, AM Manufacturing has been a leader and innovator in the dough and baking industry, providing labor-saving equipment with a global operational presence.
The company's commitment to quality is evident in its responsiveness to customers and their specific needs. AM Manufacturing consistently strives for peak performance and takes pride in the enduring relationships established with some of the industry's top names. Through the amalgamation of quality products, cutting-edge innovation, and a dedicated approach to customer service, AM Manufacturing has maintained its position at the forefront of the baking industry, a status it will continue well into the second millennium.
The legendary role of AM Manufacturing as a leader in the baking industry began in the 1950s with the development of the Scale-O-Matic Dough Divider by its founder, Harold Atwood (1918-2002).
The company remains proud of its long-standing relationships with key players in the baking industry. AM Manufacturing's commitment to quality and responsiveness to every customer has solidified its status as an industry leader in baking equipment.
Product Features
-
Precise scaling and dividing from one to 32 ounces
-
Production rate of approximately 33 pieces per minute
-
Accurate weight changes with the turn of a crank
-
Standard 75 lb. dough hopper
-
Rotating drum and screw design for rounding process
-
One person operation
-
Portable. Designed with lockable, swivel casters
-
All stainless-steel cabinet
-
Separate controls for divider and rounder
-
Adjustable height take-off conveyor; folds up for storag
Free Shipping
Usually ships in 2 - 3 Weeks
See all from AM Manufacturing
Specifications
Voltage | 208 - 480V |
Phase | 3 |
Amperage | 20 amps |
Hopper Capacity | 100 lbs. |
Production Rate | up to 2000 pieces per hour |
Measuring Cups |
Micro (1 to 2 oz / 28 to 56 g) Small (2 to 4 oz / 56 to 112 g) Medium (4 to 10 oz / 112 to 280 g) Large (10 to 32 oz / 280 to 896 g) |
Length | 64” / 163 cm |
Width | 24” / 61 cm |
Height | 58” / 147 cm |
Shipping Weight | 1100 lbs./ 410 kg |
Warranty
Labor
Parts
