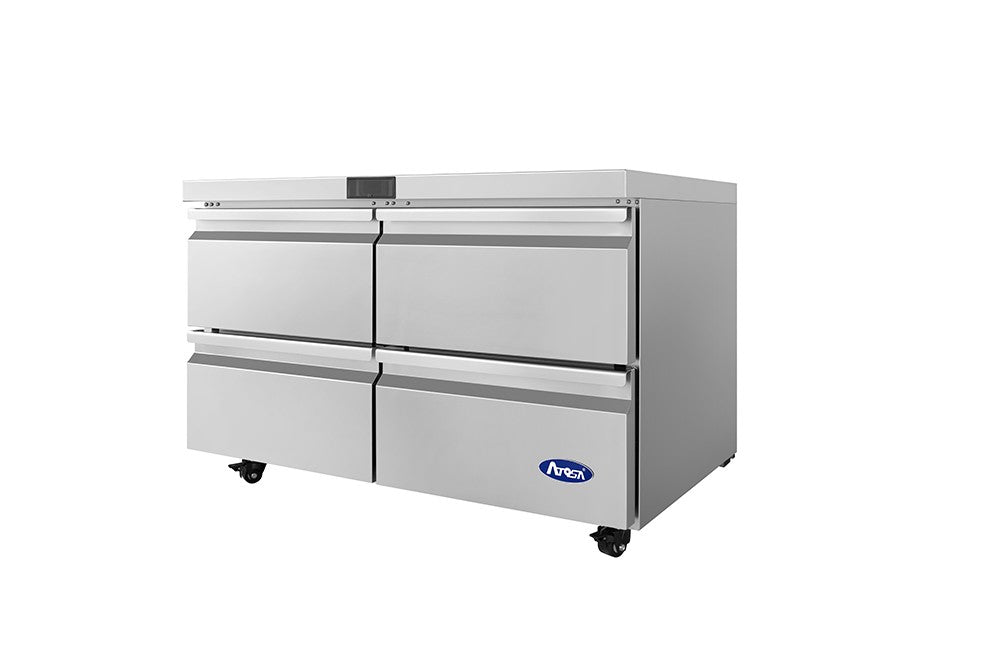

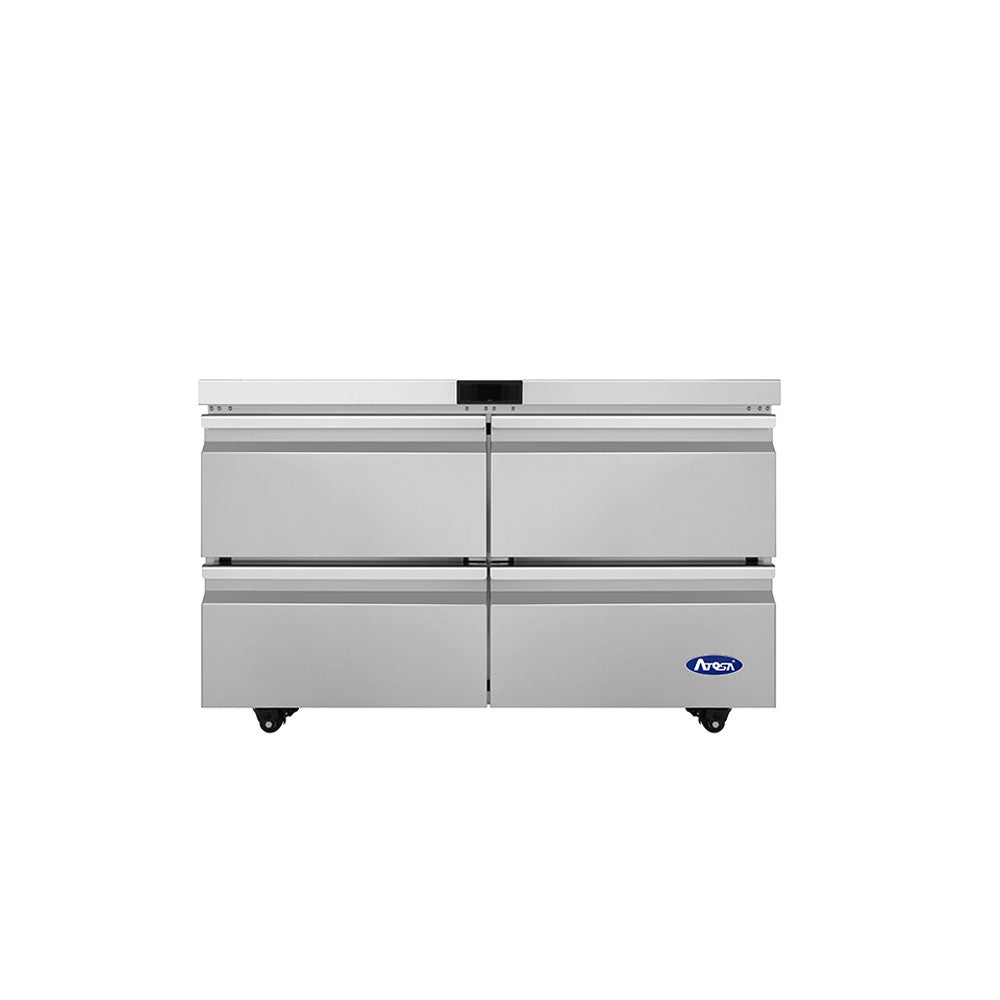

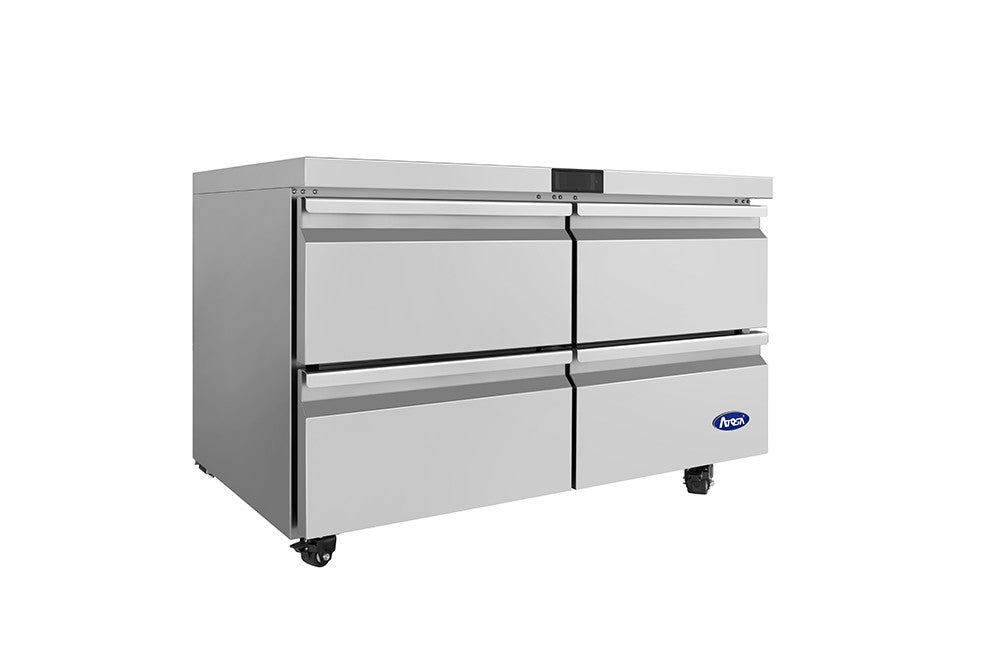

The Atosa AUF48D4 Undercounter Freezer
The Atosa AUF48D4 is a 48 1/4" wide undercounter freezer with four stainless steel drawers and 12.2 cu. ft. of frozen storage, built for a two-cook section of the line where each station gets its own pair of drawers. At 32 3/8" tall on its standard 2 inch casters it fits under a standard counter or works as a 4 foot stainless prep surface, and it plugs into a standard 115 V outlet with a NEMA 5-15P cord, with a 1/3 HP compressor drawing 4.8 amps.
Reinforced Stainless Steel Top Built for Line Work
The cabinet is stainless steel inside and out, and the top is reinforced so you can treat it as counter space: set a cutting board on it, stage sheet pans, or park a countertop fryer or induction hob up there. Stainless wipes clean between tasks and takes the knocks that come with a busy line, and the interior stays presentable through years of nightly wipe-downs. Recessed drawer handles keep the front face flush, so nothing snags an apron or a passing cart in a tight aisle.

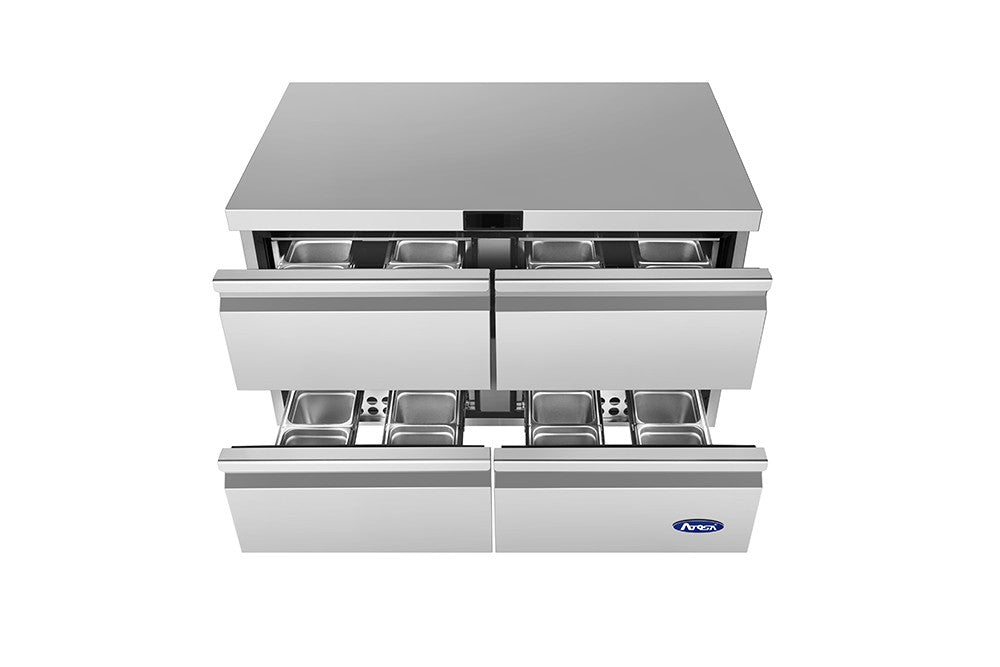

Four Drawers Organized Around 1/6 Size Pans
Each drawer opening is 12 3/8" high and the unit ships with 1/6 size pans already in place, so you can load portioned proteins, fries or dessert components straight in and pull them by the pan during service. Swap in 1/1, 1/2, 1/3 or 1/4 size pans when your menu calls for a different layout. Because the four drawers, two per station, pull out toward the cook, nothing gets lost at the back of a shelf and the product you need is always the one in front of you.
Electronic Controller Holds -8°F to 1°F
An electronic temperature controller keeps the cabinet between -8°F and 1°F, so ice cream stays scoopable and frozen proteins stay hard even when the drawers are opened every few minutes during a rush. You set the temperature once and check it at a glance without opening a drawer, which keeps cold air where it belongs. Atosa recommends a setpoint between -8°F and 0°F for the best food preservation, and the rear condenser grate is easy to reach for the regular cleaning that keeps the compressor breathing.
R290 Refrigerant and Magnetic Drawer Gaskets
The compressor runs on R290, a natural hydrocarbon refrigerant with very low global warming potential that also moves heat efficiently, so the cabinet recovers quickly after the drawers have been open. Magnetic gaskets seal each drawer the moment it closes, cutting down on frost build-up and compressor run time. Standard 2 inch heavy duty swivel plate casters, braked and unbraked, let you roll the freezer out to clean the floor behind it; optional 1.2 inch and 1.5 inch low profile plate casters and 4 inch and 5 inch stem casters are available if you need a different working height.
About Atosa
Atosa makes commercial kitchen equipment designed to handle the day-to-day demands of professional foodservice. From refrigeration and cooking equipment to prep and holding units, their products are built with reliability and value in mind. Everything is designed, engineered, and tested in-house, giving Atosa tighter control over quality and performance. The brand has won multiple KI Awards for innovations in automation, but what matters most to customers is simple: solid equipment, fair pricing, and strong manufacturer support when it’s needed. That’s why Atosa has become a go-to name for restaurants, chains, and institutions across the country.
Features & Benefits
-
Undercounter drawer freezer that keeps portioned frozen product at the cook's station instead of a walk-in trip away
-
Stainless steel exterior and interior with a reinforced stainless steel top that doubles as a work surface
-
Four drawers with recessed handles that keep the front face flush in tight aisles
-
Ships with 1/6 size pans installed and accepts 1/1, 1/2, 1/3 and 1/4 size pan layouts
-
Drawers pull out toward the cook so the pan you need is always in front of you
-
Electronic temperature controller holds the cabinet between -8°F and 1°F through constant drawer openings
-
Environmentally friendly R290 refrigerant with very low global warming potential
-
Magnetic drawer gaskets seal on closing to limit frost build-up and compressor run time
-
Pre-installed 2 inch heavy duty swivel plate casters, braked and unbraked, roll the unit out for floor cleaning
-
Optional 1.2 inch and 1.5 inch low profile plate casters and 4 inch and 5 inch stem casters change the working height
-
Stands 32 3/8 inches tall on standard casters to fit under a standard countertop
-
Rear condenser grate is easy to reach for the frequent cleaning Atosa recommends
-
Plugs into a standard outlet with a NEMA 5-15P cord, no hardwiring required
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Undercounter drawer freezer that keeps portioned frozen product at the cook's station instead of a walk-in trip away
Stainless steel exterior and interior with a reinforced stainless steel top that doubles as a work surface
Four drawers with recessed handles that keep the front face flush in tight aisles
Ships with 1/6 size pans installed and accepts 1/1, 1/2, 1/3 and 1/4 size pan layouts
Drawers pull out toward the cook so the pan you need is always in front of you
The Atosa AUF48D4 Undercounter Freezer
The Atosa AUF48D4 is a 48 1/4" wide undercounter freezer with four stainless steel drawers and 12.2 cu. ft. of frozen storage, built for a two-cook section of the line where each station gets its own pair of drawers. At 32 3/8" tall on its standard 2 inch casters it fits under a standard counter or works as a 4 foot stainless prep surface, and it plugs into a standard 115 V outlet with a NEMA 5-15P cord, with a 1/3 HP compressor drawing 4.8 amps.
Reinforced Stainless Steel Top Built for Line Work
The cabinet is stainless steel inside and out, and the top is reinforced so you can treat it as counter space: set a cutting board on it, stage sheet pans, or park a countertop fryer or induction hob up there. Stainless wipes clean between tasks and takes the knocks that come with a busy line, and the interior stays presentable through years of nightly wipe-downs. Recessed drawer handles keep the front face flush, so nothing snags an apron or a passing cart in a tight aisle.
Four Drawers Organized Around 1/6 Size Pans
Each drawer opening is 12 3/8" high and the unit ships with 1/6 size pans already in place, so you can load portioned proteins, fries or dessert components straight in and pull them by the pan during service. Swap in 1/1, 1/2, 1/3 or 1/4 size pans when your menu calls for a different layout. Because the four drawers, two per station, pull out toward the cook, nothing gets lost at the back of a shelf and the product you need is always the one in front of you.
Electronic Controller Holds -8°F to 1°F
An electronic temperature controller keeps the cabinet between -8°F and 1°F, so ice cream stays scoopable and frozen proteins stay hard even when the drawers are opened every few minutes during a rush. You set the temperature once and check it at a glance without opening a drawer, which keeps cold air where it belongs. Atosa recommends a setpoint between -8°F and 0°F for the best food preservation, and the rear condenser grate is easy to reach for the regular cleaning that keeps the compressor breathing.
R290 Refrigerant and Magnetic Drawer Gaskets
The compressor runs on R290, a natural hydrocarbon refrigerant with very low global warming potential that also moves heat efficiently, so the cabinet recovers quickly after the drawers have been open. Magnetic gaskets seal each drawer the moment it closes, cutting down on frost build-up and compressor run time. Standard 2 inch heavy duty swivel plate casters, braked and unbraked, let you roll the freezer out to clean the floor behind it; optional 1.2 inch and 1.5 inch low profile plate casters and 4 inch and 5 inch stem casters are available if you need a different working height.
About Atosa
Atosa makes commercial kitchen equipment designed to handle the day-to-day demands of professional foodservice. From refrigeration and cooking equipment to prep and holding units, their products are built with reliability and value in mind. Everything is designed, engineered, and tested in-house, giving Atosa tighter control over quality and performance. The brand has won multiple KI Awards for innovations in automation, but what matters most to customers is simple: solid equipment, fair pricing, and strong manufacturer support when it’s needed. That’s why Atosa has become a go-to name for restaurants, chains, and institutions across the country.
Features & Benefits
-
Undercounter drawer freezer that keeps portioned frozen product at the cook's station instead of a walk-in trip away
-
Stainless steel exterior and interior with a reinforced stainless steel top that doubles as a work surface
-
Four drawers with recessed handles that keep the front face flush in tight aisles
-
Ships with 1/6 size pans installed and accepts 1/1, 1/2, 1/3 and 1/4 size pan layouts
-
Drawers pull out toward the cook so the pan you need is always in front of you
-
Electronic temperature controller holds the cabinet between -8°F and 1°F through constant drawer openings
-
Environmentally friendly R290 refrigerant with very low global warming potential
-
Magnetic drawer gaskets seal on closing to limit frost build-up and compressor run time
-
Pre-installed 2 inch heavy duty swivel plate casters, braked and unbraked, roll the unit out for floor cleaning
-
Optional 1.2 inch and 1.5 inch low profile plate casters and 4 inch and 5 inch stem casters change the working height
-
Stands 32 3/8 inches tall on standard casters to fit under a standard countertop
-
Rear condenser grate is easy to reach for the frequent cleaning Atosa recommends
-
Plugs into a standard outlet with a NEMA 5-15P cord, no hardwiring required
Resources & Downloads
See all from Atosa
Specifications
| Overall Dimensions (W x D x H) | 48 1/4" x 30" x 32 3/8" |
| Width | 48 1/4" |
| Depth | 30" |
| Depth Including Handles | 31" |
| Height | 32 3/8" |
| Capacity | 12.2 cu. ft. |
| Drawers | 4 |
| Drawer Opening Height | 12 3/8" |
| Interior Depth | 13 1/2" |
| Pans Included | 1/6 size pans |
| Optional Pan Layouts | 1/1, 1/2, 1/3, 1/4 size |
| Temperature Range | -8°F to 1°F |
| Controls | Electronic temperature controller |
| Refrigerant | R290 |
| Horsepower | 1/3 HP |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 4.8 A |
| Plug Type | NEMA 5-15P |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Top | Reinforced stainless steel |
| Drawer Handles | Recessed |
| Gasket | Magnetic drawer gaskets |
| Casters | 2 inch heavy duty swivel plate, pre-installed |
| Floor Clearance | 3 1/8" |
| Net Weight | 271 lb |
| Gross Weight | 348 lb |
Manufacturer's Warranty
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Compressor
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
