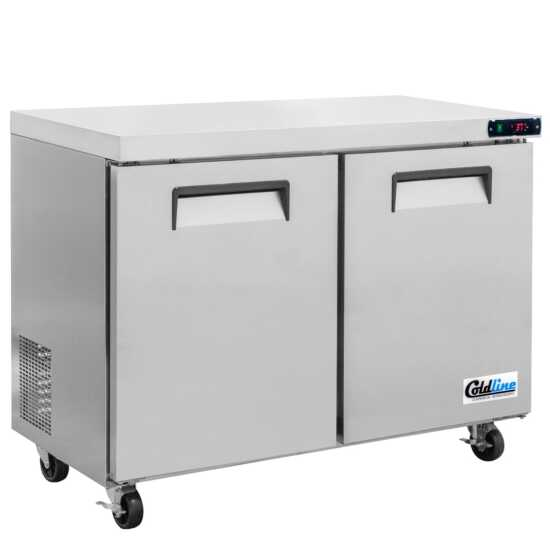

The Coldline UCN-48F Undercounter Freezer
The Coldline UCN-48F is a 48 inch, two door narrow depth undercounter worktop freezer holding 7 cubic feet of frozen product at -4°F to 4°F. It puts fries, dumplings, ice cream, and backup proteins directly beneath the work surface where the fryer cook or dessert station actually uses them, instead of across the kitchen in a reach-in. Like the rest of the UCN line, it is built for rooms where a standard-depth cabinet will not fit.
Narrow 24 Inch Depth for Tight Lines
Most undercounter freezers run 30 inches deep or more. The UCN series trims the cabinet to 24 inches front to back, so it finishes flush with a standard counter run instead of jutting into the walkway. In a narrow fry-station aisle that difference is what lets two cooks pass each other without turning sideways. The 36.2 inch working height lines up with adjacent counters, and an optional 5 inch backsplash protects the wall behind the station.
Stainless Steel Worktop and Interior
The stainless steel top is a real work surface, which means the cabinet earns its footprint twice: frozen storage below, a landing zone for baskets and sheet pans above. Exterior and interior are both stainless steel. Unlike painted or aluminum liners that stain and dent after a year of frozen cases sliding in and out, the stainless interior takes a scrubbing and keeps its finish. Both self-closing doors swing shut on their own, which matters twice as much on a freezer, where a door left cracked means frost on the evaporator and soft product by lunch. Each door holds itself open at 90 degrees for two-handed loading, and two adjustable epoxy-coated shelves organize the 47.7 inch wide interior.
R290 Refrigeration with Digital Control
An eco-friendly R290 hydrocarbon system pulls the cavity down to a -4°F to 4°F range and is rated to hold it in ambient heat up to 104°F, which is the reality two steps from a bank of fryers. The digital controller shows the cavity temperature at a glance, while automatic defrost keeps the evaporator clear without anyone unloading the cabinet for a manual thaw. A 1/4 HP compressor drives the system, and the unit plugs into a standard outlet on a 96 inch cord. Preinstalled heavy-duty casters, two of them locking, let you roll the cabinet out to clean behind it.
About Coldline
Coldline manufactures commercial refrigeration equipment designed for the day-to-day demands of foodservice kitchens. With a product line that includes reach-in refrigerators, prep tables, undercounters, and display units, Coldline focuses on reliability, efficient cooling, and service-friendly design. Units are built with stainless steel interiors and exteriors, digital controls, and components that meet NSF and ETL standards. Operators value Coldline’s accessible parts support and straightforward performance across a range of back- and front-of-house applications. Widely used in restaurants, cafes, and convenience operations, Coldline delivers practical refrigeration solutions that keep food safe and service running smoothly.
Features & Benefits
-
Narrow 24 inch depth undercounter freezer for tight galley lines and counters
-
Stainless steel worktop doubles as prep surface
-
Stainless steel exterior and interior
-
(2) self-closing doors with 90 degree stay-open feature
-
Recessed door handles keep the front snag-free
-
(2) shelves, adjustable and epoxy coated
-
Digital electronic control system with automatic defrost
-
Eco-friendly Hydro-Carbon R290 refrigerant
-
Rated for hot kitchens up to a 104°F ambient temperature
-
Preinstalled heavy-duty casters, two with brakes, roll out for cleaning
-
Optional 5" backsplash available
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Narrow 24 inch depth undercounter freezer for tight galley lines and counters
Stainless steel worktop doubles as prep surface
Stainless steel exterior and interior
(2) self-closing doors with 90 degree stay-open feature
Recessed door handles keep the front snag-free
The Coldline UCN-48F Undercounter Freezer
The Coldline UCN-48F is a 48 inch, two door narrow depth undercounter worktop freezer holding 7 cubic feet of frozen product at -4°F to 4°F. It puts fries, dumplings, ice cream, and backup proteins directly beneath the work surface where the fryer cook or dessert station actually uses them, instead of across the kitchen in a reach-in. Like the rest of the UCN line, it is built for rooms where a standard-depth cabinet will not fit.
Narrow 24 Inch Depth for Tight Lines
Most undercounter freezers run 30 inches deep or more. The UCN series trims the cabinet to 24 inches front to back, so it finishes flush with a standard counter run instead of jutting into the walkway. In a narrow fry-station aisle that difference is what lets two cooks pass each other without turning sideways. The 36.2 inch working height lines up with adjacent counters, and an optional 5 inch backsplash protects the wall behind the station.
Stainless Steel Worktop and Interior
The stainless steel top is a real work surface, which means the cabinet earns its footprint twice: frozen storage below, a landing zone for baskets and sheet pans above. Exterior and interior are both stainless steel. Unlike painted or aluminum liners that stain and dent after a year of frozen cases sliding in and out, the stainless interior takes a scrubbing and keeps its finish. Both self-closing doors swing shut on their own, which matters twice as much on a freezer, where a door left cracked means frost on the evaporator and soft product by lunch. Each door holds itself open at 90 degrees for two-handed loading, and two adjustable epoxy-coated shelves organize the 47.7 inch wide interior.
R290 Refrigeration with Digital Control
An eco-friendly R290 hydrocarbon system pulls the cavity down to a -4°F to 4°F range and is rated to hold it in ambient heat up to 104°F, which is the reality two steps from a bank of fryers. The digital controller shows the cavity temperature at a glance, while automatic defrost keeps the evaporator clear without anyone unloading the cabinet for a manual thaw. A 1/4 HP compressor drives the system, and the unit plugs into a standard outlet on a 96 inch cord. Preinstalled heavy-duty casters, two of them locking, let you roll the cabinet out to clean behind it.
About Coldline
Coldline manufactures commercial refrigeration equipment designed for the day-to-day demands of foodservice kitchens. With a product line that includes reach-in refrigerators, prep tables, undercounters, and display units, Coldline focuses on reliability, efficient cooling, and service-friendly design. Units are built with stainless steel interiors and exteriors, digital controls, and components that meet NSF and ETL standards. Operators value Coldline’s accessible parts support and straightforward performance across a range of back- and front-of-house applications. Widely used in restaurants, cafes, and convenience operations, Coldline delivers practical refrigeration solutions that keep food safe and service running smoothly.
Features & Benefits
-
Narrow 24 inch depth undercounter freezer for tight galley lines and counters
-
Stainless steel worktop doubles as prep surface
-
Stainless steel exterior and interior
-
(2) self-closing doors with 90 degree stay-open feature
-
Recessed door handles keep the front snag-free
-
(2) shelves, adjustable and epoxy coated
-
Digital electronic control system with automatic defrost
-
Eco-friendly Hydro-Carbon R290 refrigerant
-
Rated for hot kitchens up to a 104°F ambient temperature
-
Preinstalled heavy-duty casters, two with brakes, roll out for cleaning
-
Optional 5" backsplash available
Resources & Downloads
See all from Coldline
Specifications
| Exterior Dimensions | 48.4"W x 24"D x 36.2"H |
| Interior Dimensions | 47.7"W x 18.6"D x 29.1"H |
| Packaging Dimensions | 50.4"W x 28.9"D x 40.7"H |
| Working Height | 36.2" |
| Net Volume | 7 cu. ft. |
| Unit Weight | 170 lb. |
| Shipping Weight | 201 lb. |
| Voltage | 115V |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5.6 A |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96" |
| Temperature Range | -4°F to 4°F |
| Refrigerant | R290 |
| Max. Ambient Temperature | 104°F |
| Defrosting | Automatic |
| Temperature Controller | Digital |
| Horsepower | 1/4 HP |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Insulation Material | Foamed-in-Place Polyurethane |
| Shelf Size | (2) Qty: 21"W x 10.82"D |
| Shelf Material | Epoxy Coated Steel |
| Adjustable Shelf | Yes |
| Interior Light | No |
| Mobility Wheels/Casters | (4) Qty: 2 with brakes, 2 without |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
-
5 Year
Compressor
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
