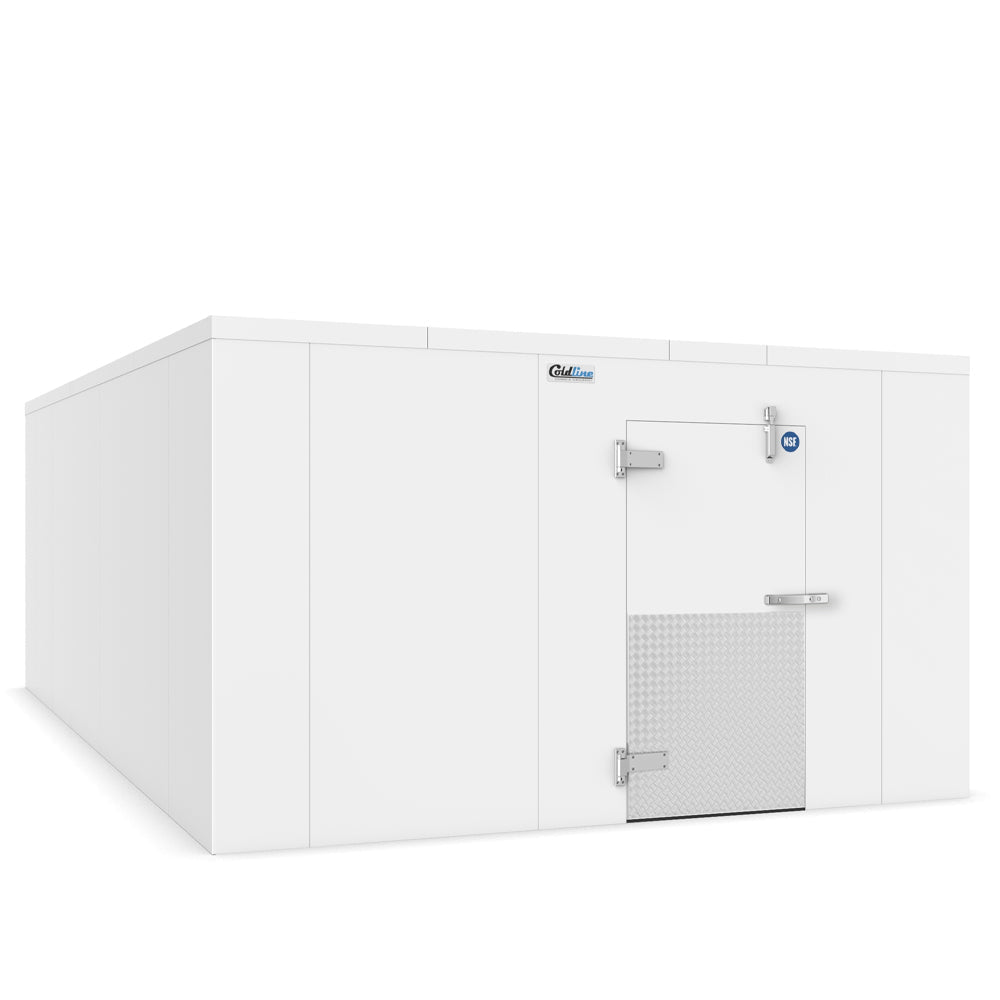

The Coldline WCP12X16-FL Walk-In Cooler
The Coldline WCP12X16-FL is a 12' x 16' indoor walk-in cooler box supplied with insulated floor panels. Its footprint measures 137.8" by 196.9", which works out to 11.5 x 16.4 ft of floor space, and the box tops out at 90" once the floor panel is down. Operations like high-volume restaurants, caterers, supermarkets, and institutional kitchens use a box this size as bulk cold storage for pallet-loads of product and rolling racks. Every side of the finished room, floor included, is an insulated panel, so the cold envelope is complete the day the panels are bolted together.
Insulated Floor Panels Rated at R-28
Floorless walk-in panels have to sit on a level concrete slab, anchored and sealed with floor screeds, and the slab itself becomes the cold room floor. This box takes the other route. Insulated floor panels with the same R-28 rating as the walls close off the bottom of the room, so product carts and shelving stand on an insulated surface instead of bare concrete. That matters over tile, wood subfloors, or any surface you cannot anchor into, and it keeps the slab under the box from sweating and wicking heat into your storage. With the floor panel down, the finished box stands 90 inches tall, versus 86.5 inches for the floorless build of the same footprint.
Tongue and Groove Cam Action Locking Panels
Every panel is filled with 4 inches of foamed urethane, rated R-28 across walls, ceiling, and floor. The panel edges are tongue and groove, and cam action locks draw neighboring panels together until the joint compresses into an airtight seam. There is no field foaming, no gasket guesswork, and no specialty crew required, which is why a box like this goes from stacked panels to a working cold room in a day. Assembled, the 12' x 16' room weighs 1787 lb spread across its footprint, and the same interlocking edges that seal the box also let you add panels later if the room ever needs to grow.
Self-Closing Door with Built-in Heater
The 36" x 76" flush-mounted door is sized so a loaded hand truck or a sheet pan rack rolls straight through without threading the needle. A self-closing mechanism swings it shut behind whoever walks in, so the room is never left standing open during a rush. A built-in heater warms the door frame to stop condensation and ice from gluing the gasket shut, the keyed locking handle secures inventory after close, and an interior safety release opens the door from inside every time, even when the handle is locked.
White Interior and Exterior Finish
Inside and out, the panels carry a white finish that shows grime before it builds up and wipes clean with standard kitchen sanitizer. A bright white interior also makes labels and date marks easier to read while you are pulling product. Unlike bare galvanized surfaces that dull and streak, the white skin keeps the room looking like the clean side of a health inspection year after year.
About Coldline
Coldline manufactures commercial refrigeration equipment designed for the day-to-day demands of foodservice kitchens. With a product line that includes reach-in refrigerators, prep tables, undercounters, and display units, Coldline focuses on reliability, efficient cooling, and service-friendly design. Units are built with stainless steel interiors and exteriors, digital controls, and components that meet NSF and ETL standards. Operators value Coldline’s accessible parts support and straightforward performance across a range of back- and front-of-house applications. Widely used in restaurants, cafes, and convenience operations, Coldline delivers practical refrigeration solutions that keep food safe and service running smoothly.
Features & Benefits
-
Indoor walk-in cooler box sized for high-volume restaurants, caterers, supermarkets, and institutional kitchens
-
Nominal 12' x 16' footprint measuring 137.8 x 196.9 inches along the walls
-
Insulated floor panels included, closing the room into a six-sided insulated envelope
-
Stands 90 inches tall with the floor panel in place
-
4 inch thick urethane insulation in every wall, ceiling, and floor panel
-
R-28 insulation rating on walls, floor, and ceiling
-
Tongue and groove panel edges with cam action locks that pull joints airtight
-
Flush-mounted, self-closing entry door
-
36 x 76 inch door opening passes hand trucks and sheet pan racks
-
Built-in door heater keeps the frame and gasket free of condensation and ice
-
Keyed locking door handle secures inventory after hours
-
Interior safety release opens the door from inside even when locked
-
White interior and exterior panel finish
-
Panels cam-lock together for fast assembly with basic tools
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Indoor walk-in cooler box sized for high-volume restaurants, caterers, supermarkets, and institutional kitchens
Nominal 12' x 16' footprint measuring 137.8 x 196.9 inches along the walls
Insulated floor panels included, closing the room into a six-sided insulated envelope
Stands 90 inches tall with the floor panel in place
4 inch thick urethane insulation in every wall, ceiling, and floor panel
The Coldline WCP12X16-FL Walk-In Cooler
The Coldline WCP12X16-FL is a 12' x 16' indoor walk-in cooler box supplied with insulated floor panels. Its footprint measures 137.8" by 196.9", which works out to 11.5 x 16.4 ft of floor space, and the box tops out at 90" once the floor panel is down. Operations like high-volume restaurants, caterers, supermarkets, and institutional kitchens use a box this size as bulk cold storage for pallet-loads of product and rolling racks. Every side of the finished room, floor included, is an insulated panel, so the cold envelope is complete the day the panels are bolted together.
Insulated Floor Panels Rated at R-28
Floorless walk-in panels have to sit on a level concrete slab, anchored and sealed with floor screeds, and the slab itself becomes the cold room floor. This box takes the other route. Insulated floor panels with the same R-28 rating as the walls close off the bottom of the room, so product carts and shelving stand on an insulated surface instead of bare concrete. That matters over tile, wood subfloors, or any surface you cannot anchor into, and it keeps the slab under the box from sweating and wicking heat into your storage. With the floor panel down, the finished box stands 90 inches tall, versus 86.5 inches for the floorless build of the same footprint.
Tongue and Groove Cam Action Locking Panels
Every panel is filled with 4 inches of foamed urethane, rated R-28 across walls, ceiling, and floor. The panel edges are tongue and groove, and cam action locks draw neighboring panels together until the joint compresses into an airtight seam. There is no field foaming, no gasket guesswork, and no specialty crew required, which is why a box like this goes from stacked panels to a working cold room in a day. Assembled, the 12' x 16' room weighs 1787 lb spread across its footprint, and the same interlocking edges that seal the box also let you add panels later if the room ever needs to grow.
Self-Closing Door with Built-in Heater
The 36" x 76" flush-mounted door is sized so a loaded hand truck or a sheet pan rack rolls straight through without threading the needle. A self-closing mechanism swings it shut behind whoever walks in, so the room is never left standing open during a rush. A built-in heater warms the door frame to stop condensation and ice from gluing the gasket shut, the keyed locking handle secures inventory after close, and an interior safety release opens the door from inside every time, even when the handle is locked.
White Interior and Exterior Finish
Inside and out, the panels carry a white finish that shows grime before it builds up and wipes clean with standard kitchen sanitizer. A bright white interior also makes labels and date marks easier to read while you are pulling product. Unlike bare galvanized surfaces that dull and streak, the white skin keeps the room looking like the clean side of a health inspection year after year.
About Coldline
Coldline manufactures commercial refrigeration equipment designed for the day-to-day demands of foodservice kitchens. With a product line that includes reach-in refrigerators, prep tables, undercounters, and display units, Coldline focuses on reliability, efficient cooling, and service-friendly design. Units are built with stainless steel interiors and exteriors, digital controls, and components that meet NSF and ETL standards. Operators value Coldline’s accessible parts support and straightforward performance across a range of back- and front-of-house applications. Widely used in restaurants, cafes, and convenience operations, Coldline delivers practical refrigeration solutions that keep food safe and service running smoothly.
Features & Benefits
-
Indoor walk-in cooler box sized for high-volume restaurants, caterers, supermarkets, and institutional kitchens
-
Nominal 12' x 16' footprint measuring 137.8 x 196.9 inches along the walls
-
Insulated floor panels included, closing the room into a six-sided insulated envelope
-
Stands 90 inches tall with the floor panel in place
-
4 inch thick urethane insulation in every wall, ceiling, and floor panel
-
R-28 insulation rating on walls, floor, and ceiling
-
Tongue and groove panel edges with cam action locks that pull joints airtight
-
Flush-mounted, self-closing entry door
-
36 x 76 inch door opening passes hand trucks and sheet pan racks
-
Built-in door heater keeps the frame and gasket free of condensation and ice
-
Keyed locking door handle secures inventory after hours
-
Interior safety release opens the door from inside even when locked
-
White interior and exterior panel finish
-
Panels cam-lock together for fast assembly with basic tools
Resources & Downloads
See all from Coldline
Specifications
| Nominal Size | 12' x 16' |
| Length | 137.8" |
| Depth | 196.9" |
| Height (With Floor) | 90" |
| Door Size | 36" x 76" |
| Door Type | Flush-mounted, Self-closing |
| Door Heater | 110V, 60 Hz |
| Door Handle | Keyed Locking |
| Panel System | Tongue & Groove, Cam Action Locking |
| Insulation Type | Urethane |
| Insulation Thickness | 4" |
| R-Value (Wall) | 28 |
| R-Value (Floor) | 28 |
| R-Value (Ceiling) | 28 |
| Floor | Insulated Floor Panels Included |
| Finish | White Interior / Exterior |
| Weight | 1787 lb. |
| Shipping Weight | 1965 lb. |
| Configuration | Indoor, With Floor |
Manufacturer's Warranty
-
10 Year
Panel
Certifications & Approvals
-
NSF Approved
