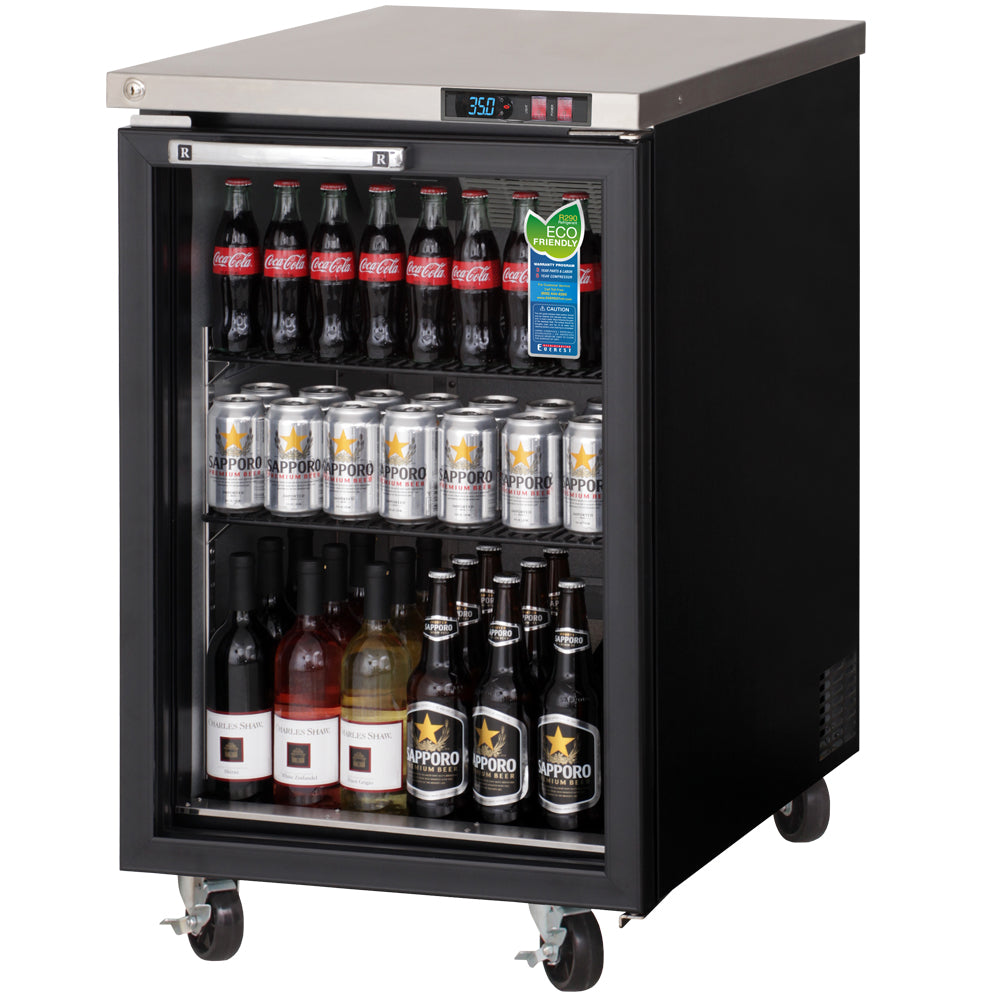

Everest EBB23G 24 In. Glass Door Back Bar Cooler, 1 Locking Glass Door, 8 Cu. Ft., 220 Can Capacity, Black Vinyl Exterior, LED Lighting

The Everest EBB23G is the entry single door model in Everest's EBB Series of glass door back bar coolers, sized for bars and taverns that pour canned and bottled service off a short rail. Behind its one low emissivity glass door, the 8 cubic foot cabinet swallows up to 220 twelve-ounce cans or 125 twelve-ounce bottles, and because the stock reads through the glass under shielded LED bar lighting, the backbar doubles as a lit display that sells the next round while the bartender restocks the speed well from two steps away. Rather than burying the refrigeration where a tech has to dismantle the cabinet, this design hangs the whole condensing unit on the back as a slide-out cartridge.

Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cooler out of service while a tech opens the refrigerant circuit, a cartridge swap gets the bar back to work the same visit. The 1/5 HP cartridge delivers 1,655 BTU per hour, runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole unit. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, and the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean.

One Locking Low-E Glass Door over 220 Cans of Backstock

The 22 3/4 inch wide swing door is glazed with low emissivity double glass panes that reflect UV rays for efficient cooling, so the stock shows through the glass without the cabinet fighting the room to hold temperature. The black PVC door frames carry high strength die-cast handles, snap-in magnetic gaskets that pop out for cleaning or replacement without tools, and pre-installed door locks that keep the night's stock safe from theft after last call. Inside, two epoxy coated steel wire shelves ride on height adjustable stainless steel clips over an open spaced interior with no walls between compartments, letting you split the 8 cubic foot volume between tall bombers on the floor and standard cans up top; the galvanized steel walls and high quality stainless steel floor shrug off bottle drag and case impacts where painted liners would scratch through.

Stainless Steel Countertop over a Black Vinyl Cabinet with Shielded LED Lighting

Up top, the heavy duty stainless steel countertop takes wet shakers, citrus juice, and dropped tools without staining, while the cabinet wears a textured laminate black vinyl exterior that hides scuffs in a dim bar better than bare metal and wipes clean with a bar towel. Between them, 1 3/4 inch thick high density polyurethane insulation keeps the cold in. Shielded LED bar lighting with its own on/off switch throws bright, high color light across labels at lower heat output than incandescent lamps, so the glass doors read like a backlit bottle display instead of a dark cabinet. Four pre-installed 5 inch swivel casters with locks on the front set roll the cabinet out for line cleaning, and built-in caster thread receptacles make swapping to the optional 3 inch casters or legs a bolt-in job. That puts the countertop at 39 3/8 inches overall on the 5 inch casters.

Digital Controller that Holds 33°F to 54°F with an Overheat Alarm

A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F, cold enough to keep lager a degree off freezing or ease back for red ale service. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into warm beer and lost stock. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock setup does not match your bar, Everest offers additional wire shelving, 3 inch or 5 inch swivel caster assemblies, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind this is a refrigerator-only cabinet holding 33°F to 54°F, so it will not run frozen drink programs, and a single 22 3/4 inch wide door caps the backstock at 220 cans; the 49-inch EBB48G doubles the doors and more than doubles the cans, and the 58, 68, and 89-inch glass door siblings stretch the same format down a longer back bar. The cabinet runs a full 32 inches deep, the deepest chassis in the glass door line, so confirm the behind-bar clearance before committing. Power is a standard 115V connection drawing 2.5 amps on a 9 foot cord with a NEMA 5-15P plug, so no dedicated circuit is needed.
