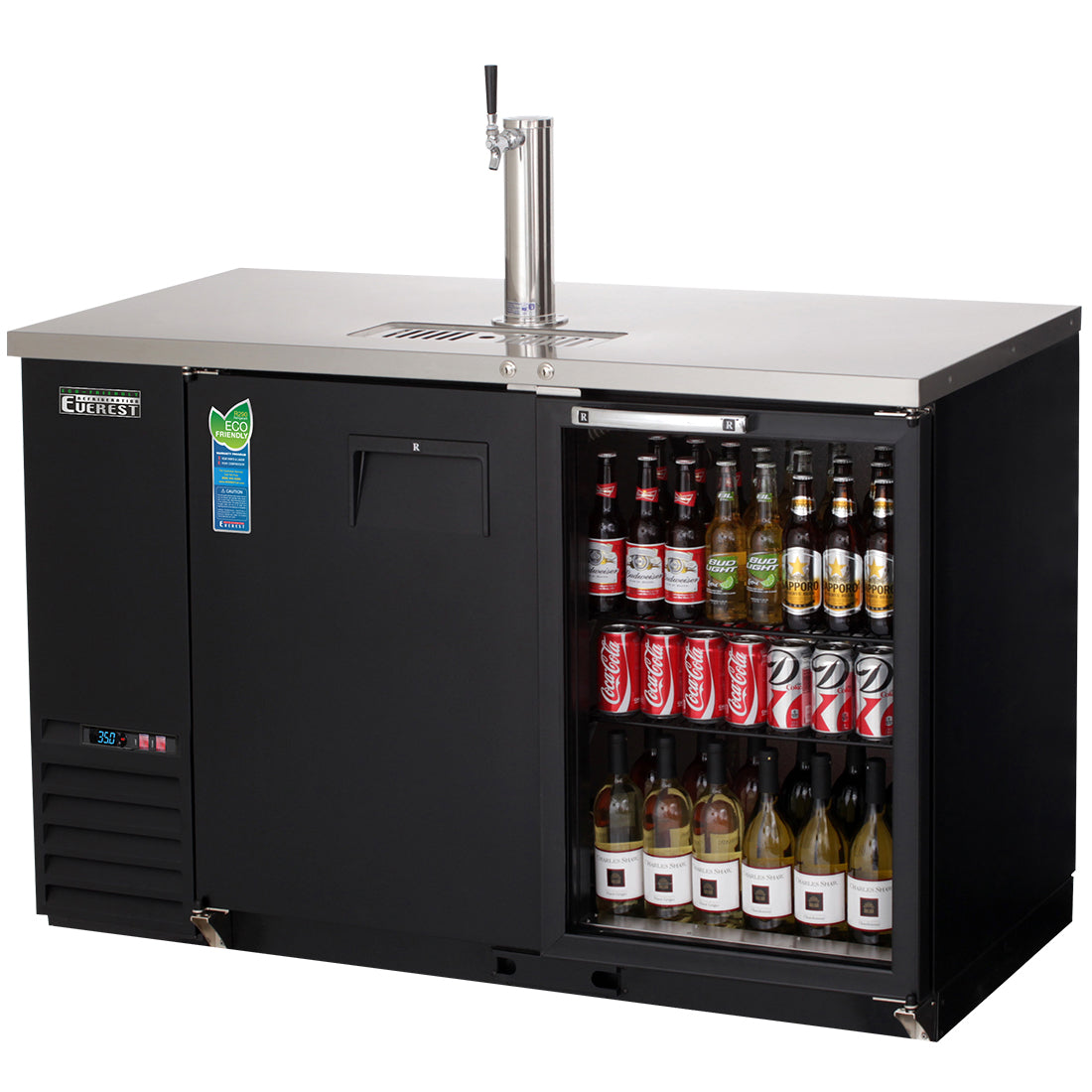

Everest EBD2-BBG 58 In. Back Bar and Direct Draw Keg Refrigerator, 1 Half Barrel Keg, Single Faucet Draft Arm, Glass Display Door, Black Vinyl Exterior

The Everest EBD2-BBG is the glass door version of Everest's back bar and direct draw combo, a keg refrigerator for bars, taprooms, and restaurants that want one tap pouring, the packaged backstock chilling, and the bottle list on display in the same 57 3/4 inch cabinet. The compartment behind the solid left door holds a half barrel keg directly below a fully insulated single faucet draft arm, while the glass right door shows off up to 280 12 oz. cans or 192 12 oz. bottles on two adjustable wire shelves, so guests can read your packaged list from across the bar while a single 20 cubic foot footprint runs both your draft program and your bottle and can service. The draft arm and its matching air distributor ship on the unit rather than as add-ons, and a digital controller holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F.

Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a side mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park both your tap and your bottle service while a refrigeration tech opens the circuit, a cartridge swap gets the cabinet pouring again the same visit. The cartridge runs EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less energy, and a full-length air duct keeps cold air moving through both compartments instead of pooling at the floor. The defrost cycle is time-initiated and temperature-terminated, so it runs itself, and condensate evaporates from a self-maintaining drain pan with no external drain or electric heater. Large capacity, corrosion-resistant condenser and evaporator coils carry the cooling load, while a high performance, auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean.

One Half Barrel Keg on Tap with 280 Cans and 192 Bottles in Reserve

Storage splits the cabinet into two jobs. The keg compartment sits behind the solid left door and is rated for one half barrel, parked directly beneath the single faucet, 3 inch diameter stainless steel draft arm that mounts on the countertop above it. The arm is fully insulated, so the short run between keg and faucet stays cold and the first pour of a shift is beer, not foam, and the matching air distributor is standard equipment rather than a separate purchase.

The back bar side is rated for 280 12 oz. cans or 192 12 oz. bottles across two epoxy coated, steel wire shelves on height adjustable stainless steel clips, so you can re-rack the spacing around taller packages without tools. Because the interior is open spaced with no walls between the compartments, cold air moves freely across the whole 20 cubic foot cabinet instead of fighting a divider wall.

Stainless Steel Countertop, One Solid Door, and One Glass Display Door over a Black Vinyl Cabinet

Up top, a heavy duty stainless steel countertop takes the abuse of keg changes and bar service, and an exterior T-shaped drain port routes excess moisture from the top tray, so plan the install over a floor drain: one is required, and a drain hose is not included. The cabinet body wears a textured laminate, black vinyl exterior over 1 3/4 inches of high density polyurethane insulation, with galvanized steel walls and a stainless steel floor inside.

The two door openings run 22 3/4 inches wide apiece, and each door does a different job. The solid keg-side door pairs a black vinyl exterior with a galvanized steel interior, 1 inch of polyurethane insulation, and a high strength recessed handle, while the glass bottle-side door sets low emissivity double glass panes in a black PVC frame with a high strength die-cast handle, turning the backstock into shelf-lit merchandising instead of hidden inventory. Snap-in magnetic gaskets seal both swings and pull off without tools for cleaning or replacement, and pre-installed door locks keep the keg and the display stock safe from theft after close. Shielded LED bar lighting with its own on/off switch throws bright, high color light through the glass at low heat output, and built-in caster thread receptacles accept the optional casters or legs, so you choose between a rolling unit and a fixed install. As shipped, the cabinet stands 37 1/4 inches tall at the countertop, with the draft arm rising above it.

Digital Controller that Holds 33°F to 54°F with an Overheat Alarm

A multi-function digital controller with an easy to read LED display holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F so kegs and cases come off the truck and into service at a ready-to-pour temperature. An audible overheat protection alarm watches the compressor and condenser coil and warns you before a ventilation problem becomes a warm cabinet of flat beer.

Everest supports the unit with optional dual or triple faucet 304 stainless steel draft arms and matching 2-way or 3-way air distributors when your tap list outgrows a single faucet, a gravity shelf and bottle organizer that keeps the glass-door display faced and rotated, 3 inch or 5 inch swivel casters with locks, 3.5 inch to 6 inch height-adjustable, interchangeable legs, and additional wire shelving for the back bar side.

The EBD2-BBG is a refrigerator only, with a floor of 33°F, and one half barrel on one faucet is its draft ceiling: the dedicated EBD2 direct draw cabinet carries two kegs in the same 58 inch length if draft is the whole job, while Everest's EBB glass door back bar coolers cover all-packaged display programs with no tap at all. The same combo also comes as the all-solid-door EBD2-BB, as the longer 68 inch EBD3-BBG, and in a shallower 24 inch depth class as the EBD2-BBG-24. This cabinet runs 57 3/4 inches long by 27 inches deep and needs 49 1/2 inches of clear depth with a door open, so measure the aisle behind your bar before committing to the slot. Power is ordinary: 115V at 3.5 amps through a 9 foot cord and a standard NEMA 5-15P plug, with a floor drain the only other site requirement.
