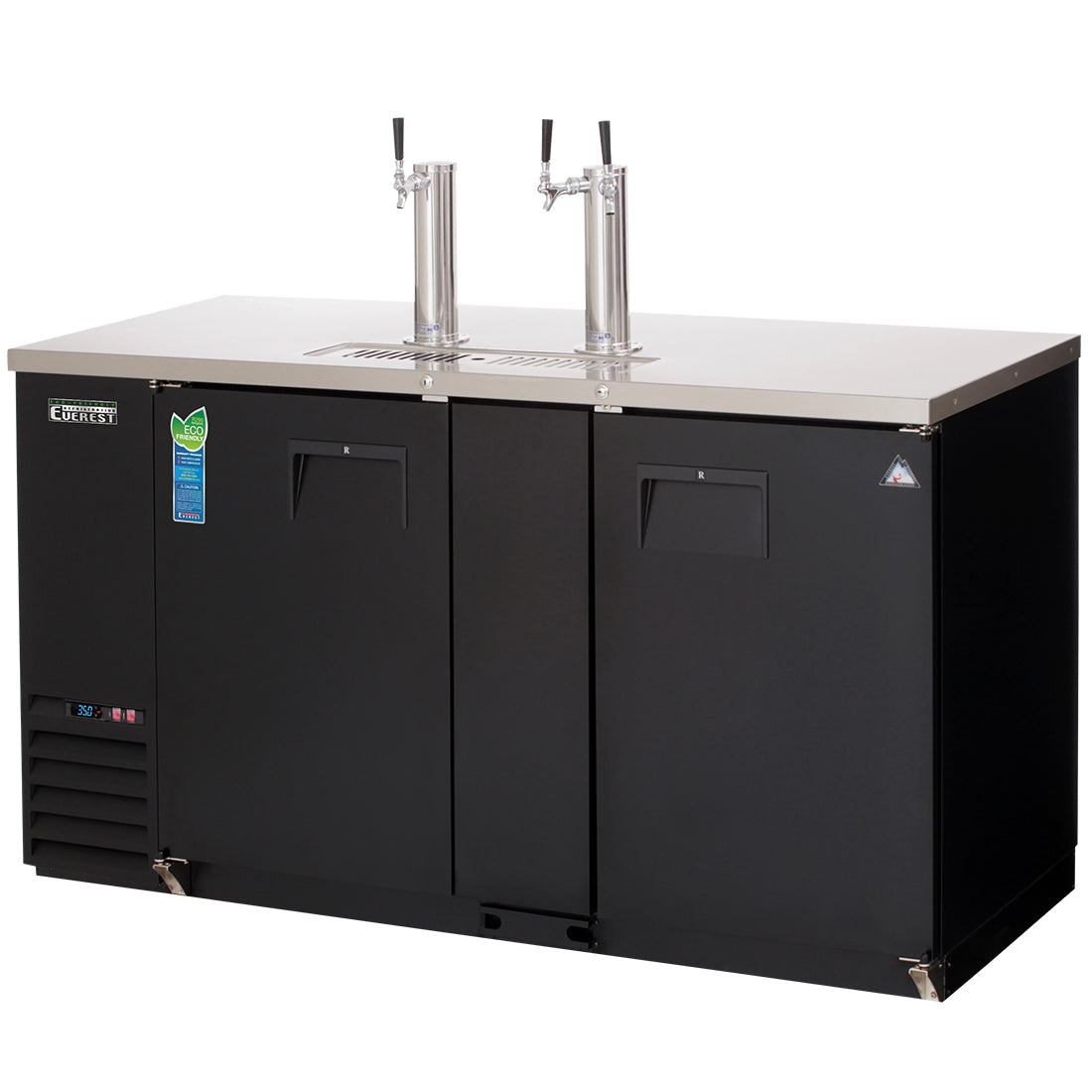

Everest EBD3-24 68 In. Direct Draw Keg Refrigerator, 24 In. Deep, 3 Half Barrel Kegs, Single and Dual Faucet Draft Arms, 20 Cu. Ft., Black Vinyl Exterior

The Everest EBD3-24 is the shallow depth version of the EBD Series three keg cabinet, a 24 inch deep direct draw keg refrigerator for back bars and service aisles where the standard 27 inch deep EBD3 sits too proud of the counter line. Three half barrels chill, store, and pour from one 68 inch cabinet: a single faucet draft arm covers one keg while a dual faucet arm covers the other two, so three beers stay on tap with beer traveling inches from keg to glass instead of through long remote lines. Both fully insulated draft arms and their matching air distributors ship on the unit rather than as add-ons, and a digital controller holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F.

Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a side mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park your draft program while a refrigeration tech opens the circuit, a cartridge swap gets the beer pouring again the same visit. The cartridge runs EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less energy, and a full-length air duct keeps cold air circulating around the kegs instead of pooling at the floor. The defrost cycle is time-initiated and temperature-terminated, so it runs itself, and condensate evaporates from a self-maintaining drain pan with no external drain or electric heater. Large capacity, corrosion-resistant condenser and evaporator coils carry the cooling load, while a high performance, auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean.

Three Half Barrel Kegs Pouring Through Single and Dual Faucet Draft Arms

Storage is rated at three half barrel kegs in 20 cubic feet of open spaced interior with no walls between compartments, so kegs load without fighting a divider. The dispensing hardware is standard equipment rather than a separate purchase: one single faucet and one dual faucet 3 inch diameter, stainless steel draft arms with matching air distributors mount on the countertop, fully insulated so the short run between keg and faucet stays cold and the first pour of a shift is beer, not foam, with three faucets across two towers to dedicate a tap to each beer.

The kegs load through two full solid doors with textured laminate, black vinyl exteriors and galvanized steel interiors, insulated with 1 3/4 inches of high density polyurethane. The two door openings run 22 3/4 inches wide apiece, snap-in magnetic gaskets seal every swing and pull off without tools for cleaning or replacement, high strength recessed handles keep the aisle behind the bar snag-free, and pre-installed door locks keep your kegs safe from theft after close.

Stainless Steel Countertop over a Black Vinyl Cabinet

Up top, a heavy duty stainless steel countertop takes the abuse of keg changes and bar service, while the cabinet body wears a textured laminate, black vinyl exterior. Inside, galvanized steel walls pair with a high quality stainless steel floor under the kegs. An exterior T-shaped drain port routes excess moisture from the top tray, so plan the install over a floor drain: one is required, and a drain hose is not included.

The cabinet carries the same 1 3/4 inch high density polyurethane insulation as the doors, and silicone coated, shatter-proof LED lighting throws bright, high color light with low heat output when you open up. Built-in caster thread receptacles accept the optional 3 inch or 5 inch locking swivel casters or the 3.5 inch to 6 inch height-adjustable legs, so you choose between a rolling unit and a fixed install. As shipped, the cabinet stands 37 1/4 inches tall at the countertop, with the draft arms rising above it.

Digital Controller that Holds 33°F to 54°F with an Overheat Alarm

A multi-function digital controller with an easy to read LED display holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F so kegs come off the truck and onto tap at a ready-to-pour temperature. An audible overheat protection alarm watches the compressor and condenser coil and warns you before a ventilation problem becomes a warm cabinet of flat beer.

Everest supports the unit with optional dual or triple faucet 304 stainless steel draft arms and matching 2-way or 3-way air distributors when your tap list outgrows the factory configuration, plus 3 inch or 5 inch swivel casters with locks, a 3 inch overall-height caster assembly, and 3.5 inch to 6 inch height-adjustable, interchangeable legs.

The EBD3-24 is a refrigerator only, with a floor of 33°F, and three half barrels is its ceiling: the 24 inch depth class continues with the four keg EBD4-24 and steps down to the two keg EBD2-24 and the 49 inch EBDS2-24, while the standard 27 inch deep EBD3 trades 2 1/2 inches of aisle for 4 more cubic feet of interior. This cabinet runs 68 inches long by 24 1/2 inches deep and needs 46 1/2 inches of clear depth with a door open. Power is ordinary: 115V at 3.5 amps through a 9 foot cord and a standard NEMA 5-15P plug, with a floor drain the only other site requirement.
