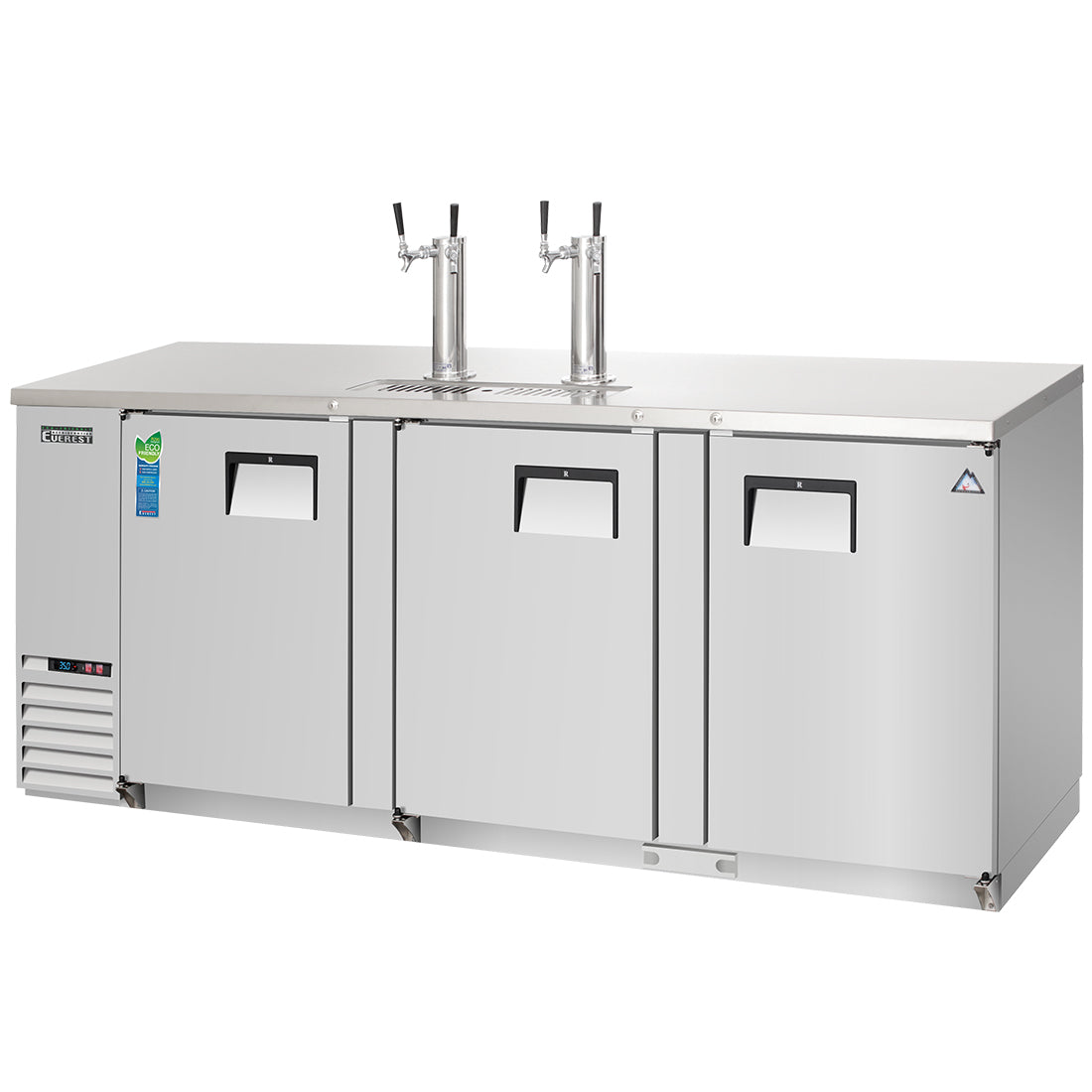

Everest EBD4-SS 89 In. Direct Draw Keg Refrigerator, 4 Half Barrel Kegs, Two Dual Faucet Draft Arms, 32 Cu. Ft., Stainless Steel Exterior

The Everest EBD4-SS is the stainless steel version of the EBD Series four keg flagship, a direct draw keg refrigerator for taprooms, beer bars, and full service restaurants that want four half barrels chilling, storing, and pouring from one 89 1/4 inch run of bar in a finish that matches the rest of a stainless line. Two dual faucet draft arms put four beers on tap at once, each keg sitting inches below its faucet so beer never travels through long remote lines, and both fully insulated arms with their matching air distributors ship on the unit rather than as add-ons. A digital controller holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F.

Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a side mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park your draft program while a refrigeration tech opens the circuit, a cartridge swap gets the beer pouring again the same visit. The cartridge runs EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less energy, and a full-length air duct keeps cold air circulating around the kegs instead of pooling at the floor. The defrost cycle is time-initiated and temperature-terminated, so it runs itself, and condensate evaporates from a self-maintaining drain pan with no external drain or electric heater. Large capacity, corrosion-resistant condenser and evaporator coils carry the cooling load, while a high performance, auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean.

Four Half Barrel Kegs on Tap Through Two Dual Faucet Draft Arms

Storage is rated at four half barrel kegs in 32 cubic feet of cabinet, and the dispensing hardware is standard equipment rather than a separate purchase: two dual faucet, 3 inch diameter stainless steel draft arms with matching air distributors mount on the countertop. The arms are fully insulated, so the short run between keg and faucet stays cold and the first pour of a shift is beer, not foam, and the four faucets across two towers let you dedicate a tap to each beer on the list.

The kegs load through three full solid doors with stainless steel exteriors and galvanized steel interiors, insulated with 1 3/4 inches of high density polyurethane. The three door openings run 22 3/4 inches wide apiece, snap-in magnetic gaskets seal every swing and pull off without tools for cleaning or replacement, high strength recessed handles keep the aisle behind the bar snag-free, and pre-installed door locks keep your kegs safe from theft after close.

Stainless Steel Countertop over a Stainless Steel Cabinet

Up top, a heavy duty stainless steel countertop takes the abuse of keg changes and bar service, and the cabinet body carries a matching stainless steel exterior: where the standard EBD4 wears a black vinyl wrap, this twin presents the same wipe-down stainless face as the rest of a working bar line. Inside, galvanized steel walls pair with a high quality stainless steel floor under the kegs. An exterior T-shaped drain port routes excess moisture from the top tray, so plan the install over a floor drain: one is required, and a drain hose is not included.

The cabinet carries the same 1 3/4 inch high density polyurethane insulation as the doors, and silicone coated, shatter-proof LED lighting throws bright, high color light with low heat output when you open up. Built-in caster thread receptacles accept the optional 3 inch or 5 inch locking swivel casters or the 3.5 inch to 6 inch height-adjustable legs, so you choose between a rolling unit and a fixed install. As shipped, the cabinet stands 37 1/4 inches tall at the countertop, with the draft arms rising above it.

Digital Controller that Holds 33°F to 54°F with an Overheat Alarm

A multi-function digital controller with an easy to read LED display holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F so kegs come off the truck and onto tap at a ready-to-pour temperature. An audible overheat protection alarm watches the compressor and condenser coil and warns you before a ventilation problem becomes a warm cabinet of flat beer.

Everest supports the unit with optional dual or triple faucet 304 stainless steel draft arms and matching 2-way or 3-way air distributors when your tap list outgrows the factory configuration, plus 3 inch or 5 inch swivel casters with locks, a 3 inch overall-height caster assembly, and 3.5 inch to 6 inch height-adjustable, interchangeable legs.

The EBD4-SS is a refrigerator only, with a floor of 33°F, and four half barrels is the top of the EBD ladder: if your list runs fewer taps, the EBD3, EBD2, and EBD1 cover three, two, and one keg in 68, 57 3/4, and 23 1/2 inch lengths, with the EBD2-SS as the two keg stainless twin. The same four keg cabinet also comes as the EBD4 in a black vinyl exterior and as the shallower EBD4-24 in the 24 inch depth class. This cabinet runs 89 1/4 inches long by 27 inches deep and needs 49 inches of clear depth with a door open, so measure the aisle behind your bar before committing to the slot. Power is ordinary: 115V at 2.5 amps through a 9 foot cord and a standard NEMA 5-15P plug, with a floor drain the only other site requirement.
