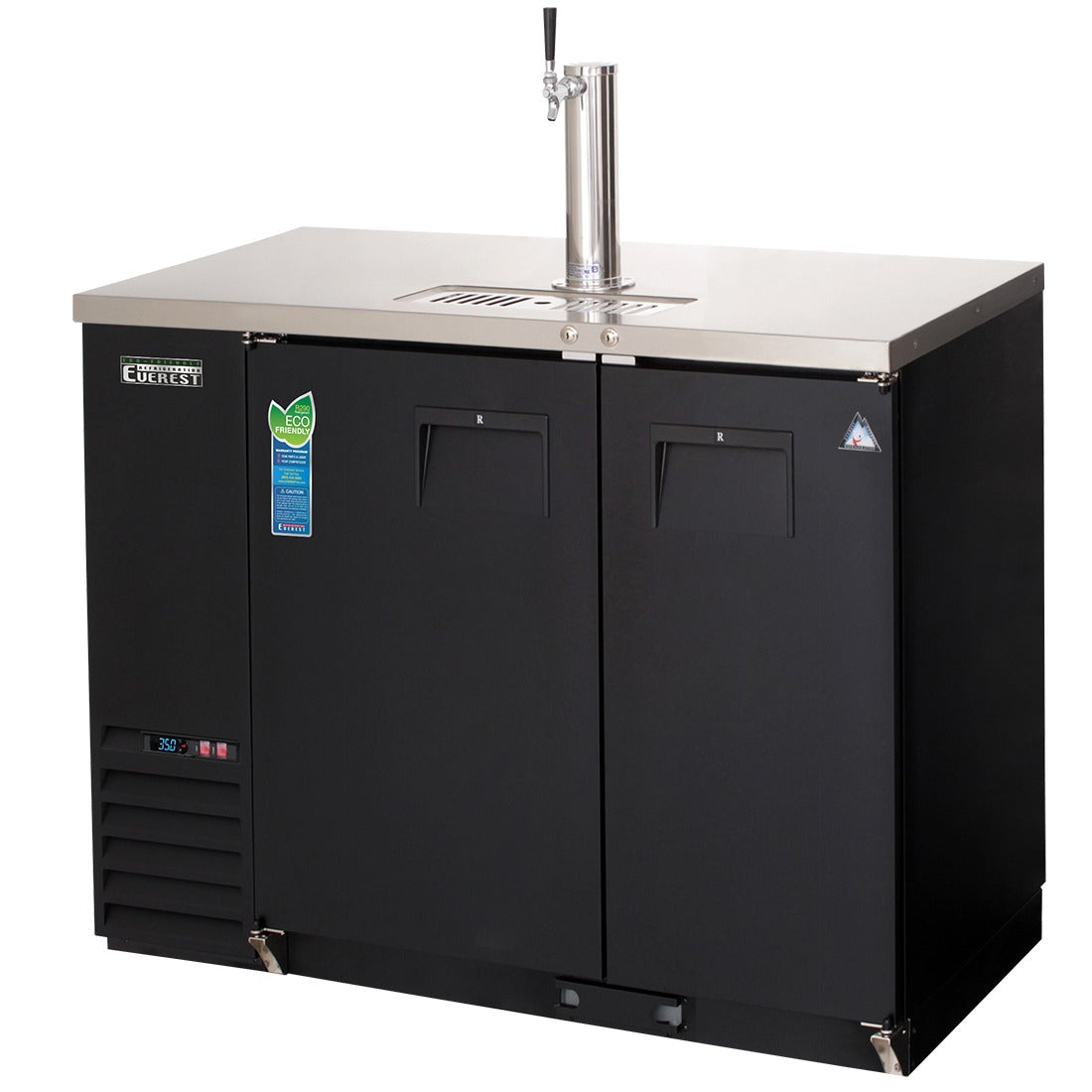

Everest EBDS2-BB-24 49 In. Back Bar and Direct Draw Keg Refrigerator, 24 In. Depth, 1 Half Barrel Keg, Single Faucet Draft Arm, 175 Can Backstock, Black Vinyl Exterior

The Everest EBDS2-BB-24 is the compact corner of Everest's back bar and direct draw combo line, a 49 inch long, 24 1/2 inch deep keg refrigerator for bars, taprooms, and counter-service spots that want one tap pouring and the packaged backstock chilling where a full-depth cabinet will not fit. The compartment behind the 20 3/4 inch left door holds a half barrel keg directly below a fully insulated single faucet draft arm, while the 16 inch right door covers up to 175 12 oz. cans or 126 12 oz. bottles on two adjustable wire shelves, so a single 13 cubic foot footprint runs your draft program and your bottle and can service in a tight aisle. The draft arm and its matching air distributor ship on the unit rather than as add-ons, and a digital controller holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F.

Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a side mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park both your tap and your bottle service while a refrigeration tech opens the circuit, a cartridge swap gets the cabinet pouring again the same visit. The cartridge runs EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less energy, and a full-length air duct keeps cold air moving through both compartments instead of pooling at the floor. The defrost cycle is time-initiated and temperature-terminated, so it runs itself, and condensate evaporates from a self-maintaining drain pan with no external drain or electric heater. Large capacity, corrosion-resistant condenser and evaporator coils carry the cooling load, while a high performance, auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean.

One Half Barrel Keg on Tap with 175 Cans and 126 Bottles in Reserve

Storage splits the cabinet into two jobs. The keg compartment sits behind the wider left door and is rated for one half barrel, parked directly beneath the single faucet, 3 inch diameter stainless steel draft arm that mounts on the countertop above it. The arm is fully insulated, so the short run between keg and faucet stays cold and the first pour of a shift is beer, not foam, and the matching air distributor is standard equipment rather than a separate purchase.

The back bar side is rated for 175 12 oz. cans or 126 12 oz. bottles across two epoxy coated, steel wire shelves on height adjustable stainless steel clips, so you can re-rack the spacing around taller packages without tools. Because the interior is open spaced with no walls between the compartments, cold air moves freely across the whole 13 cubic foot cabinet instead of fighting a divider wall.

Stainless Steel Countertop and Two Locking Solid Doors over a Black Vinyl Cabinet

Up top, a heavy duty stainless steel countertop takes the abuse of keg changes and bar service, and an exterior T-shaped drain port routes excess moisture from the top tray, so plan the install over a floor drain: one is required, and a drain hose is not included. The cabinet body wears a textured laminate, black vinyl exterior over 1 3/4 inches of high density polyurethane insulation, with galvanized steel walls and a stainless steel floor inside.

The two solid swing doors are sized to their jobs, a 20 3/4 inch opening for the keg bay and a 16 inch opening for the bottle side, each with a black vinyl exterior, a galvanized steel interior, and the same 1 3/4 inches of polyurethane insulation as the cabinet. Snap-in magnetic gaskets seal every swing and pull off without tools for cleaning or replacement, high strength recessed handles keep the aisle behind the bar snag-free, and pre-installed door locks keep the keg and the backstock safe from theft after close. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, and built-in caster thread receptacles accept the optional casters or legs, so you choose between a rolling unit and a fixed install. As shipped, the cabinet stands 37 1/4 inches tall at the countertop, with the draft arm rising above it.

Digital Controller that Holds 33°F to 54°F with an Overheat Alarm

A multi-function digital controller with an easy to read LED display holds the cabinet anywhere from 33°F to 54°F, factory preset at 35°F so kegs and cases come off the truck and into service at a ready-to-pour temperature. An audible overheat protection alarm watches the compressor and condenser coil and warns you before a ventilation problem becomes a warm cabinet of flat beer.

Everest supports the unit with optional dual or triple faucet 304 stainless steel draft arms and matching 2-way or 3-way air distributors when your tap list outgrows a single faucet, plus 3 inch or 5 inch swivel casters with locks, 3.5 inch to 6 inch height-adjustable, interchangeable legs, and additional wire shelving for the back bar side.

The EBDS2-BB-24 is a refrigerator only, with a floor of 33°F, and it is the smallest combo in the line, with one half barrel on one faucet and 13 cubic feet overall: the 57 3/4 inch EBD2-BB-24 adds can and bottle capacity in the same 24 1/2 inch depth class, the standard-depth EBD2-BB carries more backstock at 27 inches deep, and the dedicated EBDS2-24 direct draw cabinet trades the shelves for a second keg. This cabinet runs 49 inches long by 24 1/2 inches deep and needs 44 1/2 inches of clear depth with a door open, the easiest swing in the combo family for a narrow aisle. Power is ordinary: 115V at 3.5 amps through a 9 foot cord and a standard NEMA 5-15P plug, with a floor drain the only other site requirement.
