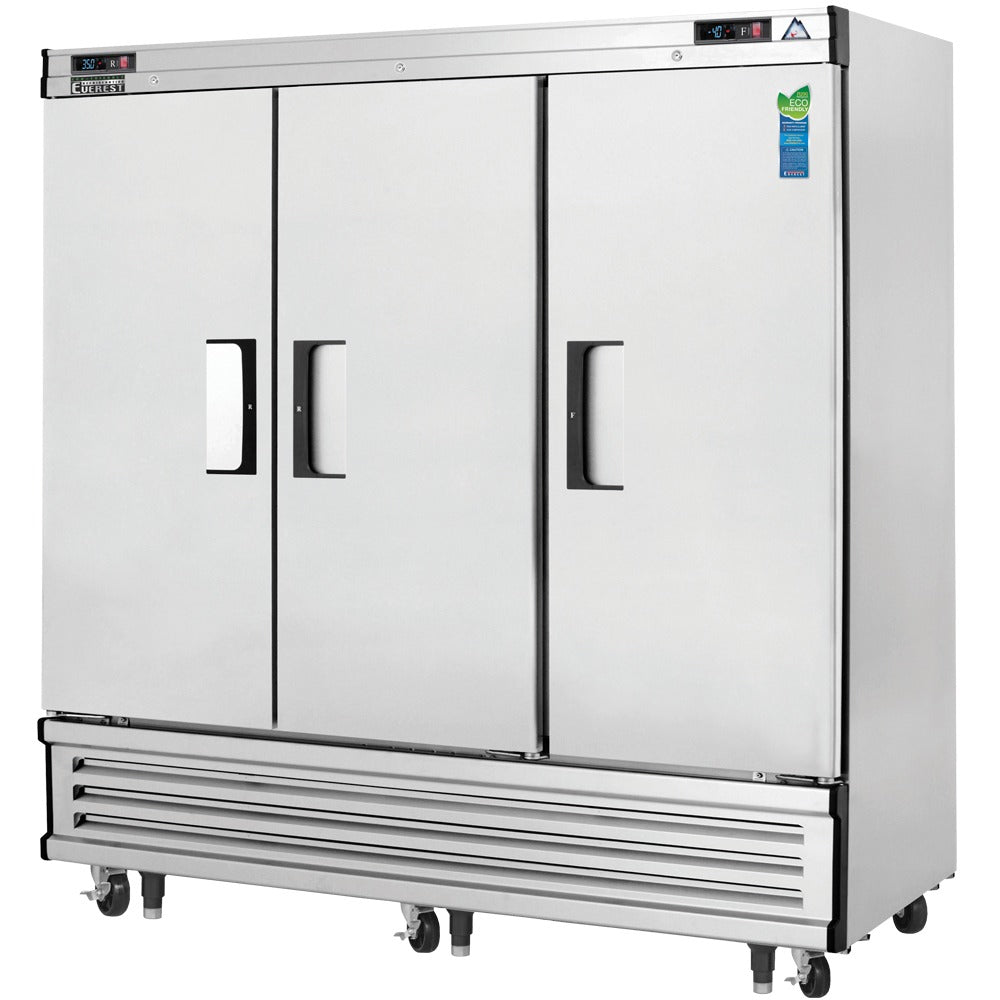

Everest EBRF3 75 In. Bottom Mount Reach-In Dual Temp Refrigerator Freezer, 3 Solid Doors, 46 + 22 Cu. Ft., Twin Blizzard R290 Cartridges

The Everest EBRF3 is the dual temp flagship of Everest's EB Series bottom mount reach-in line, built for kitchens whose storage runs two thirds chilled and one third frozen and who want it all behind one 74 3/4 inch face instead of two separate boxes. Two doors on the left open onto a shared 46 cubic foot refrigerator section while the right door covers a 22 cubic foot freezer, each temperature on its own cooling cartridge and its own control, and with the condensing units mounted below the cabinet the EBRF3 runs the EB line's deeper 33 1/8 inch body that swallows bulky product and full-size baking sheet pans.

Bottom Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

Each zone runs its own bottom mounted, self-contained Blizzard R290 cartridge that is fully retractable and replaceable in the field with no on-site brazing, so a failed system is swapped the same visit instead of opening the sealed circuit while the cabinet sits idle. The pairing is matched to the split: a 1/3+ HP cartridge rated at 2,612 BTU per hour holds the two door chilled section while a 1/3 HP cartridge rated at 1,670 BTU per hour drives the freezer, and because each compartment has its own cartridge, a fault on one side never takes down the other. An air circulation guard keeps the floor-level vents from being blocked during a busy shift.

Electronically commutated fan motors pull both compartments to temperature quickly while drawing less power, and each zone defrosts the way its temperature demands: the freezer runs a time-initiated, temperature-terminated heater cycle while the refrigerator uses simple air defrost. The condensate pan maintains itself with no external drain line or electric heater, auto-reverse condenser fans support compressor ventilation and coil cleaning, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.

Three Solid Stainless Steel Doors with Self-Closing Torsion Hinges and Pre-Installed Locks

Each 24 1/4 inch door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, so a grab at any one station never vents the rest of the face, and the freezer keeps its own door entirely. All three doors self-close through adjustable torsion systems for a positive seal, carry high strength recessed handles that will not catch passing carts, and come with pre-installed locks so stock stays put overnight. Frame heaters prevent exterior moisture build up on humid days, the snap-in magnetic gaskets pop out for cleaning or replacement without tools, and the doors are field reversible if your traffic flow runs the other way.

46 Cu. Ft. Refrigerator Beside a 22 Cu. Ft. Freezer Split by an Insulated Interior Wall

An insulated interior wall divides the cabinet into two sealed sections, 46 cubic feet of open two door chilled storage on the left and a 22 cubic foot freezer on the right, so neither zone fights the other's temperature. Both sections run deeper than Everest's top mount uprights, swallowing bulky boxed product and full-size baking sheet pans without diagonal stacking, and optional sheet pan mounting rack assemblies add bottom-support tray slides sized for each section. Nine epoxy coated steel wire shelves, three per door, ride height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, 2.5 inch high density polyurethane insulation fills the walls, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on six 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.

Independent Digital Controls that Hold 33°F to 54°F Chilled and -10°F to 54°F Frozen

Each section runs its own multi-function digital controller with an easy to read LED display: the refrigerator ships preset at 35°F and adjusts from 33°F to 54°F, while the freezer ships preset at -4°F and adjusts from -10°F to 54°F. An audible overheat alarm watches the compressors and condenser coils and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock configuration does not match your line, Everest offers additional shelving, sheet pan mounting rack assemblies for both sections, a left hinged door, 3 inch locking swivel casters in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind the 46 and 22 split is fixed by the insulated wall and leans two thirds chilled, so kitchens that store equal volume at both temperatures are better matched by the half and half two door dual temps in the same bottom mount line, while operations that barely touch frozen stock get more from a straight three door refrigerator. It also runs taller than a top mount upright, standing 82 inches on its casters. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
