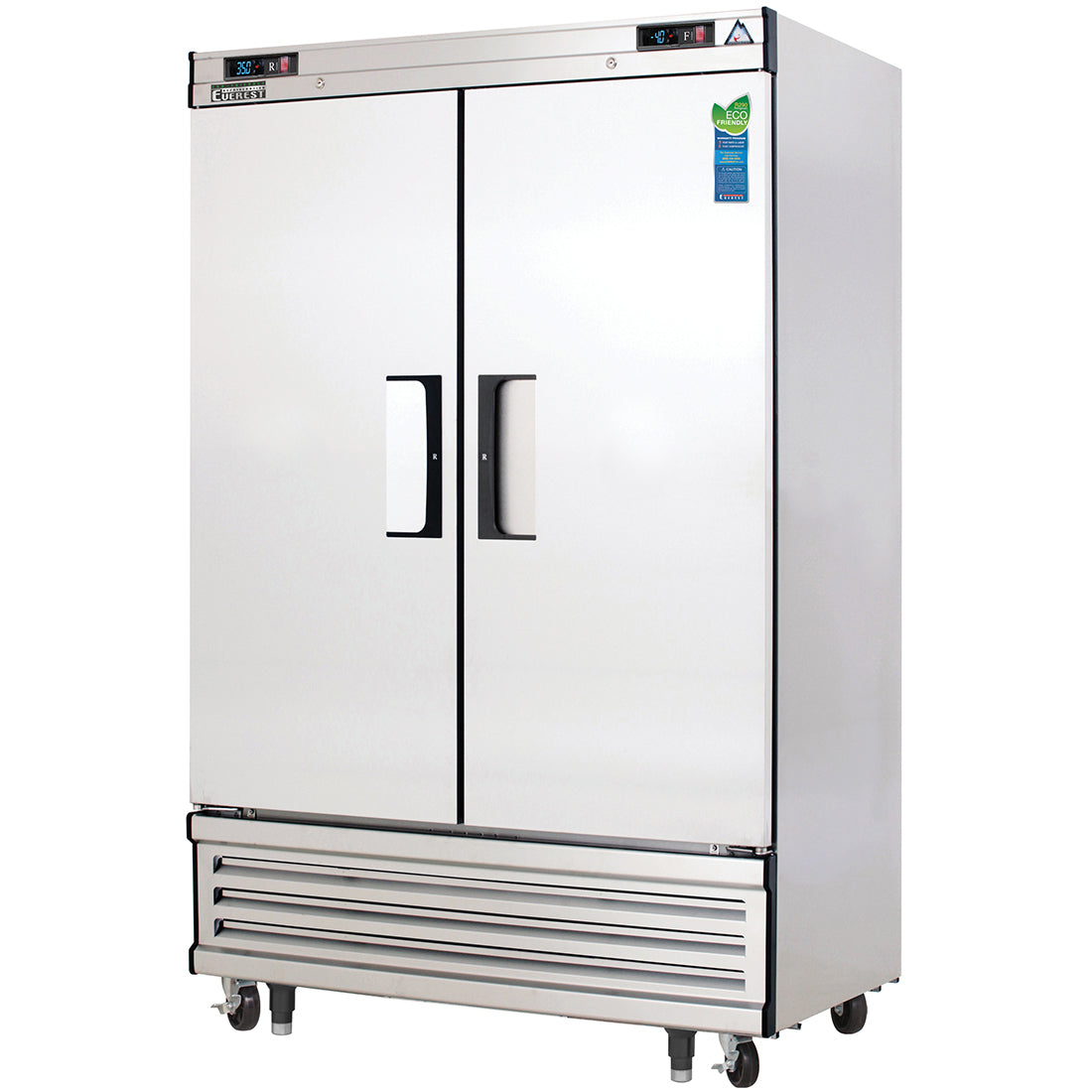

Everest EBSRF2 50 In. Bottom Mount Reach-In Dual Temp Refrigerator Freezer, 2 Solid Doors, 22 + 22 Cu. Ft., Twin Blizzard R290 Cartridges

The Everest EBSRF2 puts a full refrigerator and a full freezer side by side in one 49 5/8 inch bottom mount upright, the dual temp option in Everest's EB Series for kitchens that need serious volume at both temperatures without buying, powering and servicing two separate boxes. Behind the left door sits a 22 cubic foot refrigerator section, behind the right a 22 cubic foot freezer, each on its own cooling cartridge and its own control, and with the condensing units mounted below the cabinet the EBSRF2 runs the EB line's deeper 33 1/8 inch body that swallows bulky product and full-size baking sheet pans.

Bottom Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

Each zone runs its own bottom mounted, self-contained Blizzard R290 cartridge that is fully retractable and replaceable in the field with no on-site brazing, so a failed system is swapped the same visit instead of opening the sealed circuit while the cabinet sits idle. The pairing is matched to the work: a 1/4+ HP cartridge rated at 1,672 BTU per hour holds the chilled side while a 1/2 HP cartridge rated at 3,435 BTU per hour drives the freezer, and because each compartment has its own cartridge, a fault on one side never takes down the other. An air circulation guard keeps the floor-level vents from being blocked during a busy shift.

Electronically commutated fan motors pull both compartments to temperature quickly while drawing less power, and each zone defrosts the way its temperature demands: the freezer runs a time-initiated, temperature-terminated heater cycle while the refrigerator uses simple air defrost. The condensate pan maintains itself with no external drain line or electric heater, auto-reverse condenser fans support compressor ventilation and coil cleaning, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.

Two Solid Stainless Steel Doors with Self-Closing Torsion Hinges and Pre-Installed Locks

Each 24 1/4 inch door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, so a grab from the refrigerator never vents the freezer beside it. Both doors self-close through adjustable torsion systems for a positive seal, carry high strength recessed handles that will not catch passing carts, and come with pre-installed locks so stock stays put overnight. Frame heaters prevent exterior moisture build up on humid days, the snap-in magnetic gaskets pop out for cleaning or replacement without tools, and the doors are field reversible if your traffic flow runs the other way.

22 Cu. Ft. Refrigerator Beside a 22 Cu. Ft. Freezer Split by an Insulated Interior Wall

An insulated interior wall divides the cabinet into two sealed full-height sections, 22 cubic feet chilled on the left and 22 cubic feet frozen on the right, so neither zone fights the other's temperature. Both sections run deeper than Everest's top mount uprights, swallowing bulky boxed product and full-size baking sheet pans without diagonal stacking, and the optional sheet pan mounting rack assembly adds bottom-support tray slides for standard full-size pans. Six epoxy coated steel wire shelves, three per section, ride height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, 2.5 inch high density polyurethane insulation fills the walls, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.

Independent Digital Controls that Hold 33°F to 54°F Chilled and -10°F to 54°F Frozen

Each section runs its own multi-function digital controller with an easy to read LED display: the refrigerator ships preset at 35°F and adjusts from 33°F to 54°F, while the freezer ships preset at -4°F and adjusts from -10°F to 54°F. An audible overheat alarm watches the compressors and condenser coils and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock configuration does not match your line, Everest offers additional shelving, the sheet pan mounting rack assembly, a left hinged door, 3 inch locking swivel casters in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind the even 22 and 22 split is fixed by the insulated wall, so an operation that leans heavily toward one temperature may be better served by a straight refrigerator or freezer in the same bottom mount line, while the three door dual temp flagship gives chilled storage twice the room. It also runs taller than a top mount upright, standing 82 inches on its casters. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
